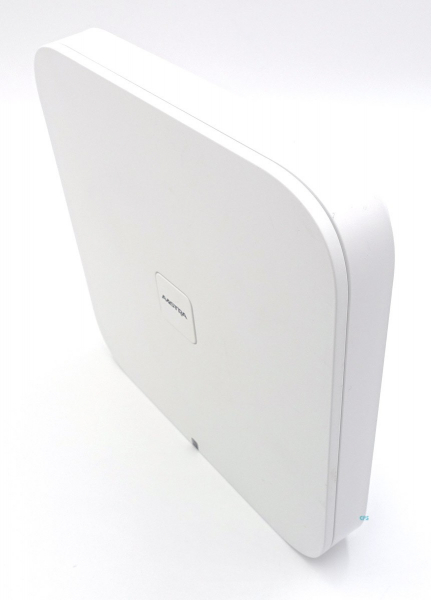

AASTRA DECT Base Station BS332, DB1-B3/1A 80E00014AAA-A Refurbished
Refurbished
Manufacturer Part Number: 80E00014AAA-A, DB1-B3/1A

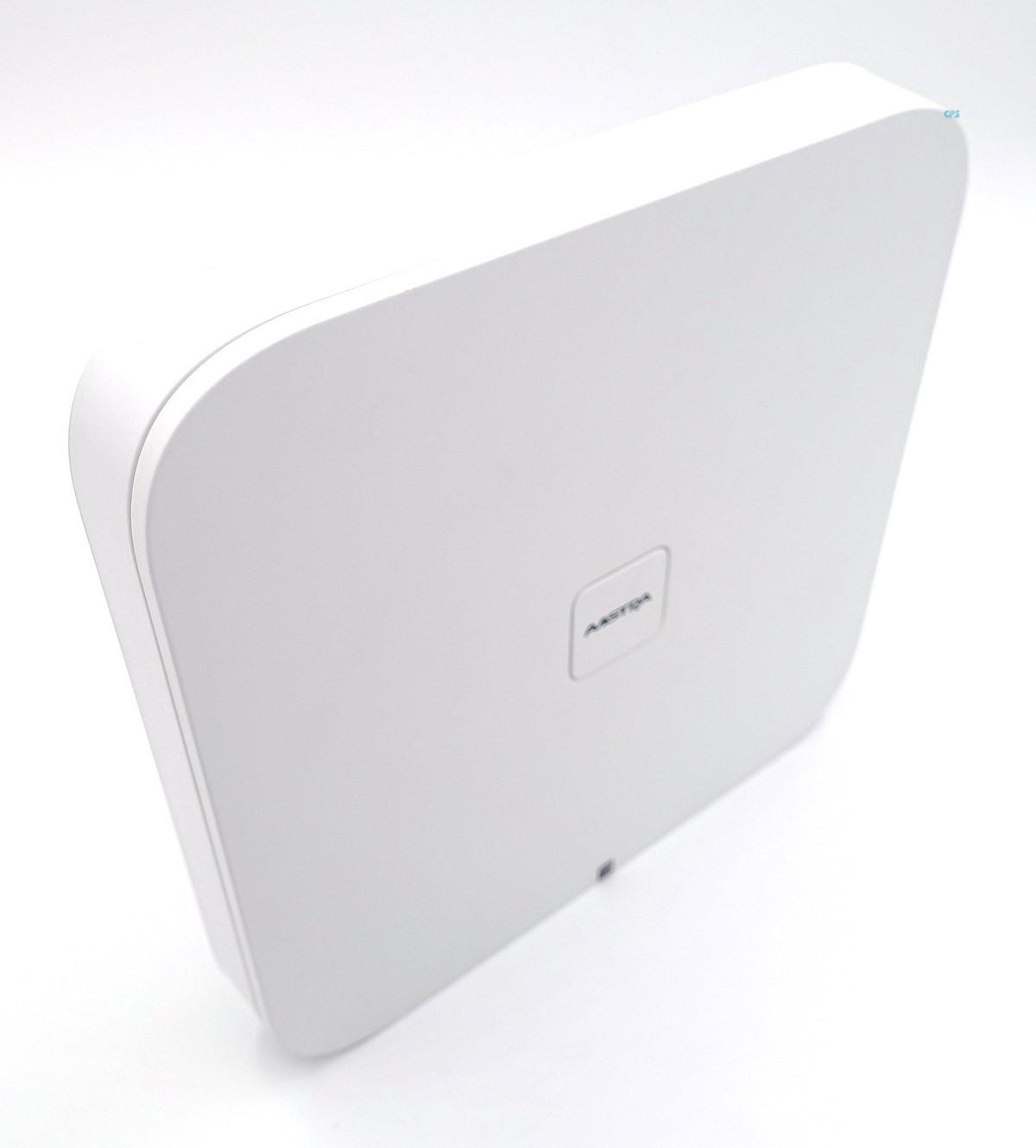

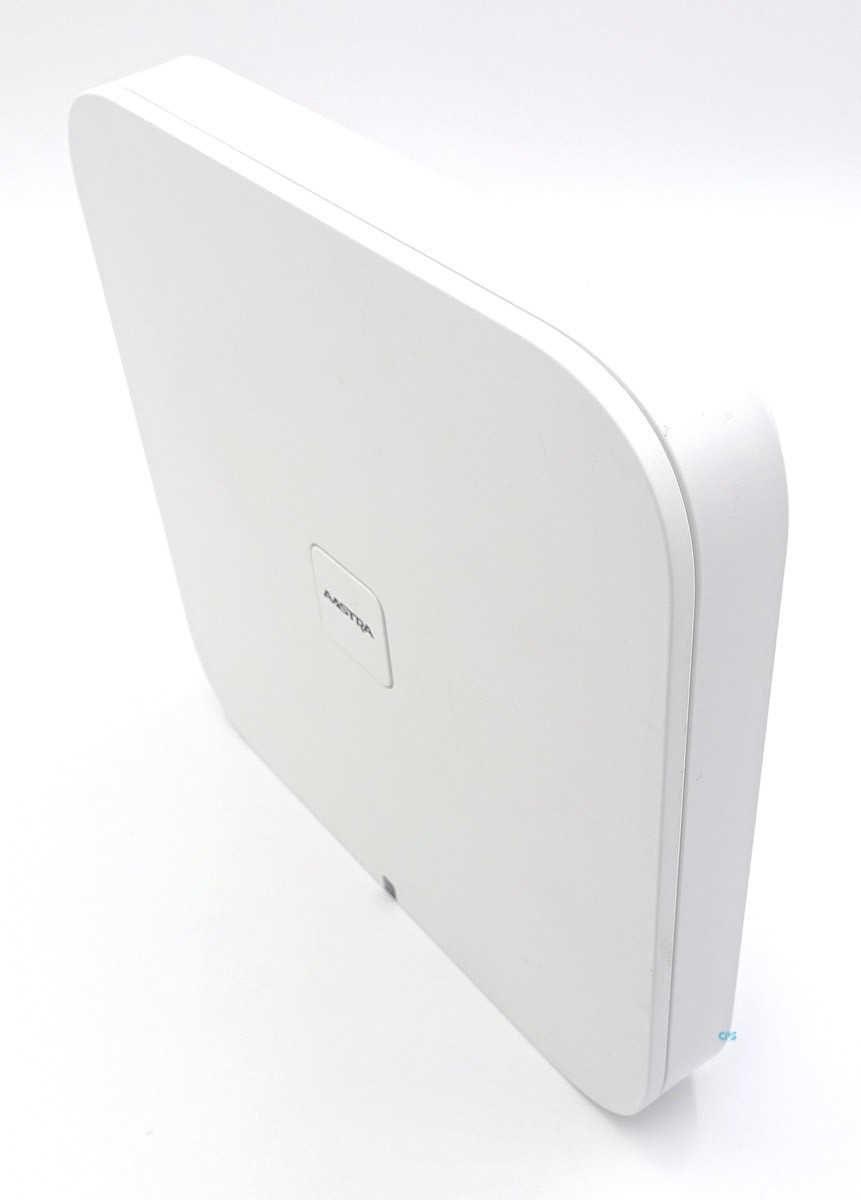

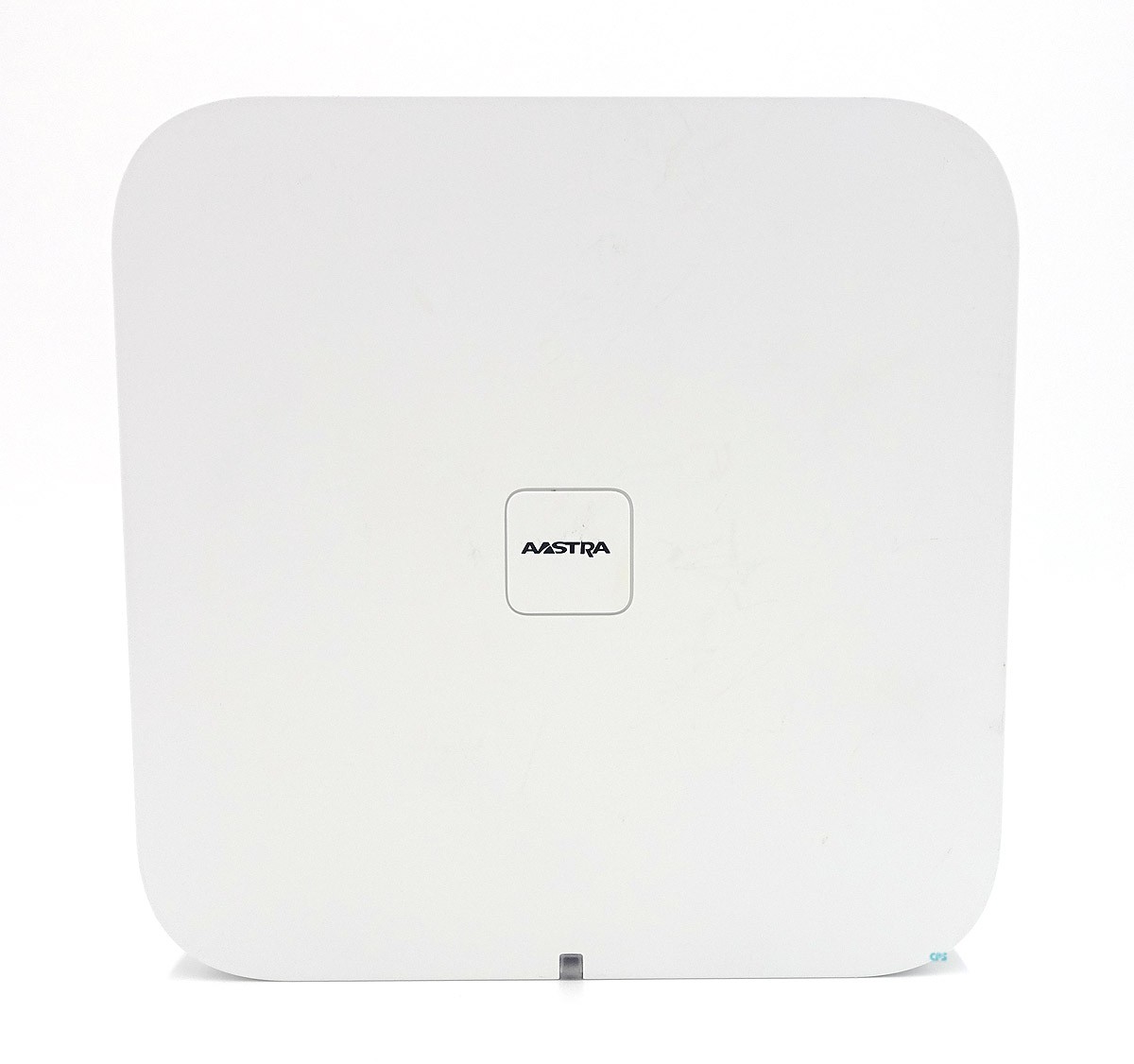

AASTRA DECT Base Station BS332
The AASTRA (Mitel) BS332 is a TDM-DECT base station introduced by AASTRA/Mitel as an energy-efficient or region-specific variant of the BS330 series. It utilizes the proven TDM-DECT technology and is designed for indoor coverage and seamless integration into AASTRA/Mitel PBXs and DECT controllers.
Main Features and Benefits
- Energy Efficient: The significantly reduced current draw (Max. 100 mA) distinguishes it from the standard BS330/BS340.
- System Integration: The base station is optimized for operation with AASTRA/Mitel DECT controllers and gateways.
- DECT Coverage Foundation: Provides the essential radio link with integrated antennas.
- DECT Standard Compliance: Guarantees seamless roaming and handover.
- High Channel Capacity: Supports up to eight simultaneous voice channels (DECT time slots) per base station.
- Integrated Power Supply: Power is supplied via the UPN interface.
Range and Design
- Indoor Range (typical): 30 to 50 meters in enclosed spaces (depending on building materials).
- Outdoor Range (maximum): Up to 300 meters under optimal, line-of-sight conditions.
- Design: The base station is compact and lightweight ( similar to the BS330) and designed for easy installation on flat or rounded surfaces.
Technical Specifications (Detailed)
- Model: BS332

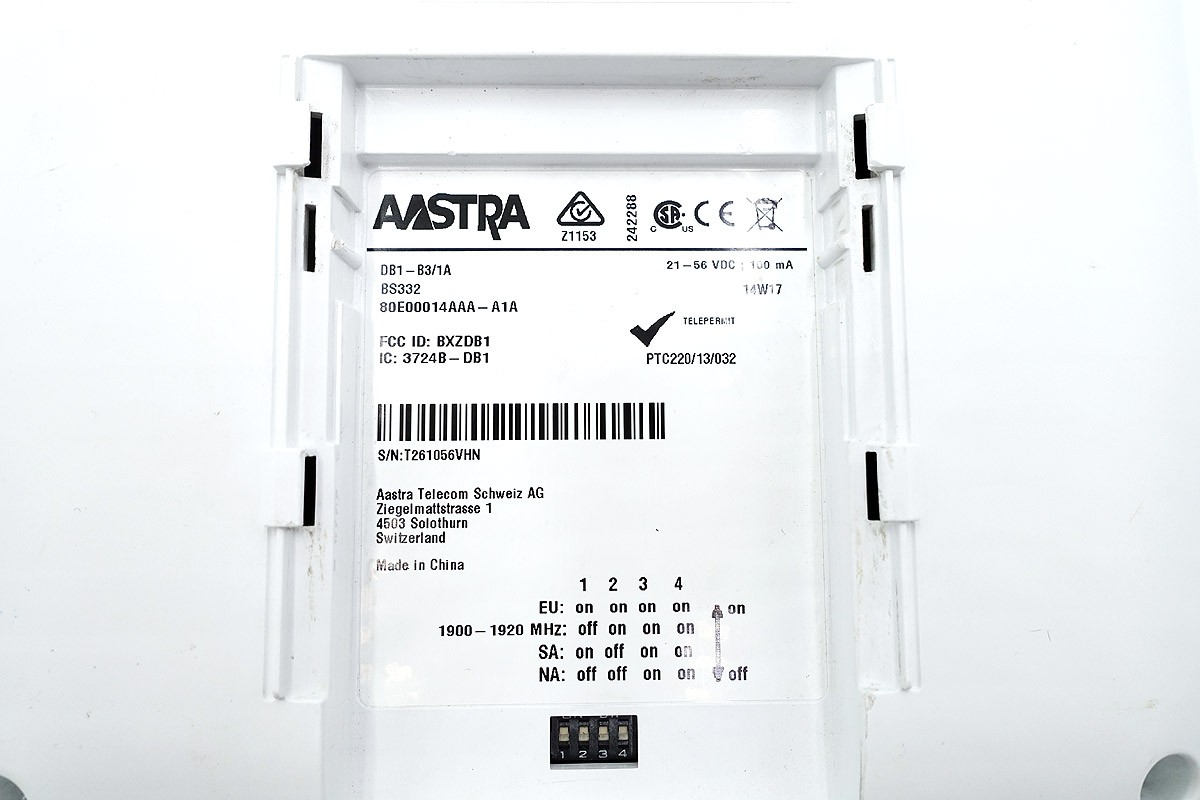

- Manufacturer Part Number/Type: 80E00014AAA-A / DB1-B3/1A (AASTRA designation).
- Dimensions (H x W x D): 150 x 150 x 50 mm (approximate).
- Weight: Approx. 470 grams (net).
- Operating Voltage: Wide range from 21 VDC to 56 VDC (power supplied via the UPN interface).
- Max. Current Draw: 100 mA.
- Power Consumption: Significantly reduced, approx. 1.5 W to 2.5 W (depending on the operating voltage).
- RF Output Power: Typically 10 mW (average power, compliant with the DECT standard).
- Operating Temperature: -5 °C to +45 °C.
Technical Features (Summary)
- System Type: TDM DECT Base Station (Indoor version, Low-Power Variant).

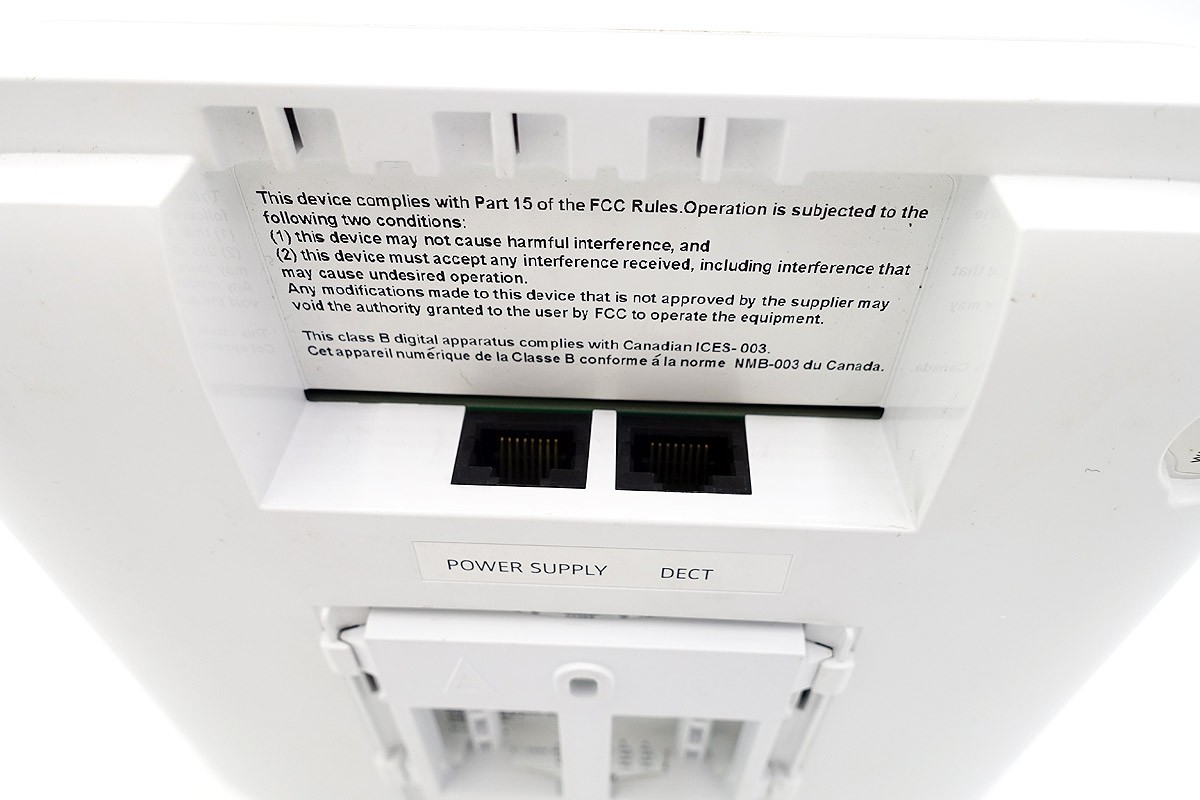

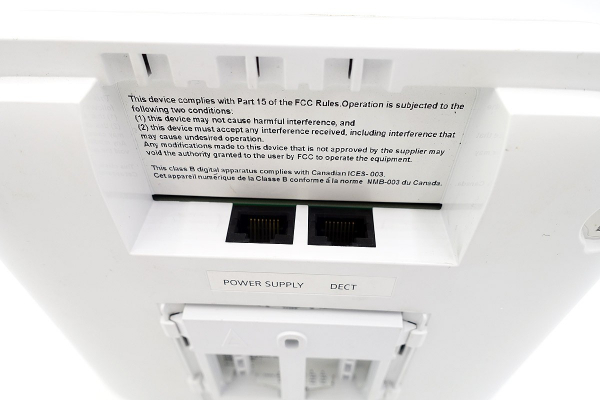

- Connection Type: UPN (Universal Participant Numbering), typically via RJ45 connector.
- Max. Channels: 8 simultaneous voice channels per base station.
- Antennas: Integrated antennas.
- Operating Frequency: Standard DECT frequency bands (e.g., 1880–1900 MHz in the EU).
- Power Supply: Directly from the DECT controller/gateway via UPN.
Important Compatibility Note & Mixed Operation
- The BS332 is fully compatible with the other models of the TDM DECT platform. Mixed operation of Ascom, Ericsson, and AASTRA BS330/BS340/BS370/BS332 TDM-DECT base stations in a single radio system is possible and common.
- Central Control: The DECT Gateway or Controller (e.g., AASTRA/Mitel Controller) must support all manufacturer IDs and model variants in its firmware to ensure roaming and handover.
- For connection to modern VoIP/IP telephone systems, the use of a DECT Gateway (e.g., a Mitel OMM) is mandatory. This gateway converts the UPN signal into the IP protocol.

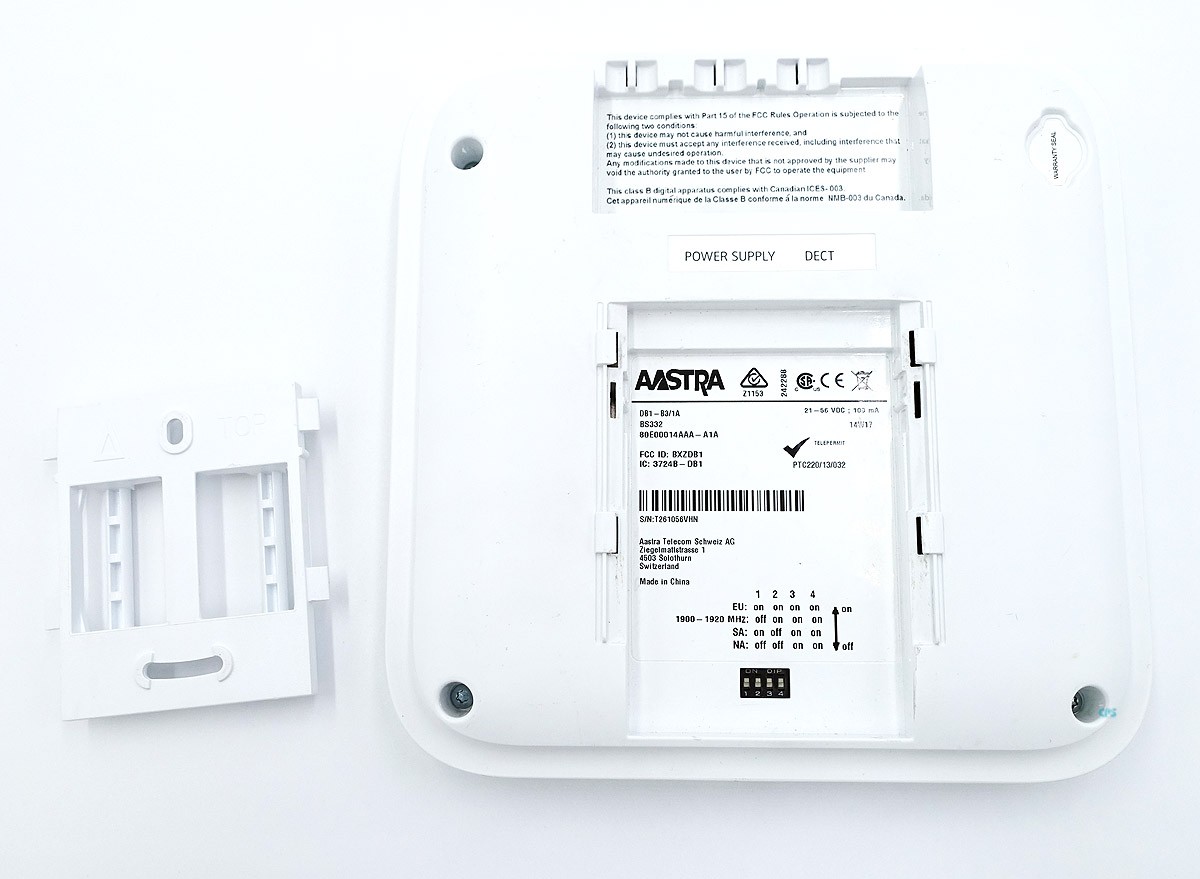

Scope of delivery: AASTRA DECT base station BS332 with wall mount
