J&R JR315-SC-4G Emergency Video Help Point, 2 Button, stainless steel
NEW Item
Manufacturer Part Number: JR315-SC-4G

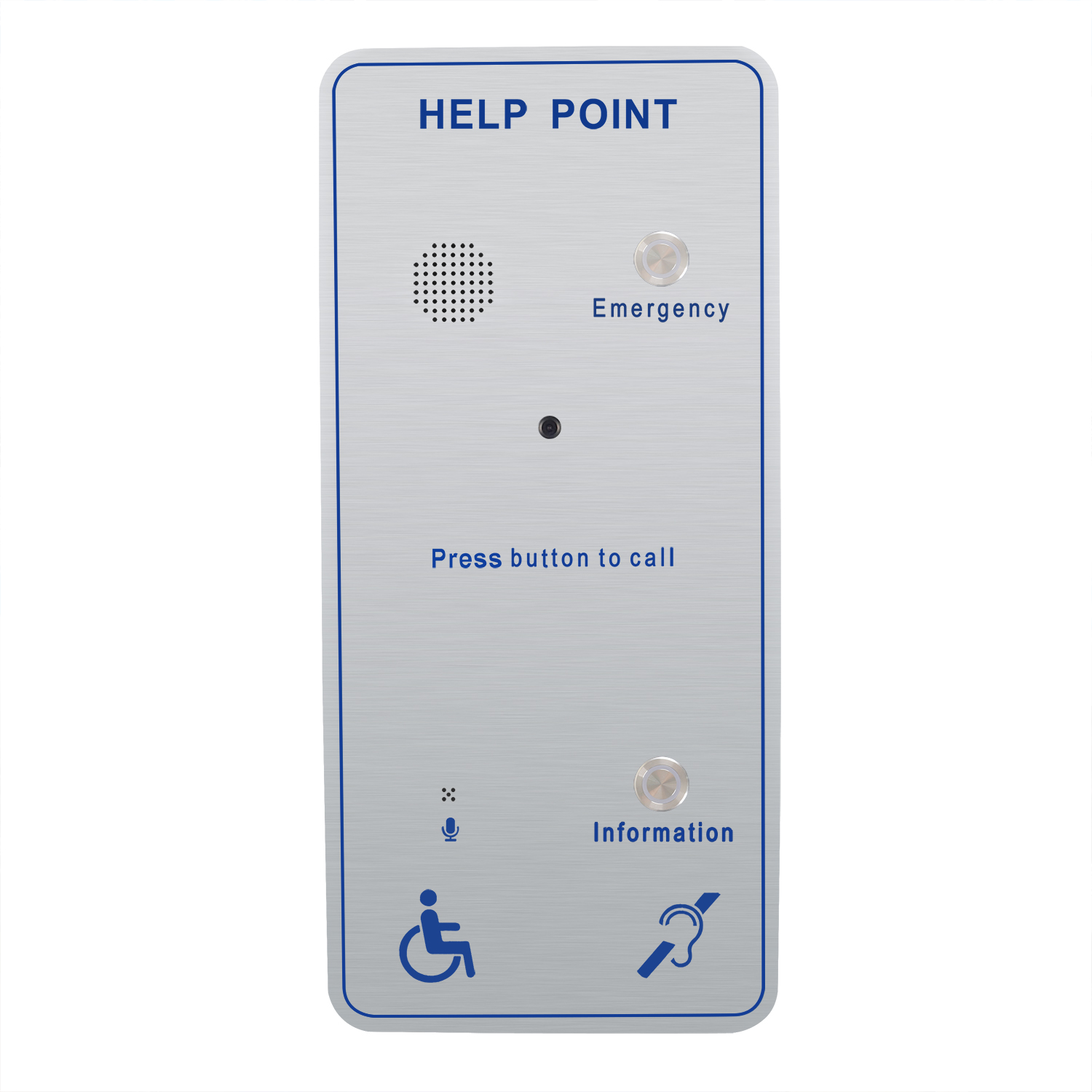

Emergency Video Help Point, Brushed stainless steel body, 2 Buttons, with built-in induction loop, Unit size: 300*60*650(mm)
Housed in a weatherproof, SUS enclosure, wall-mounting or Pillar mounting
Robust and Vandal-Resistant 4G Telephone with Camera
- Standard 4G phone
- External antenna with long cable
- Robust housing, made of stainless steel
- Vandal-resistant single button, programmable for speed dial
- With camera
- Hands-free operation
- Wall-mounted or pillar-mounted, simple installation
- Weatherproof protection: IP55 (IP65 available on request)
- Power supply: 12V DC
- Tamper-proof screws: 4 included for mounting
- Compliance: CE, FCC, IK10, RoHS, ISO9001
This wireless hands-free telephone is specifically designed for environments prone to vandalism. It is housed in a stainless steel casing and manufactured to high standards, offering enhanced resistance to vandalism and ensuring that the primary communication function remains operational at all times.
The 4G connection enables wireless communication, providing a completely standalone telephone installation. By eliminating the need for cabling, the 4G phone significantly reduces installation costs. The quad-band 4G module ensures wireless coverage in most regions worldwide.
Installation is extremely easy: The cable entry is positioned at the back of the phone to prevent tampering or artificial damage.
Applications: Ideal for parking lots, elevators, hotels, doorways, railway/metro platforms, hospitals, police stations, ATMs, stadiums, and outdoor building areas.
4G Phone Specifications
- Power supply: AC adapter: 110–240V AC to DC 12V, 1.5A
- Module (depends on country and operator): EC25-E, EC25-J, EC25-A, EC25-AFX, EC25-MX, EC25-AU
- Remote programming: Auto-dial numbers and time-out settings can be programmed remotely
- Configuration: Programmable via SMS
- Remote monitoring: Health checks and fault reporting via SMS
4G Technical Specifications
- SIM card: Micro SIM (15 x 12 mm)
- Working frequency range: Depends on the module
- Adapter input: 9V–12V DC
- Power consumption: Idle current: 75 mA, Off-hook current: 160 mA
General Technical Specifications
- Casing material: Stainless steel
- Button material: Stainless steel button
- Microphone: Electret microphone
- Built-in speaker: 8 Ohm, 0.5 W
- Temperature ranges:
- Operating: -30 °C to +65 °C
- Storing: -40 °C to +75 °C
- Weather resistance: IP55 (IP65 available on request)
- Ringing tone: Shrill warble tone, 90 dBA @ 1 meter typical
- M.T.B.F.: Calculated mean time between failures: over 50,000 hours
Package Details
- Unit size: 650 x 300 x 60 mm
- Net weight: 10 kg
- Gross weight: 12 kg
