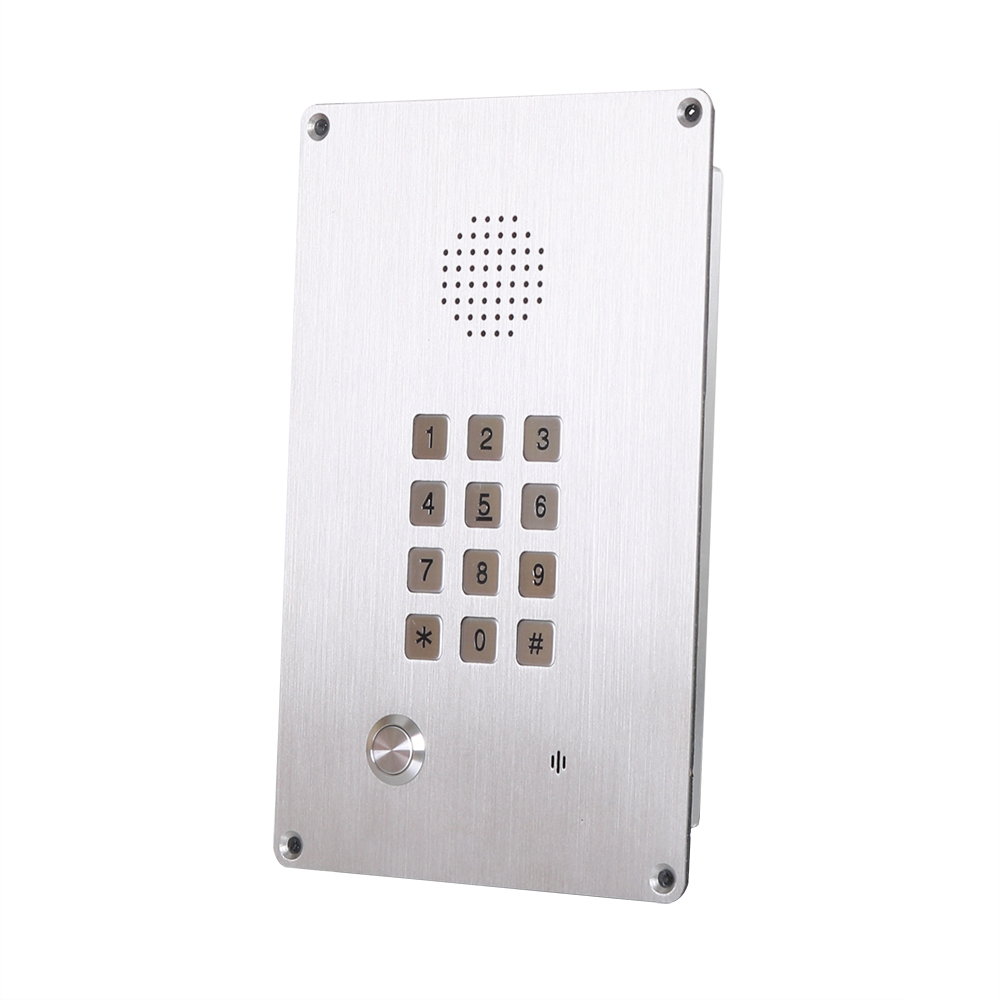

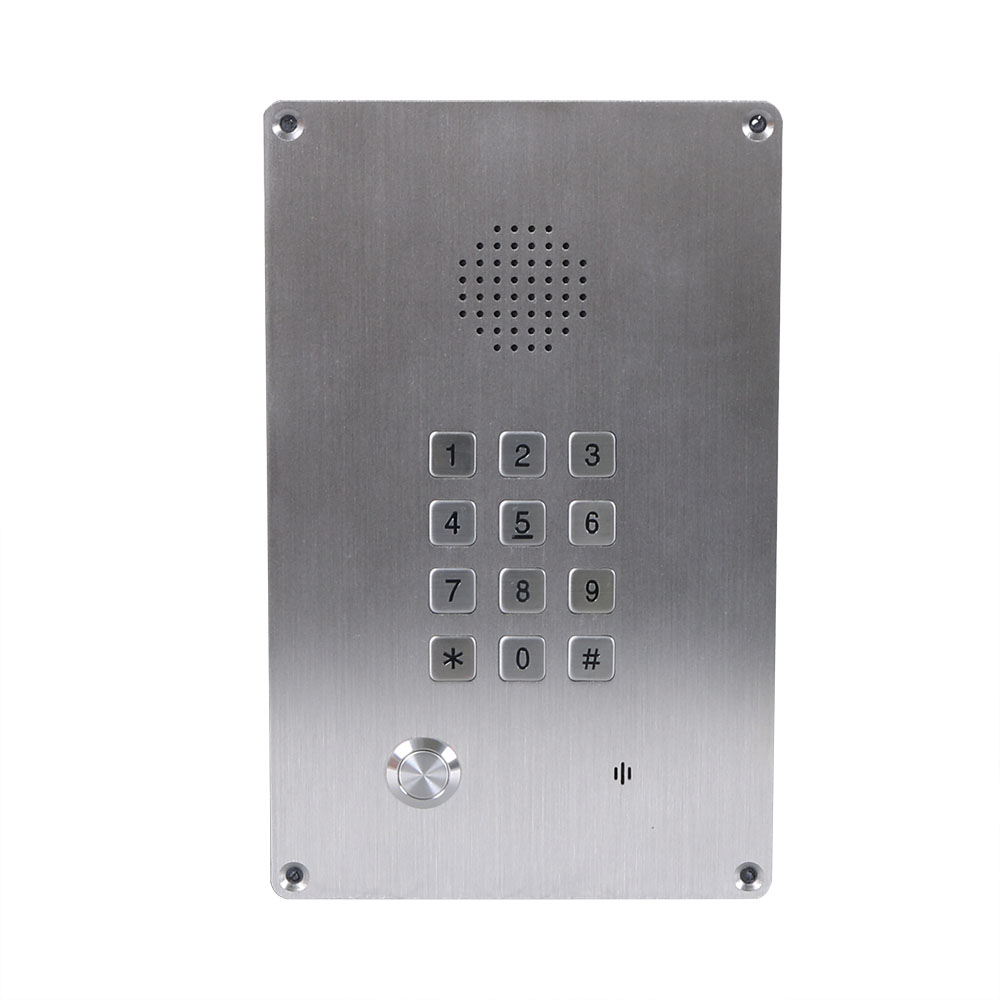

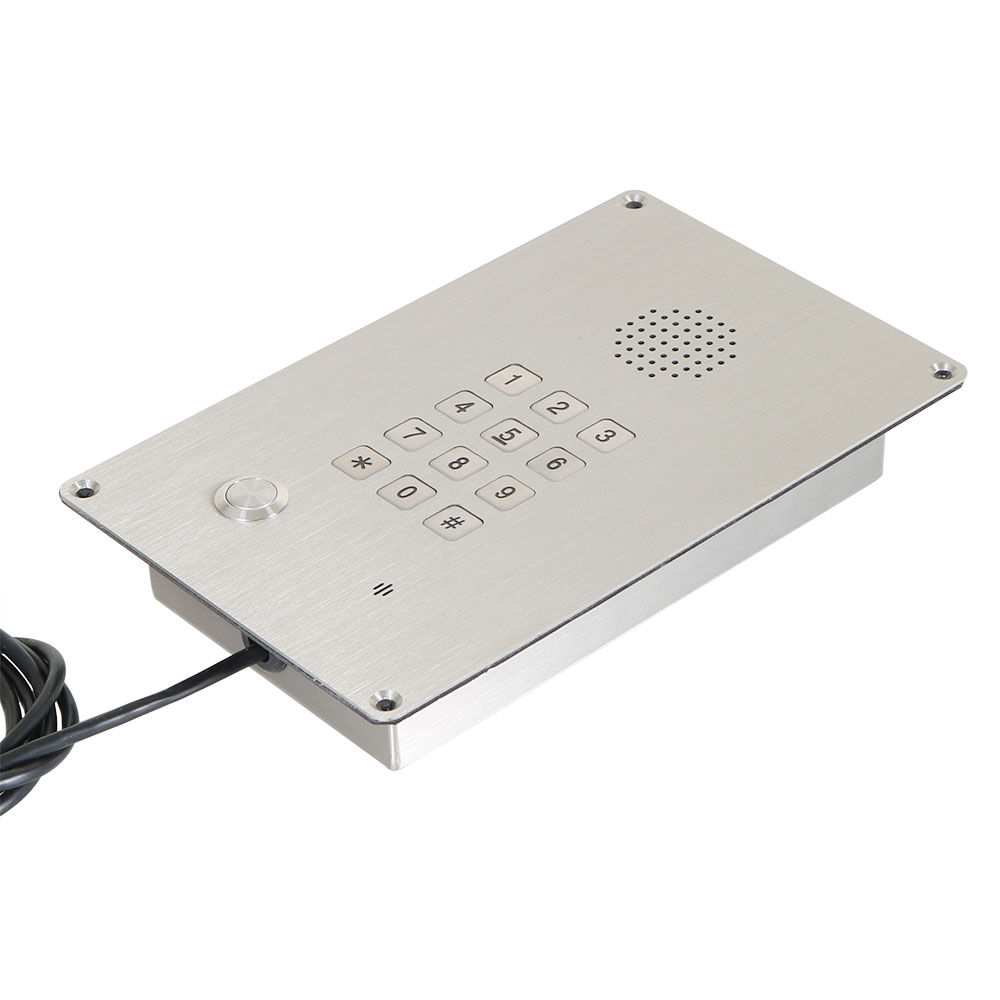

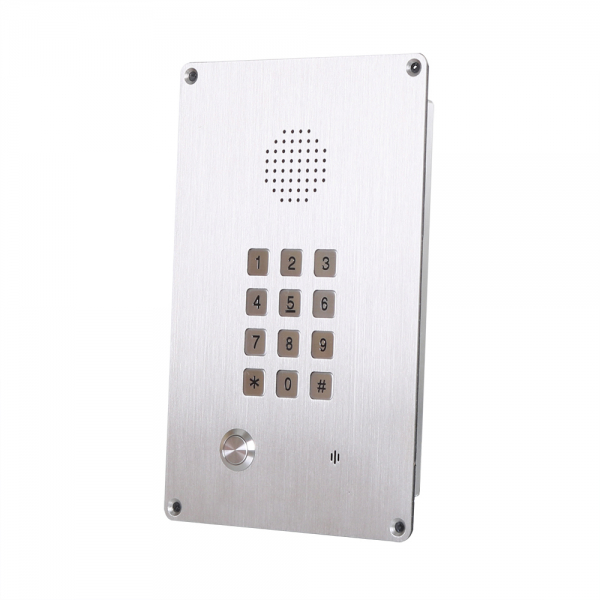

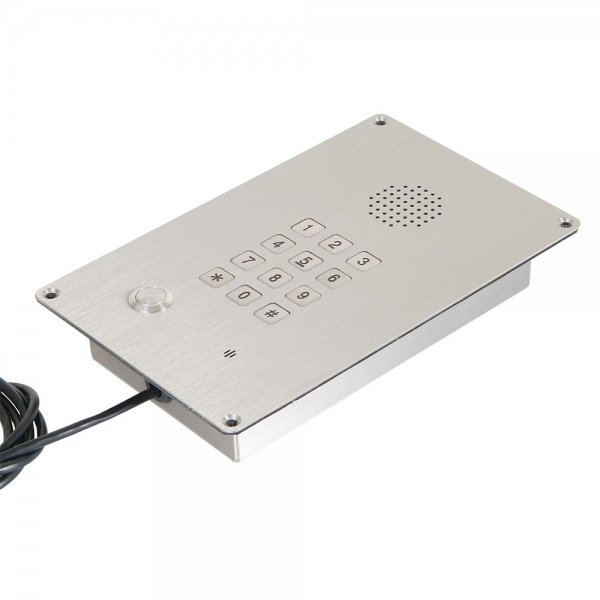

J&R JR309-FK-4G Emergency Telephone, Keypad, 1 Button, stainless steel

J&R JR309-FK-4G Emergency Telephone, Keypad, 1 Button, stainless steel

NEW Item
Manufacturer Part Number: JR309-FK-4G

J&R JR309-FK-4G Emergency Intercom, 4G Wireless, 12V DC Powered, Full Metal Keypad (12 Keys), 1 Emergency Button, 304 Stainless Steel Housing, Hands-Free, Flush Mount, IP55 (Optional IP65), IK10, SMS Remote Configuration, HD Voice, 2W Speaker

J&R Professional 4G Emergency Intercom Telephone – Vandal-Resistant SOS Call Station in 304 Stainless Steel, Full Metal Keypad, 1 Autodial Button, Hands-Free Operation, Flush Mounting, 12V DC, SMS Remote Configuration, IP55 (Optional IP65), IK10, 2W Speaker (Category: Emergency Telephones / Model: JR309-FK-4G)

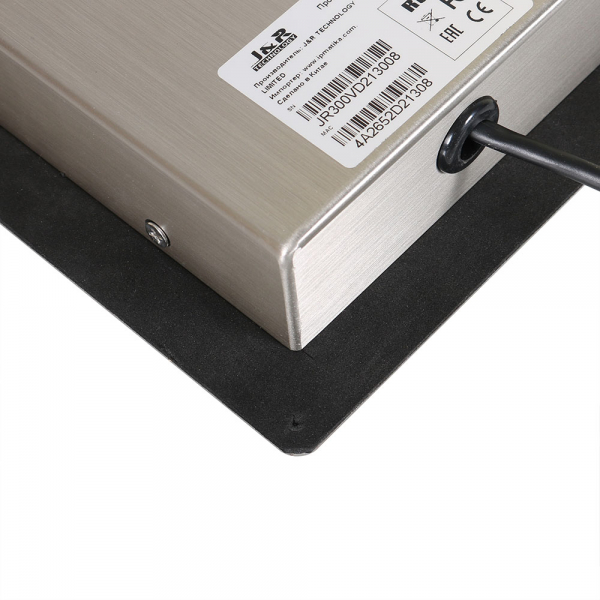

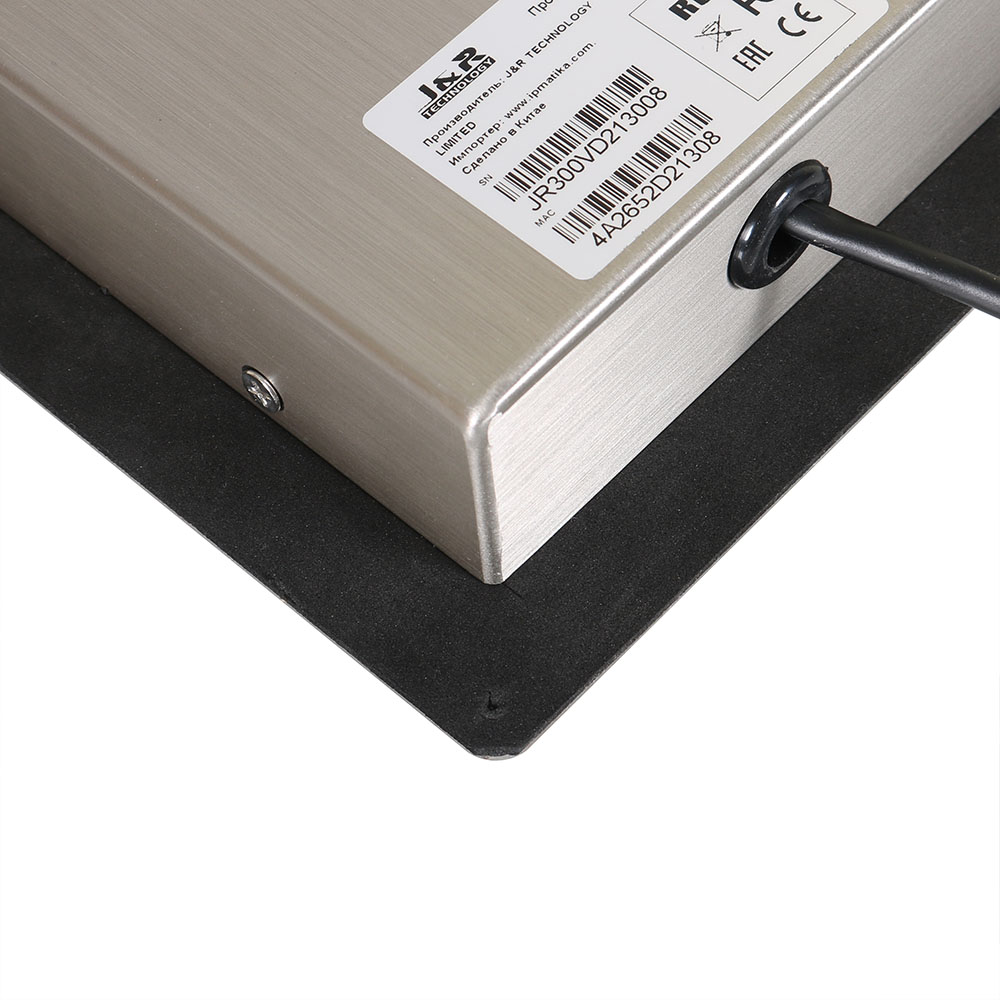

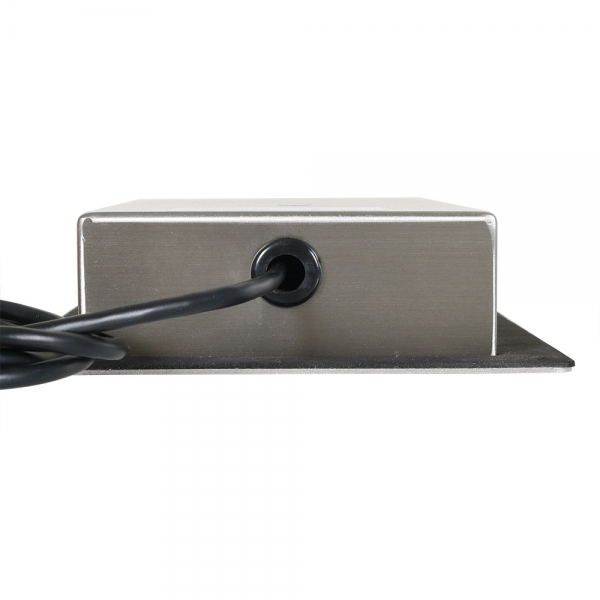

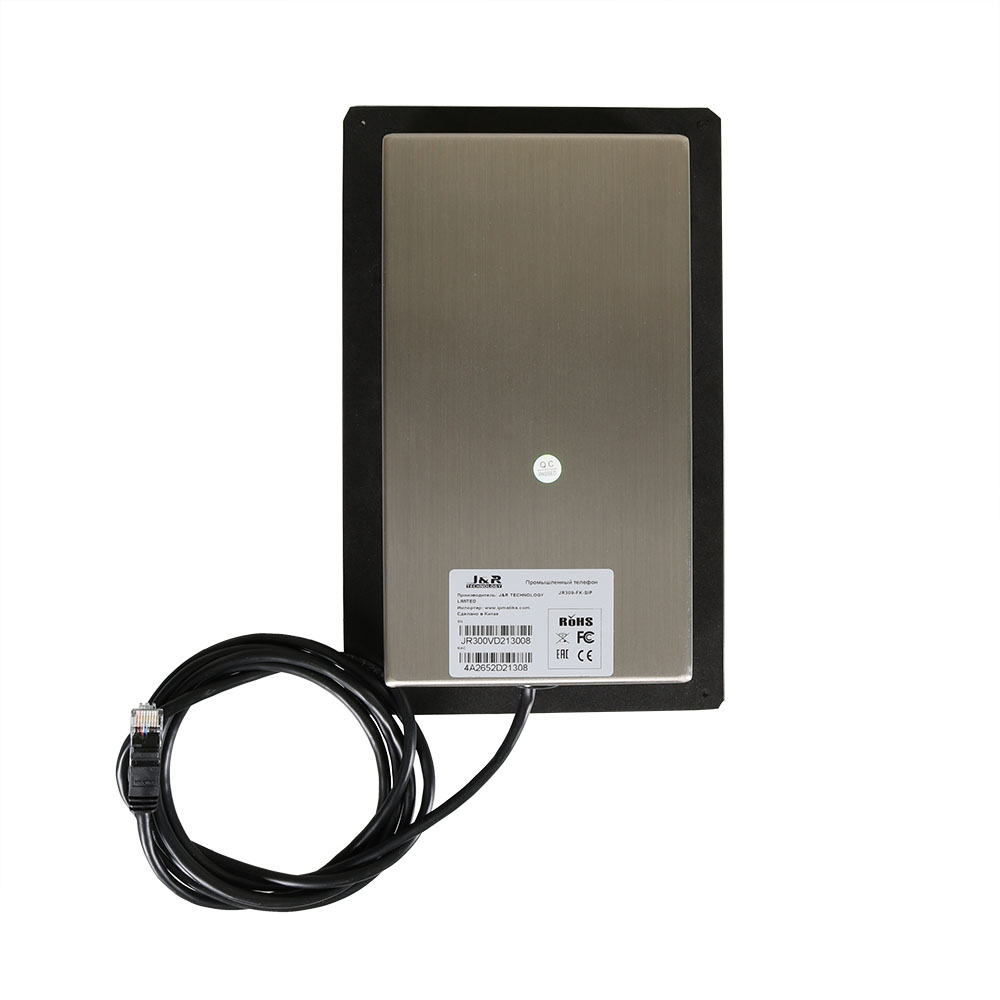

The J&R JR309-FK-4G is a high-durability, vandal-resistant cellular emergency telephone housed in a premium 304 stainless steel casing with a wire-drawing finish (SS316 stainless steel available upon request). Engineered for reliable 4G wireless voice communication, it operates on a 12V DC power supply and connects seamlessly via cellular networks. It is an ideal security solution for parking lots, elevators, hotels, doorways, railway platforms, subways, hospitals, ATMs, clean rooms, airports, and outdoor facilities. Designed for flush-mount installation, its robust body, tamper-resistant screws, and rear cable entry effectively prevent unauthorized access and physical damage.

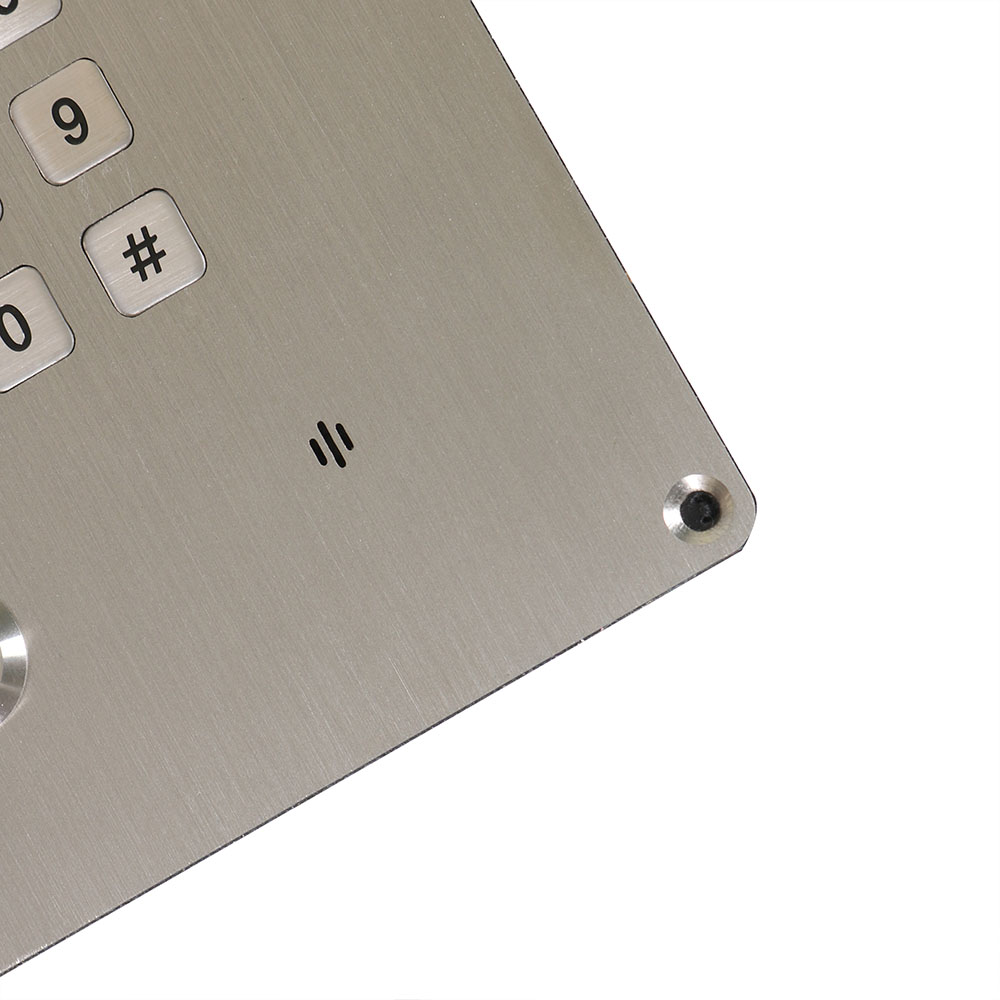

This call station combines a vandal-resistant metal push button for instant emergency autodial calls with a full 12-key metal keypad for manual dialing. System configuration, target numbers, and operational management can be performed remotely via SMS commands. Built for flush wall-mount installation, the unit carries an IP55 ingress protection rating (IP65 available upon request) and IK10 impact resistance. Equipped with a noise-canceling microphone featuring advanced noise reduction technology and a 2W built-in speaker, it guarantees crystal-clear HD voice quality. Key features also include diagnostic reporting via SMS (low battery, weak signal, volume levels), a fixed call maximum time-out (6–8 minutes), and an externally mounted quad-band SMA antenna with a 2-meter cable.

Key Features and Benefits

• 4G Cellular Connectivity: Wireless voice communication over 4G networks simply by inserting a standard SIM card.
• Remote SMS Management: Configure autodial numbers, settings, and system parameters remotely via SMS.
• Full Metal Keypad & Emergency Button: Heavy-duty 12-key keypad combined with a single metal autodial button for hands-free emergency calling.
• 304 Stainless Steel Housing: Brushed stainless steel front panel offering outstanding durability (SS316 available upon request).
• Flush Mount Installation: Designed for seamless, tamper-proof recessed mounting in walls or kiosks.
• Vandal & Corrosion Resistance: IK10 impact rating and salt-spray tested hardware to withstand humid and corrosive environments.
• SMS Diagnostic Functions: Remote status reporting for low battery voltage, weak signal strength, and volume settings via SMS.
• Call Time-Out Function: Configurable fixed call maximum time limit enforced at 6–8 minutes.
• HD Voice Quality: Advanced noise reduction microphone and high-output 2W internal speaker ensure clear two-way audio.
• IP55 / IK10 Protection: Standard IP55 protection (IP65 available upon request) combined with IK10 vandal resistance.

Technical Specifications

• Manufacturer: J&R Technology
• Product Name: JR309-FK-4G Emergency Intercom
• Part Number: JR309-FK-4G
• Phone Type: 4G Wireless Vandal-Resistant Hands-Free Emergency Telephone with Keypad (Flush Mount)
• Communication Mode: 4G Cellular
• Power Supply: 12V DC (Adapter input 7.4V to 12V DC)
• Power Consumption: Idle: 0.3W / Working: 1.5W
• 4G Module: Quectel EC25 Series (e.g., EC25-EU / EUX for EMEA)
• Supported Frequencies (EU): LTE-FDD B1/B3/B7/B8/B20/B28A; LTE-TDD B38/B40/B41; WCDMA B1/B8; GSM/EDGE B3/B8
• GNSS / GPS: GPS / GLONASS / BeiDou / Galileo / QZSS (optional)
• Configuration & Maintenance: Remote configuration via SMS, remote monitoring, autodial numbers
• Enclosure Material: 304 Stainless Steel body (SS316 available upon request)
• Keypad / Controls: 12-key full metal keypad + 1x vandal-resistant metal Push-to-Call button
• Speaker & Microphone: Built-in 2W loudspeaker, noise-canceling microphone with HD call tech
• Ringing Volume: 90 dB(A) @ 1 meter
• Antenna: Quad-band SMA male, externally mounted with 2 m cable
• Mounting: Flush wall-mounted design
• Ingress Protection: IP55 standard (IP65 available as an option upon request)
• Impact Rating: IK10
• M.T.B.F.: Exceeds 50,000 hours under normal operating conditions
• Operating Temperature: -40 °C to +65 °C (Storage: -40 °C to +75 °C)
• Unit Dimensions: 240 mm (Height) x 150 mm (Width) x 40 mm (Depth)
• Net Weight: 1.8 kg
• Certifications & Standards: CE, FCC, RoHS, IK10, IP65, ISO9001

Optional Accessories

• JR-LP-02: LED Beacon Light
• JR-HSA Series: External Broadcast Horn Speaker
• JR321-SC: Telephone Pillar

Package Contents

• 1x J&R JR309-FK-4G Stainless Steel Emergency Intercom
• 1x External Quad-Band SMA Antenna with 2m Cable
• 1x Mounting Hardware Kit (Flush Mount)
• 1x User Manual & Documentation

Packaging Information

• Shipping Dimensions: 250 x 180 x 80 mm
• Gross Weight: 3.0 kg
• Packaging Materials: Foam padding, carton
