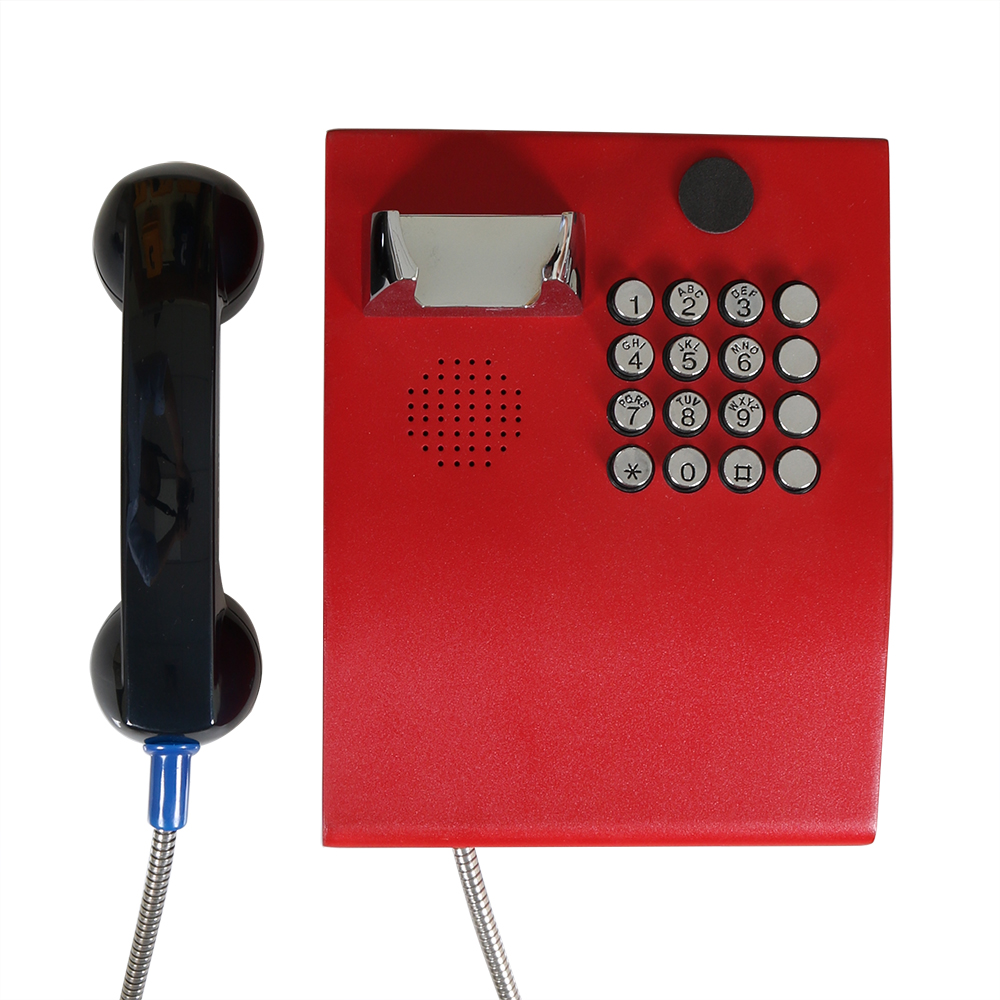

J&R JR207-FK-AL Anti-vandal Telephone, Keypad (16), Red

J&R JR207-FK-AL Anti-vandal Telephone, Keypad (16), Red

NEW Item
Manufacturer Part Number: JR207-FK-AL

J&R Professional Analog Vandal-Resistant Telephone – Robust Cold-Rolled Steel Housing, Red, Wall-Mounted, Full Metal Keypad (16 Keys), Telephone Line Powered, IP54, IK10, DTMF/PD (Category: Vandal Resistant Telephones / Model: JR207-FK-AL)

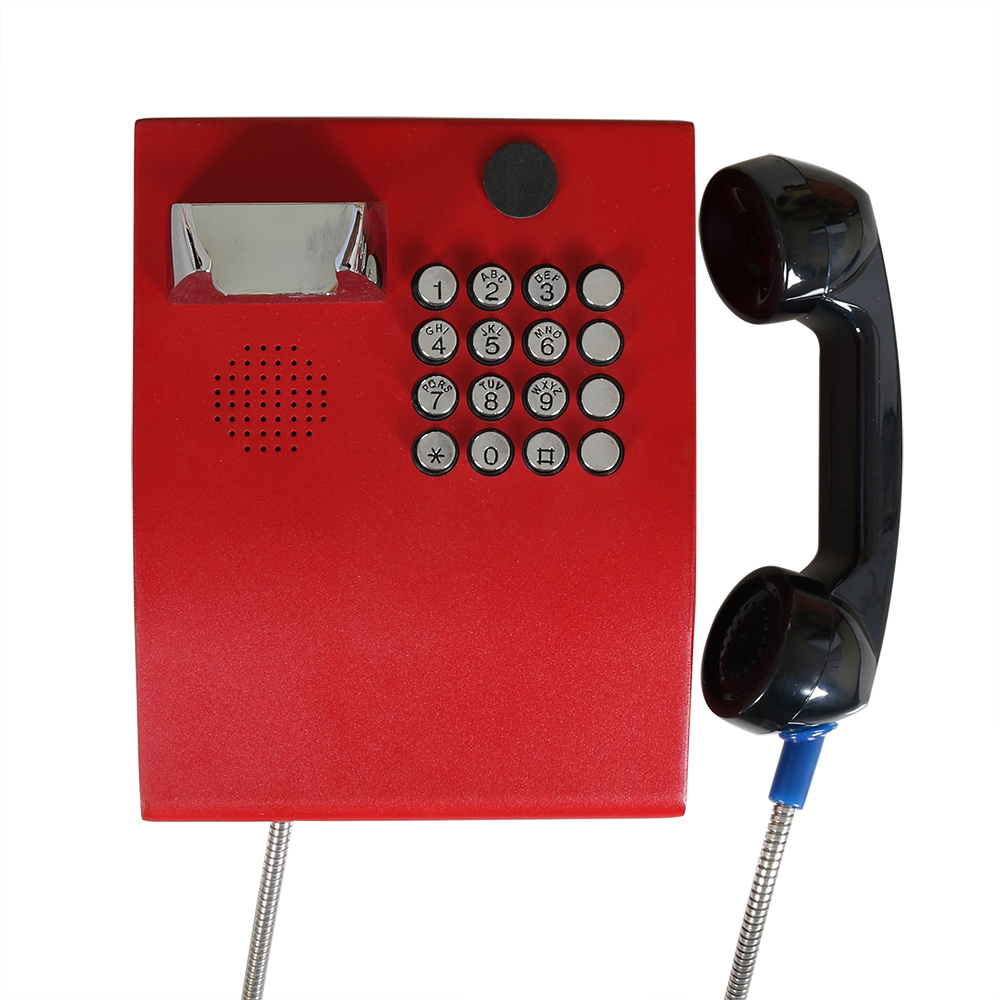

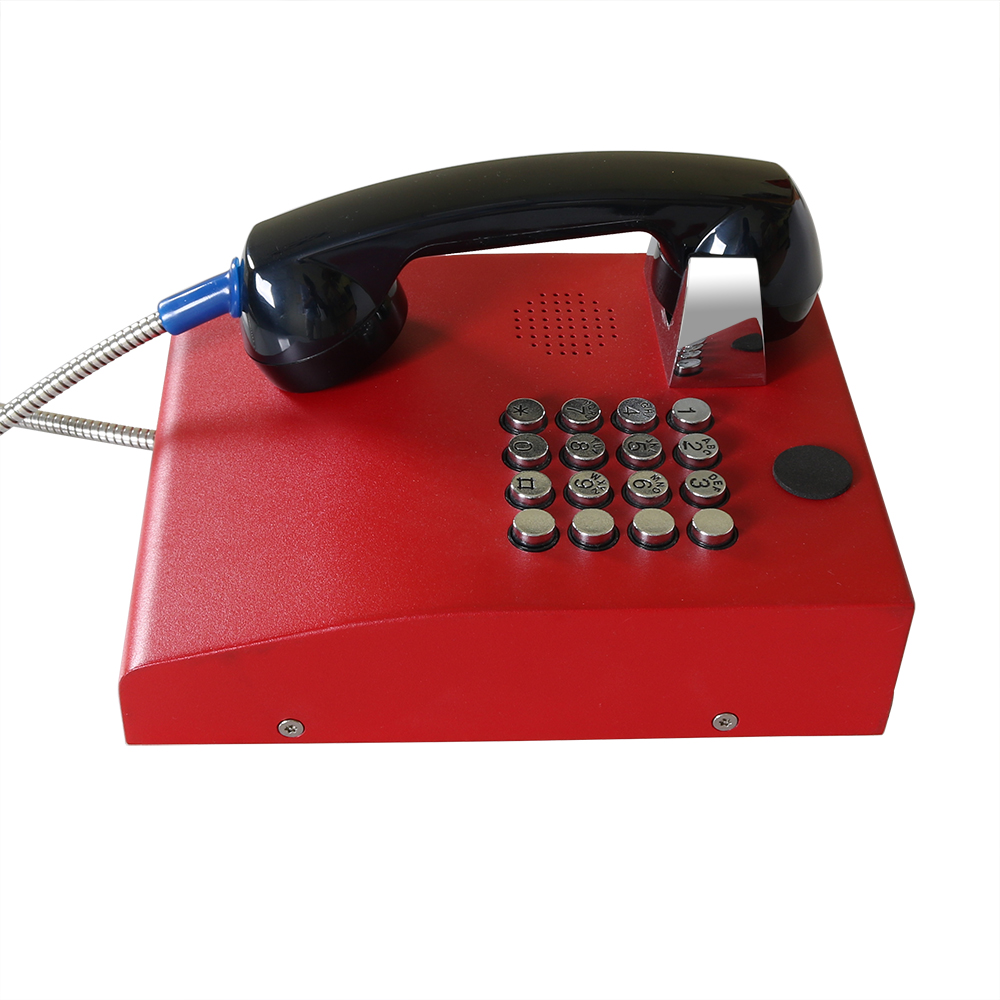

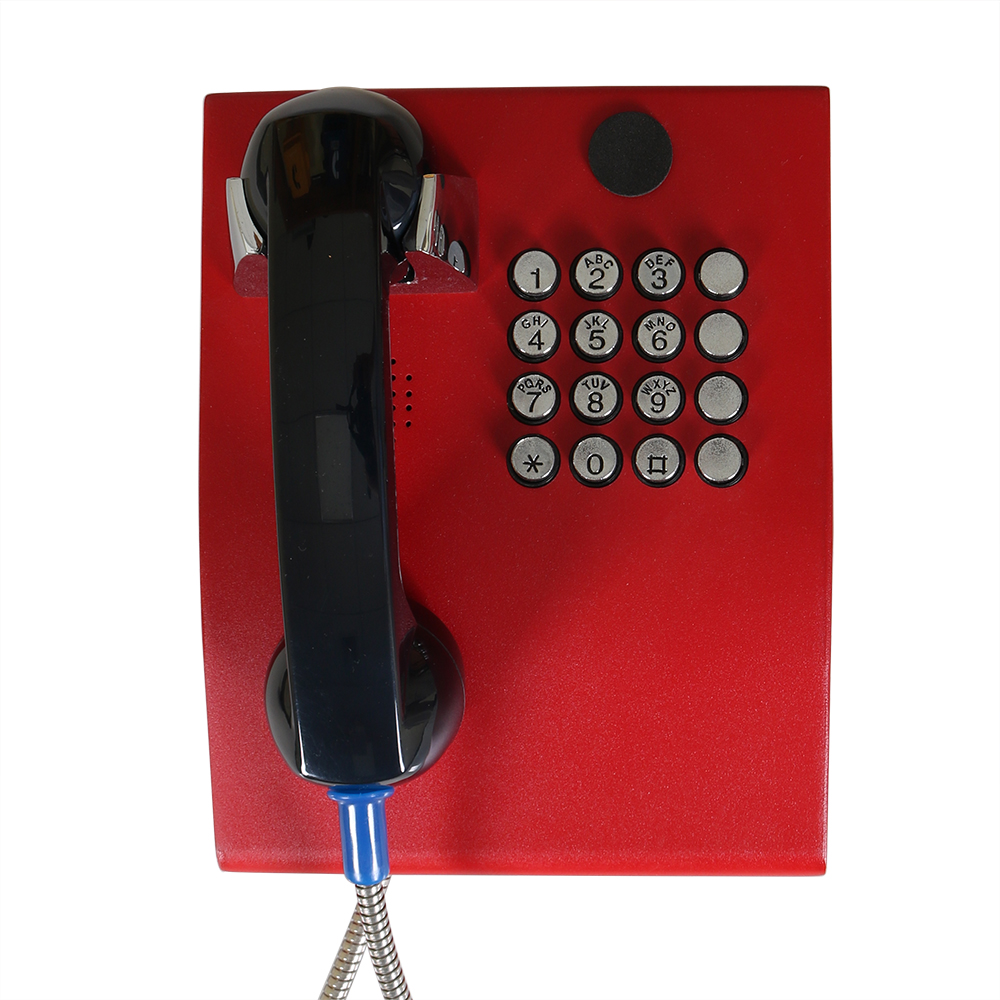

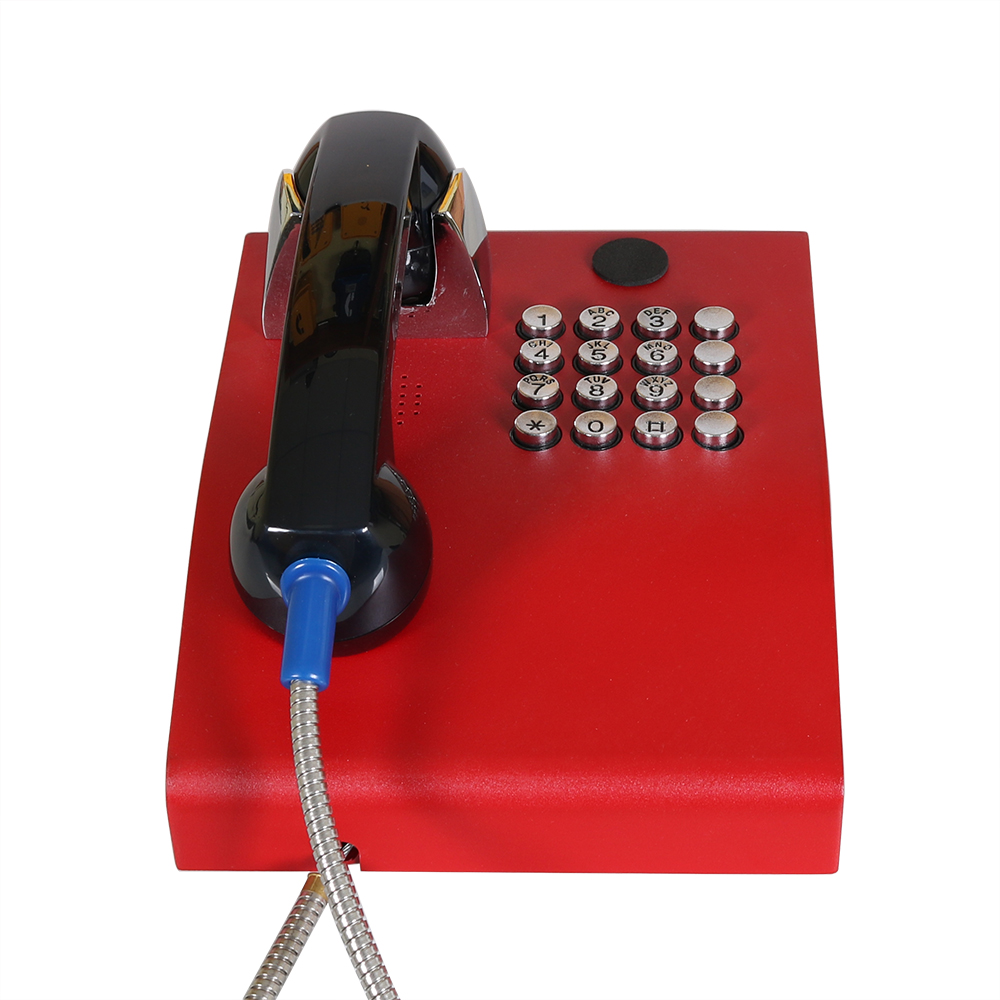

The J&R JR207-FK-AL is a high-durability, vandal-resistant analog landline telephone finished in high-visibility red, specifically engineered for critical communications in harsh and demanding public environments. Constructed from a corrosion-resistant cold-rolled steel housing, it provides maximum protection against physical abuse, vandalism, and extreme weather. Designed for simple wall mounting, the phone is fitted with an 83 cm armored handset cord built to withstand severe industrial use and wear. Rated at IP54 ingress protection and IK10 impact resistance, it is an ideal emergency and hotline solution for parking lots, prisons, airports, railway platforms, bus stations, metro stations, ATMs, hospitals, police stations, shopping malls, and stadiums.

As a traditional analog terminal, the JR207-FK-AL is powered directly from the telephone line, requiring no external power supply. It is fully compatible with all standard analog PABX systems and PSTN networks, and can easily connect to SIP-based IP environments via analog voice gateways. In addition to its 16-key full metal keypad, the device supports advanced management capabilities including DTMF remote programming, programmable auto hang-up timing, delayed auto-dialing upon handset off-hook, and scheduled self-test dialing. The ergonomic ABS handset features a noise-canceling microphone, clear HD voice quality with anti-whistling protection, and Hearing Aid Compatibility (HAC).

Key Features and Benefits

• Telephone Line Powered: Draws operating power directly from the analog phone line with no external power adapter required.
• Universal PABX & PSTN Compatibility: Seamlessly integrates with all standard analog telephone switches and voice gateways for IP conversion.
• DTMF Remote Programming: Allows full remote configuration of network settings and options via DTMF tones or locally via keypad.
• Full Metal 16-Key Keypad: Vandal-proof metal keypad with optional 4 speed-dial programmable button support.
• Programmable Auto Hang-up Timer: Prevents line tie-ups by automatically terminating calls after a pre-set duration.
• Scheduled Diagnostic Dialing: Supports automatic periodic calls to a central control phone to report system operational status.
• Integrated Control Relay: Features one built-in relay output for remote triggering of external hardware.
• High-Visibility Red Steel Enclosure: Durable cold-rolled steel body providing maximum physical resistance and clear visibility.
• IP54 & IK10 Certified: Protected against dust and splash water alongside IK10 vandal-proof impact protection.
• HD Call Quality & HAC: Advanced noise-reduction technology eliminates feedback whistling, paired with Hearing Aid Compatibility (HAC).
• 83 cm Armored Handset Cord: High resistance to heavy pulling, vandalism, and continuous industrial use.

Technical Specifications

• Manufacturer: J&R Technology
• Product Name: JR207-FK-AL Analog Vandal Resistant Telephone
• Part Number: JR207-FK-AL
• Housing Color: Red (other colors available upon special request)
• Phone Type: Vandal-resistant analog telephone with keypad
• Power Supply: Drawn directly from telephone line
• Operating Voltage: 24 VDC to 65 VDC
• Operating Current: 20 mA DC to 100 mA DC
• Ringer Voltage: 48 VAC to 90 VAC (calling frequency 21 to 54 Hz)
• Dialing Method: Pulse Dialing (PD) or DTMF mode (selectable; DTMF according to ITU-T Q.23)
• Lightning / Transient Protection: Tested to ITU-T K.21 enhanced protection levels

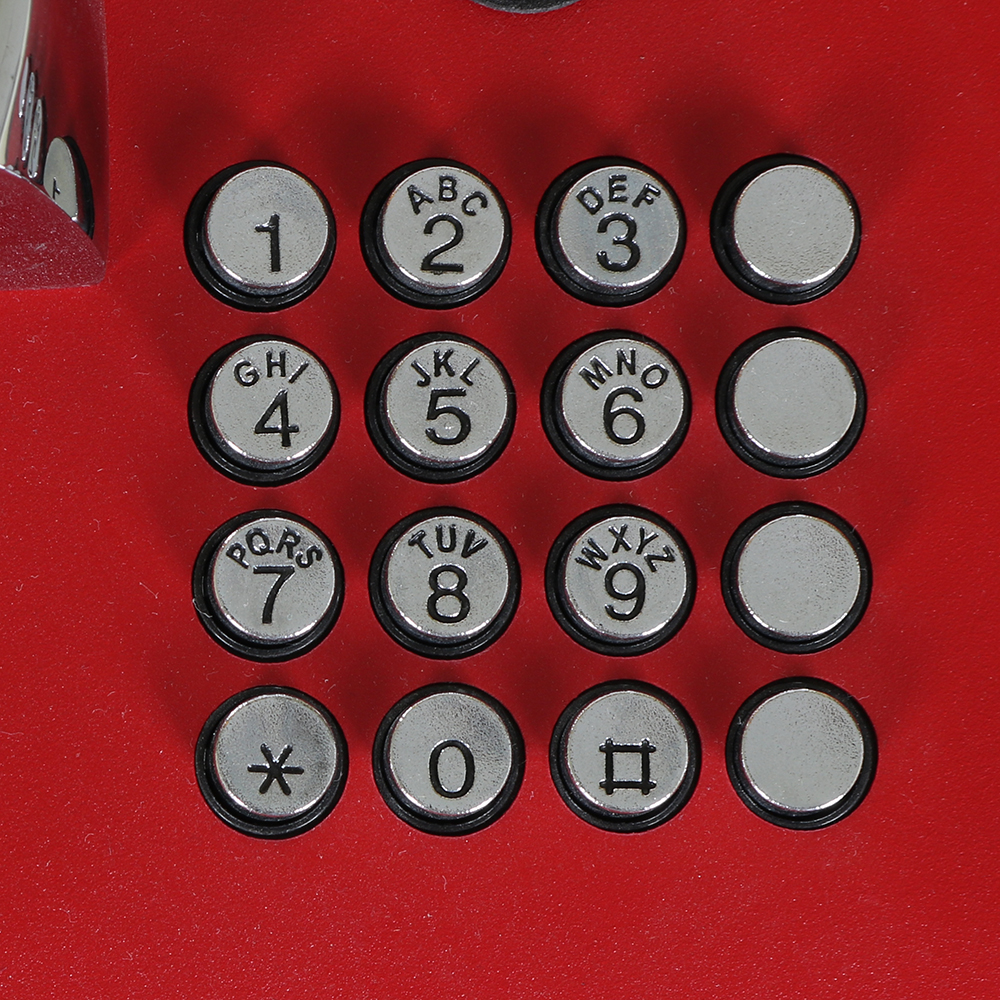

• Keypad: Full metal keypad with 16 keys (4 additional buttons optional for speed-dial)
• Programming Method: Remotely via DTMF tones or locally via keypad
• Advanced Functions: MIC mute function, call transfer, delayed auto-dialing, remote relay control
• Ringing Volume: 80 dB(A) @ 1 meter

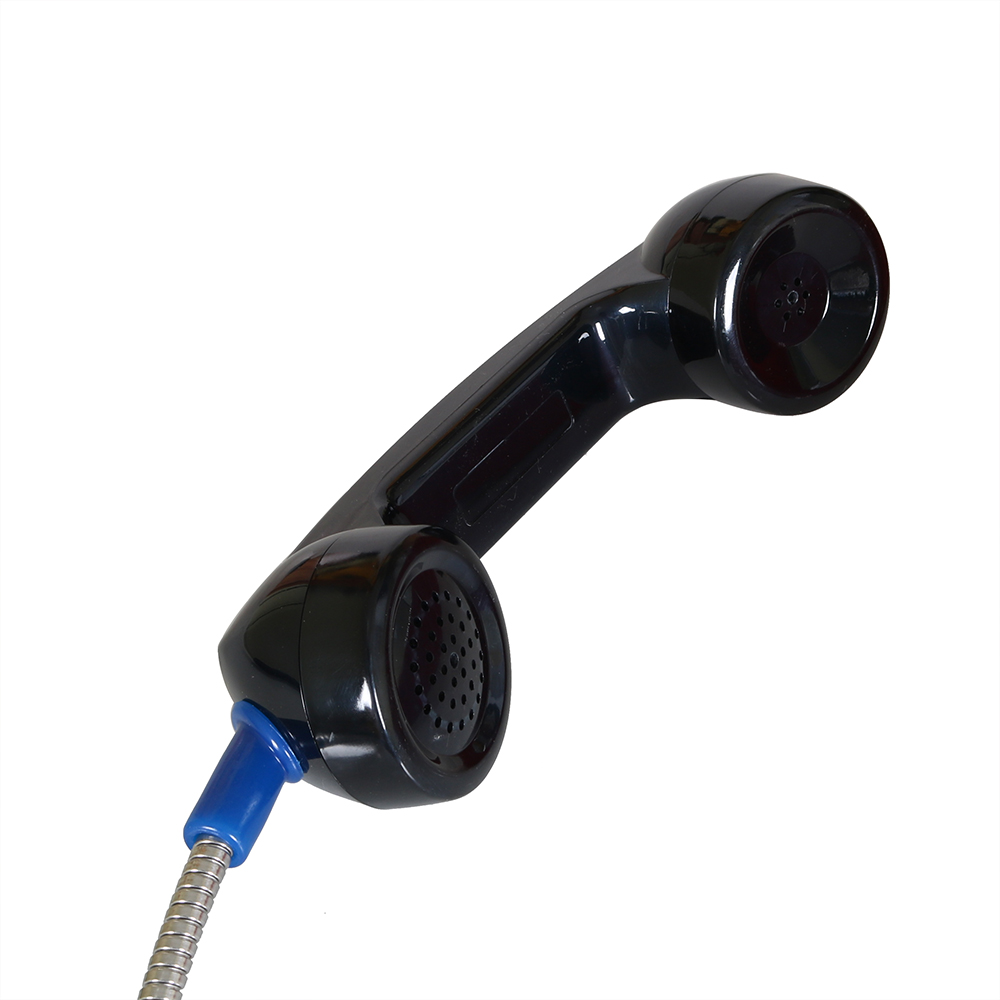

• Handset & Microphone: ABS handset with noise-canceling microphone, HAC support, and 83 cm armored cord
• Hook-Switch: Magnetic reed hook-switch
• Housing Material: Cold-rolled steel / corrosion-resistant hardware
• Mounting Type: Wall-mounted design
• Ingress Protection Rating: IP54
• Impact Protection Rating: IK10
• M.T.B.F.: Exceeds 50,000 hours under normal operating conditions
• Operating Temperature: -40 °C to +65 °C (Storage: -40 °C to +75 °C)
• Unit Dimensions: 248 mm (Height) x 195 mm (Width) x 132.6 mm (Depth)

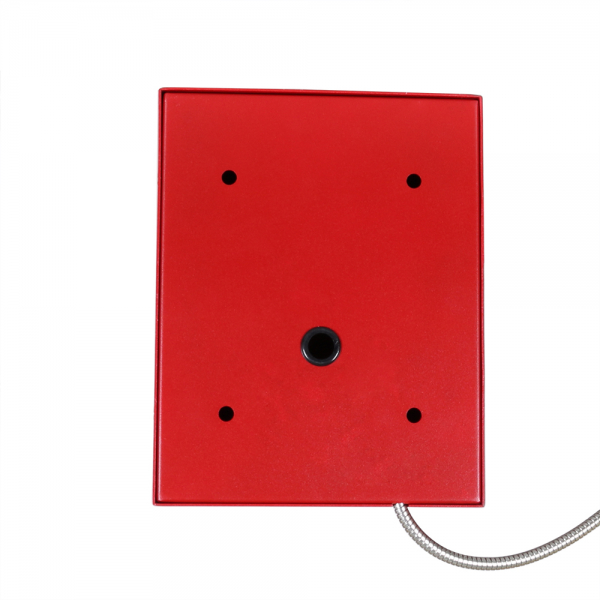

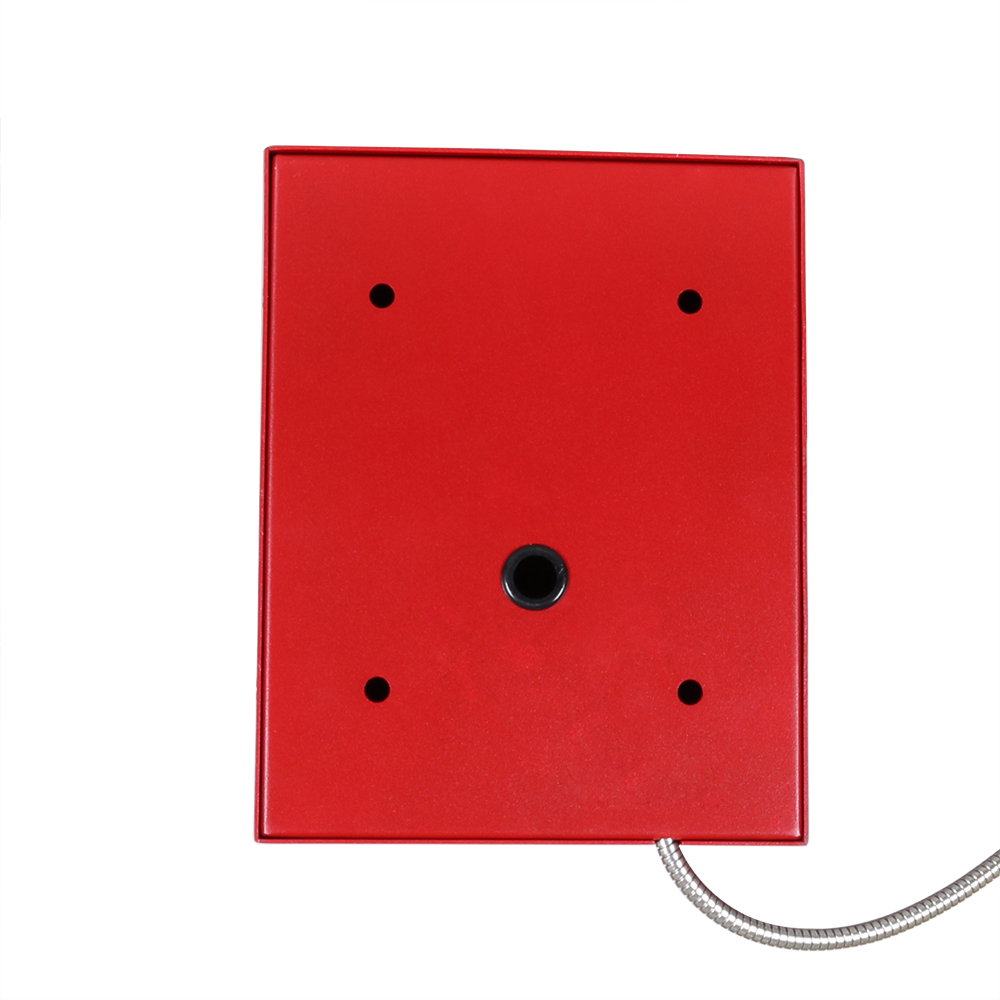

• Mounting Hole Pattern: 4x Ø9 mm holes (110 mm W x 140 mm H)
• Weight: Net weight: 3.0 kg / Gross weight: 4.0 kg
• Certifications & Standards: CE, FCC, RoHS, IK10, ISO9001

Optional Accessories

• JR-LP-02: LED Beacon Light
• JR-BS-01: Acousto-optical Alarm
• JR-HSA Series: Broadcast Horn Speaker (JR-HSA-10/20/25/30/35W)
• JR-TH-01: Acoustic Hood

Package Contents

• 1x J&R JR207-FK-AL Analog Vandal-Resistant Telephone (Red, Wall-Mount, 16-Key Metal Keypad)
• 1x User Manual & Documentation

Packaging Information

• Shipping Dimensions: 340 x 235 x 165 mm
• Gross Weight: 4.0 kg
• Net Weight: 3.0 kg
• Packaging Materials: Foam padding, carton
