J&R JR206-FK-AL Anti-vandal Telephone, Keypad, Red

J&R JR206-FK-AL Anti-vandal Telephone, Keypad, Red

NEW Item
Manufacturer Part Number: JR206-FK-AL

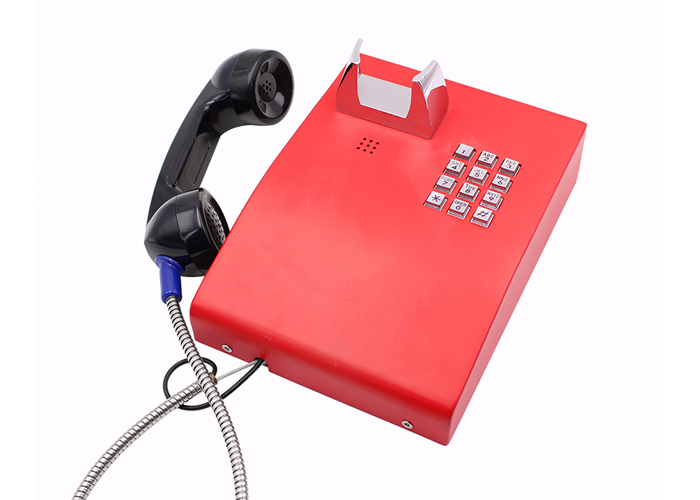

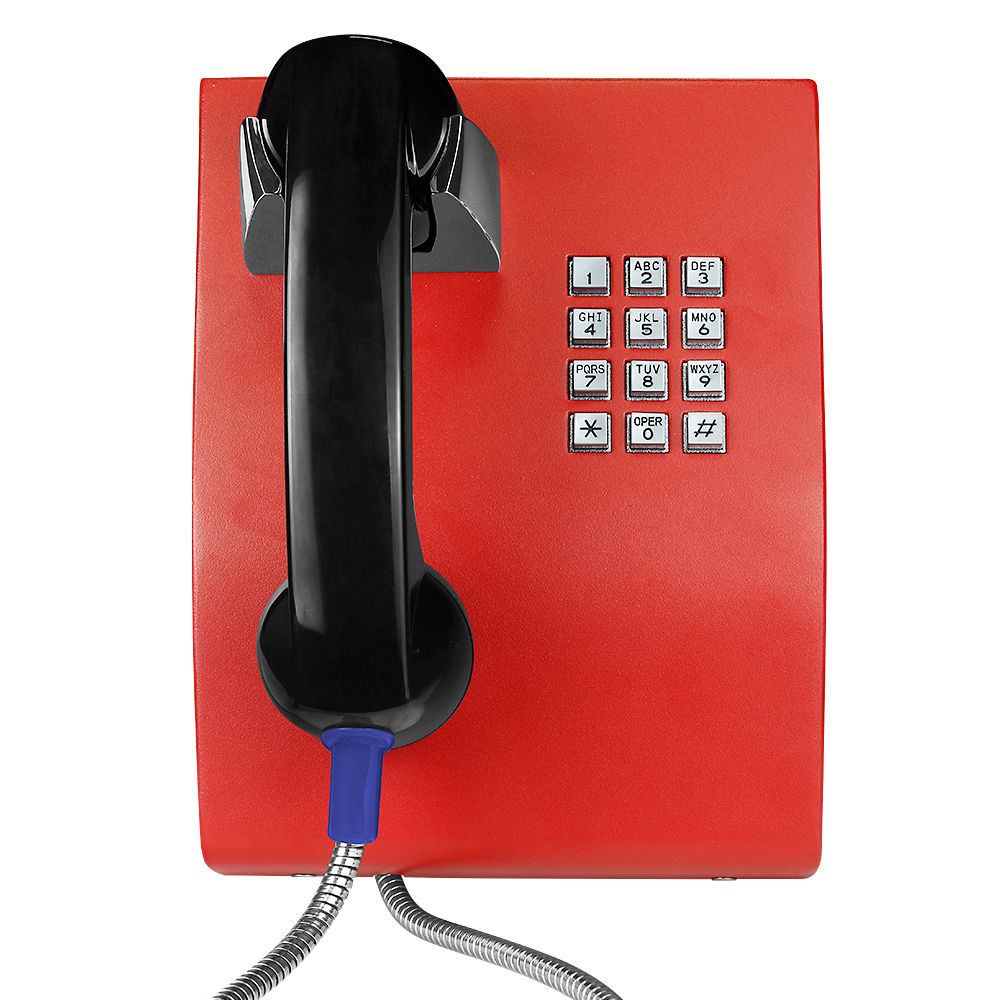

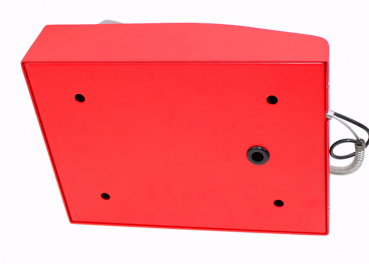

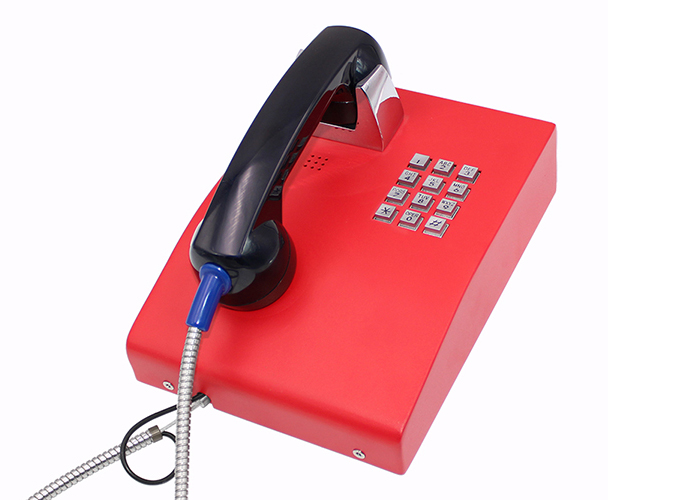

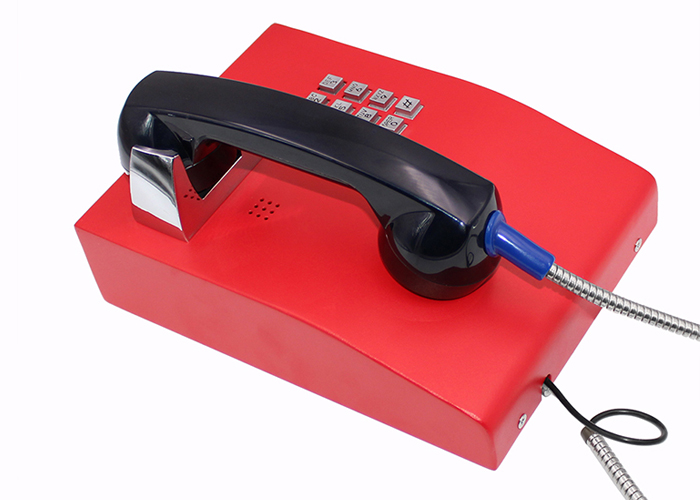

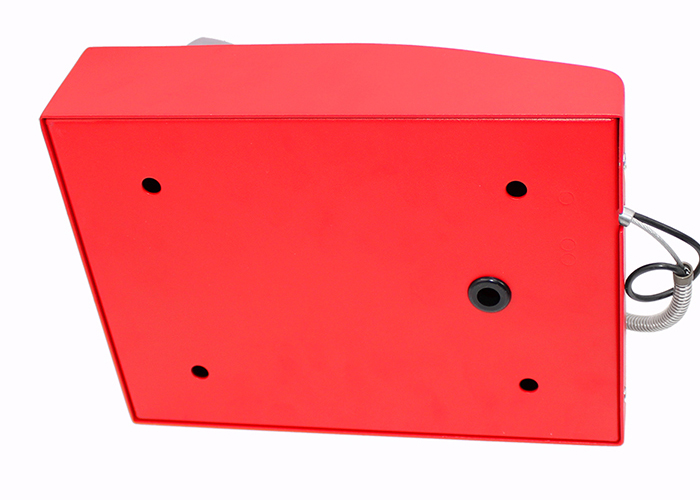

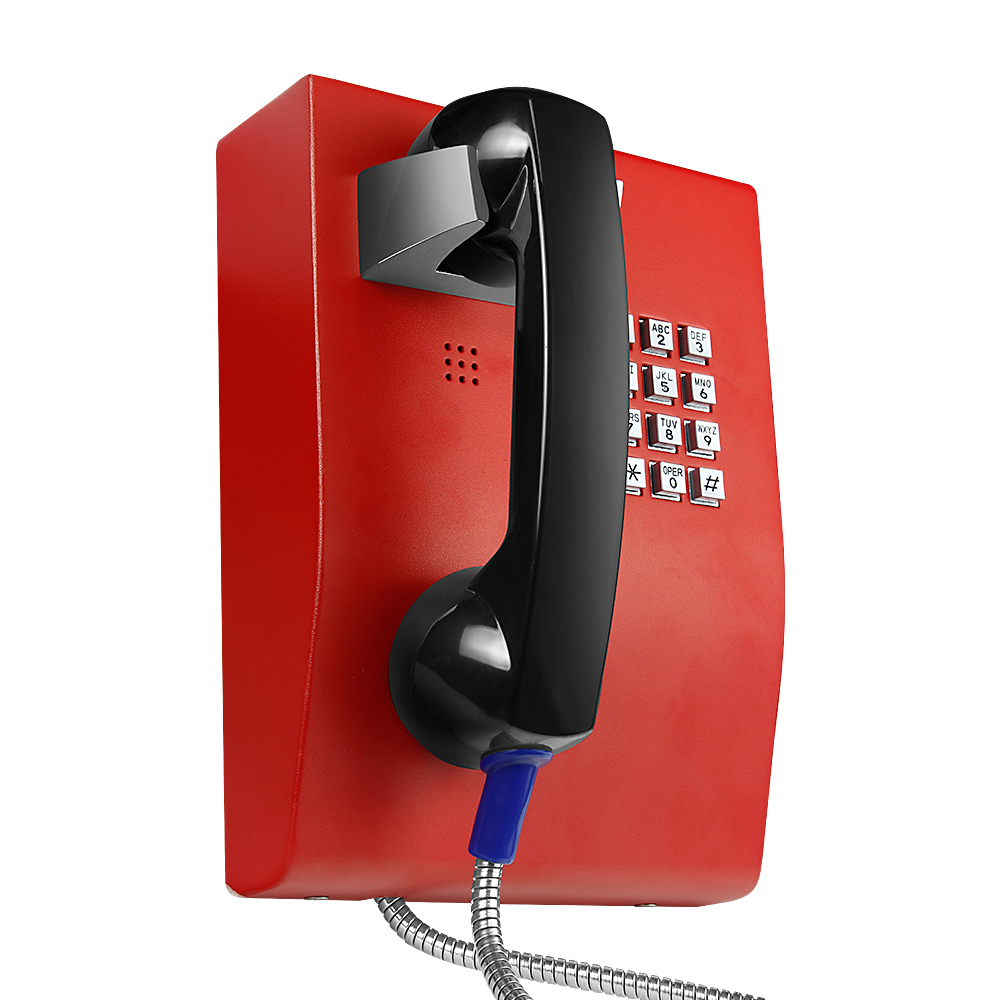

J&R Vandal Resistant Telephone JR206-FK-AL, Analog Heavy Duty Phone, Full Keypad (FK), Red Cold-Rolled Steel Body, Armored Cord, IP65, IK10

J&R Professional Vandal-Resistant Analog Telephone – Red Cold-Rolled Steel Wall Phone, Full Keypad (FK), Armored Handset Cord (Category: Vandal Resistant Telephone / Model: JR206-FK-AL)

The J&R JR206-FK-AL is an ultra-robust, vandal-resistant analog telephone with a full metal keypad, engineered for reliable voice communication in public, commercial, or harsh industrial environments. Housed in a heavy-duty cold-rolled steel body (also available in 304 stainless steel upon request) finished in high-visibility red, it delivers IP65 weatherproofing and IK10 impact resistance.

Powered directly from the analog telephone line, it features a 12-button metal keypad, noise-canceling microphone technology for clear HD voice calling, Hearing Aid Compatibility (HAC), and an 83 cm armored handset cord, making it fully compatible with standard PABX systems and PSTN networks.

Key Features and Benefits

• Analog Line Powered: Draws power directly from the telephone line (24 VDC to 65 VDC) with no need for external power supplies.
• Vandal-Resistant Full Keypad (FK): Heavy-duty 12-key metal keypad built for numerical dialing and functional controls.
• Rugged Construction (IK10 / IP65): Cold-rolled steel housing (stainless steel optional) with armored handset cord for maximum protection against impacts and environmental elements.
• High-Quality Handset: ABS handset with noise-reduction microphone for HD audio, magnetic reed hook-switch, and Hearing Aid Compatibility (HAC).
• Remote Programming & Advanced Control: Supports remote management via DTMF tones, programmable auto hang-up timers, and one relay output to control external devices.
• Broad Application Range: Ideal for transit platforms, subways, parking facilities, airports, prisons, hospitals, ATMs, and public safety terminals.

Technical Specifications

• Manufacturer: J&R Technology
• Product Name: JR206-FK-AL Vandal Resistant Analog Telephone
• Part Number: JR206-FK-AL
• Communication Standard: Analog Telephone Line (Compatible with standard PABX and PSTN)
• Power Supply: Line powered (Operating voltage: 24 VDC to 65 VDC, Current: 20 mA to 100 mA)
• Housing Material: Cold-rolled Steel (Standard) / 304 Stainless Steel (Optional)
• Color: Red (Standard; other colors on request)
• IP / IK Rating: IP65 / IK10 impact resistant
• Dialing Method: PD or DTMF mode (DTMF per ITU-T Q.23)
• Ringer Volume: 80 dB(A) @ 1 meter (Ringer voltage: 48 VAC to 90 VAC)
• Handset: ABS material with noise-canceling mic, HAC support, and 83 cm armored cord
• Operating Temperature: -40 °C to +65 °C (Storage: -40 °C to +75 °C)
• M.T.B.F.: Exceeds 50,000 hours
• Unit Dimensions: 248 mm (Height) x 185 mm (Width) x 133 mm (Depth)
• Net Weight: Approx. 3.0 kg
• Certifications & Standards: CE, FCC, RoHS, IK10, IP65, ISO9001, ITU-T K.21 enhanced surge protection

Package Contents

• 1x J&R JR206-FK-AL Vandal-Resistant Analog Telephone with Keypad

Packaging Information

• Shipping Dimensions: 340 x 240 x 180 mm
• Gross Weight: Approx. 4.0 kg
• Packaging Materials: Foam padding, carton box
