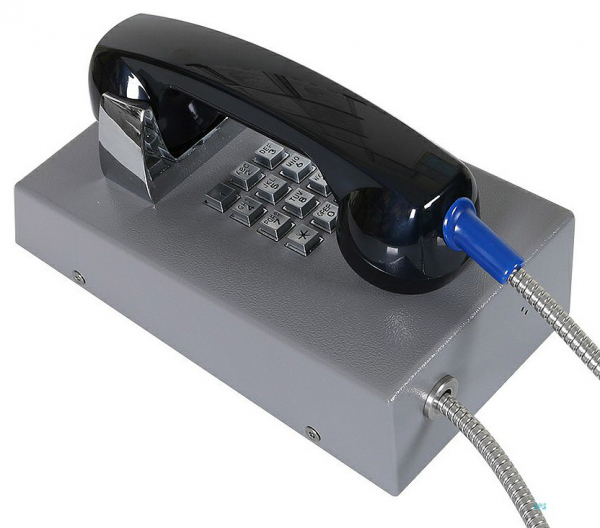

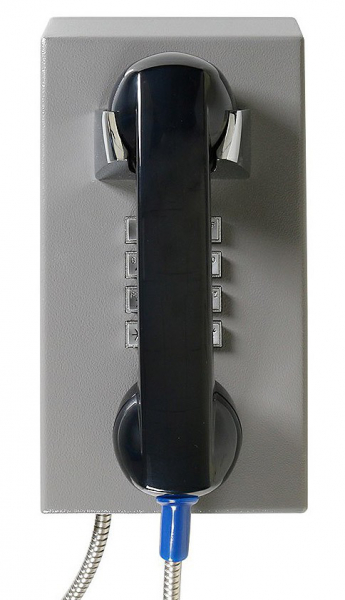

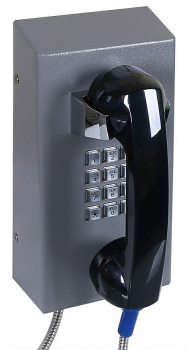

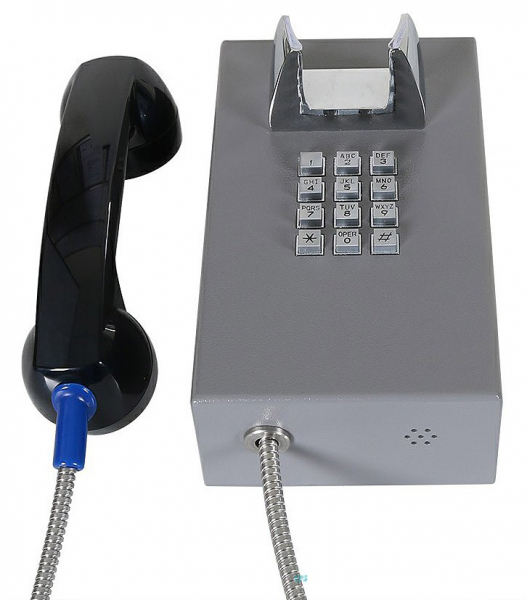

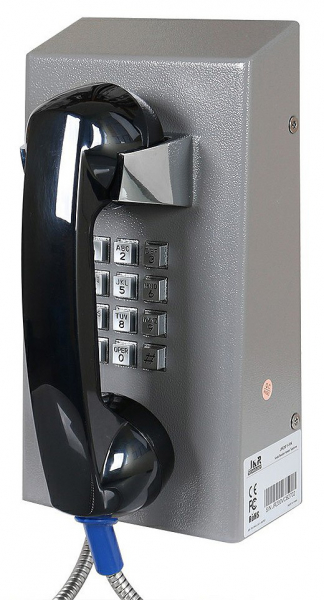

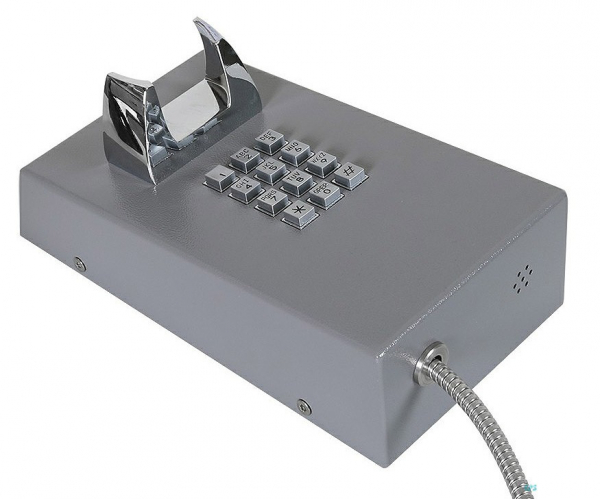

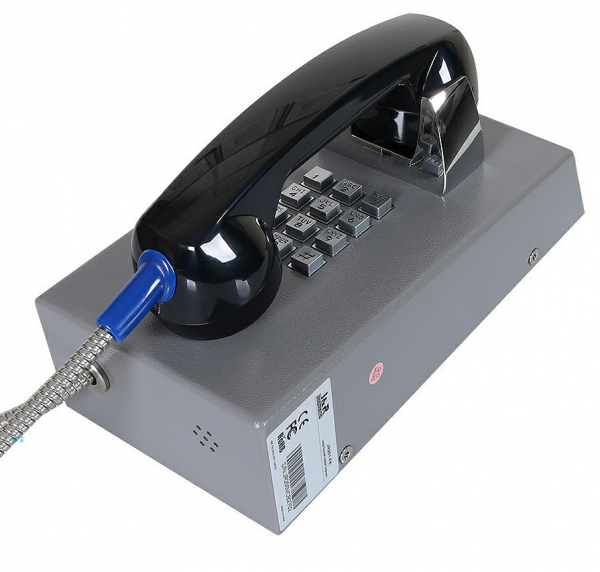

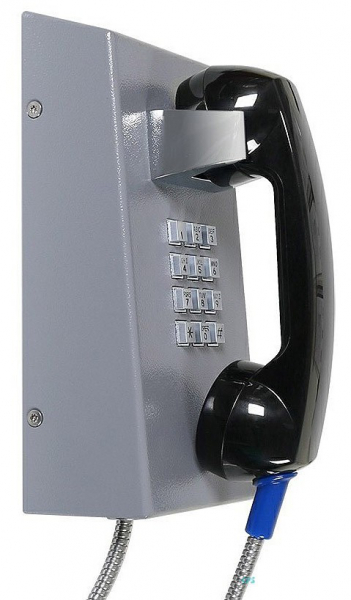

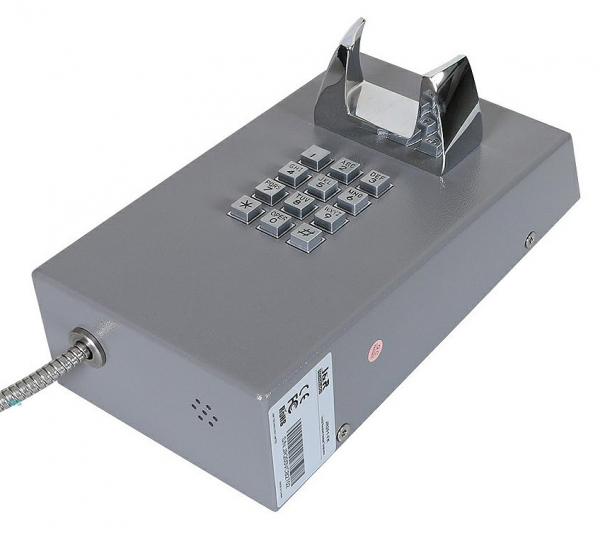

J&R JR201-FK-4G Anti-vandal Telephone, Keypad, Gray

J&R JR201-FK-4G Anti-vandal Telephone, Keypad, Gray

NEW Item
Manufacturer Part Number: JR201-FK-4G

J&R Professional 4G/LTE Vandal-Resistant Telephone – Grey (Cold-Rolled Steel), Wall-Mounted, Full Metal Keypad (12 Keys), Remote SMS Configuration, IP65, IK10 (Category: Vandal Resistant Telephones / Model: JR201-FK-4G)

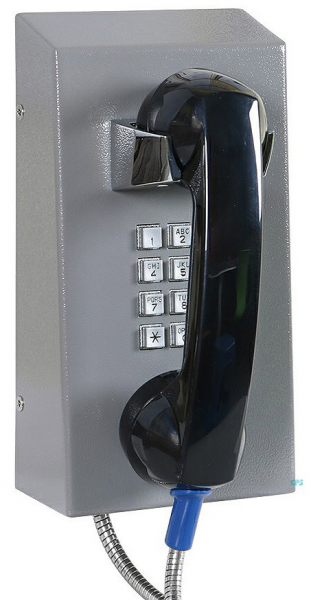

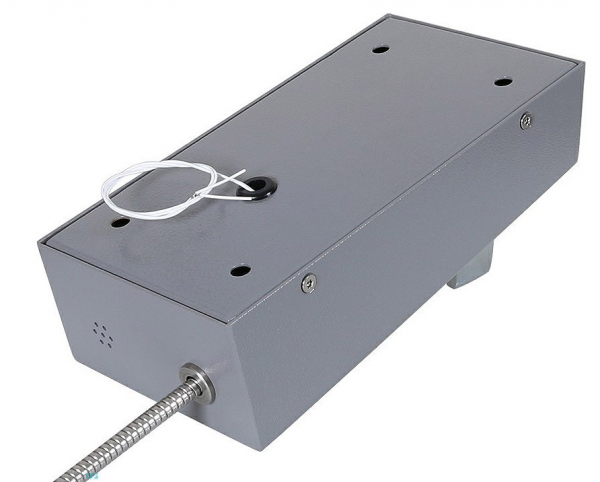

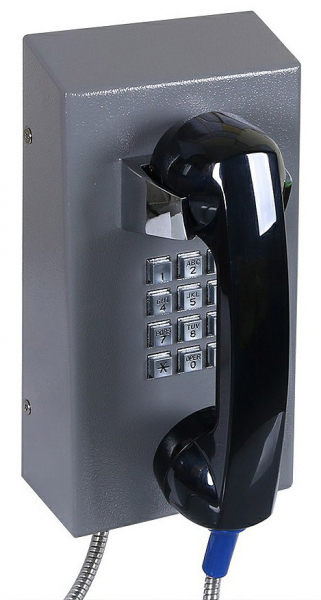

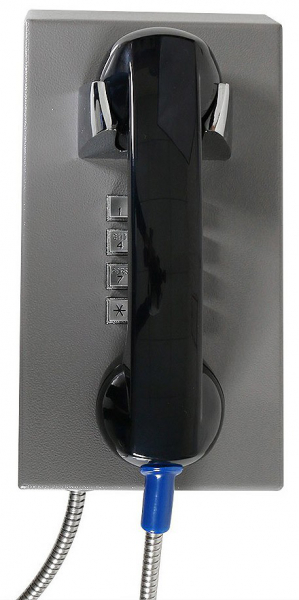

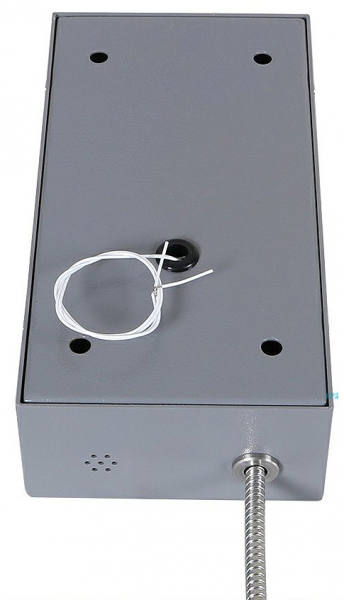

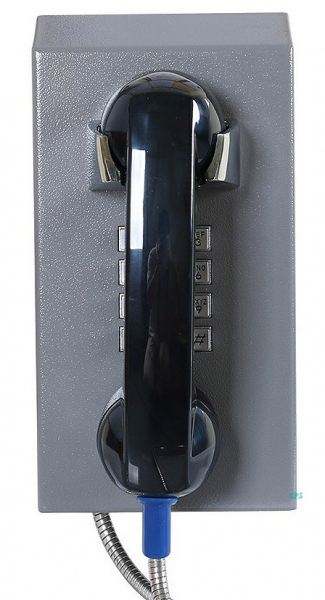

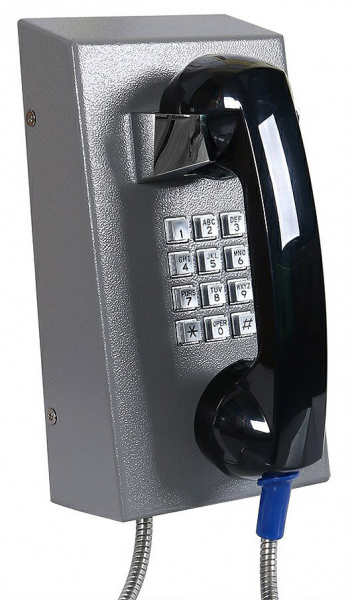

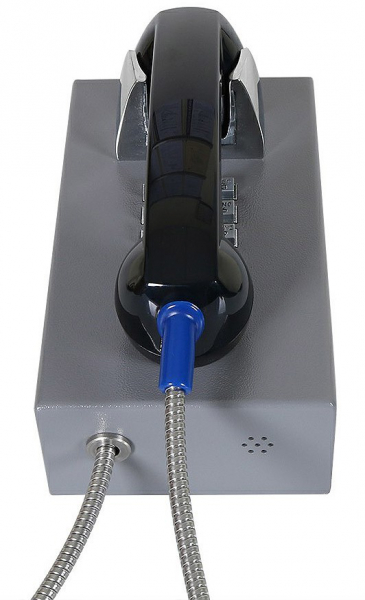

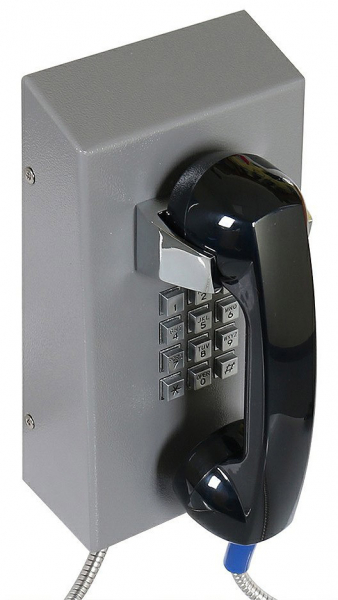

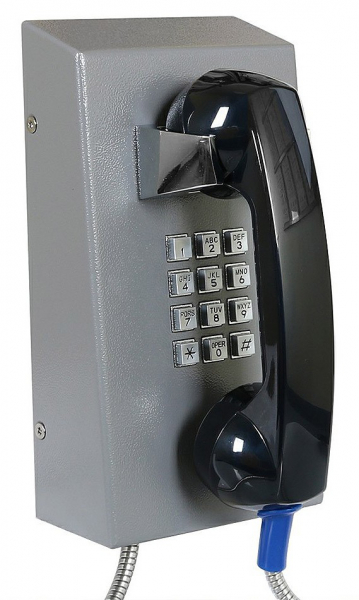

The J&R JR201-FK-4G is an ultra-rugged, vandal-resistant 4G/LTE cellular telephone housed in a durable grey cold-rolled steel enclosure, designed for reliable emergency and public communication where wired line infrastructure is unavailable. Simply inserting a SIM card connects the telephone directly to the mobile network. Its heavy-duty steel body features an internal grounding structure and is fully isolated from internal circuits to provide strong electromagnetic shielding, ensuring clear, loud audio free from feedback. Wall-mountable and equipped with an 83 cm armored handset cord, it is built to resist severe physical abuse and heavy industrial wear. Rated IP65 for weather resistance and IK10 for impact protection, the JR201-FK-4G is ideal for parking lots, prisons, airports, railway platforms, metro stations, ATMs, hospitals, police stations, shopping malls, and stadiums.

The JR201-FK-4G offers advanced remote management via SMS, allowing operators to easily configure settings and auto-dial numbers from a central location. The unit features intelligent self-diagnostics, automatically sending SMS alerts for low battery voltage, weak signal strength, or speaker and microphone faults. An enforceable time-out feature can limit call duration to 6–8 minutes from off-hook. The phone is equipped with a full metal 12-key keypad and comes with an externally mounted quad-band SMA male antenna with a 2-meter cable. The durable ABS handset provides HD voice, a noise-canceling microphone, and Hearing Aid Compatibility (HAC).

Key Features and Benefits

• 4G/LTE Cellular Communication: Wireless operation via SIM card – ideal for remote locations without landlines or network cabling.
• Remote SMS Configuration: Convenient remote configuration and auto-dial number setup via SMS from a central location.
• Automated SMS Diagnostics: Sends status reports for low battery, weak cellular signal, and speaker/microphone faults.
• Full Metal Keypad: Vandal-proof 12-key metal keypad engineered for heavy public use.
• Enforceable Call Time-Out: Configurable maximum call duration limit of 6–8 minutes from off-hook.
• External High-Gain Antenna: Quad-band SMA male antenna, externally mounted with a 2 m cable for optimal reception.
• Grey Cold-Rolled Steel Housing: Powder-coated, corrosion-resistant, and high-impact vandal protection.
• IP65 & IK10 Certified: Fully protected against dust ingress, water jets, and heavy physical impacts.
• HD Voice Quality & HAC: Clear communication with noise-canceling microphone and Hearing Aid Compatibility (HAC).

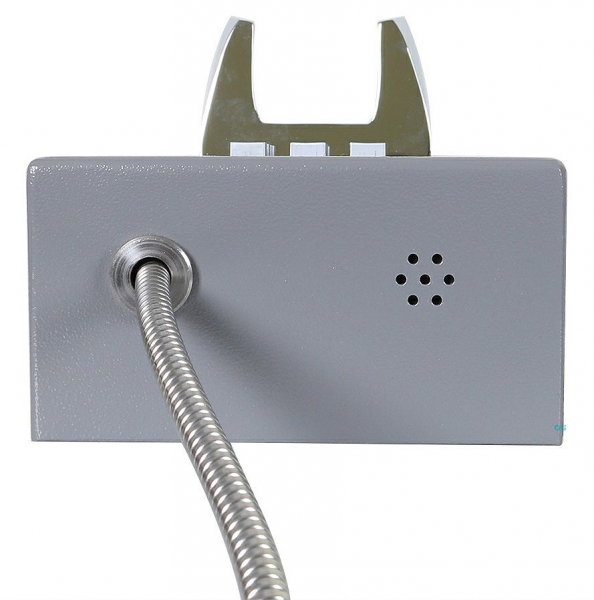

• 83 cm Armored Handset Cord: High tensile strength steel cord designed to resist intentional damage.

Technical Specifications

• Manufacturer: J&R Technology
• Product Name: JR201-FK-4G Vandal Resistant Telephone
• Part Number: JR201-FK-4G
• Housing Material: Cold-rolled steel / corrosion-resistant hardware

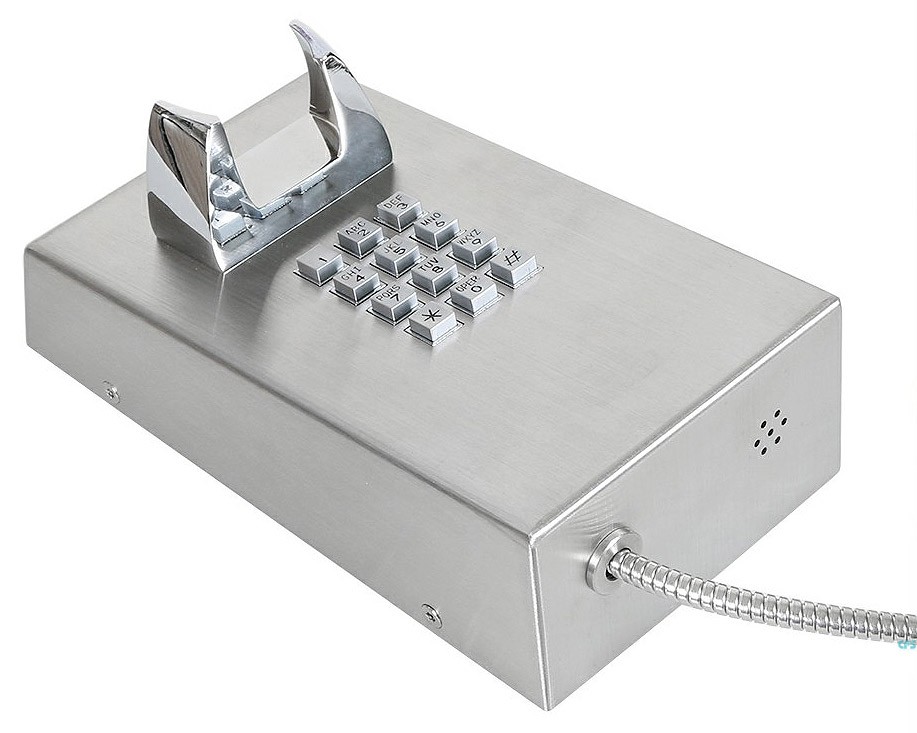

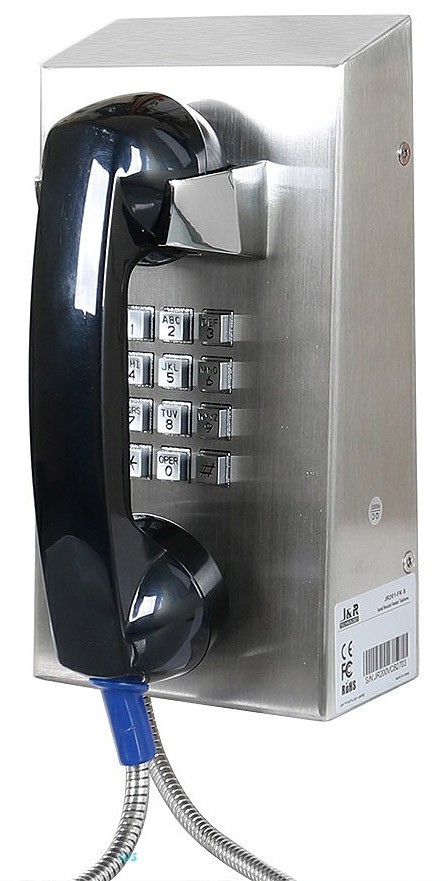

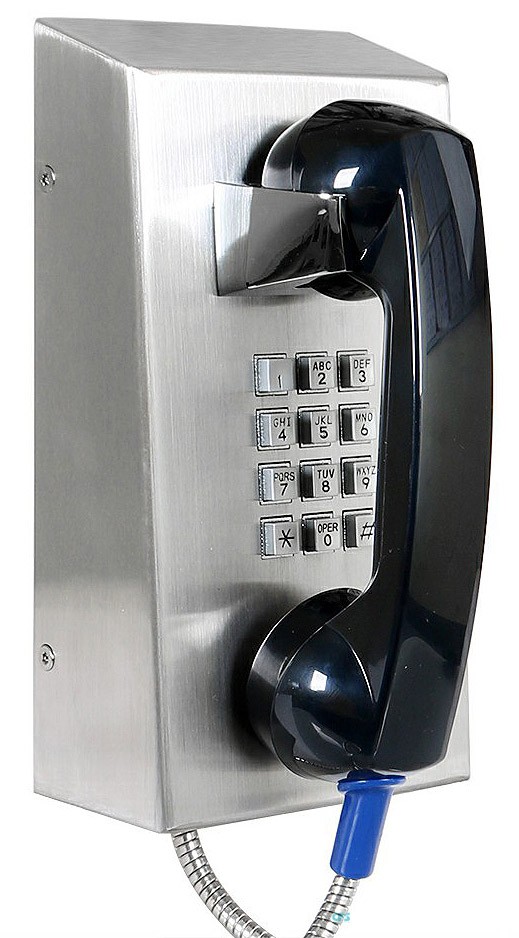

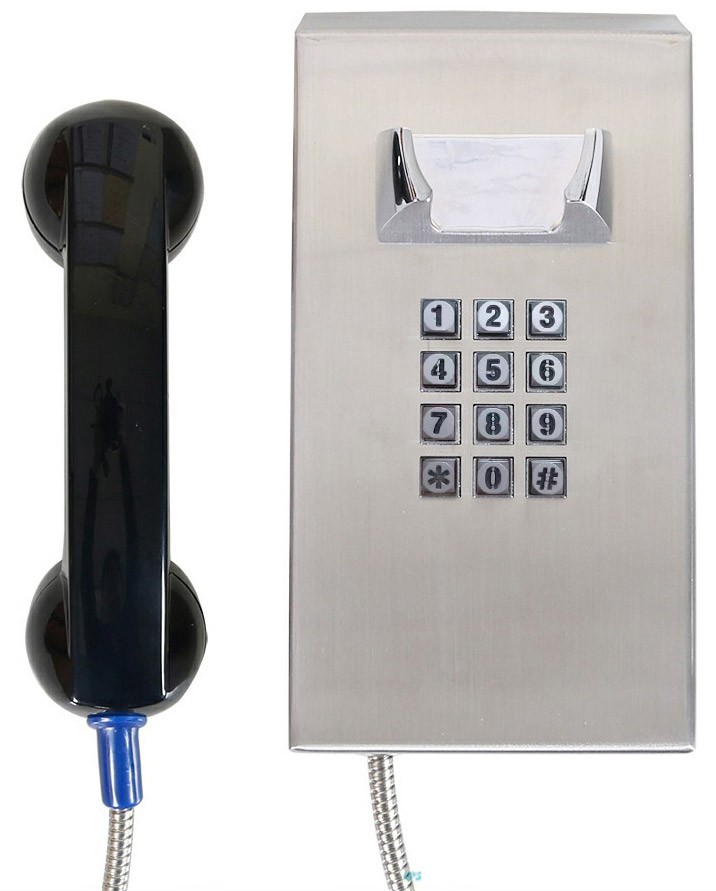

• Material: Cold-rolled steel; 304 stainless steel available upon request.
• Color: Grey – other colors available upon special request
• Phone Type: Vandal-resistant 4G/LTE cellular telephone with metal keypad
• Power Supply: 12V DC (Adapter input: 7.4V to 12V DC)
• Power Consumption: Idle: 0.3 W / Working: 1.5 W
• Communication Mode: 4G / LTE (EC25 module series, e.g. EC25-E / EC25-EUX for EMEA/Europe)
• Supported Frequencies (EMEA/Europe): LTE-FDD: B1/B3/B5/B7/B8/B20/B28A; LTE-TDD: B38/B40/B41; WCDMA: B1/B8; GSM/EDGE: B3/B8
• GNSS / Location (Optional): GPS / GLONASS / BeiDou / Galileo / QZSS
• Configuration Method: Remote configuration via SMS from central location
• Antenna: Quad-band SMA male, externally mounted with 2 m cable
• Keypad: Full metal keypad (12 keys)
• Ringing Tone Volume: 90 dB(A) @ 1 meter
• Handset & Microphone: ABS handset with noise-canceling microphone, HAC support, and 83 cm armored cord
• Hook-Switch: Magnetic reed hook-switch

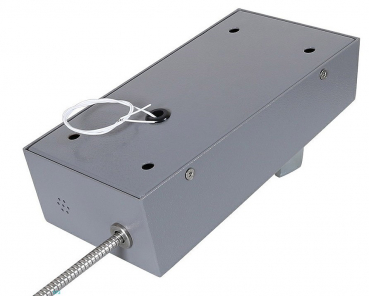

• Mounting Type: Wall-mounted design
• Ingress Protection Rating: IP65
• Impact Protection Rating: IK10
• M.T.B.F.: Exceeds 50,000 hours under normal operating conditions
• Operating Temperature: -40 °C to +65 °C (Storage: -40 °C to +75 °C)
• Unit Dimensions: 247 mm (Height) x 130 mm (Width) x 133 mm (Depth)
• Weight: Net weight: 3.0 kg / Gross weight: 4.0 kg
• Certifications & Standards: CE, FCC, RoHS, IK10, IP65, ISO9001

Optional Accessories

• JR-LP-02: LED Beacon Light
• JR-BS-01: Acousto-optical Alarm
• JR-HSA Series: Broadcast Horn Speaker (JR-HSA-10/20/25/30/35W)
• JR-TH-01: Acoustic Hood

Package Contents

• 1x J&R JR201-FK-4G Vandal-Resistant 4G Telephone (Grey Cold-Rolled Steel, Wall-Mount, 12-Key Metal Keypad)
• 1x External Quad-Band SMA Male Antenna with 2 m Cable
• 1x User Manual & Documentation

Packaging Information

• Shipping Dimensions: 340 x 220 x 165 mm
• Gross Weight: 4.0 kg
• Net Weight: 3.0 kg
• Packaging Materials: Foam padding, carton
