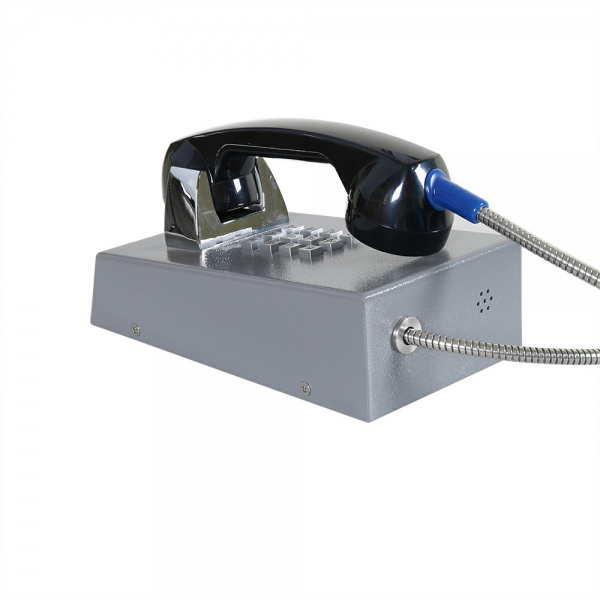

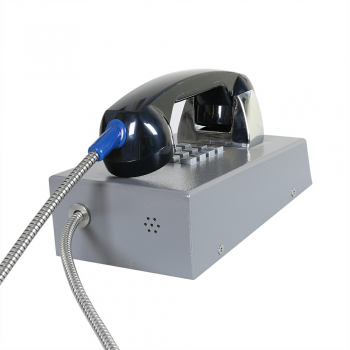

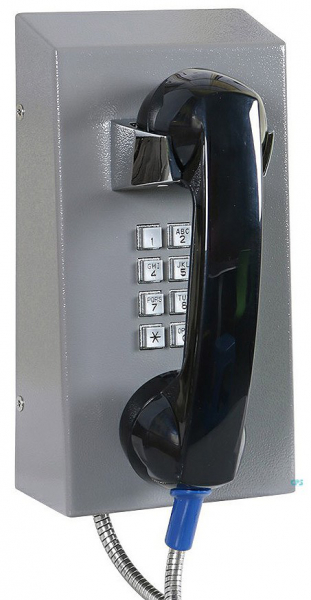

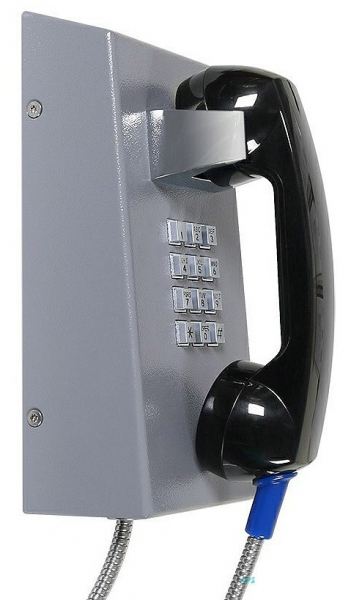

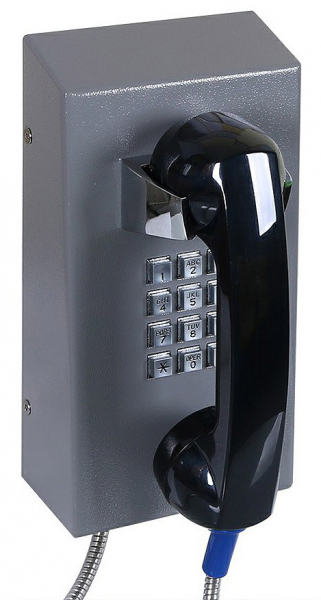

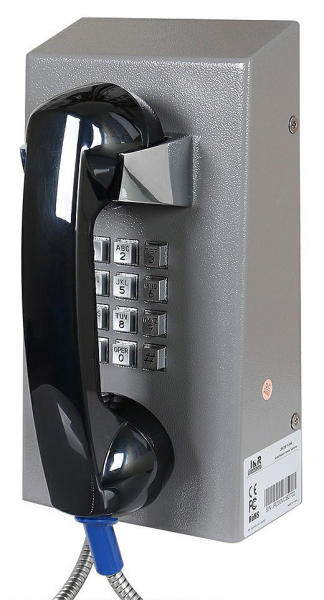

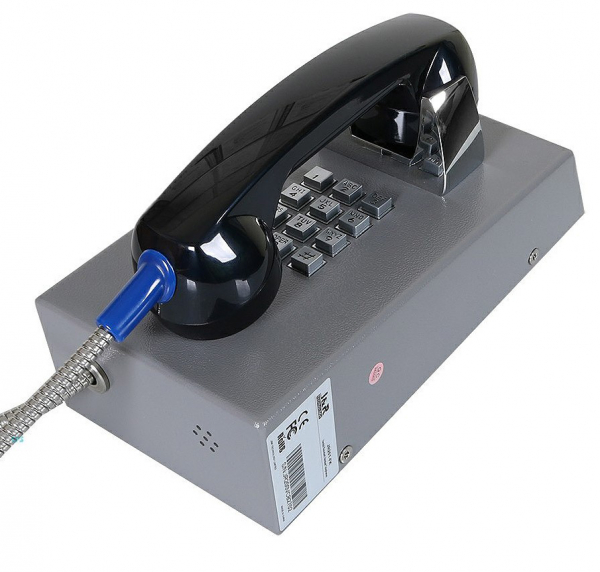

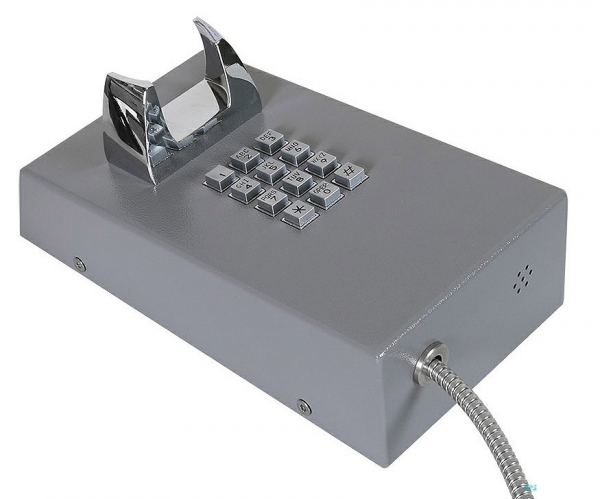

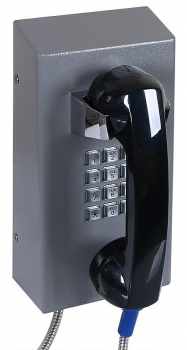

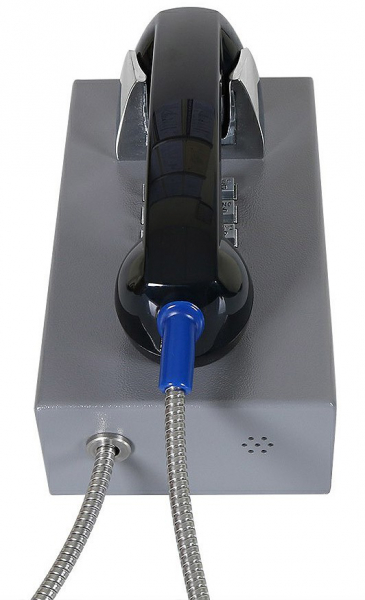

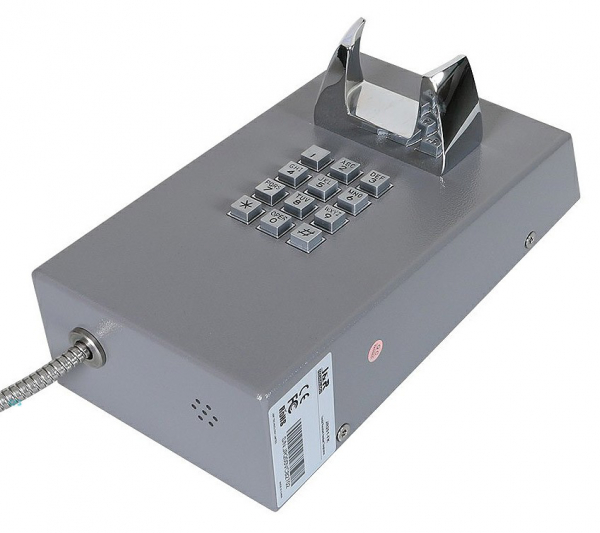

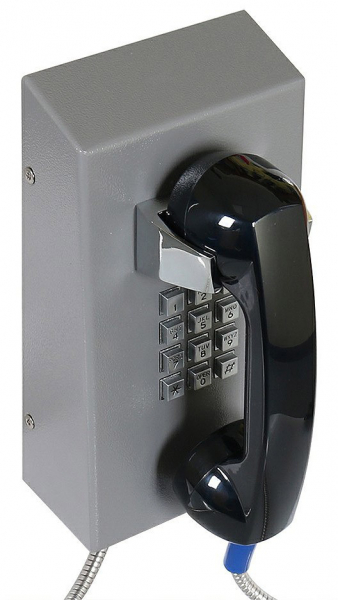

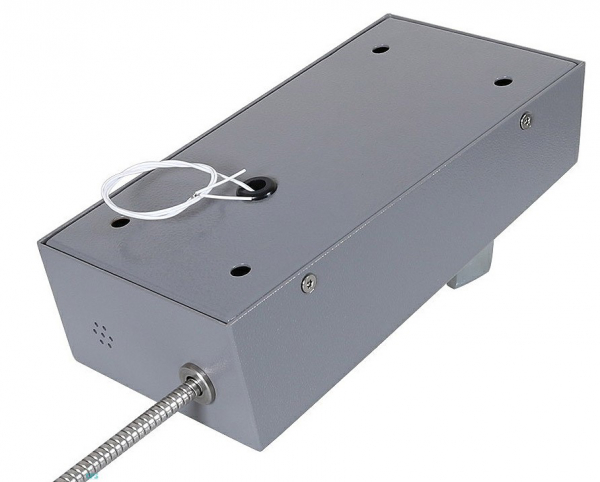

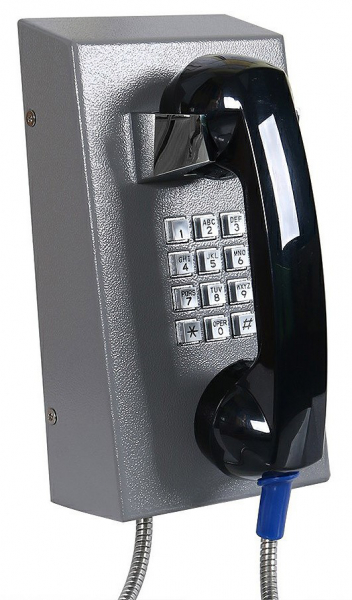

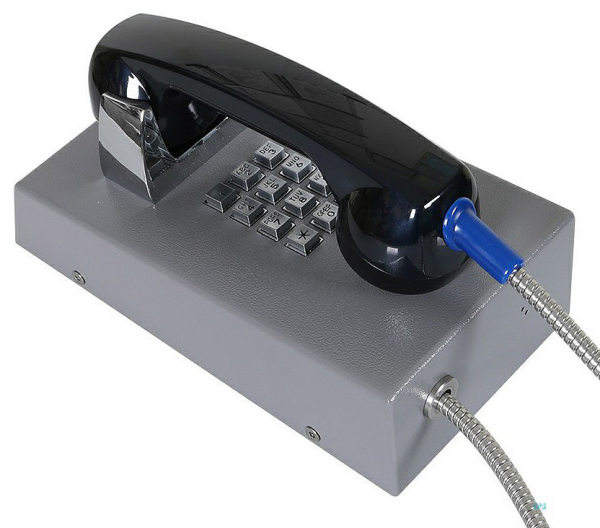

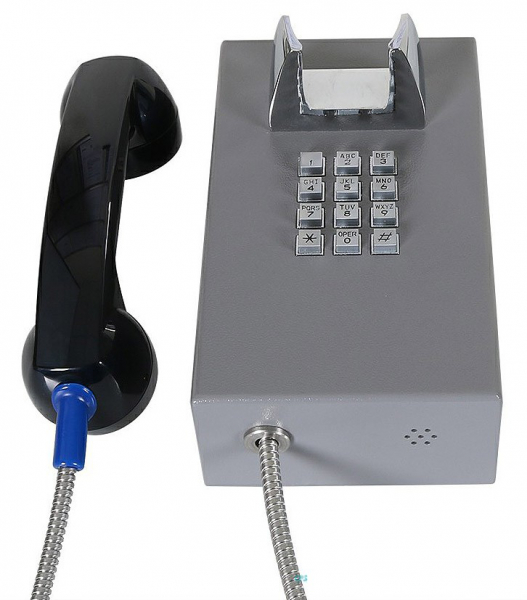

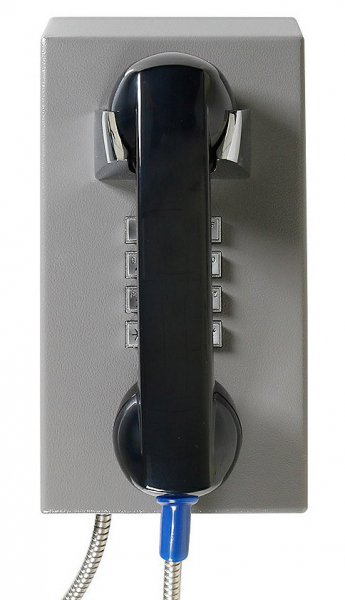

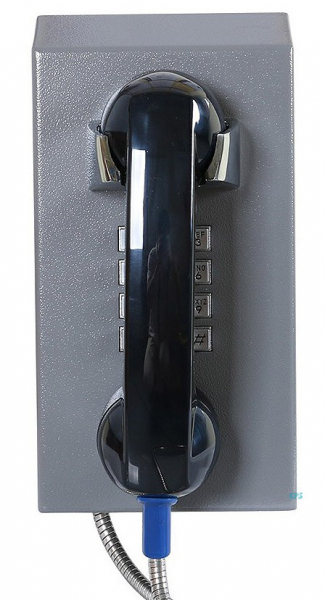

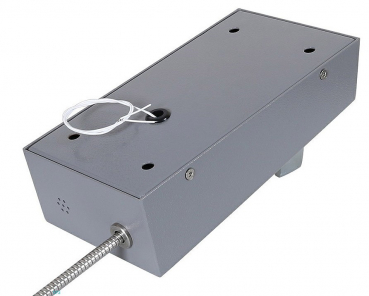

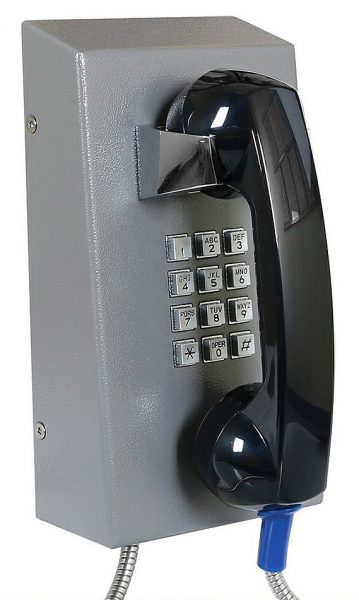

J&R JR201-FK-SIP Anti-vandal Telephone, Keypad, Gray

J&R JR201-FK-SIP Anti-vandal Telephone, Keypad, Gray

NEW Item
Manufacturer Part Number: JR201-FK-SIP

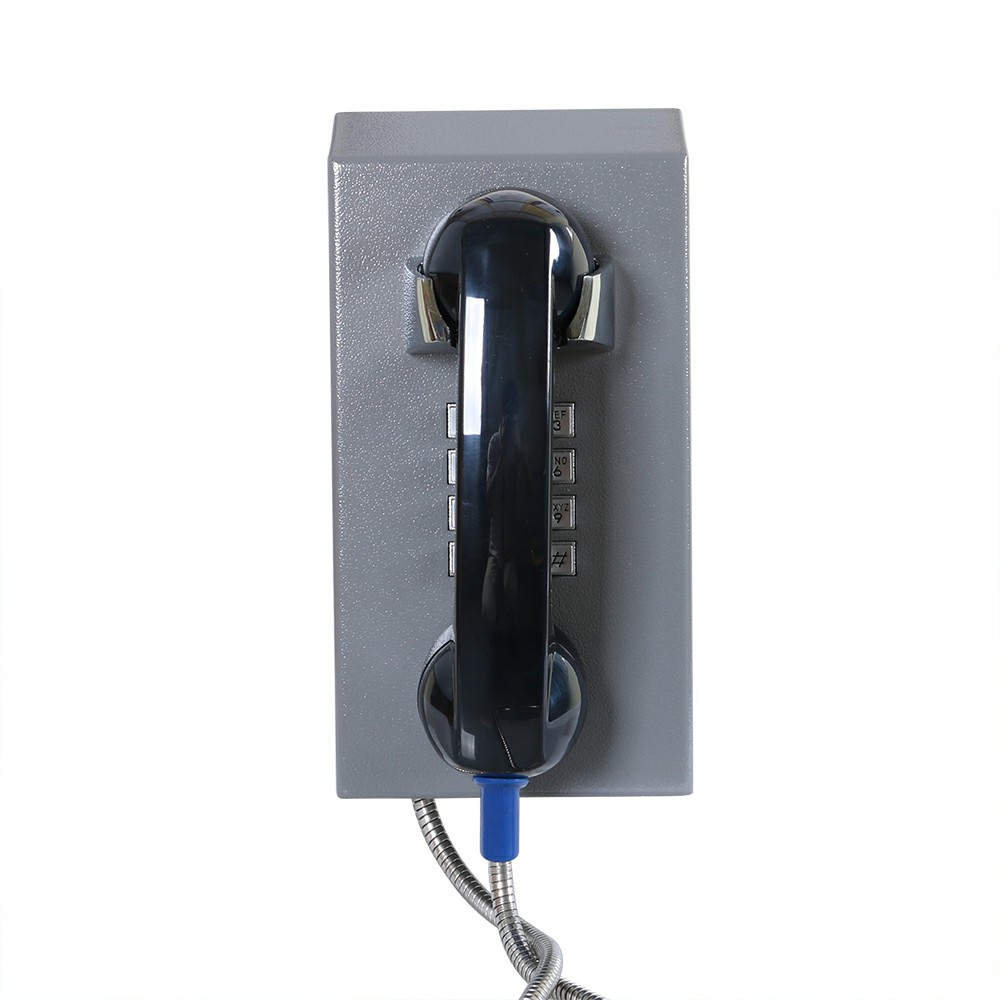

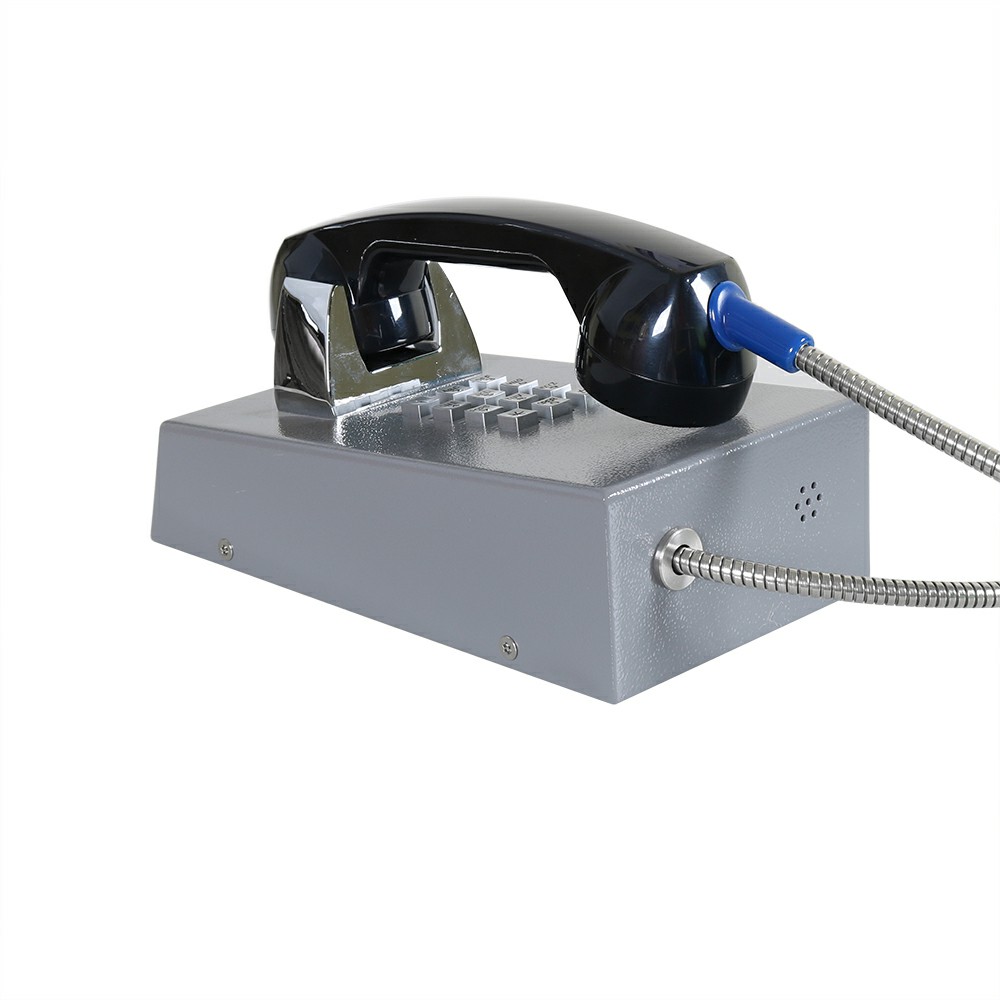

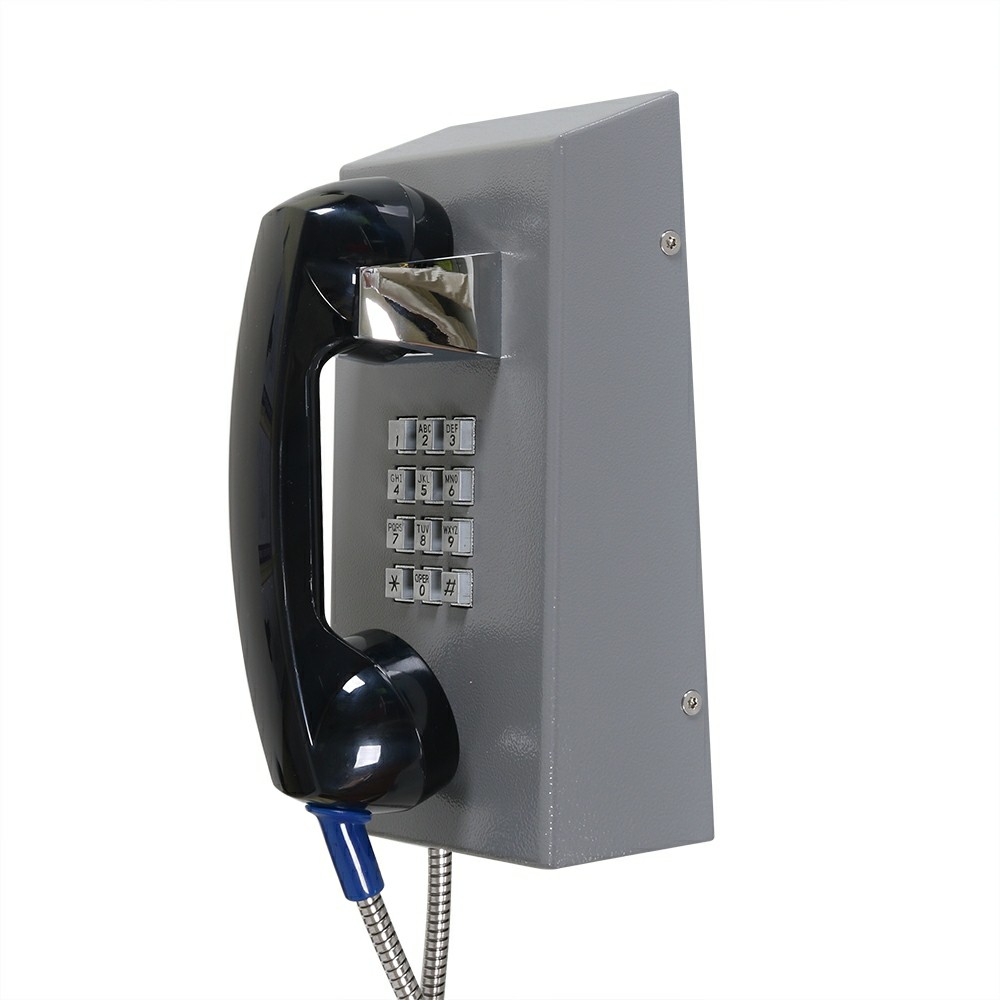

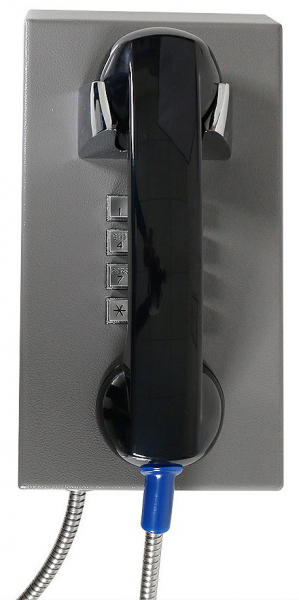

J&R Professional VoIP/SIP Vandal-Resistant Telephone – Grey (Cold-Rolled Steel), Wall-Mounted, Full Metal Keypad (12 Keys), Power over Ethernet (PoE 802.3af), 2 Relays, Web Management, IP65, IK10 (Category: Vandal Resistant Telephones / Model: JR201-FK-SIP)

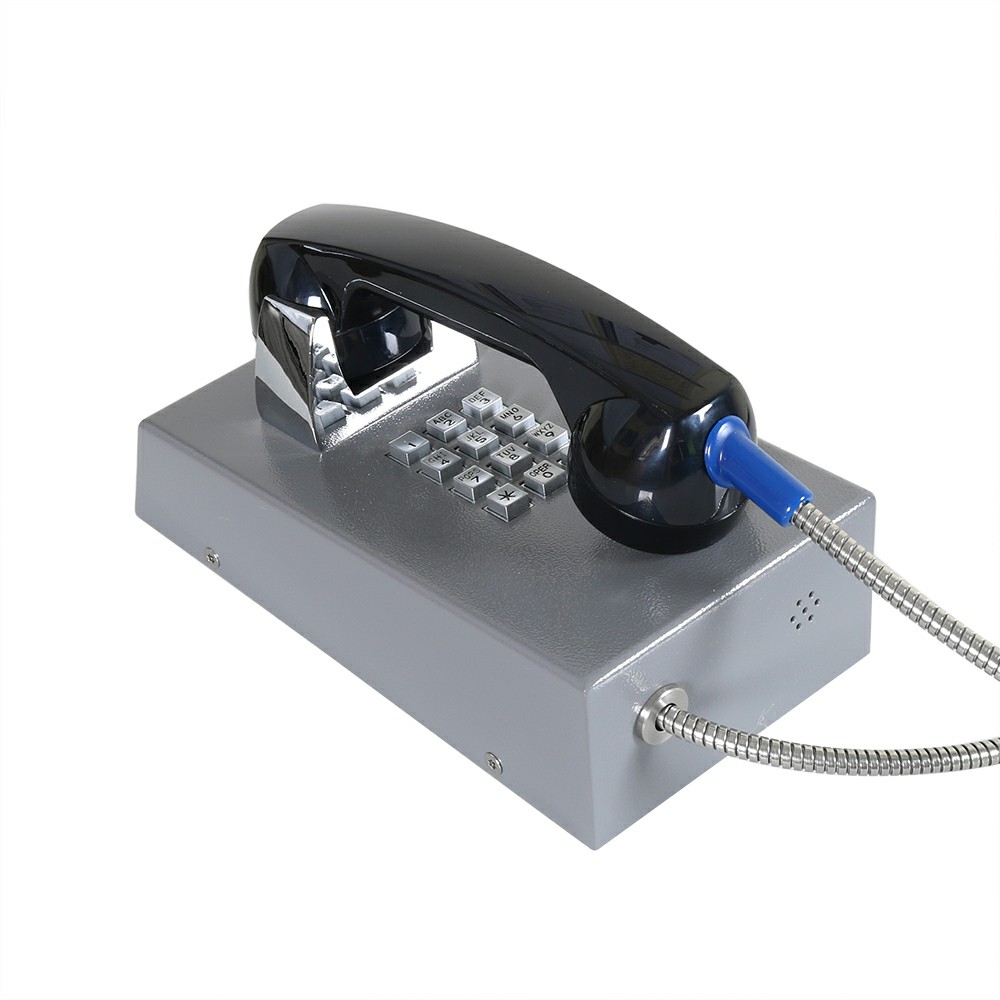

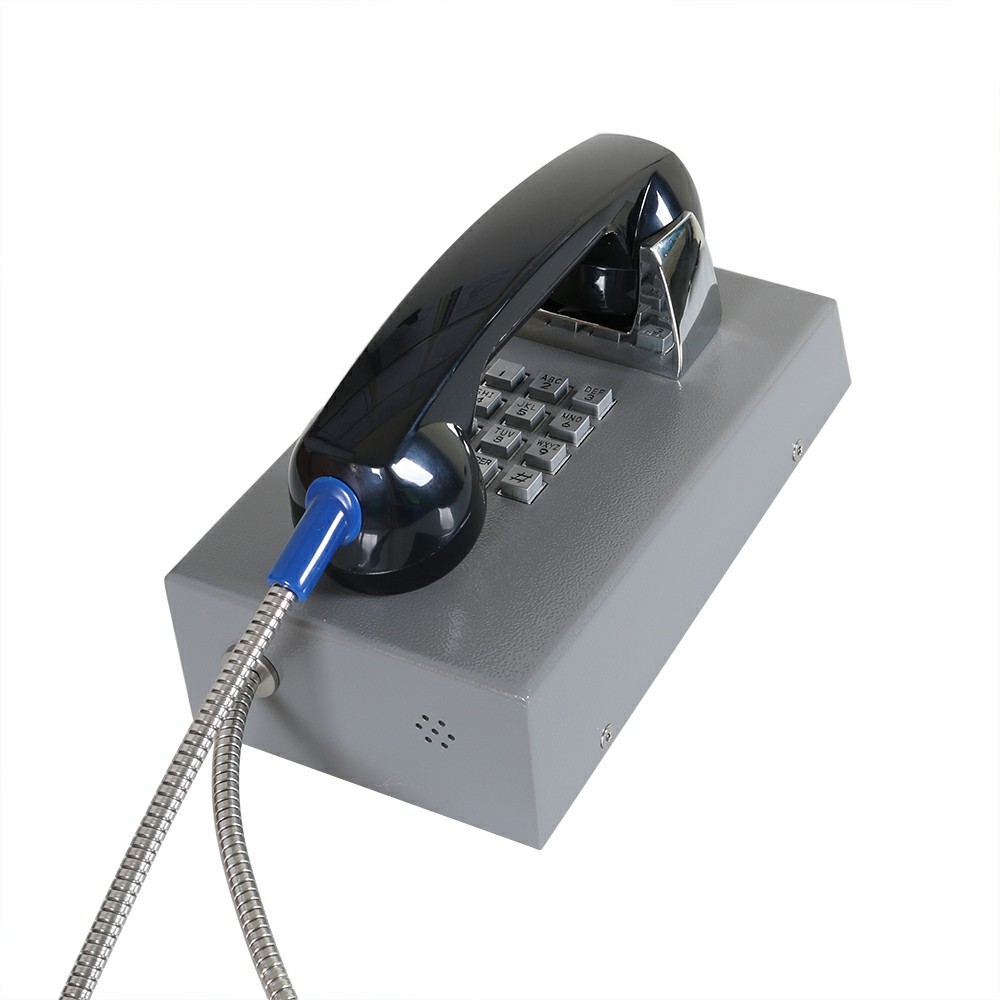

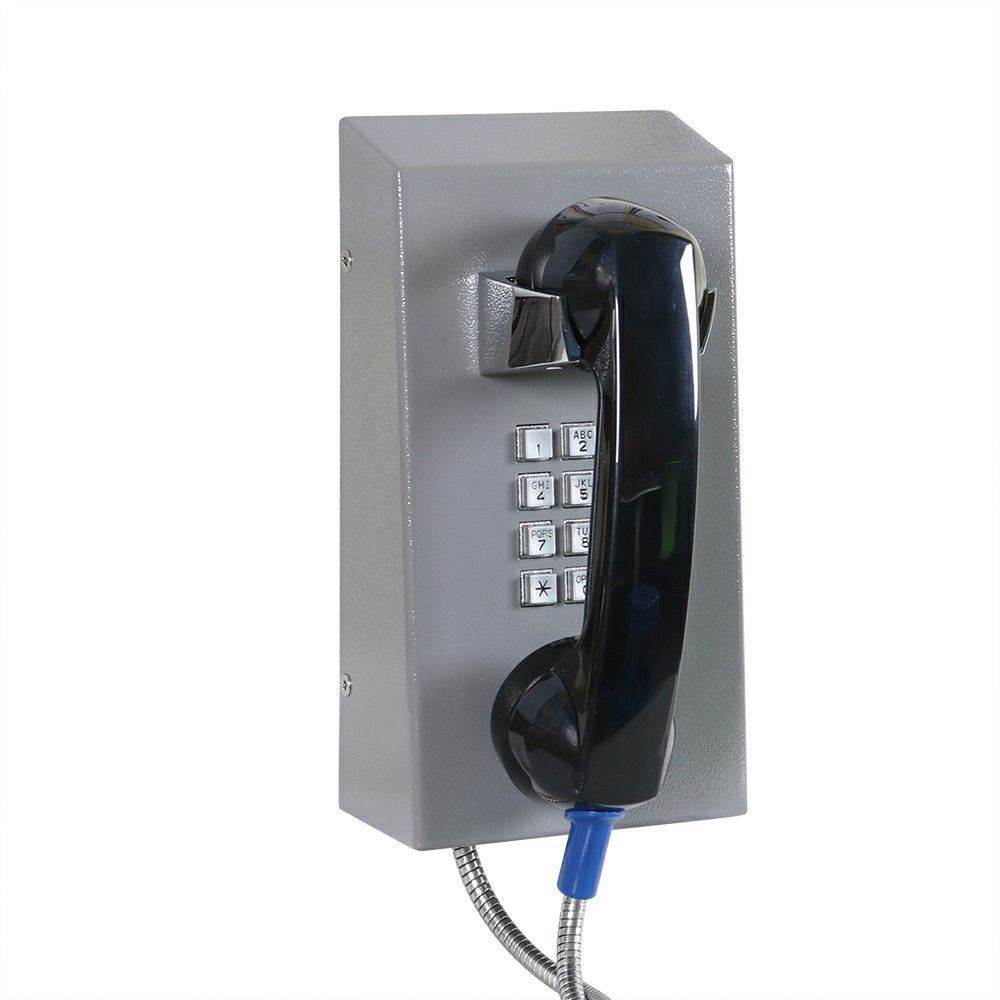

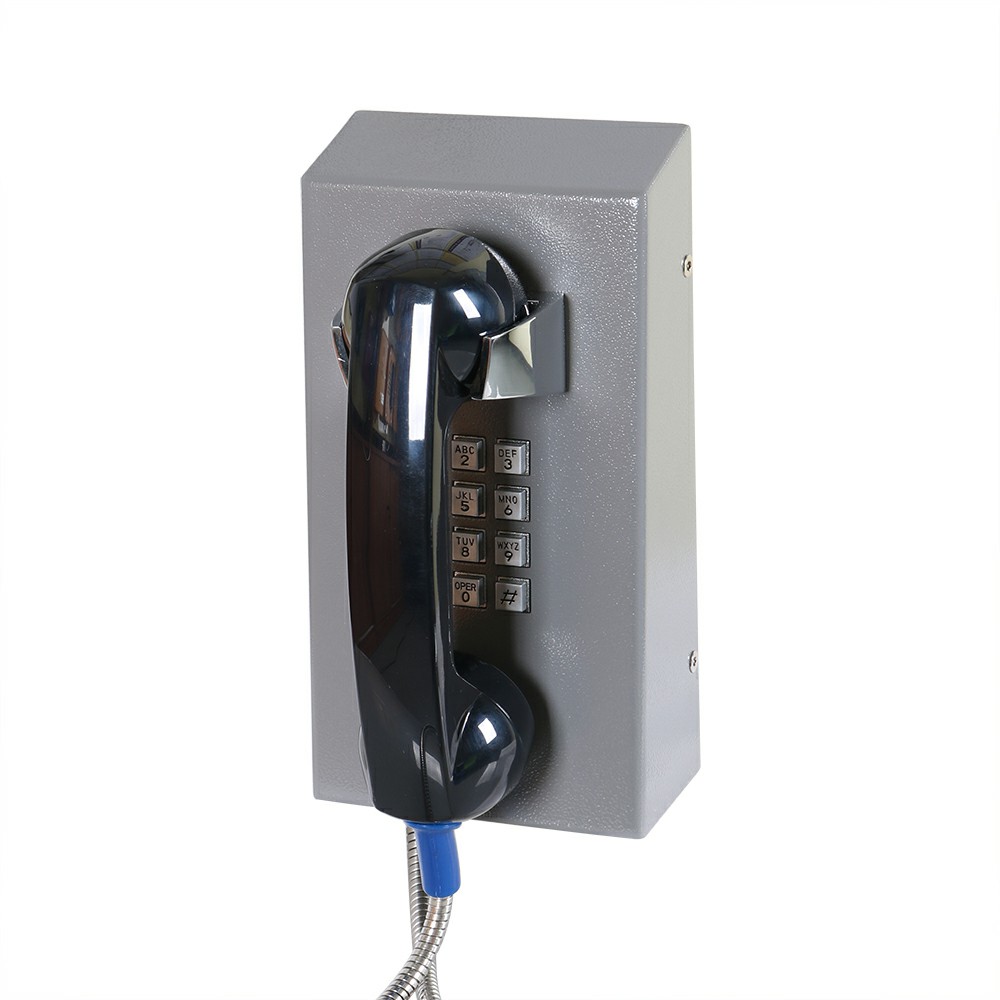

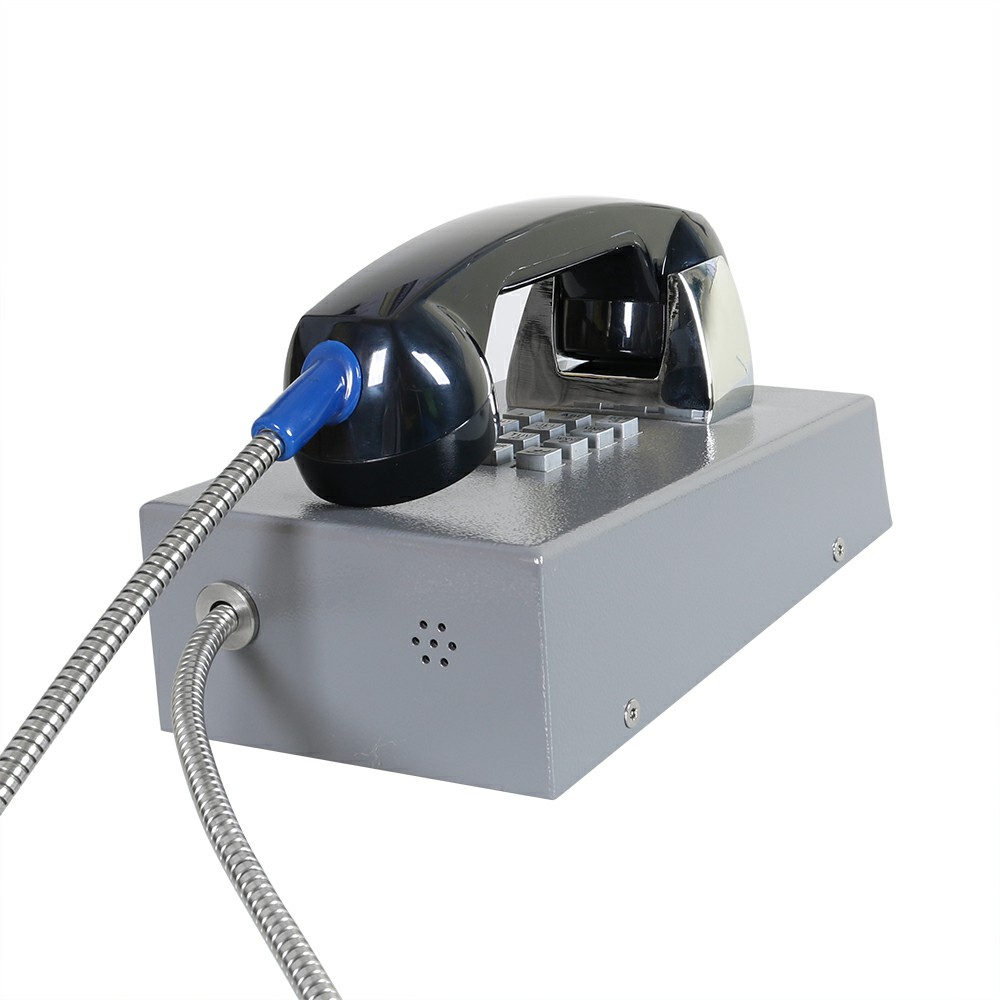

The J&R JR201-FK-SIP is an ultra-rugged, vandal-resistant IP telephone housed in a durable grey cold-rolled steel enclosure, engineered for reliable emergency and public communication in demanding environments. It is powered via Power-over-Ethernet (PoE 802.3af) or an optional 12V DC power adapter. Its heavy-duty steel body features an internal grounding structure and is fully isolated from internal circuits to provide strong electromagnetic shielding, ensuring clear, loud audio free from feedback. Wall-mountable and equipped with an 83 cm armored handset cord, it is built to withstand severe physical abuse and heavy industrial use. Rated IP65 for weather protection and IK10 for impact resistance, the JR201-FK-SIP is ideal for parking lots, prisons, airports, railway platforms, metro stations, ATMs, hospitals, police stations, shopping malls, and stadiums.

The JR201-FK-SIP supports SIP 2.0 (RFC3261) and is compatible with most standard IP-PBX servers. It features a user-friendly Web Management interface accessible via any web browser for remote configuration, firmware updates, and self-diagnostics. Key features include automatic failover switching between primary and backup SIP servers, delayed auto-dialing, up to 4 groups for sequential calling, and two built-in relays to remotely control external devices. Uniquely, when powered by PoE, it can support external horn loudspeakers without requiring additional power supplies. The durable ABS handset provides HD voice clarity (supporting G.711, G.722, G.723, G.729 codecs), a noise-canceling microphone, and Hearing Aid Compatibility (HAC).

Key Features and Benefits

• Power over Ethernet (PoE): Supports IEEE 802.3af PoE for single-cable deployment, or optional 12V DC power input.
• External Speaker Support via PoE: Drives external loudspeakers using PoE power without needing an external power supply.
• Dual Control Relays: Includes 2 built-in relays to remotely trigger external devices such as door locks or strobe lights.
• SIP 2.0 & Server Redundancy: Fully compliant with SIP RFC 3261, supporting automatic failover between primary and backup SIP servers.
• Comprehensive Web Management: Fully configurable via web browser, including static IP/DHCP setup, volume adjustment, and self-testing.

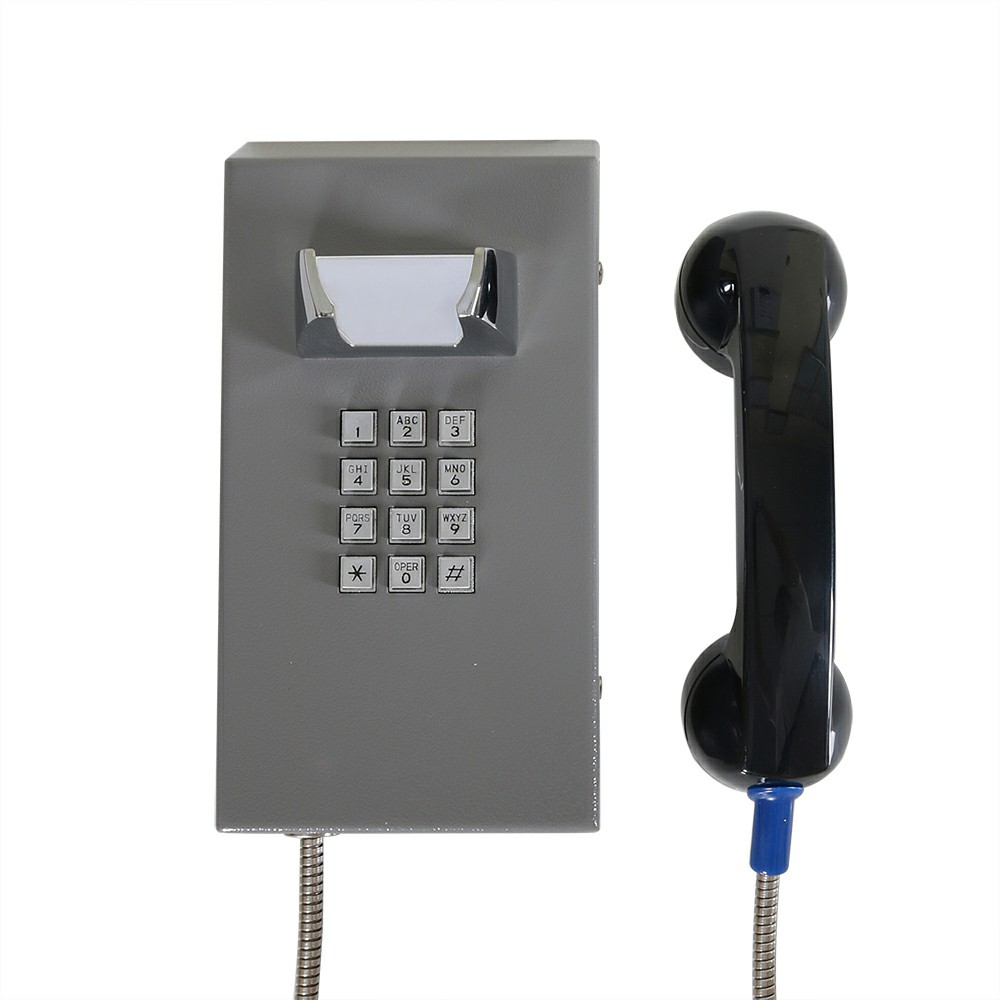

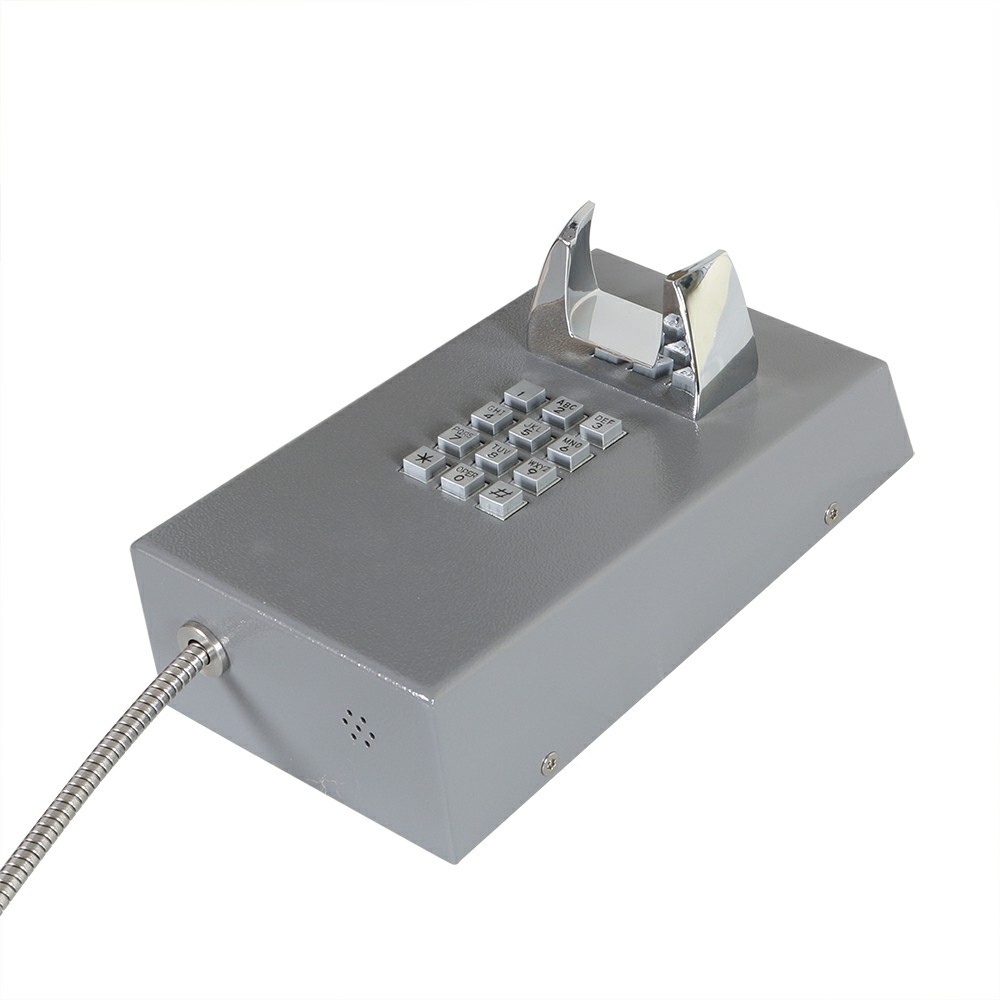

• Full Metal Keypad: Vandal-proof 12-key metal keypad with flexible dial plan and hotline options.
• Sequential Calling: Supports delayed automatic dialing and up to 4 sequential calling groups.
• Grey Cold-Rolled Steel Housing: Powder-coated, corrosion-resistant, and high-impact vandal protection.
• IP65 & IK10 Certified: Fully protected against dust ingress, water jets, and heavy physical impacts.
• HD Voice & Echo Cancellation: Crystal-clear voice quality with G.168 echo cancellation, noise-canceling microphone, and HAC handset.

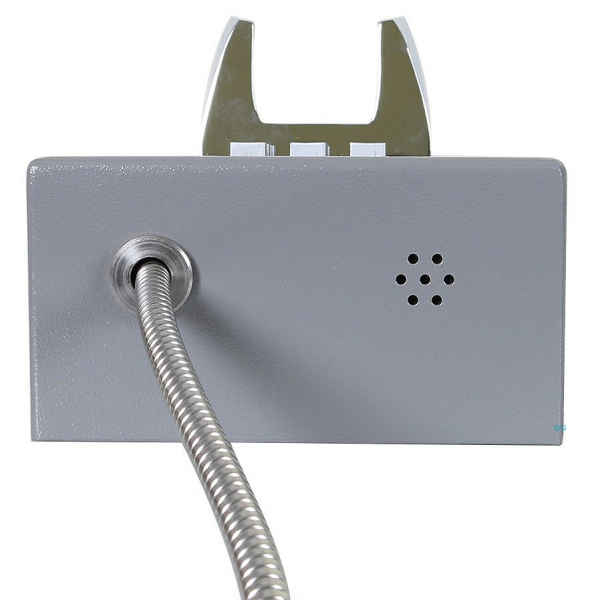

• 83 cm Armored Handset Cord: High tensile strength steel cord designed to resist intentional damage.

Technical Specifications

• Manufacturer: J&R Technology
• Product Name: JR201-FK-SIP Vandal Resistant Telephone
• Part Number: JR201-FK-SIP
• Housing Material: Cold-rolled steel / corrosion-resistant hardware

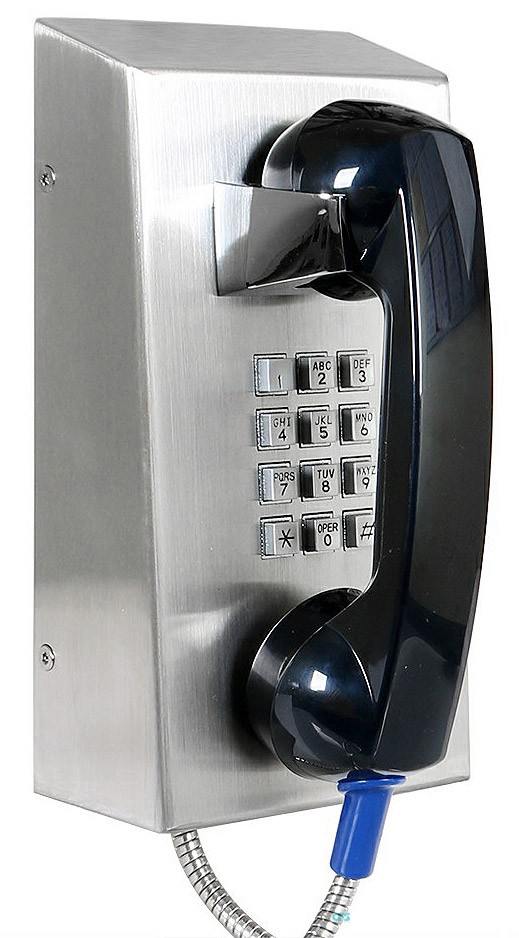

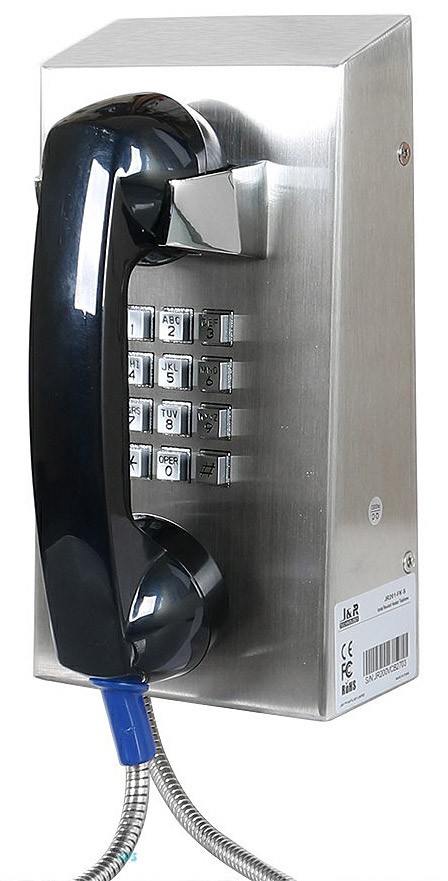

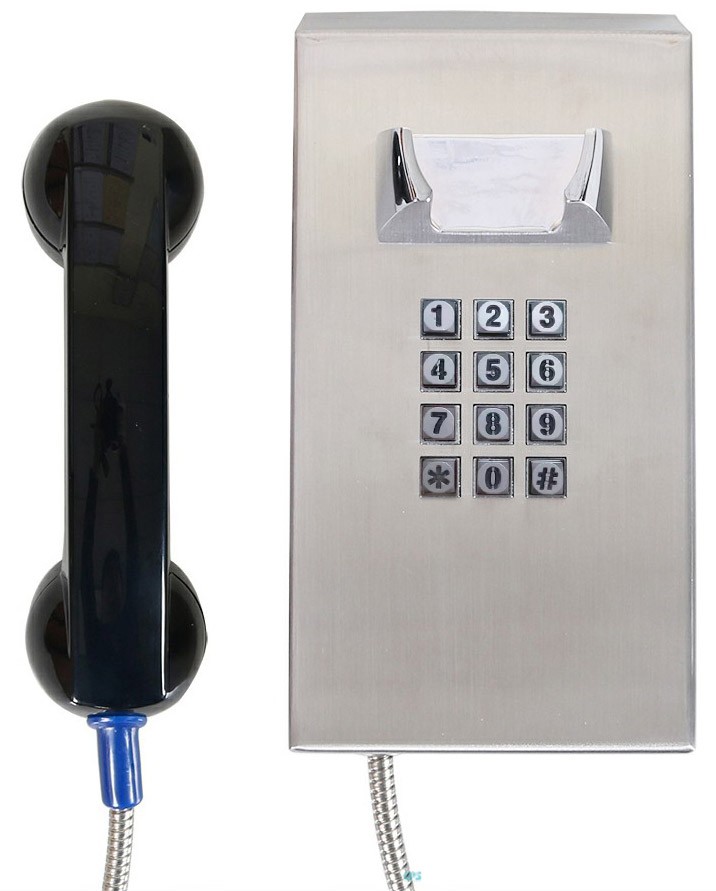

• Material: Cold-rolled steel; 304 stainless steel available upon request.
• Color: Grey – other colors available upon special request
• Phone Type: VoIP / SIP vandal-resistant telephone with metal keypad
• Power Supply: PoE (802.3af) or 12V DC (100–240V AC power adapter optional)
• Power Consumption: Idle 1 W / Working 2.4 W
• SIP Protocol: SIP 2.0 (RFC3261)
• Network Interfaces: WAN: 10/100Base-T RJ-45 (LAN, Auto MDIX) / LAN: 10/100Base-T RJ-45 (PC, Auto MDIX)
• Voice Codecs: G.711 A/U, G.722 8000/16000, G.723, G.729
• Communication Mode: Full duplex
• Echo Cancellation: G.168 supported (hands-free supports up to 96 ms)
• DTMF Methods: SIP INFO, INBAND, RFC2833
• Data Protocols: IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, ONVIF, SNMPv1, RTCP-XR, 802.1x, Static IP/DHCP, IEEE 802.1p/Q, QoS/ToS, HTTP/HTTPS, NTP, FTP/TFTP, CDP/LLDP, VLAN, LDAP
• Configuration & Management: Web browser interface, Telnet debugging, web firmware upload
• Control Relays: 2 built-in relays for external device control
• Keypad: Full metal keypad (12 keys)
• Ringing Tone Volume: 90 to 95 dB(A) @ 1 meter
• Handset & Microphone: ABS handset with noise-canceling microphone, HAC support, and 83 cm armored cord
• Hook-Switch: Magnetic reed hook-switch

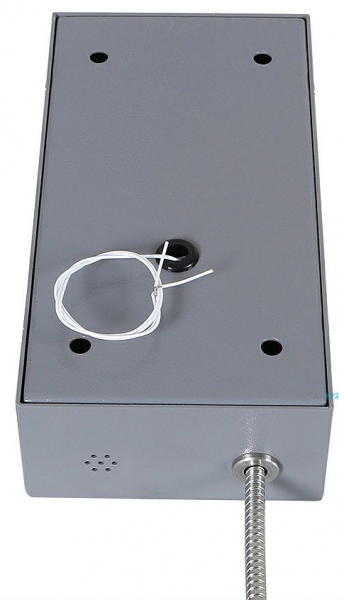

• Mounting Type: Wall-mounted design
• Ingress Protection Rating: IP65
• Impact Protection Rating: IK10
• M.T.B.F.: Exceeds 50,000 hours under normal operating conditions
• Operating Temperature: -40 °C to +65 °C (Storage: -40 °C to +75 °C)
• Unit Dimensions: 247 mm (Height) x 130 mm (Width) x 133 mm (Depth)
• Weight: Net weight: 3.0 kg / Gross weight: 4.0 kg
• Certifications & Standards: CE, FCC, RoHS, IK10, IP65, ISO9001

Optional Accessories

• JR-LP-02: LED Beacon Light
• JR-BS-01: Acousto-optical Alarm
• JR-HSA Series: Broadcast Horn Speaker (JR-HSA-10/20/25/30/35W)
• JR-TH-01: Acoustic Hood

Package Contents

• 1x J&R JR201-FK-SIP VoIP/SIP Vandal-Resistant Telephone (Grey Cold-Rolled Steel, Wall-Mount, 12-Key Metal Keypad)
• 1x User Manual & Documentation

Packaging Information

• Shipping Dimensions: 340 x 220 x 165 mm
• Gross Weight: 4.0 kg
• Net Weight: 3.0 kg
• Packaging Materials: Foam padding, carton
