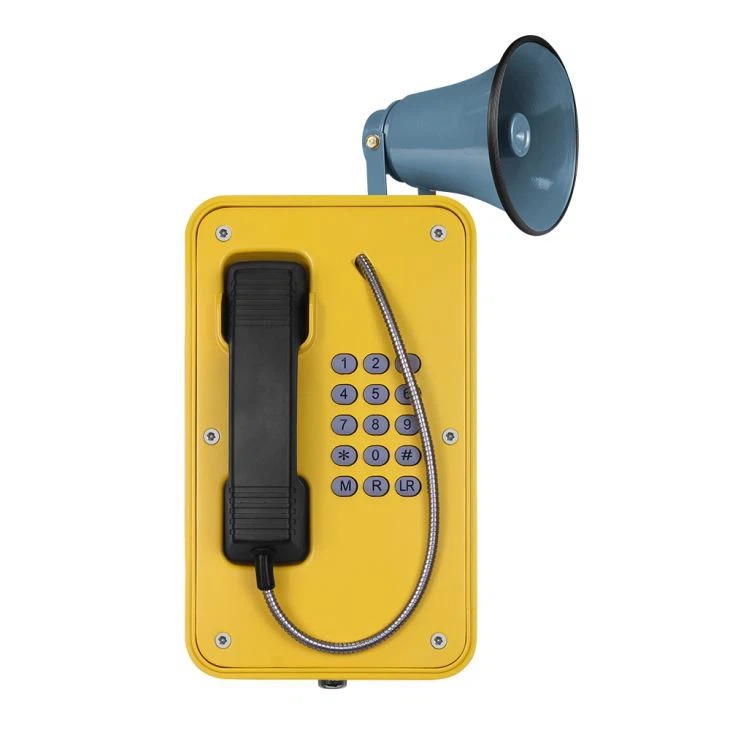

J&R JR103-FK-H-SIP Weatherproof Telephone, keypad, with Horn, yellow
NEW Item
Manufacturer Part Number: JR103-FK-H-SIP
The JR100 series weatherproof telephones are highly reliable communication devices, fully enclosed in a corrosion-resistant, cast aluminum housing. This protective casing, complete with a door, ensures complete protection against dust and moisture, providing exceptional durability with an extended Mean Time Between Failures (MTBF). The robust handset, crafted from molded Bulk Molding Compound and fitted with an armored cord, is built to endure rigorous use in challenging environments, offering added resistance against vandalism and industrial wear.
Key Features
- Standard Analogue/SIP Phone: Compatible with either analogue or SIP connectivity.
- Vandal-Resistant Design: Handset with a 42 cm armored cord for enhanced durability.
- Weatherproof: IP66 weatherproof rating as standard
- Functional Keypad: Full rubber keypad with memory, programmable 0-9 buttons for speed dial.
- Additional Features: Includes last number redial (“LR”), flash recall (“R”), and muting (“M”).
- Alert Mechanism: Rings loudly and flashes when there’s an incoming call.
- Auto-Answer and Line Release: Auto-answers after three rings and releases the line when the call is disconnected.
- Broadcasting Capabilities: Optional built-in amplifier with external horn for broadcasting.
- Power Supply: Operates on DC12V.
- Wall Mounting: Equipped for wall mounting with a mounting bar.
- Certifications: CE, FCC, RoHS, ISO9001, IK10, and IP66 compliant for performance and reliability.
SIP-VoIP Technical Specifications
- Power: DC12V or optional PoE (IEEE802.3af/at).
- Ports:
- WAN: 10/100Base-T RJ-45 for LAN (Auto MDIX)
- LAN: 10/100Base-T RJ-45 for PC (Auto MDIX)
- Power Consumption:
- Idle: 1.5W / Active: 1.8W
Voice Features
- SIP 2.0 Support (RFC3261)
- Codecs: G.711A/u, G.7231 high/low, G.729, G.722
- Echo Cancellation: G.168, with hands-free support up to 96 ms
- Full Duplex Support
- SIP Authentication: SIP domain, authentication (none, basic, MD5), DNS server name
- DTMF Options: SIP info, DTMF Relay, RFC2833
- Call Control: Flexible dial map, hotline support
Network Features
- WAN/LAN Support: Bridge mode compatibility
- IP Address Options: Supports static IP and DHCP for WAN port
- VLAN and Web Configurations
- Supported Protocols: IPv4, TCP, UDP, ICMP, ARP, DNS, DNS SRV for SIP signaling
Analogue Specifications
- Dialing Method: MF (tone)
- Power Supply: DC12V
- Protection Level: ITU-T k.21 enhanced lightning/transient protection
- Remote Programming: DTMF tone or keypad
Technical Specifications
- Housing Material: Die-cast aluminum with epoxy powder coating; standard color yellow, other colors available on request.
- Handset Material: Cycoloy with stainless steel spiral cord
- Hook Switch: Electronic/magnetic with no visible moving parts
- Temperature Range:
- Operating: -30°C to +65°C
- Storage: -40°C to +75°C
- Ringing Volume: Shrill warble tone, typical 110 dBA at 1 meter
- MTBF: Exceeds 50,000 hours
Packaging Information
- Unit Size: 204 mm x 334 mm x 109 mm
- Carton Size: 200 mm x 300 mm x 440 mm
- Packaging Materials: Pearl cotton, carton
- Weight: Net: 7 kg, Gross: 8 kg
