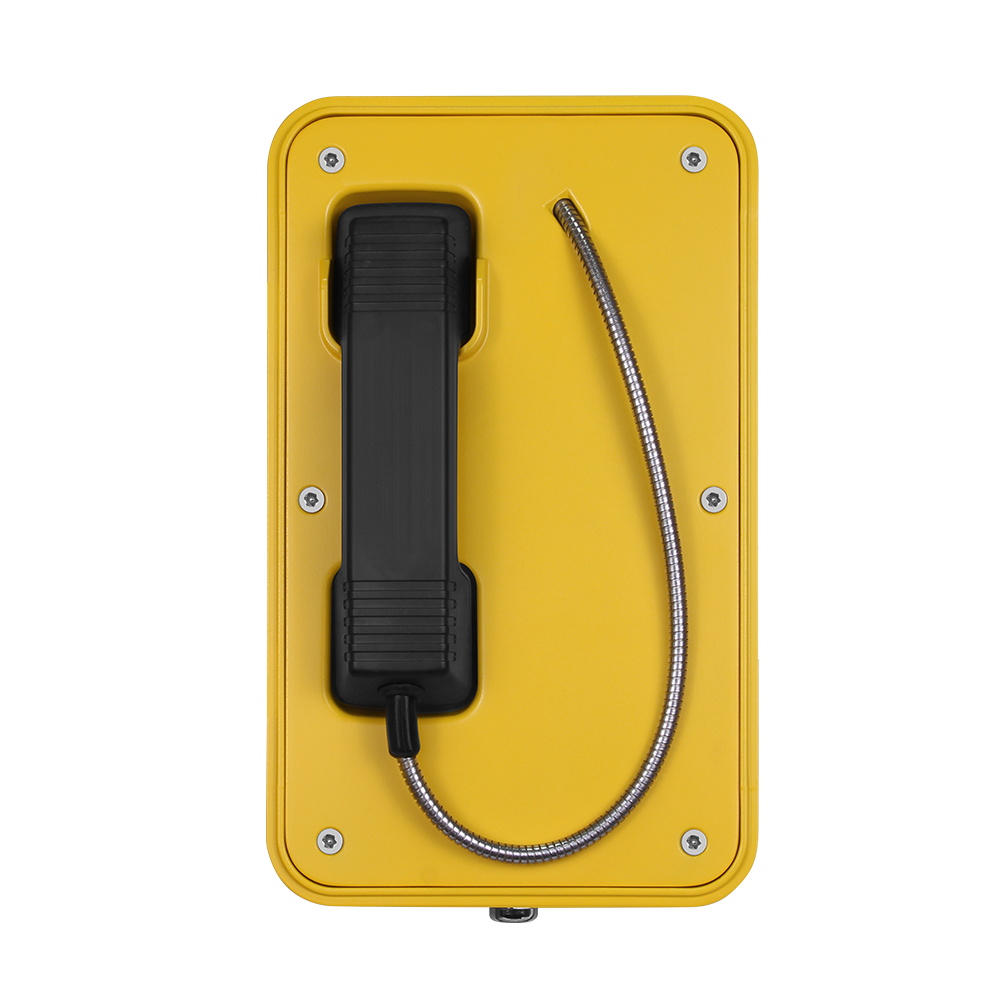

J&R JR103-CB-Analog Weatherproof Telephone, CB without keypad, Yellow
NEW Item
Manufacturer Part Number: JR103-CB-Analog
Hotline-Phone
The JR100 Series telephones are designed for high reliability in extreme environments. Encased in a corrosion-resistant, cast aluminum weatherproof housing with a door, these phones are fully protected against dust and moisture, offering a long Mean Time Between Failures (MTBF). They are ideal for challenging applications in sectors like railways, power stations, the armed services, and heavy industry.
Key Features
- Model Options: Standard Analogue / SIP phone
- Construction: Die-cast aluminum casing, IP66-rated for weather resistance
- Handset: Made from robust Bulk Molding Compound with an 80cm armored cord, designed for vandal and heavy industrial use
- Mounting: Wall-mounted with a mounting bar
- Certifications: CE, FCC, IK10, IP66, ISO9001
Technical Specifications
Power and Connectivity
- Analogue Model: Powered directly from the phone line
- SIP Model: Power options include 12V DC or PoE (IEEE802.3af/at), with an RJ45 port for SIP connection
Audio & Call Features (SIP Model)
- Voice Protocols: SIP 2.0 (RFC3261) supported
- Codecs: G.711A/u, G.723.1 (high/low), G.729, G.722
- Echo Cancellation: G.168 support, up to 96ms for hands-free mode
- Full Duplex: Ensures clear two-way communication
- Call Control: Includes flexible dial map and hot-line functionality
Network (SIP Model)
- Port Configuration:
- WAN (10/100Base-T RJ-45)
- LAN (10/100Base-T RJ-45 for PC connection)
- Network Protocols: IPv4, TCP, UDP, ICMP, ARP, DNS, DNS SRV for SIP signaling
- IP Options: Supports static IP and DHCP for dynamic IP assignment
- Other Features: VLAN support and web configuration
Standard Analogue Telephone Features
- Compatibility: Works with standard two-wire telephone lines, analogue PABX, and PSTN lines
- Dialing Method: MF (tone)
- Programming: Configurable as an auto-dial phone, either remotely or via built-in keypad
- Lightning Protection: Enhanced to ITU-T K.21 levels
Physical and Environmental Specifications
- Casing: Epoxy powder-coated die-cast aluminum, available in yellow or custom colors
- Handset Material: Cycoloy with a stainless-steel spiral cord
- Temperature Resistance:
- Operating: -30°C to +65°C
- Storage: -40°C to +75°C
- Weather Resistance: IP66 standard for dust and moisture protection
- Ringing Volume:
- Analogue: 80 dBA at 1 meter
- SIP: 90 dBA at 1 meter
Packaging Details
- Dimensions: 204 x 334 x 109 mm (unit size), 200 x 300 x 440 mm (carton size)
- Materials: Pearl cotton, carton
- Weight: 5 kg net, 7 kg gross
This rugged telephone is designed for applications demanding durability and reliable performance under harsh conditions.
