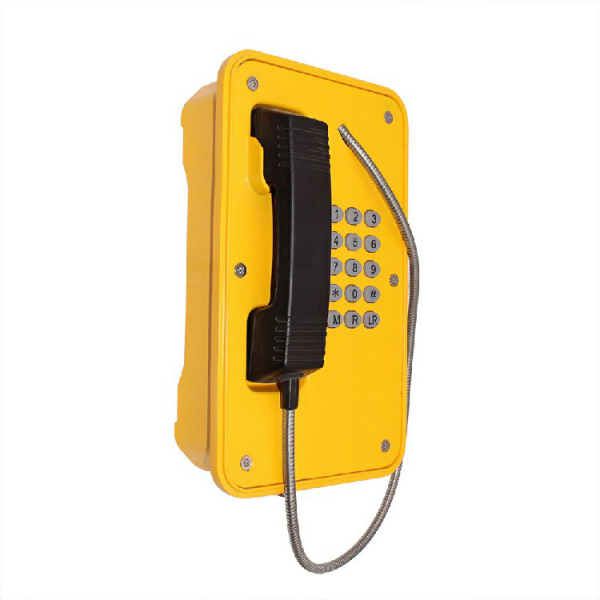

J&R JR103-FK-Analog Weatherproof Telephone, keypad, Yellow
NEW Item
Manufacturer Part Number: JR103-FK-Analog
The JR100 series telephones are high-reliability communication devices designed for harsh and demanding environments such as railways, power stations, armed services, and heavy industry. They feature a corrosion-resistant, cast aluminum weatherproof casing with a protective door, providing complete protection against dust and moisture. The rugged construction and dependable performance contribute to a long Mean Time Between Failures (MTBF), making these phones suitable for continuous use in adverse conditions.
Key Features
- Standard Analogue Phone: Basic telephone functionality that connects to standard two-wire telephone lines, compatible with analogue PABX and PSTN.
- Vandal Resistant: 80 cm armored handset cord designed to withstand industrial use and vandalism.
- Weatherproof Rating: IP66-rated protection, ensuring resilience in wet, dusty, and challenging outdoor conditions.
- Full Rubber Keypad: Programmable for quick dial (0-9), last number redial (“LR” button), flash recall (“R”), and muting (“M”).
- Line-Powered: Operates without an additional power source, drawing power directly from the telephone line.
- Compliant Standards: CE, FCC, IK10, IP66, ISO9001-certified for safety and reliability.
Technical Specifications
- Dialing: MF (tone)
- Casing Material: Die-cast aluminum with epoxy powder coating. Standard color is yellow; custom colors available.
- Handset Material: Cycoloy with stainless steel spiral cord.
- Hook Switch: Electronic/magnetic, eliminating visible moving parts for durability.
- Temperature Range:
- Operating: -30°C to +65°C
- Storage: -40°C to +75°C
- Weather Resistance: IP66 (standard), IP67 available for higher protection.
- Ringing Tone:
- Analog: Shrill warble tone at 80 dBA @ 1 meter
- SIP: Shrill warble tone at 90 dBA @ 1 meter
- MTBF: Over 50,000 hours.
Packaging Information
- Unit Size: 204 mm x 334 mm x 109 mm
- Carton Size: 200 mm x 300 mm x 440 mm
- Packaging Materials: Pearl cotton, carton
- Weight: Net: 5 kg, Gross: 6 kg
