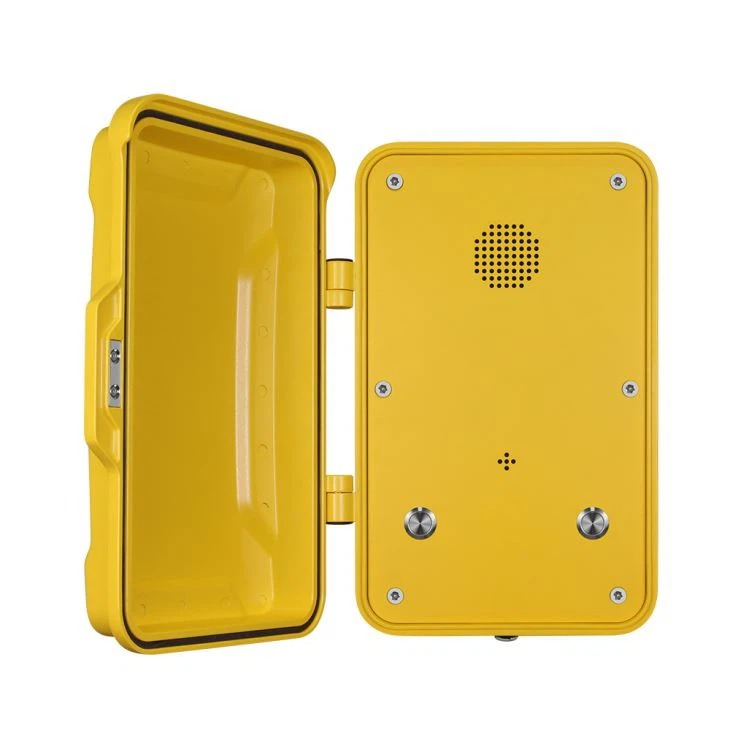

J&R JR102-2B-Analog Weatherproof Telephone, 2 Buttons Speed dial Phone, Yellow, protection door

J&R JR102-2B-Analog Weatherproof Telephone, 2 Buttons Speed dial Phone, Yellow, protection door

NEW Item
Manufacturer Part Number: JR102-2B-Analog

The telephones in the JR100 series are housed within a corrosion-resistant, weatherproof aluminum casing with a protective door that fully shields against dust and moisture ingress. This design results in a highly reliable product with a long MTBF (Mean Time Between Failures).

The robust casing and vandal-resistant buttons are specifically designed for demanding use in harsh environments, providing high protection against vandalism and industrial wear and tear. The weatherproof telephones in the JR100 series are intended for applications requiring extremely reliable communication under adverse conditions, such as in the railway, power, military, and heavy industry sectors.

Key Features

• Type: Standard Analog/SIP telephone with door
• Protection: IP66 standard for weather resistance
• Material: Aluminum alloy die-cast body
• Buttons: Two vandal-resistant metal buttons for emergency calls
• Operation: Hands-free
• Power Supply:
  • Analog: Powered by telephone line
  • SIP: PoE or DC12V
• Connection: RJ45 port for SIP connection
• Mounting: Wall mounting with mounting bar
• Certifications: CE, FCC, IK10, IP66, ISO9001

SIP-VoIP Technical Specifications

• Power: 12V DC or PoE (IEEE802.3af/at)
• Connection Options:
  • WAN: 10/100Base-T RJ-45 for LAN, Auto-MDIX
  • LAN: 10/100Base-T RJ-45 for PC, Auto-MDIX
• Power Consumption:
  • Idle: 1.5W
  • Active: 1.8W

Voice Features

• SIP Support: SIP 2.0 (RFC3261)
• Audio Codecs: G.711A/u, G.7231 (high/low), G.729, G.722
• Echo Cancellation: Supports G.168; hands-free mode supports up to 96 ms
• Full Duplex Support
• SIP Domain: Authentication (none, basic, MD5), DNS server name
• DTMF Support: SIP info, DTMF relay, RFC2833
• Call Control Features: Flexible dial map, hotline support

Network Specifications

• Bridge Mode: Supported for WAN/LAN
• IP Settings: Static IP address or DHCP
• VLAN Support: Yes
• Web-Based Configuration: Supported
• Data Protocols: IPv4, TCP, UDP, ICMP, ARP, DNS, and DNS SRV for SIP signaling

Standard Analog Features

As a standard analog telephone, this unit provides basic telephony functions and can connect to any standard two-wire line, including PABX and PSTN lines.

Analog Specifications

• Dialing: MF (tone dialing)
• Power Supply: Powered by the telephone line
• Lightning Protection: Protected against transients to ITU-T k.21 standards
• Programming: Can be remotely programmed via DTMF tone or keypad

Technical Specifications

• Casing Material: Die-cast aluminum body, cold-rolled steel front panel with epoxy powder coating
• Color: Yellow; other colors available upon request
• Keypad: None
• Push Button: Vandal-resistant stainless steel button
• Temperature:
  • Operating: -30°C to +65°C
  • Storage: -40°C to +75°C
• Weather Resistance: IP66 (standard)
• Ringing Tone:
  • Analog: 80 dBA @ 1 meter (typical)
  • SIP: 90 dBA @ 1 meter (typical)
• MTBF: Calculated at over 50,000 operational hours

Packaging Details

• Unit Size: 246 mm x 339 mm x 126 mm
• Carton Size: 200 mm x 300 mm x 440 mm
• Packaging Materials: Pearl cotton, carton
• Net Weight: 6 kg
• Gross Weight: 7 kg
