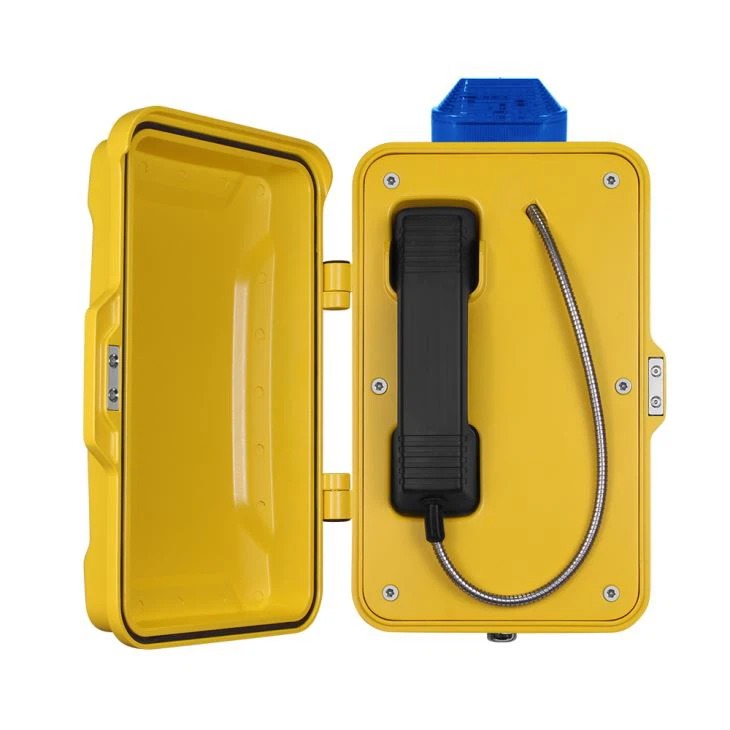

J&R JR101-CB-L-SIP Weatherproof Telephone, CB without keypad, LED Lamp, Yellow, protection door

J&R JR101-CB-L-SIP Weatherproof Telephone, CB without keypad, LED Lamp, Yellow, protection door

NEW Item
Manufacturer Part Number: JR101-CB-L-SIP

lamps are available in blue, yellow, red, and green

Hotline-Phone

JR100 Series Telephones

The JR100 series telephones are housed in a corrosion-resistant, cast aluminum case that is weatherproof and equipped with a secure door. This design ensures complete protection against dust and moisture ingress, resulting in a highly reliable product with an extended mean time between failures (MTBF).

Key Features

• Robust Handset: The handset is made from molded Bulk Molding Compound, specifically engineered to withstand rigorous use in various environments. It is accompanied by an armored cord for additional protection against vandalism and heavy industrial conditions.
• Applications: Ideal for use in railways, power stations, military services, and heavy industries requiring dependable telephony in adverse conditions.
• Telephone Type: Standard Analogue/SIP phone with protective door.
• Handset Length: 42 cm vandal-resistant handset and cord.
• Weatherproof Rating: Standard IP66.
• LED Indicator: Features a fixed LED lamp on the top.
• Inductive Coupler: Fitted as standard for users with hearing impairments.
• Power Supply Options:
  • Analogue: Powered by phone line.
  • SIP: POE or 12V DC powered.
• Connection Port: RJ45 port for SIP connection.
• Mounting Options: Wall mounting with a mounting bar.
• Compliance: CE, FCC, IK10, IP66, ISO9001 certified.

SIP-VoIP Technical Specifications

• Power Supply:
  • 12V DC or PoE: IEEE802.3af/at.
• Ports:
  • WAN: 10/100Base-T RJ-45 for LAN, Auto MDIX.
  • LAN: 10/100Base-T RJ-45 for PC, Auto MDIX.
• Power Consumption:
  • Idle: 1.5W
  • Active: 1.8W

Voice Features

• SIP Support: Supports SIP 2.0 (RFC3261).
• Codecs: G.711A/U, G.7231 (high/low), G.729, G.722.
• Echo Cancellation: Supports G.168; hands-free mode supports up to 96ms.
• Full Duplex: Yes.
• SIP Domain Support: Includes SIP authentication (none, basic, MD5) and DNS server names.
• DTMF Support: SIP info, DTMF relay, RFC2833.
• Call Control Features: Flexible dial map and hotline support.

Network Features

• Bridge Mode: Supported for WAN/LAN connections.
• Static IP Address: Supported.
• DHCP: Automatic IP assignment on WAN port.
• VLAN Support: Yes.
• Web Configuration: Available.
• Data Protocols: IPv4, TCP, UDP, ICMP, ARP, DNS, and DNS SRV for SIP signaling.

Standard Analogue Specifications

As a standard analogue telephone, this unit offers basic telephony functions and can connect to any standard two-wire telephone line, including analogue PABX lines and PSTN.

Analogue Features

• Dialing Method: Multifrequency (MF).
• Power Supply: Powered from the telephone line.
• Lightning/Transient Protection: Enhanced levels as per ITU-T K.21 standards.
• Programming Options: Can be programmed as an auto-dial phone via built-in keypad or remote programming.

Technical Specifications

• Casing Material: Die-cast aluminum, epoxy powder coated.
  • Standard Color: Yellow; other colors available upon special order.
• Handset Material: Cycoloy with a stainless steel spiral cord.
• Hook Switch: Electronic/magnetic with no visible moving parts.
• Keypad: None.
• Operating Temperature:
  • Operating: -30°C to +65°C
  • Storing: -40°C to +75°C
• Weather Resistance: IP66 (standard)
• Ringing Tone:
  • Analog: Shrill warble tone at 80 dBA @ 1 meter (typical).
  • SIP: Shrill warble tone at 90 dBA @ 1 meter (typical).
• Mean Time Between Failures (MTBF): Calculated to exceed 50,000 hours.

Packaging Details

• Unit Size: 246 mm x 339 mm x 126 mm.
• Carton Size: 200 mm x 300 mm x 440 mm.
• Packaging Materials: Pearl cotton and carton.
• Gross Weight: 7 kg.
• Net Weight: 6 kg.
