J&R JR101-FK-L-Analog Weatherproof Telephone, Keypad, LED lamp, Yellow, protection door

J&R JR101-FK-L-Analog Weatherproof Telephone, Keypad, LED lamp, Yellow, protection door

NEW Item
Manufacturer Part Number: JR101-FK-L-Analog

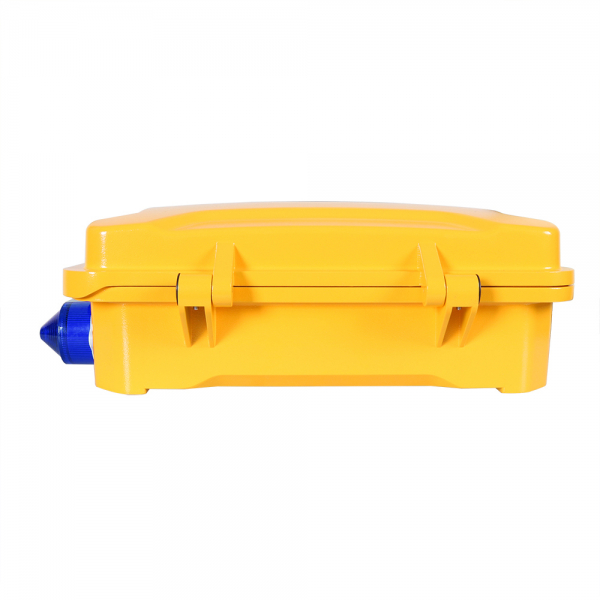

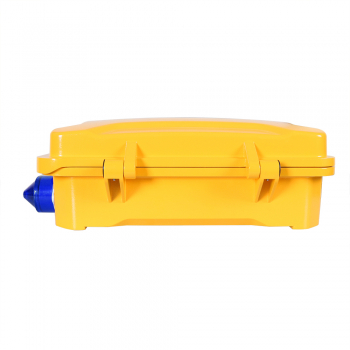

lamps are available in blue, yellow, red, and green,

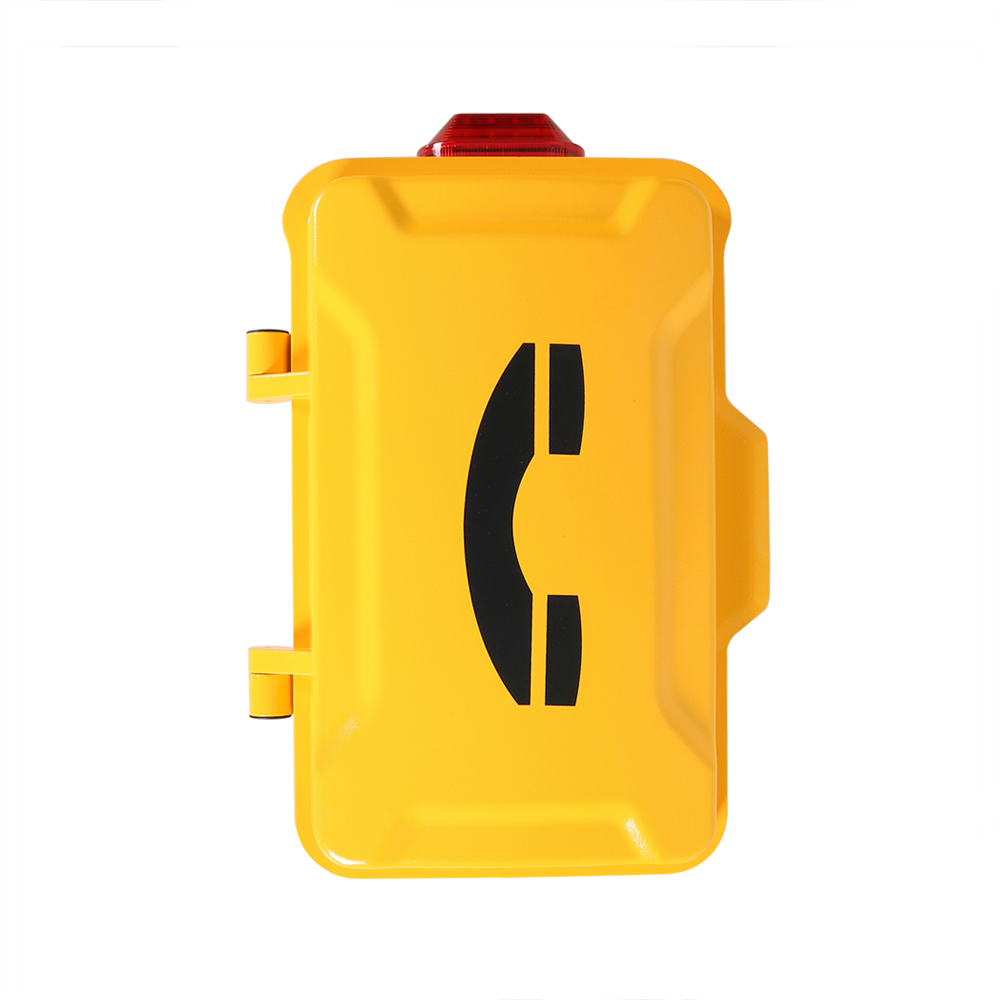

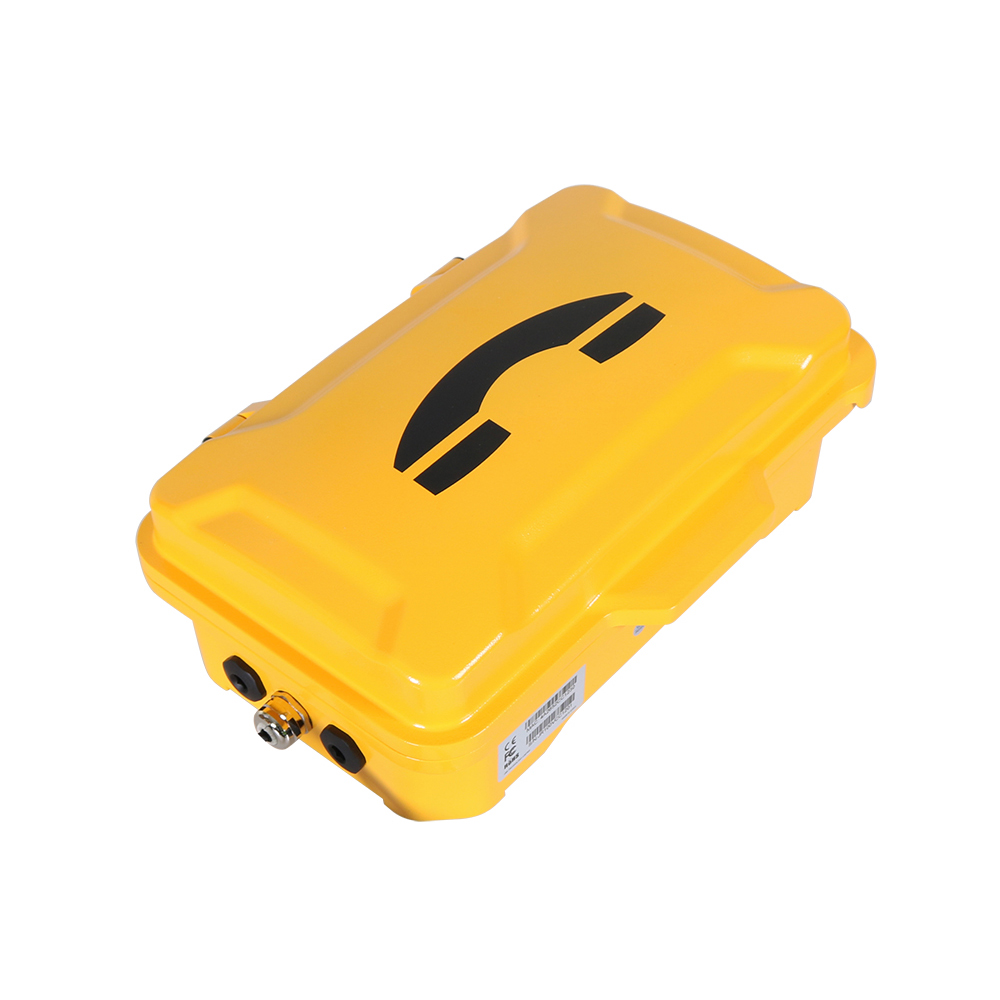

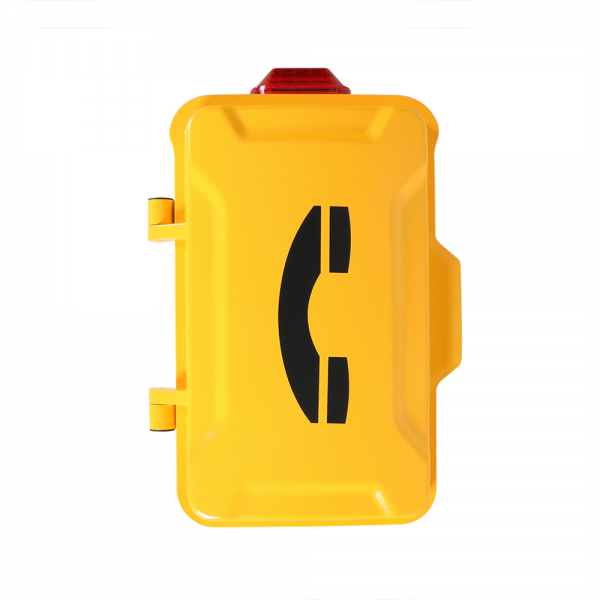

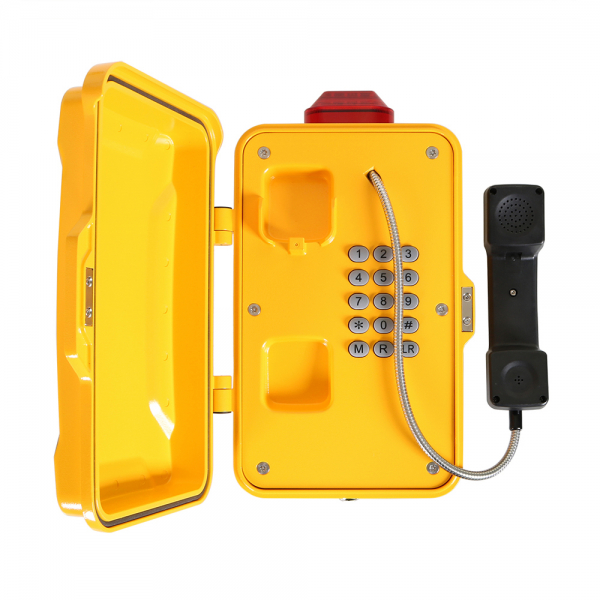

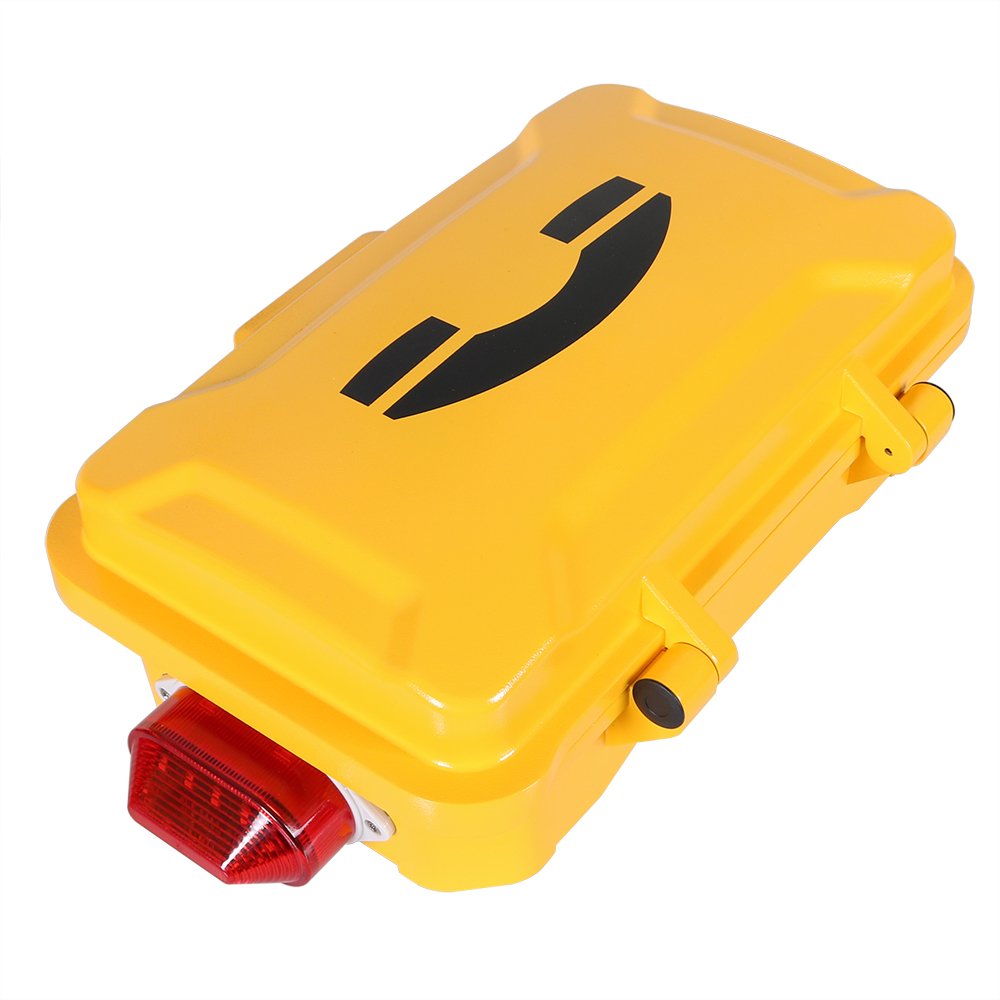

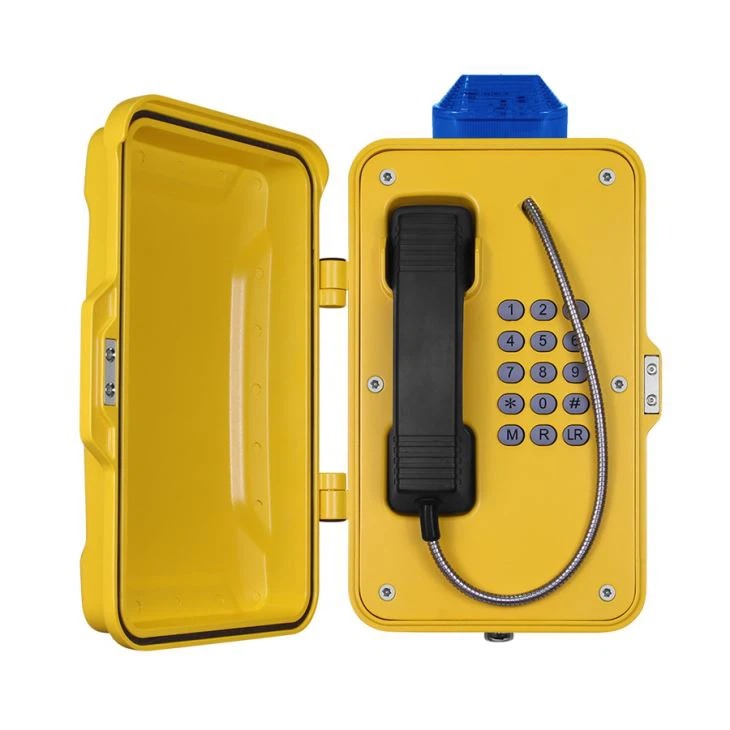

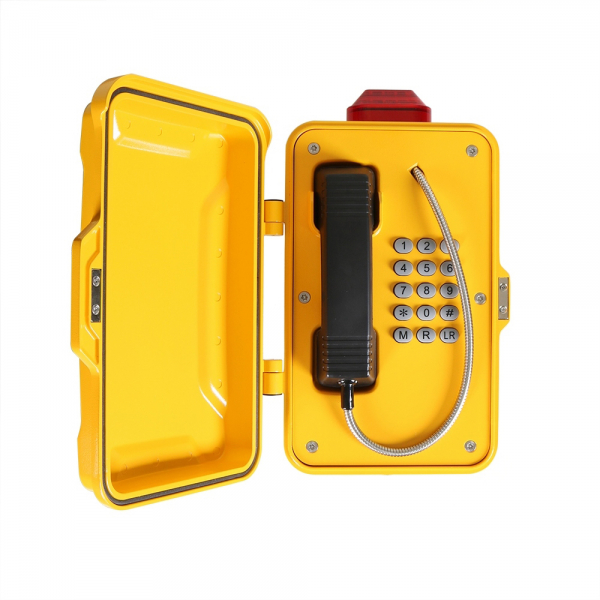

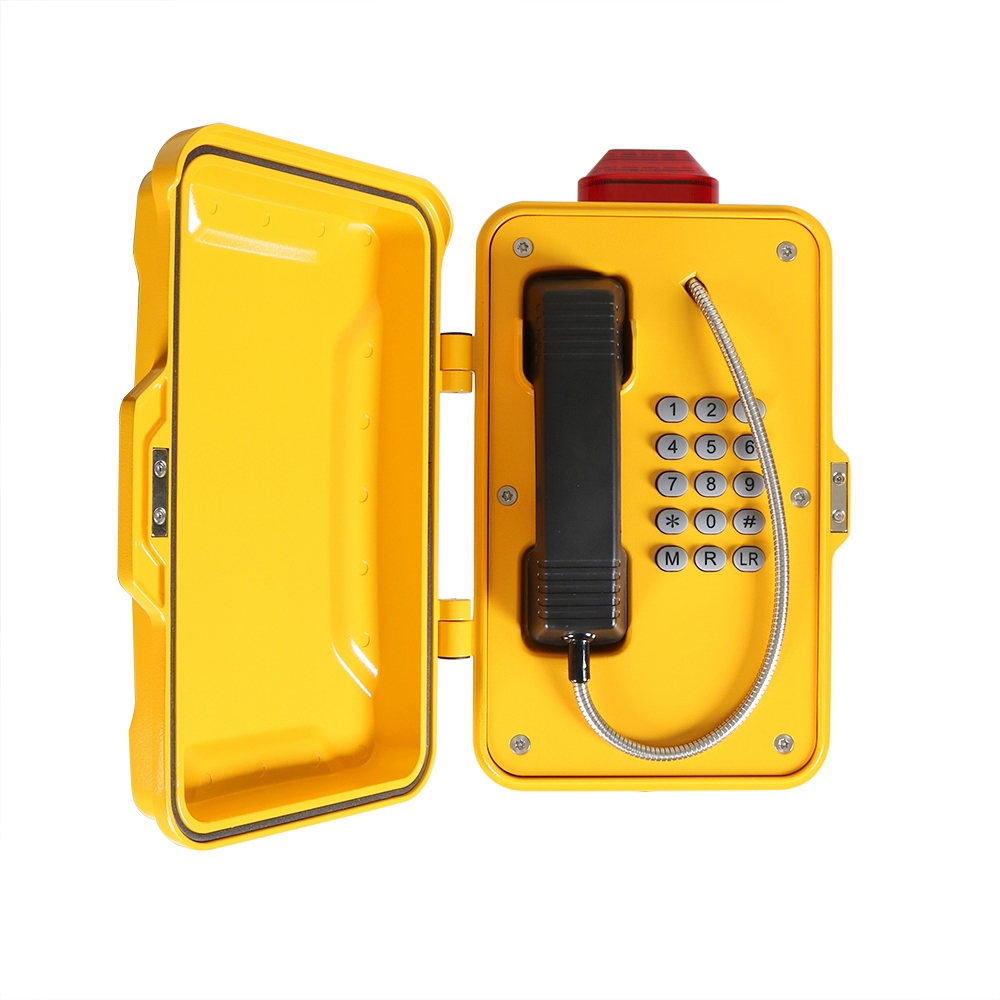

The JR100 series telephones are enclosed in a corrosion-resistant, cast aluminum weatherproof case with a protective door, ensuring complete protection against dust and moisture. This design contributes to a high level of reliability and a long Mean Time Between Failure (MTBF).

The durable handset, made from molded Bulk Molding Compound, is designed for intense use in tough environments. Its armored cable offers extra resistance against vandalism and industrial wear and tear.

These weatherproof telephones are optimized for reliable use in demanding industries, including railways, power stations, military services, and heavy industry.

Key Features

• Phone Type: Standard Analog/SIP phone with protective door
• Handset: 42 cm vandal-resistant, armored cord
• Weatherproof Rating: IP66 standard

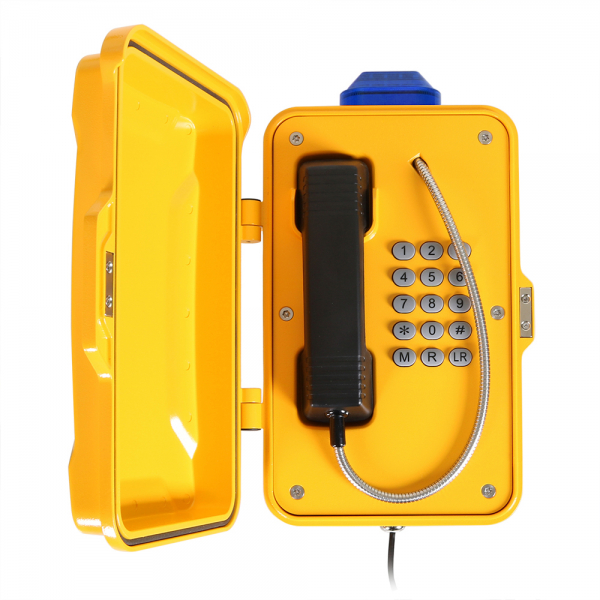

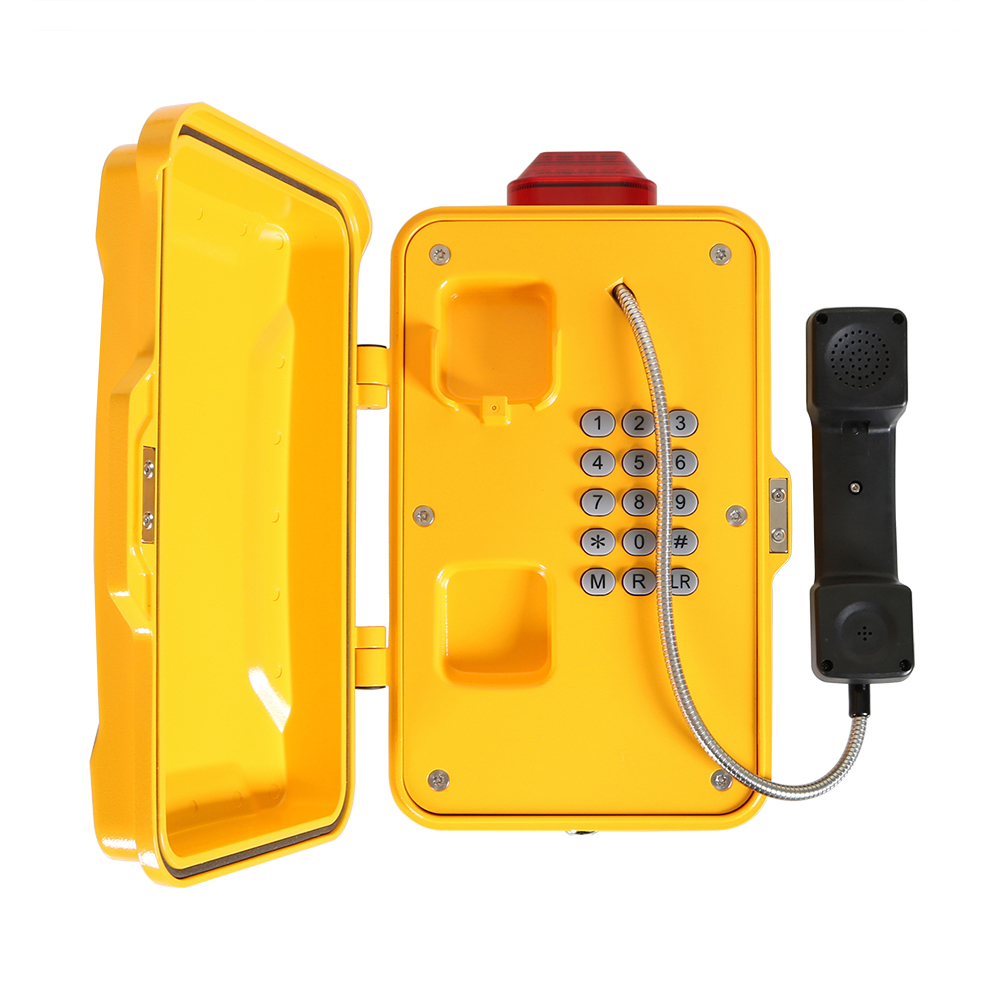

• Keypad: Full rubber with programmable memory; 0-9 keys can serve as speed dial

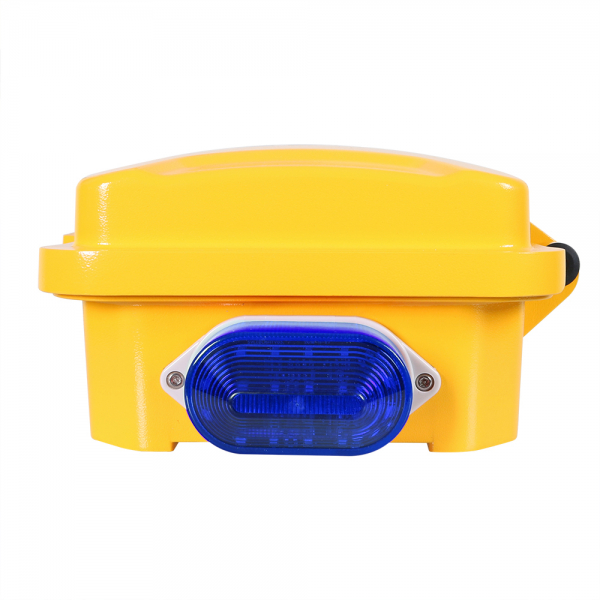

• LED Lamp: Fixed 5V LED lamp on top
• Additional Functional Buttons:
  • "LR" for last number redial
  • "R" for flash recall
  • "M" for muting
• Power Supply:
  • Analog: Powered by phone line
  • SIP: Powered via POE or DC12V
• Connection: RJ45 port for SIP connection
• Mounting: Wall mounting with mounting bar
• Compliance: CE, FCC, IK10, IP66, ISO9001 certified

SIP-VoIP Technical Specifications

• Power Options: 12V DC or POE: IEEE802.3af/at
• Ports:
  • WAN: 10/100Base-T RJ-45 for LAN, Auto MDIX
  • LAN: 10/100Base-T RJ-45 for PC, Auto MDIX
• Power Consumption:
  • Idle: 1.5W
  • Active: 1.8W

Voice Features

• SIP Support: SIP 2.0 (RFC3261)
• Audio Codecs: G.711A/u, G.7231 (high/low), G.729, G.722
• Echo Cancellation: Supports G.168; hands-free mode supports 96ms
• Duplex: Full duplex supported
• Authentication: SIP domain, SIP authentication (none, basic, MD5), DNS server support
• DTMF Support: SIP info, DTMF Relay, RFC2833
• Call Control: Flexible dial map, hotline support

Network Features

• Bridge Mode: Supported on WAN/LAN
• IP Options: Static IP address support
• DHCP: Supports IP assignment on WAN port
• VLAN Support: Yes
• Configuration: Web-based configuration support
• Protocols: IPv4, TCP, UDP, ICMP, ARP, DNS, DNS SRV for SIP signaling

Standard Analog Features

As a standard analog phone, this unit offers basic telephone functions and is compatible with any standard two-wire line, including analog PABX and PSTN lines.

Analog Specifications

• Dialing: MF (tone)
• Power Supply: Drawn from the phone line
• Lightning Protection: ITU-T k.21 enhanced level
• Programming: Remote programming via DTMF or keypad

Technical Specifications

• Casing Material: Die-cast aluminum with epoxy powder coating; yellow color standard, others available by special order
• Handset Material: Cycoloy with stainless steel spiral cord
• Hook Switch: Electronic/magnetic, no visible moving parts
• Keypad: Rubber
• Temperature:
  • Operating: -30°C to +65°C
  • Storage: -40°C to +75°C
• Weather Resistance: IP66 (standard)
• Ringing Tone:
  • Analog: 80 dBA @ 1 meter (typical)
  • SIP: 90 dBA @ 1 meter (typical)
• MTBF: Exceeds 50,000 hours

Packaging Details

• Unit Size: 246 mm x 339 mm x 126 mm
• Carton Size: 200 mm x 300 mm x 440 mm
• Packaging Materials: Pearl cotton, carton
• Net Weight: 6 kg
• Gross Weight: 7 kg
