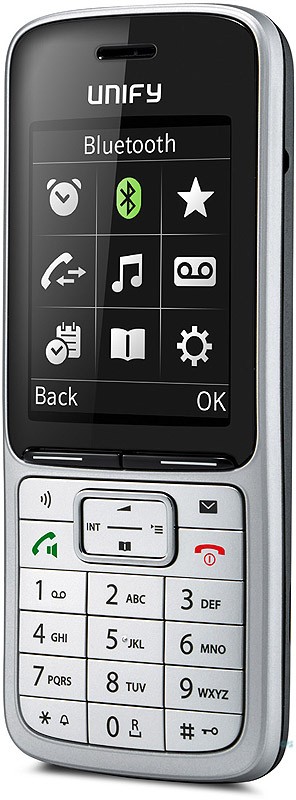

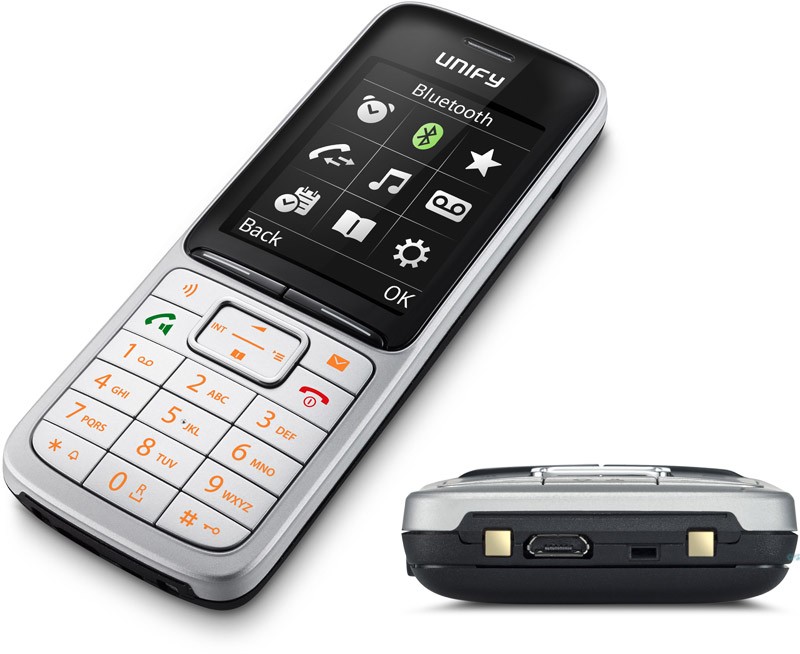

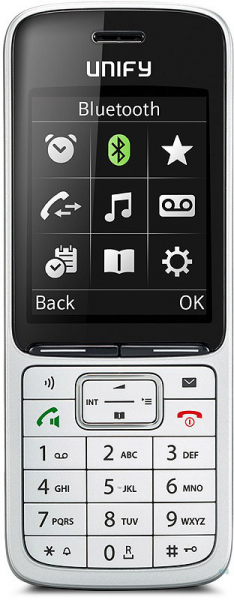

OpenScape DECT Phone SL5 Handest, L30250-F600-C450 B Refurbished
B Refurbished, 2nd choice
2nd choice device, refurbished B, has scratches on display, abrasions on keyboard
Manufacturer Part Number: S30852-H2752-R141, L30250-F600-C450
with Refurbished Akku Battery
without charger
Unify OpenScape SL5 = Telekom Octophon SL5
The OpenScape DECT Phone SL5 is the slimmest and smallest DECT handset in the portfolio; it satisfies the most stringent requirements in terms of high end functionality and design and suits perfectly to various jobs. From the high-quality handset with silver front side, to the large 2.4” TFT color display with modern user interface, this handset looks exquisite. It offers the largest display in the handset-portfolio; approx. 33% larger display size compared to the 1,8” previous display. The large display is ideal for easy readability by almost identically housing dimensions. As well as great style, it offers optimum functionality, with excellent voice quality, Bluetooth Interface and a 2.5mm headset jack.
The OpenScape DECT Phone SL5 is the successor of OpenStage SL4 professional.
Based on DECT-/GAP-/PN CAP- standards, the OpenScape DECT Phone SL5 implements the requirements of professional phone users and makes them available to the HiPath-/OpenScape- Cordless systems.
Mobility Features
Multi-cell capability
- Roaming
- Seamless connection Handover during a call
- Bearer handover in case of disturbances
- Display message when leaving the radio network
Security
- Encrypted voice transmission regarding DECT standard
- Secure system logon
Multi-DECT system capability option for parallel registration of the handset at up to four DECT systems
Description of Features of the OpenScape DECT Phone SL5 handset
Keypad
- Illuminated keypad
- Combined accept call/hands-free key
- MWI (Message Waiting Indicator) key
- 5-way navigation key
- Talk key functions:
- when pressed briefly: redial list
- when held down: dial state
- Two free programmable Display-key
- Combined Profile-/microphone send volume-/microphone mute key
- R- (Flash) located on “0” key
- Keypad lock on/off located on “#” key
Display
- Large 2,4” Illuminated graphical display
- brilliant TFT display, 65k color, 240*320 pixel resolution, 2,4 inch screen diagonal (6,1 cm)
- Color scheme and screen saver settings
- Display of fonts and symbols in different situations in large fonts
- Configurable timeout of the display
- Display-Languages of the handsets (27 languages):
German, English, French, Italian, Spanish, Portuguese, Dutch, Danish, Norwegian, Swedish, Finnish, Czech, Slovakia, Polish, Turkish, Greek, Hungarian, Russian, Croatian, Slovenian, Roman, Serbian, Catalan, Bulgarian, Bosnian, Ukrainian, Arabian
Display in idle state
- Status display:
- Battery charging
- Received field strength
- Ring tones off
- Warning tone on
- Keypad lock on
- Bluetooth activated
- Local editing of base station name
- Notices of (Display-indicate with the first off hock):
- own call number
- Date and time
Screensaver
- Picture out of media pool store
- alternative to pictures: analogue or digital clock
- Screensaver replaces the notices in idle
Settings
- Handset is preset
- Individual settings
- Fast access on functions and numbers
- Belay of numeric key/ display key
- Display: Language, Color-Schema, Contrast, Illuminating, Screensaver
- Automatic Call acceptance on/off
- handsfree-/earpiece volume
- ring tones, melodies
Media Pool administered:
- Monophonic ring tones (Sounds)
- Polyphone melodies (Sounds)
- Pictures for:
- Screensaver
- Caller pictures (ClIP pictures)
Alarm clock
- activated/deactivated
- Period: Monday – Friday or daily
- Wake-up call is signaled with selected Sound
Appointments (Calendar)
- They can remember let up to 30 appointments
- Appointments of the day are indicated,
- Appointment can be supplemented with text,
- Appointment call is signaled with selected Sound,
- Indicated text, date and time are indicated.
- List of missed appointments
Phone book
- Storage possibility of the directory
- Up to 500 entries for all directories
- Fast access on a number (speed dialing)
- Up to three phone numbers with accompanying name, surname (private/office/mobile), e-mail address, appointments with signaling, VIP-notation, CLIP pictures
- phone book administration via PC (Gigaset QuickSync = PC application)
- via Bluetooth-Interface
- via Mini- USB interface
- Saving/loading phone book data from/to HiPath Manager (HiPath-/OpenScape- Cordless Enterprise)
- Access to System phone book
- LDAP system telephone database (only with HiPath Cordless Office)
- HiPath Manager (HiPath-/OpenScape- Cordless Enterprise)
Message signaling
- Illuminated MWI (Message Waiting Indication) key alerts users of new messages
- Signaling of the new message through press the MWI-key
Call signaling
- Automatic call acceptance when the handset is removed from the charging unit (configurable)
- Visual/acoustic call signaling
- Display of call number and caller name
- Distinction between internal and external calls
- Ring tones and melodies:
- 5 standard ringer tones
- 21 polyphonic ringer melodies
- Ring tones can be deactivated while attention tone is activated
- Setting of different ringers for internal and external calls
- Volume can be set in 5 steps plus crescendo
Handset lock
Battery
- Lithium-Ionen battery pack
- capacity: 750mAh
- One battery pack is supplied with the handset
- Charging
- in power-off mode
- in power-off mode with activated PIN protection
- in operating mode
- Low battery warning tone (configurable)
Headset 1
Headset connection via:
- Corded: 2,5 mm jack
- Cordless: Bluetooth
- Tested Corded- Headsets (please consider the adapter cable):
- requires adapter cable 2.5mm jack to QD
- Plantronics P/N: 64279-02
- Tested Cordless (Bluetooth)- Headsets:
Accessories (e.g. carrying aids) 2
- One Belt clip is supplied with the handset
PC Interface
- Bluetooth, Mini- USB
- Bluetooth Specification: V2.1, the following profiles are available:
- Headset-HSP, Data-SPP, Handset-HFP, Object-Push- profile OPP
PC Application
- Gigaset QuickSync
- Phone book synchronization
- Loading from Screensaver, CLIP-pictures, melodies and ringer tones
Compatible with HiPath Positioning System (HPS)
- Localization of mobile users (only with HiPath-/OPenScape Cordless Enterprise) using HiPath Positioning System
PC-Software (Gigaset QuickSync)
- Download of Gigaset QuickSync software, available for Microsoft Windows 32/64 bit and Apple MacOS operative systems.
Comparison to the predecessor OpenStage SL4 professional
The following provides an overview of the new features provided with the OpenScape DECT Phone SL5
- Functionality
- Display: large display (2,4”) for easy readability, meant ~33% larger display by almost identically housing dimensions in comparison to the OpenStage SL4 professional
- Audio: 3 Acoustic profiles to change quickly between different environmental conditions (profile loud, silent and personal)
- Received Call List: local List for missed and received calls (optional)
- Audio: adjustment of the microphone/sending level up to 4 steps, to provide an enhanced acoustics in noisy environments
- Signal: optional acoustic signal when user leaves/enters the DECT covered area
- Automatically Keypad lock: switches off/on automatically when receiving calls
- Bluetooth: (if supported by the headset) transfer of the caller id (e.g. clip info) in the headset via Bluetooth
- Ringer: optional off, when handset is located in charger
- User Interface
- Keys: Larger keys for easier usage
- Quick dial: telephone book entries could be assigned to the two soft keys for quick dialing
- Answering machine: programming/accessing of AM via key “1”
- Housing: surface optimized to resist against aggressive substances
- Cooperate Design: integrated (e.g. colors, Harmonized ringer tone and brand)
- Phonebook editor: In addition to the handset menus, the language of the Phonebook editor can now be changed between Latin (standard), Cyrillic, Turkish, Arabic and Greek. Instruction to change this language, please look here.
Connectable Devices
The OpenScape DECT Phone SL5 handset has been tested with the following systems:
- HiPath 4000 HiPath Cordless Enterprise (CMI) from R4.3.0 - CV428
- OpenScape 4000 OpenScape Cordless E V7 from R1.3.0 - CV028
- HiPath 3000 HiPath Cordless Office from V9_R2.8.1_006
- OpenScape Business HiPath Cordless Office from V1 R3.4.1566
- HiPath Positioning System V2.1 from R1.2.0
Tests at predecessor releases of the systems were not carried out. The use of the handset in earlier system-versions should be possible, but functional restrictions could not be absolutely excluded.
The following Gigaset QuickSync Software is supported: Gigaset QuickSync from 8.5.872.5
Technical data
- battery type (supplied with the handset)
- Lithium-Ionen Batterypack 750 mAh
- Dimensions
- Handset 130 x 51 x 19 (H × W × D in mm)
- Weigth (incl. batteries) approx. 100g
- Charging unit 29 x 70 x 58 (H × W × D in mm)
- Weigth (incl. power supply unit) approx. 130g
- package content:
- OpenScape DECT Phone SL5 handset
- OpenScape DECT Phone SL5 handset back cover
- batterypack
- belt clip
- order numbers
- OpenScape DECT Phone SL5 Handset - S30852-H2752-R141
- OpenScape DECT Phone SL5 charger EU - S30852-H2781-R141, L30250-F600-C451
- OpenScape DECT Phone SL5 charger UK - S30852-H2781-L141
- OpenScape DECT Phone SL5 charger AUS/NZ - S30852-H2781-C441
