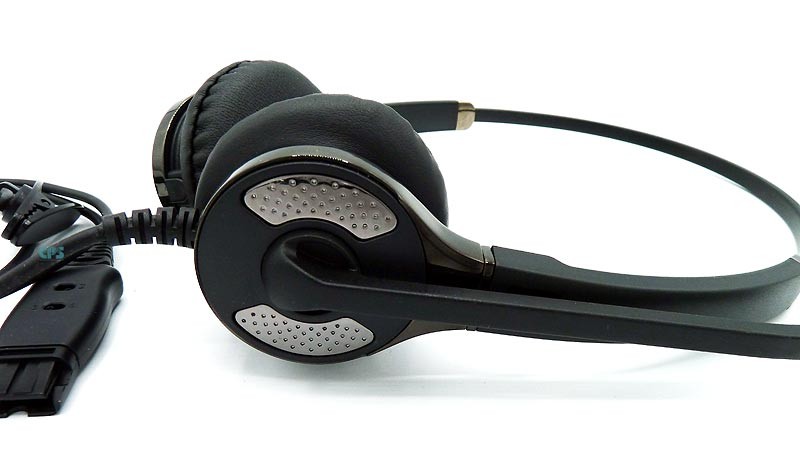

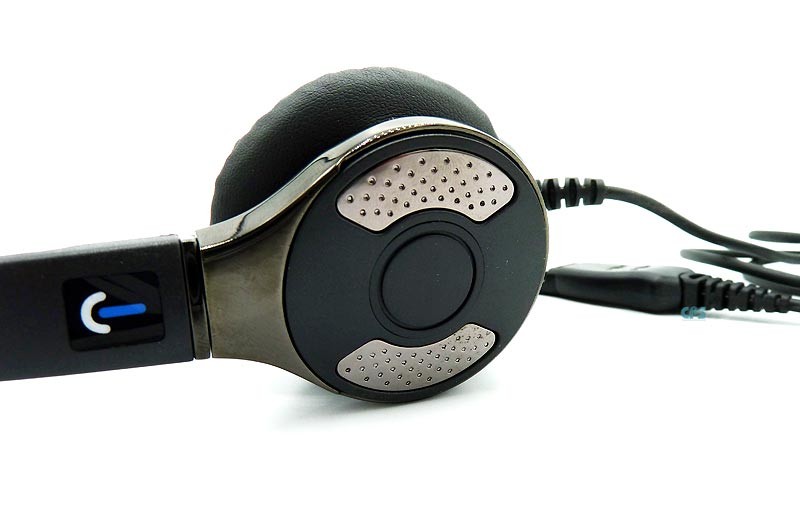

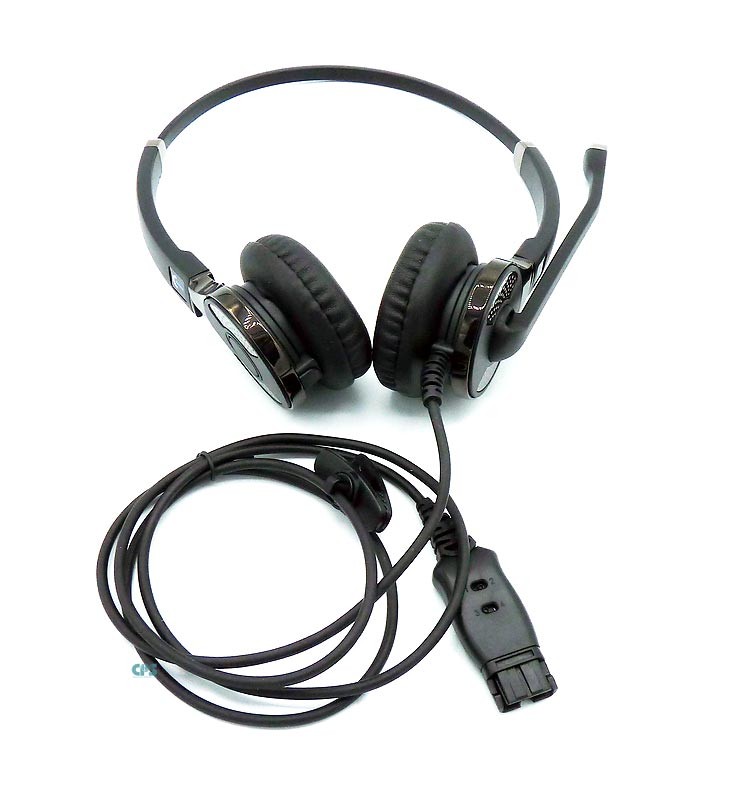

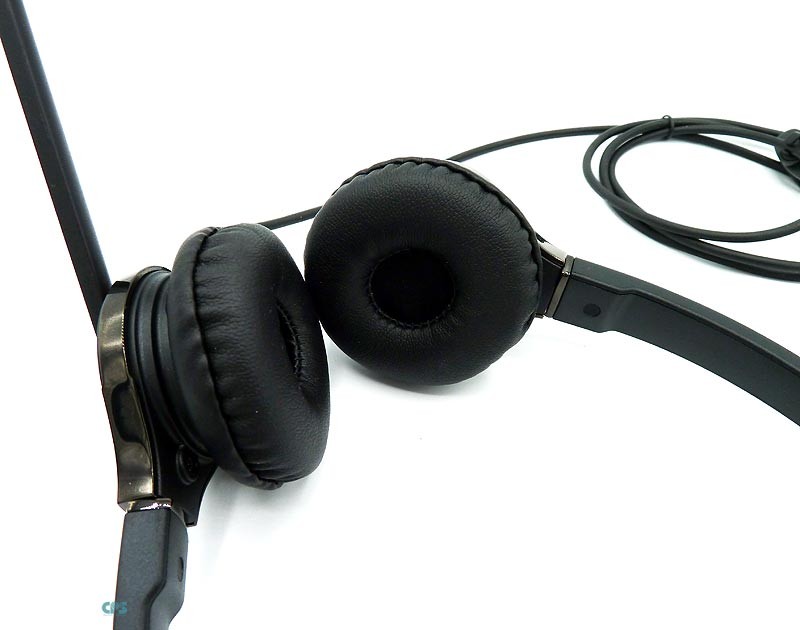

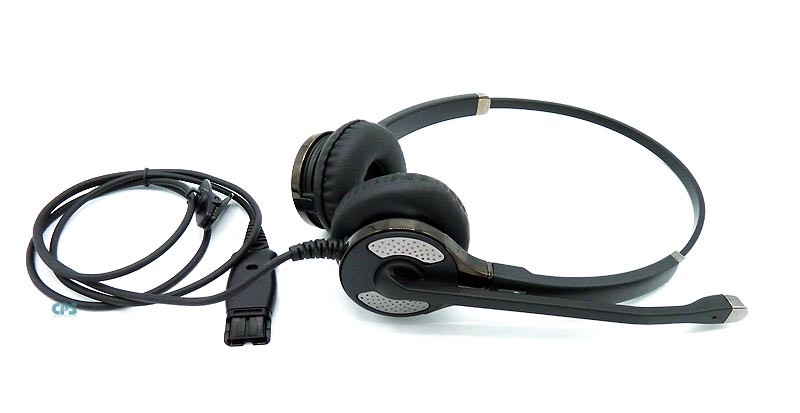

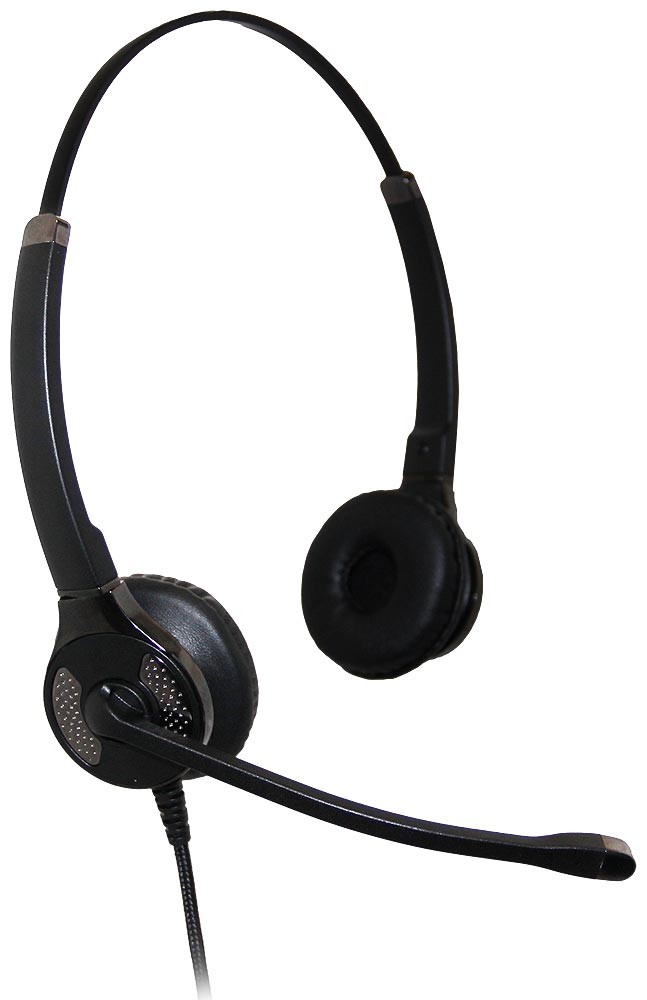

IPN X2 Duo Headset, with Push to talk PTT button with switch IPN070-PTT-SW
NEW Item
Manufacturer Part Number: IPN070-PTT-SW
Delivery time approx. 5-6 weeks
QD connection to RJ plug, jack plug, we create the right connection to the phone on customer request.
This QD cable with Push to talk PTT button and lock switch for corded IPN X1 & X2 headsets enables particularly secure and confidential communication. The microphone is only activated when the Push to talk PTT button is pressed. This prevents the person on the other end from unintentionally hearing confidential background information. At the same time, the user can consult with colleagues without having to use the mute function repeatedly. This provides the highest level of security currently available for private and trusted phone conversations.
For conversations that are not security-critical, such as internal meetings or conference calls, the lock function can be activated. This allows for convenient, bidirectional communication without needing to continuously press the Push to talk PTT button.
Technical Specifications

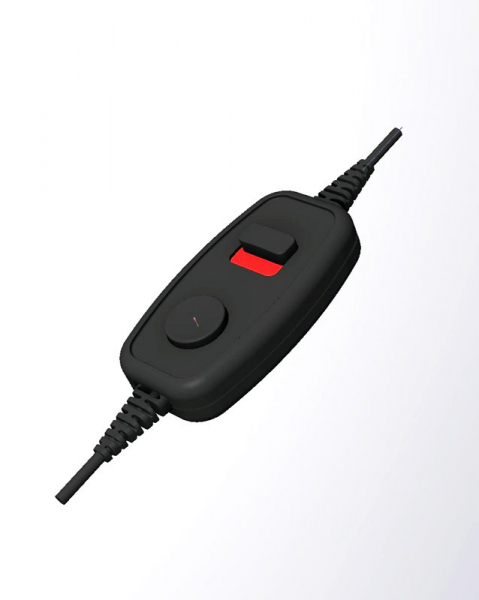

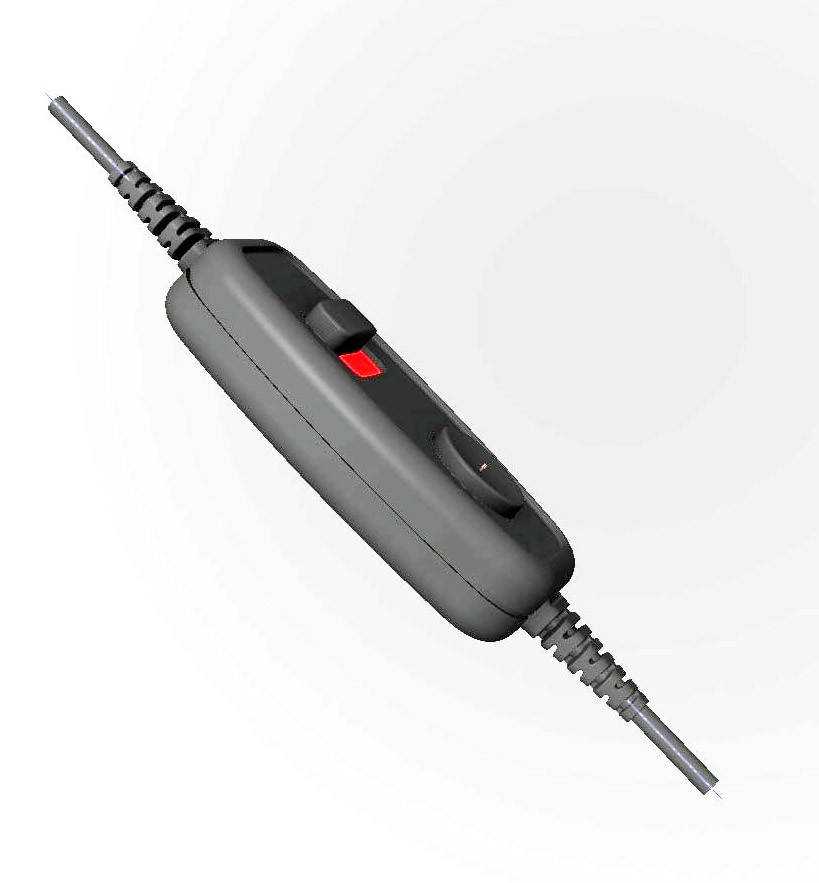

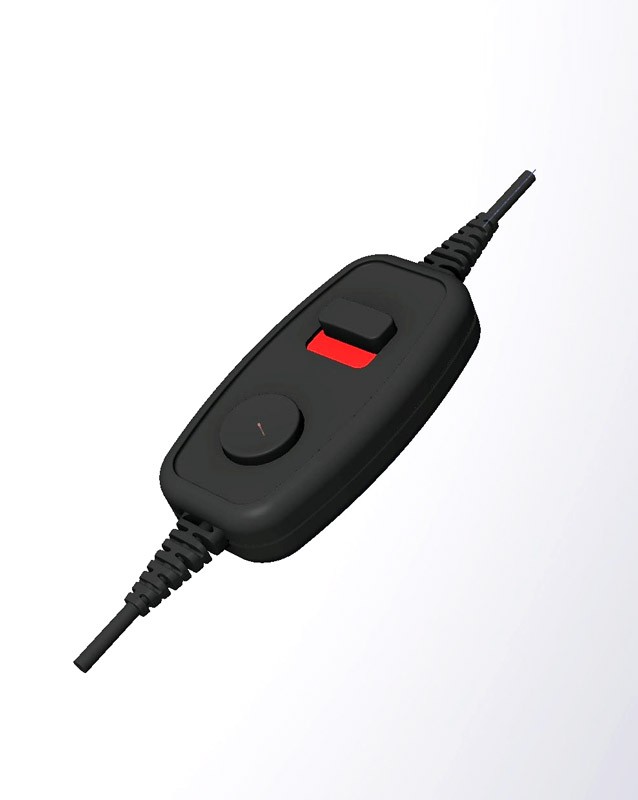

Control Unit:
- Dimensions: 110 mm x 38 mm x 15 mm
- Material: ABS plastic
PTT Button (1):
- Type: Round button
- Diameter: 15 mm
- Material: ABS plastic Tested for 100,000 operations
Lock Switch (2):
- Type: Sliding button
- Dimensions: 18 mm x 16 mm (rectangular)
- Material: ABS plastic Tested for 10,000 operations
Button Labels:
- Customizable labeling (e.g., 'PTT ON' / 'PTT OFF')
Cable material:
- Kevlar-reinforced material
Cable Length (Total):
- 2,255 mm (fully extended)
Cable Segments:
- QD to Control Unit (incl. QD): 265 mm
- Control Unit to Coil Cable: 275 mm
- Coil Cable (compressed): 230 mm
- Coil Cable (extended): 1,700 mm
