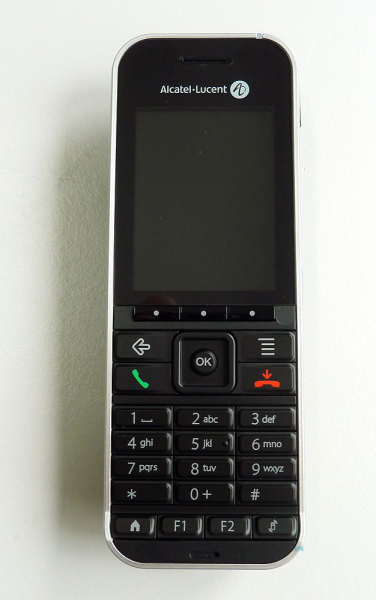

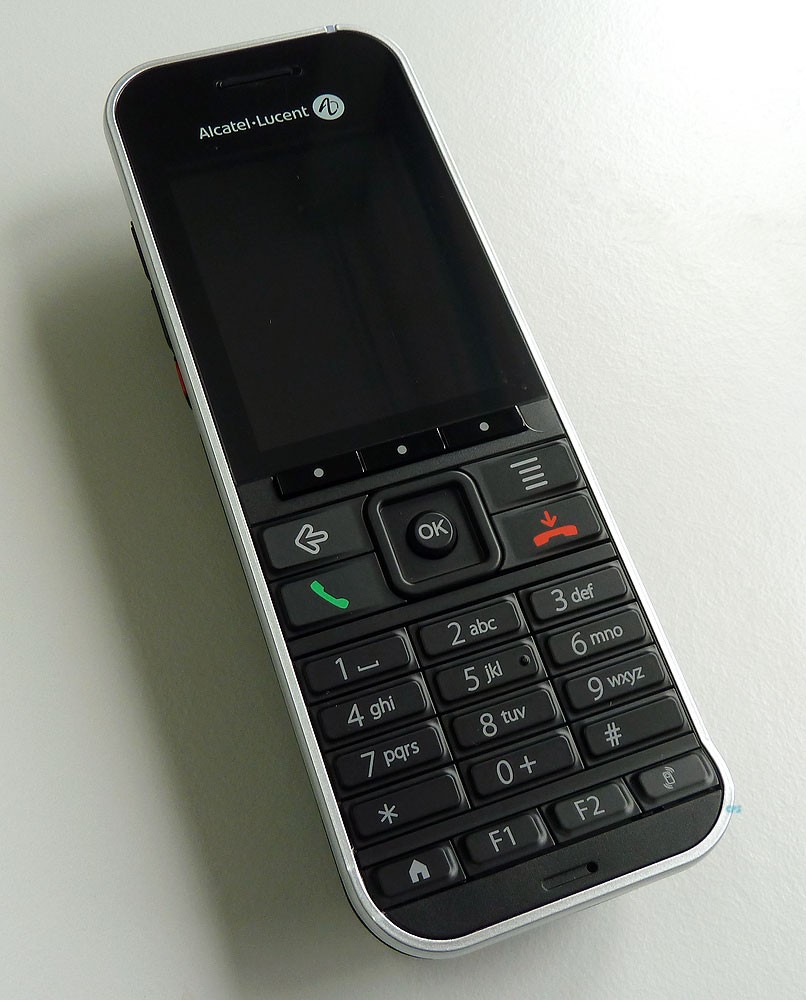

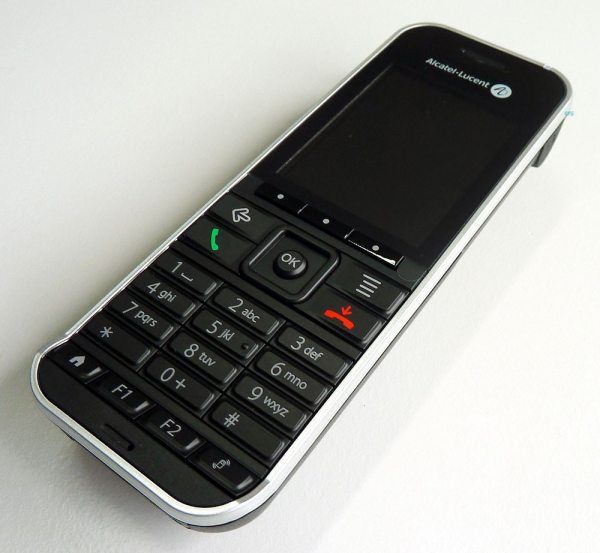

Alcatel 8242s DECT Handset with new battery 3BN67342AB Refurbished

Alcatel 8242s DECT Handset with new battery 3BN67342AB Refurbished

Refurbished
with new battery
without belt clip
Manufacturer Part Number: 3BN67342AB
without Charger

Charger must be ordered separately. Alcatel DECT charger 3BN67331AA

The Alcatel-Lucent 8242s DECT handset offers a rich on-site mobility communication experience, leveraging all capabilities of the powerful Alcatel-Lucent Enterprise platforms.

Day-to-day communication activities are made easier for mobile workforces, with new 8242s DECT features such as a large color screen for crystal-clear readability, HD audio-ready technology for superior sound quality, Bluetooth® technology for headset use, as well as USB connectivity.

Designed as a high-end business terminal, the 8242s DECT handset also provides notification and location capabilities, as well as a one-button alarm function to address vertical markets such as hospitality, healthcare or any other on-demand environment.

KEY FEATURES

• Alcatel-Lucent OmniPCX™ telephony protocol (AGAP)
• Lightweight, ergonomic design and intuitive operation
• Large (2.4 in), 65,000 color thin-film-transistor (TFT) display with 320 x 240 pixel resolution
• Keypad and display backlight
• Programmable keys
• Hands-free, microphone mute and vibrate modes
• Headset jack (3.5 mm)
• Antenna diversity
• Direct micro-USB charging
• Embedded alarm applications: Notification- and location-based services
• Alarm button
• Bluetooth headset profile*

KEY BENEFITS

• Investment protection: Compatible with previously deployed Alcatel-Lucent base stations
• Supports large Alcatel-Lucent OmniPCX Enterprise campus configurations
• IP-DECT connectivity
• Notification- and location-based services:
  • ¬ Location alarm signal when alarm is triggered to help locate user
  • ¬ Up to four notification call types from server
  • ¬ Personal protection and location features require an external server
  • ¬ Task monitoring can be signaled by handset to central server (e.g., hospitality, healthcare, warehousing)
• Excellent voice quality and business telephony features improve user responsiveness and business productivity
• Green: Economy mode automatically uses low radio emission power (25 mW peak)
• Low power mode (50 mW) makes it suitable for demanding environments (require specific site survey)

TECHNICAL SPECIFICATIONS

Physical characteristics

• Color: Black
• Graphic display: 2.4 in.; 65,000 colors; 320 x 240 pixels
• Display backlight: White
• Keypad backlight: Blue
• Belt clip: Spring-loaded; optional swivel clip
• Headset jack: 3.5 mm; TRRS compliant

Dimensions

• Height: 142 mm (5.59 in.)
• Width: 51 mm (2.00 in.)
• Depth: 23 mm (0.90 in.)
• Weight:135 grams (4.76 oz)

Mechanical characteristics

• Charging on desktop charger or micro-USB type B connector

Battery pack

• Easily replaceable, 1,100-mAh lithium-ion battery
• Talk time: Up to 17 hours
• Standby time: Up to 160 hours
• Charging time: Less than 3 hours

Radio specifications

• DECT
• Frequency band
  • ¬ DECT Europe: 1880 MHz - 1900 MHz
  • ¬ DECT 6.0 North America: 1920 MHz - 1930 MHz
  • ¬ DECT Latin America: 1910 MHz - 1930 MHz (except Brazil 1910 - 1920 MHz)
  • ¬ DECT Asia: 1900 MHz - 1906 MHz
• Handover: Bearer, connection, external
• Out-of-coverage signaling
• Antenna diversity
• Automatic band switching for cruise ship applications (requires IP-DECT)

Bluetooth TM*

• Headset profile V3.0

Wireless security

• Identity
• Authentication
• Encryption

Registration

• Up to four systems
• Manual selection
• Automatic selection

Audio CODECs

• G726
• G722 wideband ready

Detailed features

• System languages: Communication server-dependent
• Handsfree, microphone mute and vibrate modes LED for status indication; three colors (green/orange/red) for battery status, missed calls and messages
• Ring tones
  • ¬ Six user-selectable polyphonic tones
  • ¬ Volume control: four settings; meeting mode
• Supports all AGAP features on OmniPCX call servers with TDM infrastructure
• Supports all AGAP features on OmniPCX Enterprise Communication Server with IP-DECT infrastructure
• Call by name: Personal and system directory
• Call log: Centralized call log
• Audio and LED message signaling
• Programmable keys: F1/F2 keys
• Calendar application:
  • ¬ Subject, location, reminder
• Memory SD card (optional): Stores user data*

Alarm Notification

• Periodic live call (every 30 to 999 seconds, default 90 seconds)
• Alarm button call (Alarm key long push)
• Task progress call (up to 9 distinctive actions)
• Status call (reports on/off status, in/out charger)
• Incoming call: Normal, urgent, very urgent, hands-free, specific ringtones
• Alarm acknowledgement

Location

• Triangulation with up to 4 DECT base stations
• Data transmitted with notification messages
• External server required
• Location audio signal

Operating environment

• Operating temperature: 14°F to 104°F (-10°C to +40°C)
• Storage temperature: -13°F to +131°F (-25°C to +55°C)

Serviceability

• Site survey tool
• Diagnostic mode
• Syslog mode
• Software update over the air (SUOTA) ready – requires IP-DECT

Software management tools

• Download tool (see Accessories)
• Flash loader PC application
• USB download

Regulatory

EU directives

• R&TTE 1999/5/EC
• LVD2006/95/EC
• EMC 2004/108/EC
• Eco design 2009/125/EC
• RoHS 2011/65/EU

Safety

• EN 60950-1: 2006 A11; A1; A12
• IEC 60950-1: 2005; Am1
• UL 60950-1 ed2
• CAN/CSA C22.2 60950-1-07 ed02

EMC and radio

• EN 301 489-1
• EN 301 489-6
• IEC/EN 61000-4-2 Level 3 criteria B
• IEC/EN 61000-4-3 Level 3 criteria A
• EN 301 406 (TBR6)
• FCC 47CFR part 15 subpart D
• IC RSS-213

SAR

• EN 50360
• IEE 1528
• RSS-102

Audio, hearing aid

• FCC 47CFR Part 68
• Canada: CS-03 part V
• Australia: ACIF S040

DECT

• EN 301 406 (TBR6)
• EN 300 176-2 (TBR10)
• EN 300 175-8 (DECT audio)
• TBR22
  • ¬ ETSI TS 102 841 (security)
• DECT security certification program stepA
• DECT security certification program stepB

Accessories

• 3BN67331AA desktop charger: Charges one handset (with USB cable)
• 3BN67341AA Dual charger: Charges one handset and one spare battery (with USB cable)
• 3BN67335AA power supply for European plugs
• 3BN67336AA power supply for US, UK and Australian plugs
• 3BN67332AA spare battery
• 3BN67333AA spare belt clip
• 3BN67334AA swivel clip
• 3BN67343AA vertical pouch
• 3BN67344AA horizontal pouch
• 3BN67339AA download tool

Box contains: handset, battery, belt clip
