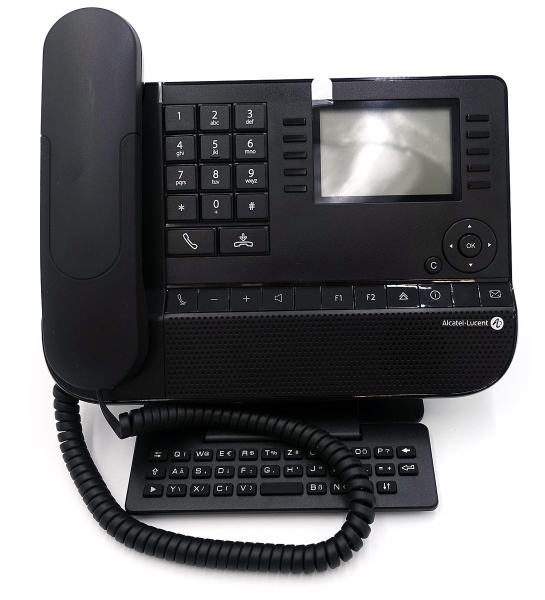

Alcatel 8039 Premium DeskPhone Digital, INT WW 3MG26104AB 3MG27104WW
NEW Item
Manufacturer Part Number: 3MG26104AB, 3MG27104WW
Alcatel 8039 Premium DeskPhone Digital, INT WW
Alcatel-Lucent 8039 and 8029 Premium DeskPhones offer a rich digital communications experience and a great conversations comfort with an outstanding audio quality either in hands free or using the comfort handset.
The Premium DeskPhones are part of a family of deskphones from Alcatel-lucent. in the middle of the range, they are elegantly designed to meet the needs of SMB and mid- to large-sized businesses.
Monaural and Binaural Headsets
New wideband headsets (3.5 mm) provide the same great audio quality as the handset and speakerphone. With noise cancellation to block out ambient office noise, they provide flexible, hands-free operation for taking notes or interacting with the PC during calls.
Premium Add-On modules
A range of keypad extensions to meet every need. the smallest is a 10-key module that fastens to any Premium DeskPhone. the 14-key module includes an adjustable foot stand and a large LCD display allowing for software programmable identification of keys.
Switchboard module
The Premium Add-On module 40 adds 40 extra keys to turn your Premium DeskPhone into a switchboard, providing one-touch access to all internal extensions, displaying the current status for each. Also with an adjustable stand to ensure optimum ergonomics and comfortable viewing.
Beauty has never Been so Brainy
Behind the elegant design of every Alcatel-lucent Premium DeskPhone you find the rich telephony capabilities of the Alcatel-lucent OmniPCX Office rCe, OmniPCX enterprise and Opentouch communication platforms. Covering the needs of the smallest to the largest organizations, these converged communication platforms offer over 500 service features. they boast a rich ecosystem of applications to meet every possible business need from teamwork and collaboration, to off-site mobility, customer welcome and the comfort of proven business continuity.
FEATURES
- Superlative voice quality
- Optimized ergonomics
- Navigator
- Dedicated function keys
- Back lit Display
- Intuitive icons and soft keys
- Alphabetic Keyboard
- Low Power Consumption
- Compatible with 9 series Digital Phones (40x9)
- Wall-mountable
BENEFITS
- Easy installation, support plug and play provisioning
- Easy to use with feature buttons and interactive soft keys
- Improve employees efficiency and productivity
- Offer the full range of telephony services found in Alcatel-Lucent’s acclaimed communication servers — OmniPCX Office RCE and OmniPCX Enterprise — unsurpassed in terms of functionality, features, reliability and quality of service.
- Leverages the installed base of Alcatel-Lucent OmniPCX systems
- Energy Efficiency
TECHNICAL SPECIFICATIONS
Physical characteristics
- Width: 252 mm (9,92 in)
- Depth: including Alphabetical Keyboard 200 mm (7.87 in)
- Height: 204 mm (8.03 in)
- Weight: 1340 g (3,17 lb)

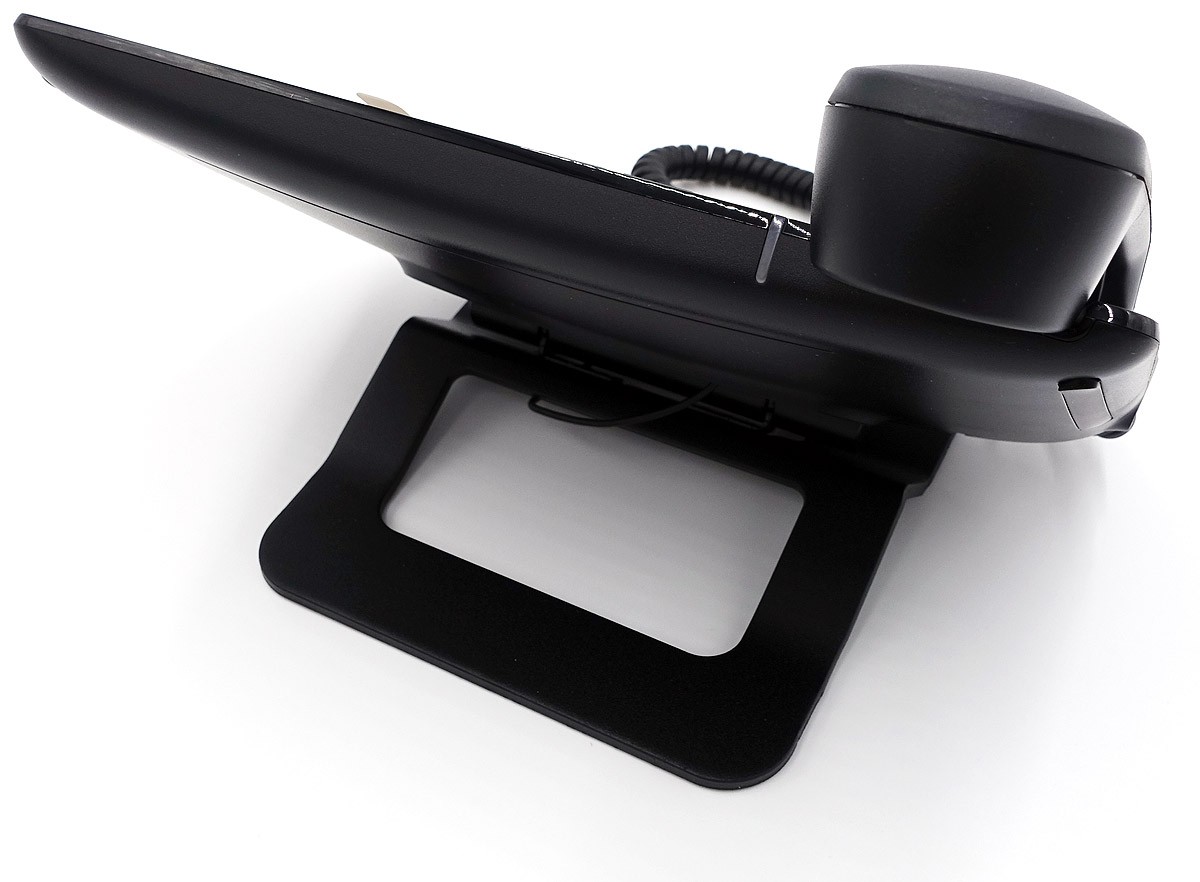

- Adjustable foot stand ranging from 25° to 60°
- Color: Black
Display
- 8039: 100 x 160 pixels, 4 grey level, white backlight
Keypad
- Navigator: 4 way navigation + OK + Cancel
- Contextual Keys:
- Function Keys: On/Off hook, Dial Pad, mute with Led, volume keys +/-, handsfree with Led, 2 personal Keys/Led, redial, info & message with Led
- Programmable Keys:
- 8039 – Up to 72 soft keys (OmniPCX Enterprise) Up to 40 soft Keys (OmniPCX Office);
- Alphabetical Keyboard
Connectivity
- RJ-12 Digital Line interface, external ringer & audio active envelop indicator connector
- RJ-9 connector for corded headset
- RJ-9 connector for Alphabetical Keyboard
- Dedicated 3,5 mm jack headset port
- SATA connector for Add-on module connection
Power
- Power over Digital Line
- Maximum power (w/o Add-on):
- 8039 – 735 mW;
- 8029 – 912 mW
Audio characteristics
- Comfort Handset for 8039 & 8029, Hearing Aid Compatible (HAC).
- Full-duplex speakerphone, acoustic echo cancellation
- G711 (A-law and Mu-law)
Languages
- Multi-language support (menu): Chinese, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Latvian, Lithuanian, Norvegian, Polish, Portuguese, Russian, Spanish, Slovak, Slovenian, Swedish, Taiwanese, Turkish
Product Ships with
- DeskPhone with Handset and Alphabetical Keyboard
- 3m Network Cable
- Safety Sheet
Accessories
- 3MG27105AA Premium Add-on 10 keys module
- 3MG27106AA Premium Add-on 40 keys module
- 3MG27107AA Premium Smart display 14 keys module
- 3GV28047xx Monaural Headset
- 3GV28048xx Binaural Headset
- 3MG27110AA Premium Wall Mounting Kit
- 3MG08001AA Conference Module 8115 Audioffice
- 3MG08002AA Conference Module 8125 Audioffice
Compatible with:
- OmniPCX Office
- OmniPCX Enterprise
