Cisco Unified IP Phone Expansion Module CP-7915= Grayscale
Refurbished

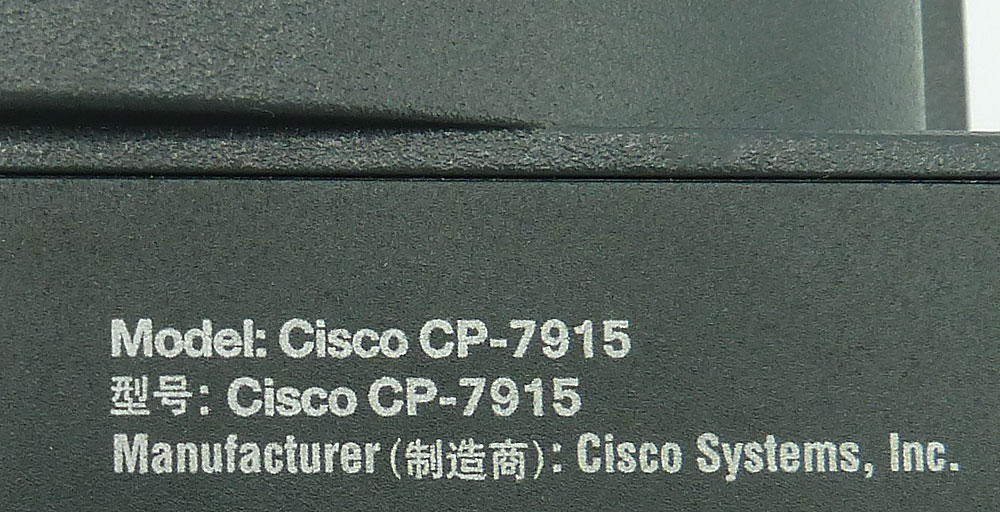

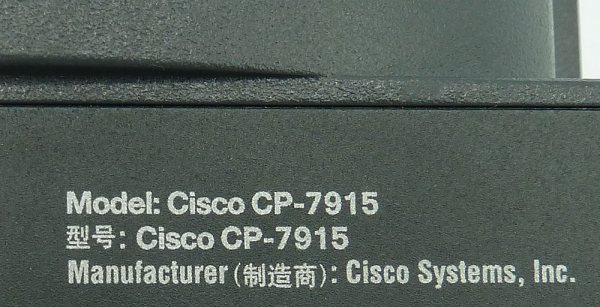

Herstellernummer: CP-7915=
The power of the Cisco Unified Communications family of products extends throughout the enterprise by delivering powerful, converged voice solutions with the new Cisco Unified IP Phone Expansion Module 7915 extending capabilities to wideband audio phones
Call coverage is a critical capability for administrative assistants and others who must monitor, manage, and cover the status of calls. This capability requires the ability to instantly determine the status of numerous lines beyond the six-line capability of the Cisco Unified IP Phone 7962G and 7965G models and eight-line capability of the Cisco Unified IP Phone 7975G.
The Cisco Unified IP Phone Expansion Module 7915 extends the capabilities of the Cisco Unified IP Phone 7962G, 7965G, and 7975G models with additional buttons and an LCD display. With this expansion module, you add 12 physical keys with access to 12 additional keys through the page keys for a total of 24 buttons to the existing six buttons of the Cisco Unified IP Phone 7962G (Figure 2) and 7965G models and the existing 8 buttons of the Cisco Unified IP Phone 7975G. You can use up to two Cisco Unified IP Phone Expansion Module 7915 modules (Figure 3) with the Cisco Unified IP Phone 7962G, 7965G, and 7975G models.
The large LCD display of the Cisco Unified IP Phone Expansion Module 7915 allows for quick and easy identification of associated buttons. Using the Settings menu of the Cisco Unified IP Phone 7962G, 7965G, and 7975G models, you can adjust the contrast of the individual LCDs for these phones and the Cisco Unified IP Phone Expansion Module 7915 according to your preference. You can program the buttons on each Cisco Unified IP Phone Expansion Module 7915 as a directory number, line key, or speed-dial key, much like on the Cisco Unified IP Phone 7962G, 7965G, and 7975G models.
These capabilities provide features that are similar to typical Direct Station Selection/Busy Lamp Field (DSS/BLF) modules but are not intended to be directly comperable to traditional DSS/BLF modules. The Cisco Unified IP Phone Expansion Module 7915 is not an operator or attendant console. The primary function of this module is to provide the Cisco Unified IP Phone 7962G, 7965G, and 7975G models with additional keys for features such as speed dial or directory numbers. The illuminated buttons provide ease of line status, making the Cisco Unified IP Phone Expansion Module 7915 an ideal call-coverage tool.
The two illuminated page buttons beneath the display of the Cisco Unified IP Phone Expansion Module 7915 allow you to shift between the first and second pages of 12 buttons, providing access to all 24 keys
Hardware Requirements
- Cisco Unified IP Phone 7962G, 7965G, and 7975G models
- Cisco Unified IP Phone Expansion Module 7915 (CP-7915=)
- The maximum is two modules (connecting cable supplied with each Cisco Unified IP Phone Expansion Module 7915)
- Footstand is required; single (CP-SINGLFOOTSTAND=) or double (CP-DOUBLFOOTSTAND=)
- Replacement of the standard Cisco Unified IP phone footstand is required. The standard footstand is replaced with a two-piece footstand specifically designed to support the Cisco Unified IP Phone Expansion Module 7915. Two footstands are available: a single footstand when one Cisco Unified IP Phone Expansion Module 7915 is used and a double footstand when two Cisco Unified IP Phone Expansion Module 7915 modules are used.
- The only tool required for installation of the Cisco Unified IP Phone Expansion Module 7915 is a flat-blade screwdriver or other appropriate tool to unlatch the pins securing the footstand to the Cisco Unified IP Phone 7962G, 7965G, and 7975G models.
- Power cube (CP-PWR-CUBE-3=) and cord (CP-PWR-CORD-xx=) to supply local power
- * A single Cisco Unified IP Phone Expansion Module 7915 can receive power from a locally powered Cisco Unified IP phone.
- ** Local power must be connected to the first Cisco Unified IP Phone Expansion Module 7915 to supply power to both Cisco Unified IP Phone Expansion Module 7915 modules.
