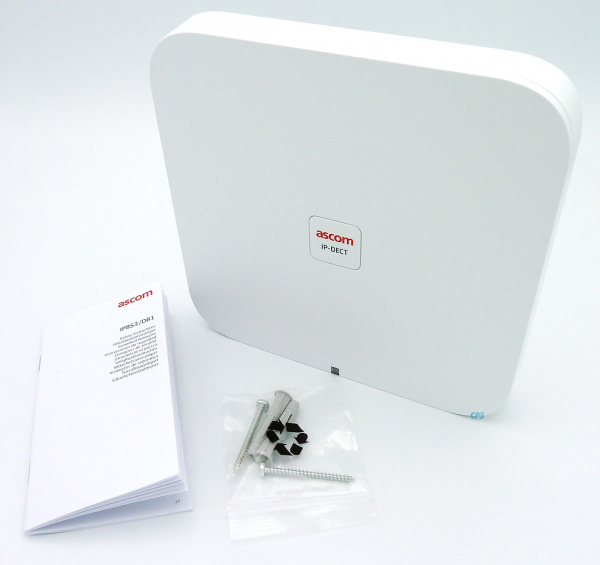

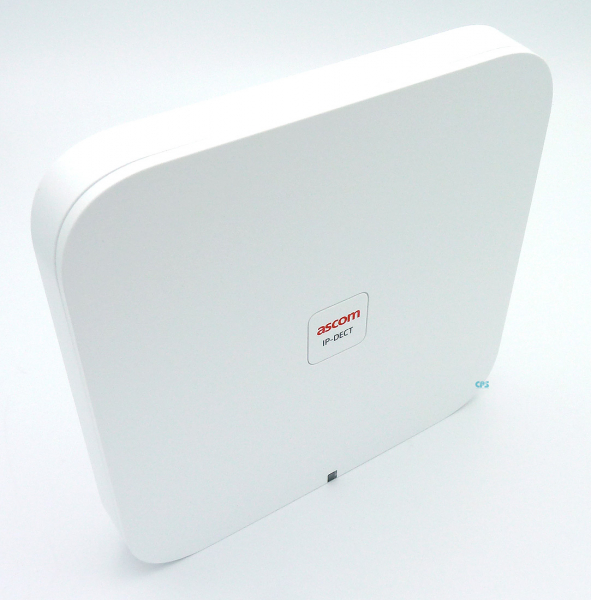

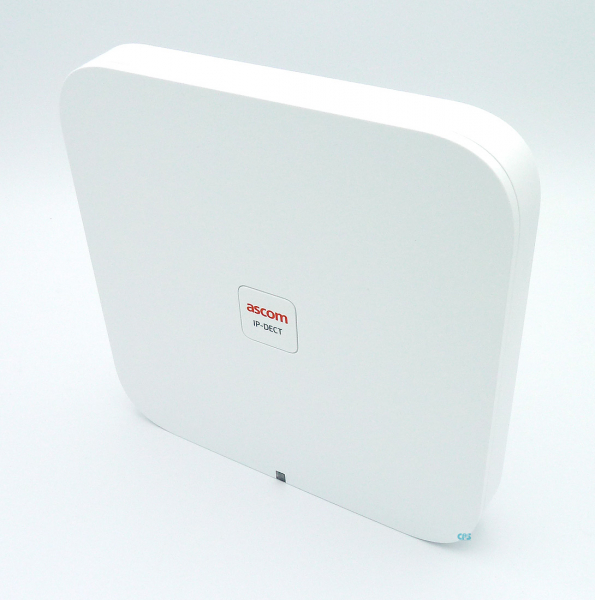

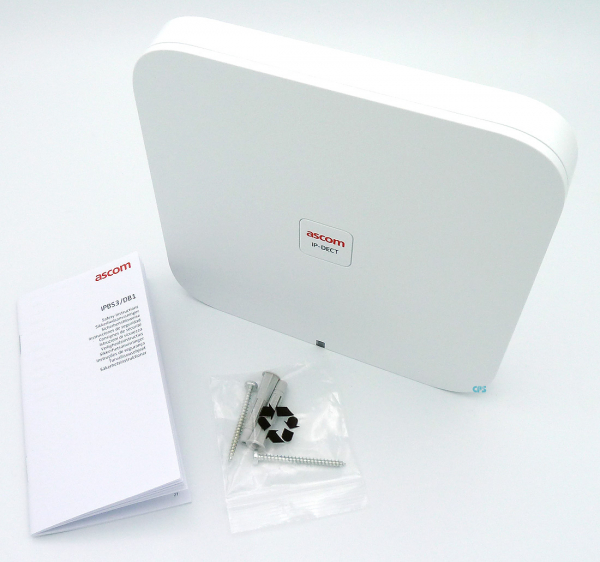

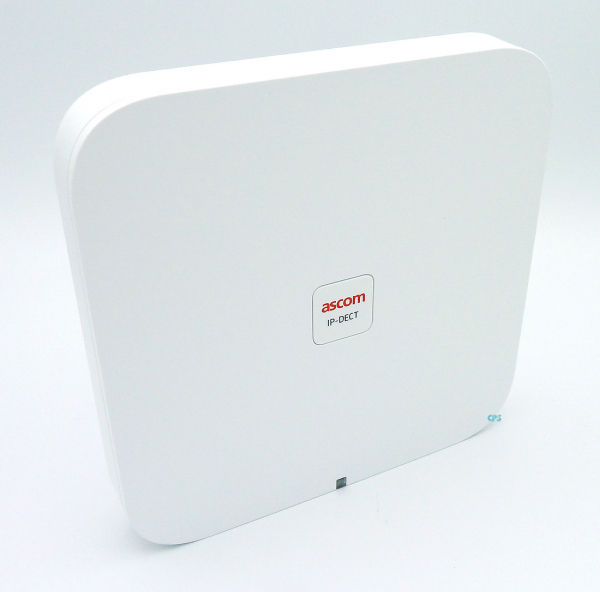

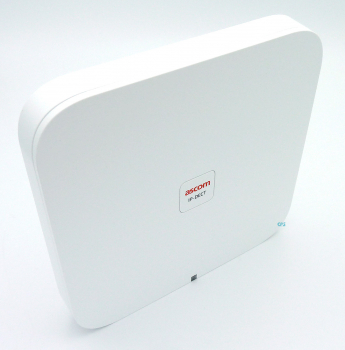

Ascom IP-DECT Base Station with internal antennas IPBS3-A3
NEW Item
Manufacturer Part Number: IPBS3-A3
IP-DECT Access Point (IPBS3)
Features:
- 8 Channels
- Connection to IP-PBX via LAN
- Roaming and handover
- DECT GAP/CAP radio interface
- H.323 or SIP protocolover IP
- Secure SIP over TLS and SRTP
- Over the air synchronisation
- Web interface for configuration and software upgrade
- Power over Ethernet or local power supply

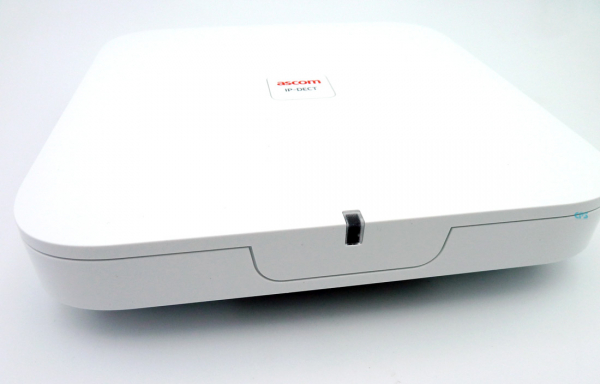

- External LED status indication
- Messaging, Alarm and Interactive Messaging
- Broadcast and Multicast Messaging
- Wideband audio
- Eight or four simultaneous calls
- Enhanced DECT Security Step A and Step B (ETSI EN 300 444, N.35, N.36)
Technical Specifications:
Versions:
- IPBS3-A3 IP-DECT Base Station with internal antennas
- IPBS3-A4 IP-DECT Base Station with external antennas
- IPBS3-A5 IP-DECT Base Station with 4 channels internal antennas
DECT Frequencies:
- 1880–1900 MHz: Europe, Africa, Middle East, Australia, New Zealand, and parts of Asia
- 1900–1906 MHz: Thailand
- 1910–1930 MHz: South America
- 1920–1930 MHz: North America
Physical:
- Dimensions (l × w × d): 170 × 170 × 38 mm (including mounting bracket)
- Weight: Approx. 400 g
- Material: PC/ABS moulded plastic
- Colour: White (NCS S 0502-B)

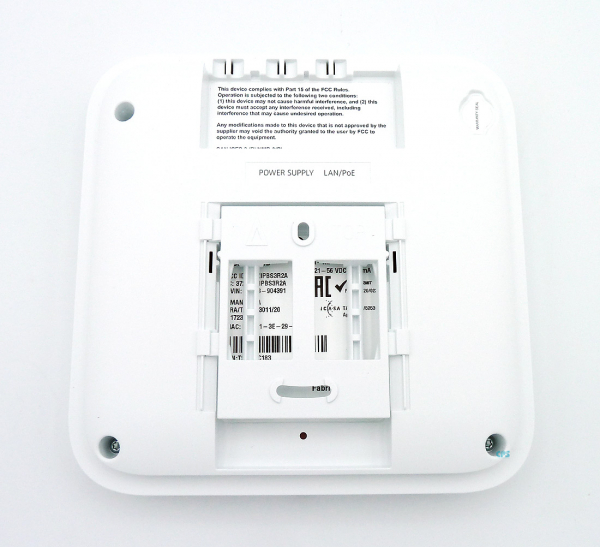

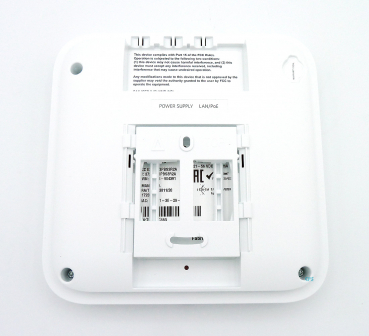

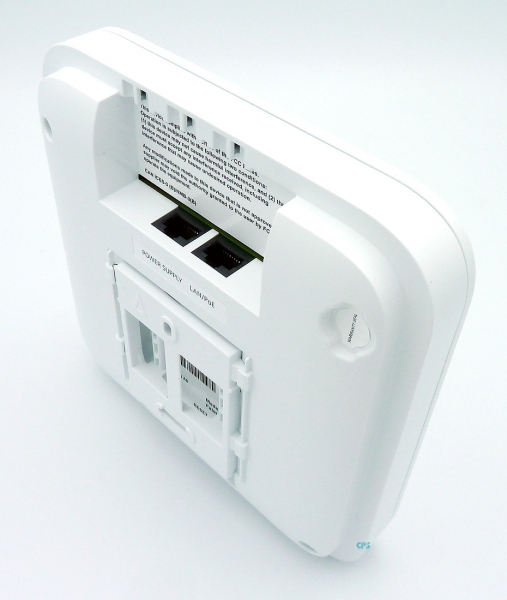

- External connectors:
- 2 × MCX connectors for external antennas

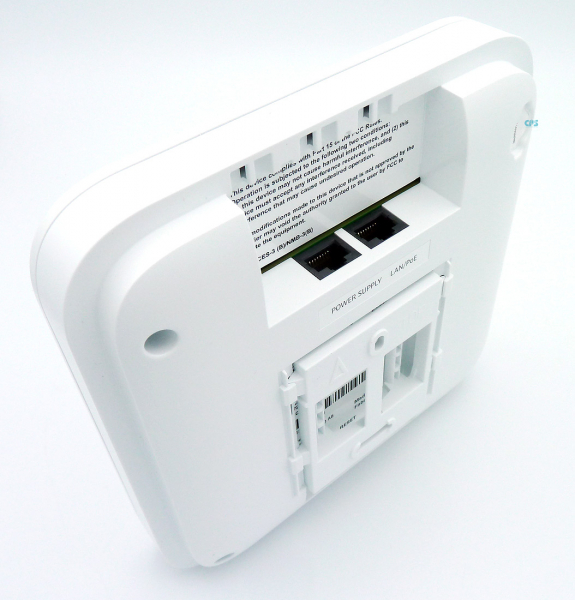

- 2 × RJ45 for local power and Ethernet/PoE
Power:
Power over Ethernet IEEE 802.3af or local power supply
- Operating voltage: 21 to 56 VDC
- Power consumption: Typical 4 W, maximum 5 W
Network: Ethernet: 10/100BaseT
Voice over IP:
- H.323 version 4 incl. H.225, H.235, H.245,
- H.450 with H.450.1, H.450.2, H.450.3, H.450.4, H.450.6, H.450.7, H.450.8 and H.450.9
- RFC 2246, RFC 2396, RFC 2617, RFC 2782, RFC 2833, RFC 3261, RFC 3262, RFC 3263, RFC 3264, RFC 3265, RFC 3280, RFC 3311, RFC 3323, RFC 3325, RFC 3326, RFC 3420, RFC 3515, RFC 3550, RFC 3551, RFC 3555, RFC 3578, RFC 3581, RFC 3680, RFC 3711, RFC 3842, RFC 3891, RFC 3892, RFC 4028, RFC 4235, RFC 4244, RFC 4347, RFC 4538, RFC 4566, RFC 4568, RFC 4730, RFC 4867, RFC 4916, RFC 5245, RFC 5359, RFC 5373, RFC 5389, RFC 5589, RFC 5761, RFC 5763, RFC 5764, RFC 5766, RFC 5806, RFC 5923, RFC 6086, RFC 6188, RFC 7983 draft-ietf-sip-privacy
Voice Encoding:
- G.711 A-law / µ-law (64 kbps)
- G.722.2 AMR-WB
- G.729 A and AB (16 kbps)
Radio:
- RF output power (e.r.p.), EU: Between 23 dBm and 28 dBm (with internal antenna)
- RF output power (e.r.p.), US: Between 17 dBm and 21.6 dBm (with internal antenna)
Environmental:
- Operating temperature: -10°C to +55°C
- Storage temperature: -25°C to +70°C
- Relative operating humidity: 15% to 90%, non condensing
- Relative storage humidity: 5% to 95%, non condensing
- Immunity to electromagnetic fields: 10 V/m (EN 61000-4-3)
- Immunity to ESD: 6 kV contact discharge and 8 kV air discharge (EN 61000-4-2)
Compliance to European Regulations and Standards:
- EU directives: 2014/53/EU (RED) 2015/863 (RoHS3) 2011/65/EU (RoHS)
- Radio: EN 301 406
- Safety: EN 62368-1
- EMC: EN 301 489-6, EN 301 489-1, EN 60945, EN 55032
Compliance with US and Canadian Regulations and Standards
- Product marking: FCC ID: BXZIPBS3 IC: 3724B-IPBS3
- Safety: CAN/CSA-C22.2 No 62368-1 UL 62368-1
- EMC/Radio: FCC part 15 (Class B and D) RSS-213 ICES-003
Compliance to Australian Regulations and Standards
- Safety: AS/NZS 62368-1
- Radio: Radiocommunications (Digital Cordless Communications Devices – DECT Devices) Standard 2017
You always need one DECT SARI certificate per Ascom IP DECT installation.
Implementation:
In a mixed operation of IPBS2 & 3 in one system, it is mandatory to update the firmware to V11.
- The IPBS3 is compatible with IPBS2 and possible to use in existing systems with IPBS1, IPBS2, IPBL1 and IPVM.
- The form factor/housing is identical to IPBS2, but a new more environmental friendly plastic material will be used.
- New material will be PC-ABS
- Previous material was ABS and that required use of (toxic) flame retardants
- The IPBS3 will require new SW (11.1.5 or later)
- For existing systems an IPBS3 can be added as radio to systems on SW version 10.0 or later without need to upgrade the complete system. (The IPBS3 must run on 11.1.5 or later.)
- If an IPBS3 shall be added to an existing system and be used for any master function, the complete system needs to be upgraded to 11.1.5 or later.
- New HS software is required when used in systems with IPBS3 to fix an issue with a chop-sound
- d43, d63 - 2.9.6
- d81 - 4.11.6
- Hotfix for d41, d62 – 4.8.19
- This chop-sound can be heard when connected to an IPBS3 system and the call is established with the narrowband audio codec – for instance when a call is made from/to a client connected to a system not supporting the wideband audio, such as a fixed phone, an external telephony system or an older IPDECT system
- The problem happens when connected to an IPBS3:
- once every minute if early encryption is enabled in the system
- on every handover regardless of early encryption setting
