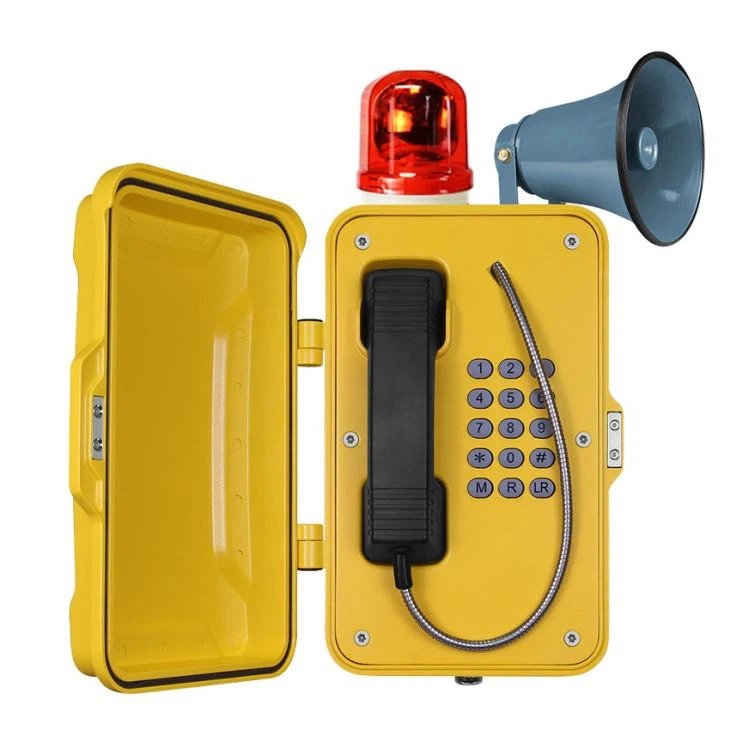

J&R JR101-FK-HB-SIP Weatherproof Telephone, keypad, with Horn & Beacon, yellow, protection door
NEW Item
Manufacturer Part Number: JR101-FK-HB-SIP
The JR100 Series telephones are enclosed in a corrosion-resistant, weatherproof cast aluminum case. The case is equipped with a door that provides complete protection against dust and moisture, making it a highly reliable product with a long Mean Time Between Failure (MTBF).
The uniquely robust handset is made of molded Bulk Molding Compound and specifically designed to withstand tough conditions in any environment. An armored cable provides additional protection against vandalism and heavy industrial use.
These weatherproof telephones are ideally suited for use by railways, power stations, military services, and heavy industries that require reliable telephony under challenging conditions.
Key Features
- Phone Type: Standard Analog/SIP Phone with Door
- Handset and Cable: 42 cm vandal-resistant
- Weather Resistance Rating: Standard IP66
- Keypad: Full rubber keypad with memory; buttons 0-9 programmable as speed dial keys
- Additional Features:
- "LR" button for last number redial
- "R" button for flash recall
- "M" button for muting
- Loud ringing and flashing light for incoming calls
- Auto-answer after 3 rings; line auto-released when the other side hangs up

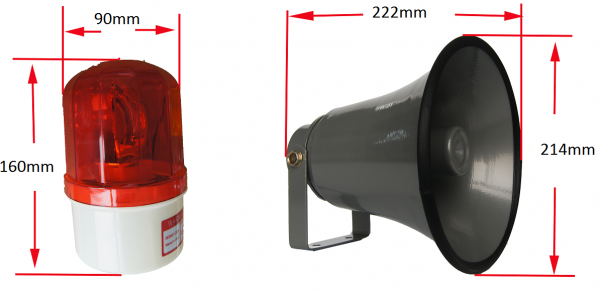

- Built-in amplifier, external beacon and horn, broadcasting function (optional)
- Power Supply: DC 12V powered
- Mounting: Wall-mounted with mounting bar
- Certifications: CE, FCC, RoHS, ISO9001, IK10, IP67 compliant
SIP-VoIP Technical Specifications
- Power Supply: 12V DC or PoE: IEEE802.3af/at (optional)
- Ports:
- WAN: 10/100Base-T RJ-45 for LAN, Auto MDIX
- LAN: 10/100Base-T RJ-45 for PC, Auto MDIX
- Power Consumption:
Voice Features
- SIP Support: SIP 2.0 (RFC3261)
- Codecs: G.711A/u, G.7231 high/low, G.729, G.722
- Echo Cancellation: Supports G.168; hands-free supports up to 96 ms
- Full Duplex: Supported
- SIP Domain: Supports SIP domain, SIP authentication (none, basic, MD5), and DNS server name
- DTMF Support: SIP info, DTMF Relay, RFC2833
- Call Control: Flexible dial map, hotline support
Network Features
- WAN/LAN: Bridge mode supported
- IP Address: Supports static IP address
- DHCP: Supports DHCP on WAN port
- VLAN Support: Yes
- Web Configuration: Supported
- Data Protocols: IPv4, TCP, UDP, ICMP, ARP, DNS, and DNS SRV for SIP signaling
Standard Analog Functions
As a standard analog telephone, this unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analog PABX lines and PSTN.
Analog Specifications
- Dialing: MF (tone)
- Power Supply: DC12V
- Lightning Protection: Protection according to ITU-T k.21 (enhanced level)
- Programming: Can be remotely programmed via DTMF tone or keypad
Technical Specifications
- Housing Material: Die-cast aluminum, epoxy powder-coated; yellow (other colors on request)
- Handset Material: Cycoloy with stainless steel spiral cord
- Hook Switch: Electronic/magnetic with no visible moving parts
- Keypad: Rubber keypad
- Operating Temperature: -30°C to +65°C
- Storage Temperature: -40°C to +75°C
- Weather Resistance: IP66 (standard)
- Ringing Tone: Shrill warble tone 110 dBA @ 1 meter (typical)
- MTBF: Calculated MTBF exceeding 50,000 hours
Packaging Details
- Unit Size: 246 mm x 339 mm x 126 mm
- Carton Size: 200 mm x 300 mm x 440 mm
- Packaging Materials: Pearl cotton, carton
- Net Weight: 11 kg
- Gross Weight: 12 kg
