FHF Weatherproof VoIP-telephone ResistTel IP4, black with relay + 2x LAN FHF114412220

FHF Weatherproof VoIP-telephone ResistTel IP4, black with relay + 2x LAN FHF114412220

NEW Item
Manufacturer Part Number: FHF114412220

FHF Weatherproof VoIP-telephone ResistTel IP4, black with relay + 2x LAN

ResistTel IP4 weatherproof VoIP-telephone

IP telephone for indoor and outdoor use

Overview

• With improved technology, the FHF ResistTel IP4 is a weatherproof VoIP telephone suitable for outdoor installation.
• The ResistTel IP4 is the ideal device for use in rough environmental conditions found in various industrial areas and operational sites.
• Resistant to seawater, high humidity or extensive mechanical strain, it provides the highest level of safety and reliability.
• The housing is made of impact and shock-resistant plastics (glass fibre-reinforced polyester).
• Resistant to acids, alkalis and lubricants.
• Its robust design represents a perfect "packaging" for the latest requirements for VoIP telephones in outdoor areas, especially for emergencies.
• The ResistTel IP4 is designed to provide ultimate user comfort with a user-friendly menu structure.
• A luminous display and integrated hands-free operation are included.
• A connectable headset is available as an accessory.

Features

• Protection class IP 66 according to IEC60529.
• Ambient temperature -40°C to +70°C.
• Ring tone: ≥ 95 dB(A) in 1 m distance.
• Pixel-based, luminous OLED display.
• V4A alphanumeric keypad.
• VoIP Protocols: SIP, H.323 (UDP, TCP, TLS), RTP, SRTP (SDES, DTLS), RTCP, ICE.
• Power supply: PoE or external.
• Relay built-in (standard).
• Relay module with 2x SPDT (optional).
• Connection to 10/100/1000-BASE-T Ethernet.
• Hands-free operation and loud-speaking.

Technical data

Power supply

• Power over Ethernet according to IEEE 802.3af via 48 VDC PoE power supply (44V min, 57V max).
• Voltage external power supply: 22.8 VDC - 53 VDC.
• Power consumption: 4 W (PoE class 0).
• Connection: 2x RJ45 Port (10/100/1000 Mbit/s) (1x PoE).

Mechanical data and Display

• Housing material: Glass fibre-reinforced polyester.

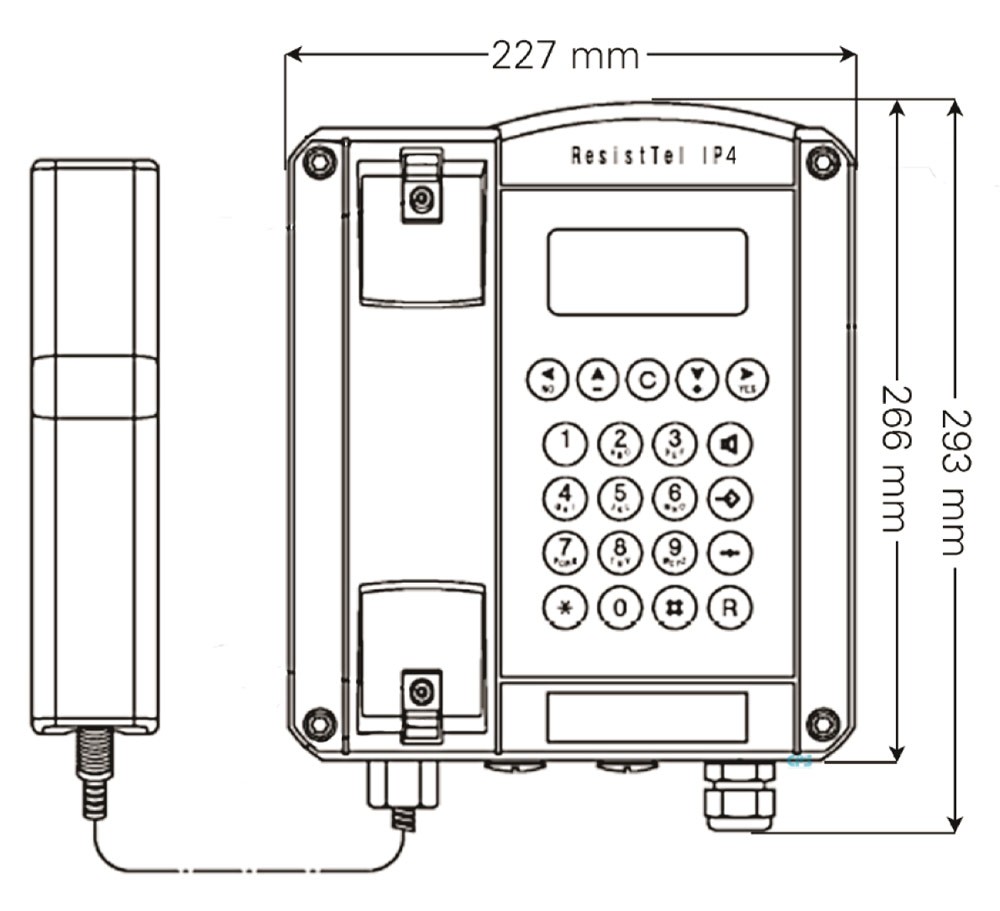

• Dimensions (Height x Width x Depth): approx. 293 mm x 227 mm x 135 mm.
• Weight: approx. 5 kg.
• Display: 128 x 64 pixels (OLED).
• Operating position: vertical.
• Ringing volume: Max. approx. 95 dB(A) in 1 m distance.

Relay specifications

On Board Relay (Standard):

• Switching voltage: AC 30 V / DC 60 V.
• Switching current: AC 1.0 A / DC 1.0 A.
• Switching capacity: AC 15 VA / DC 15 W.

Relay 1 and Relay 2 (Optional):

• Switching voltage: AC 250 V / DC 230 V.
• Switching current: AC 5.0 A / DC 5.0 A.
• Switching capacity AC: at Vswitch >= 35V: 15 VA / at Vswitch < 35V: 100 VA.
• Switching capacity DC: at Vswitch >= 50V: 15 W / at Vswitch < 50V: 100 W.

Environmental conditions

• Protection class: IP 66 according to IEC 60529.
• Impact resistance: IK 09 according to EN IEC 62262:2002.
• Ambient temperature: -40°C to +70°C.
• Transport and storage: -40°C to +70°C.
• Humidity: 5 to 85% RH (avoid icing and condensation).

VoIP features and Software

• Protocols: SIP, H.323 (UDP, TCP, TLS), RTP, SRTP (SDES, DTLS), RTCP, ICE.
• DTMF: In-Band, Out-Of-Band, Event.
• Security: Encoded password authentication according to H.235; Access using https (password-protected).
• Quality of Service: Prioritization of IP packages over TOS and DiffServ, VLAN priority according to IEEE 802.1p/802.1q.
• Voice codecs: G.711 A-law/u-law, G.729A, G.722, OPUS (NB/WB).
• Diagnostic tools: Log and trace files (pcap), status displays of interfaces and connections, Ping connection test, sending of SNMP traps, syslog client.
• Additional features: Multiple registration (up to 6), telephone book (internal, centralized, LDAP), NTP for time, automatic call tone generation.
• Handset: Dynamic capsule with magnetic field generator for inductive coupling of hearing aids; Electret microphone; Stabilization bracket as standard equipment.
