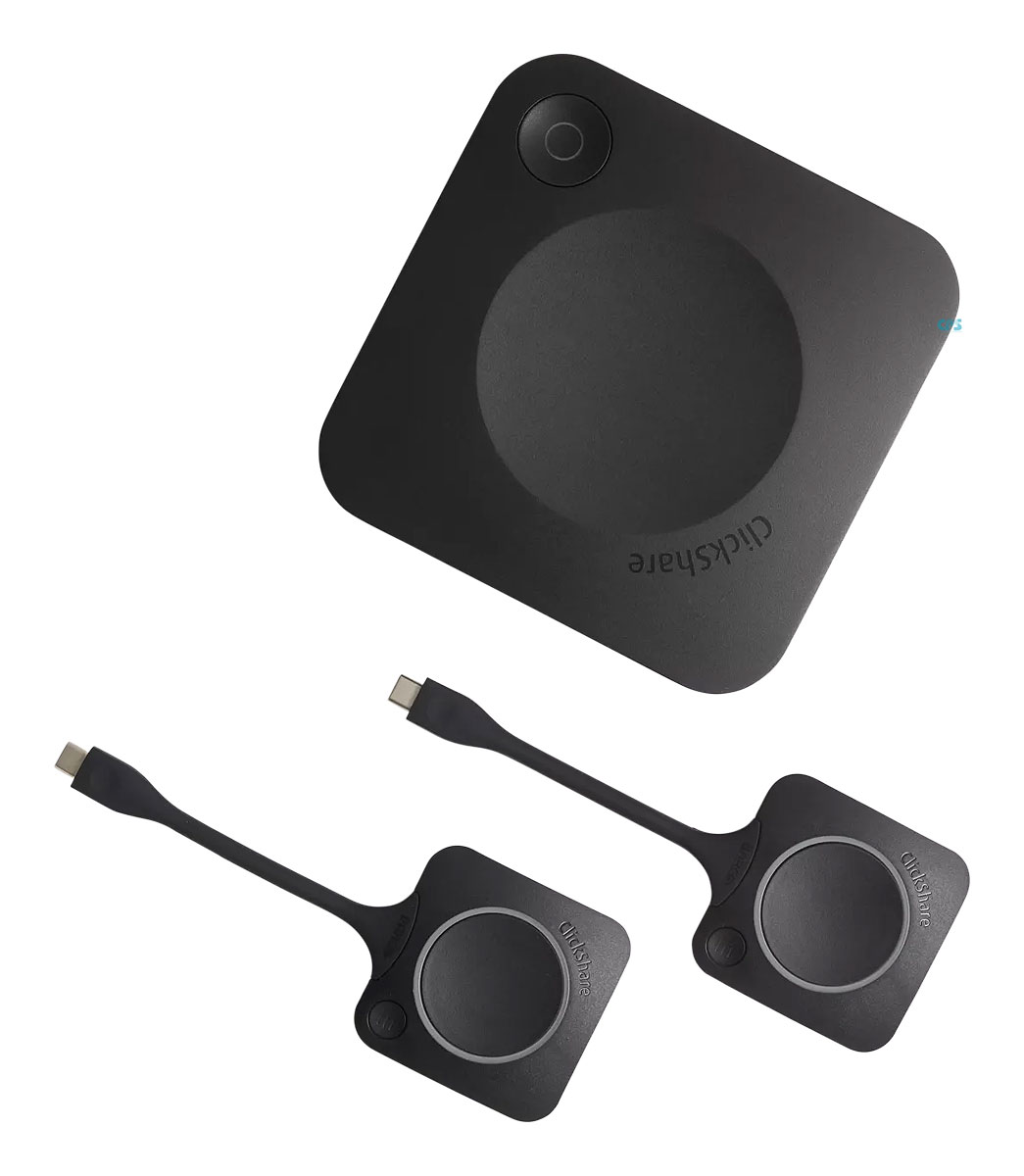

Barco ClickShare CX-30 incl. 2x USB-C Button, Gen2 R9861613EUB2
ClickShare CX‑30
Seamless wireless conferencing for small to medium-sized meeting and conference rooms
- Interactive features: touchback, annotation and blackboarding
- Increased collaboration with 2 sources on screen
- Run video meetings from your laptop with Button or App
- 100% secure, encrypted and cloud-managed
ClickShare CX-30 enables wireless conferencing in medium-sized meeting spaces. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.
Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.
Seamless, wireless video meeting
- Allows users, including guests, to share content to the room display
- Automated start and advanced sharing options for more intuitive meetings
- Designed for enterprise rollouts, it offers enhanced security and the widest range of network and AV integrations
- Works seamlessly with a large selection of peripherals and digital signage solutions
- Use it as a standalone product or integrated into any meeting room, including Microsoft Teams Room or Zoom Room
Specifications
General specifications
- Operating system
- Windows 10 and higher macOS 11 (BigSur) and higher
- Android v11 and higher (ClickShare App)
- iOS 14 and higher (ClickShare App)
- System requirements
- For a smooth experience with Microsoft Teams or Zoom
- Minimum: Intel i3 dual-core processor / 8GB RAM / OS: Windows 10 latest build or Mojave latest build
- Recommended: Intel i5 4-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS latest build
- Video outputs 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2)
- Audio output USB, HDMI
- USB 1 X USB-A, 1 X USB-C
- ClickShare Buttons 2
- ClickShare App Desktop & Mobile
- Native protocols Airplay, Google Cast, Miracast
- Maximum number of simultaneous connections (with Buttons and/or App) 32
- Noise Level
- Max. 25dBA @ 0-30°C
- Max. 30dBA @ 30-40°C
- Authentication protocol
- WPA2-PSK in stand alone mode
- WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
- Wireless transmission protocol IEEE 802.11 a/g/n/ac and IEEE 802.15.1
- Reach Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit Frequency band 2.4 GHZ and 5 GHz (DFS)
- Frequency band 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
- Connections
- 1x Ethernet LAN 1Gbit

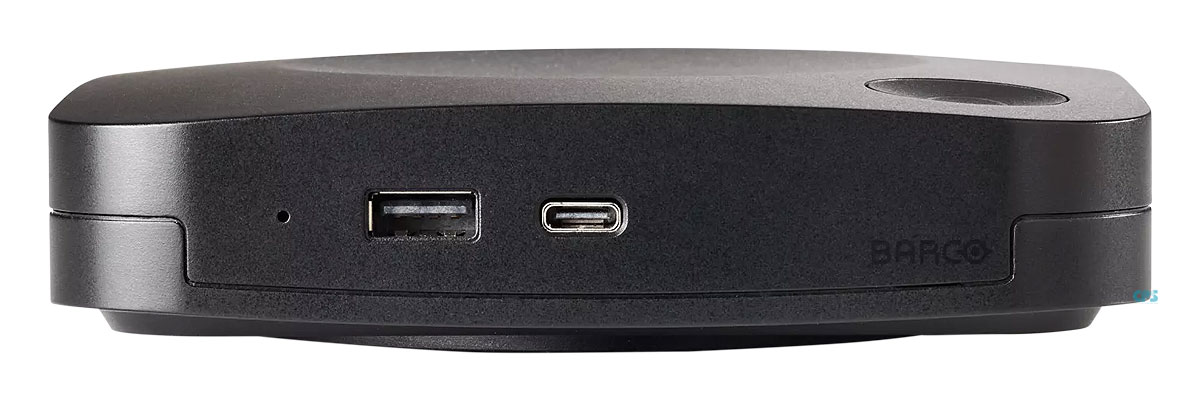

- 1x USB-C 2.0 (front); 1x USB-A 2.0 (front) - only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)
- Temperature range
- Operating: 0°C to +40°C (+32°F to +104°F)
- Max: 35°C (95°F) at 3000m
- Storage: -20°C to +60°C (-4°F to +140°F)
- Humidity
- Storage: 0 to 90% relative humidity, non-condensing
- Operation: 0 to 85% relative humidity, non-condensing
- Anti-theft system Kensington lock
- Certifications FCC/CE
- Touch screen support & Interactivity /
- Wireless conferencing via App or Button
- Local view Local view of the room display only
- Network connection LAN & WiFi
- Management and reporting Yes
- Warranty: 1 year standard. 5 years coverage via SmartCare
