Ericsson DECT Base Station BS330-9001 NEW
NEW Item
Manufacturer Part Number: BS330-9001, NTM/KRCNB 301 03/1

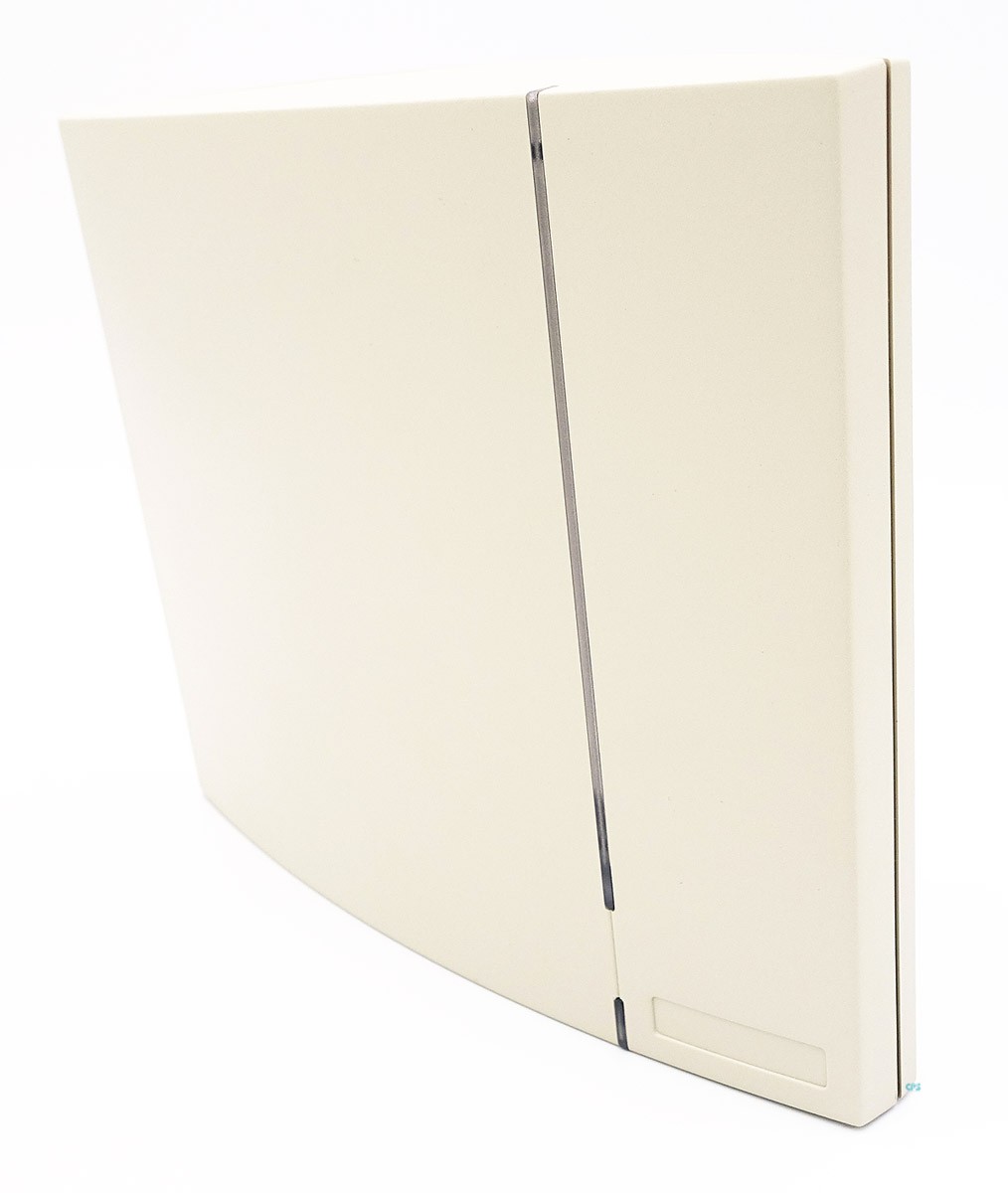

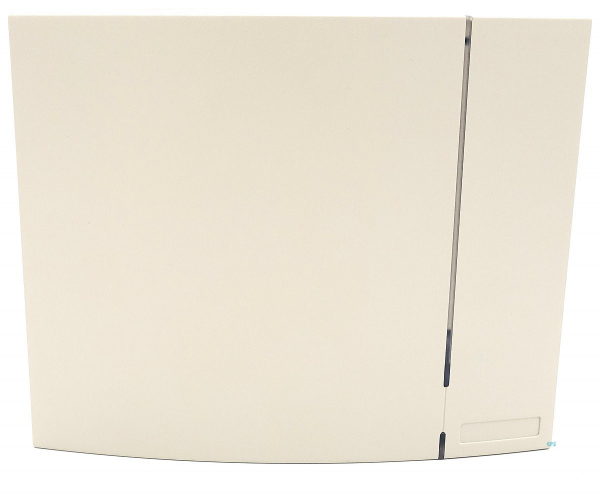

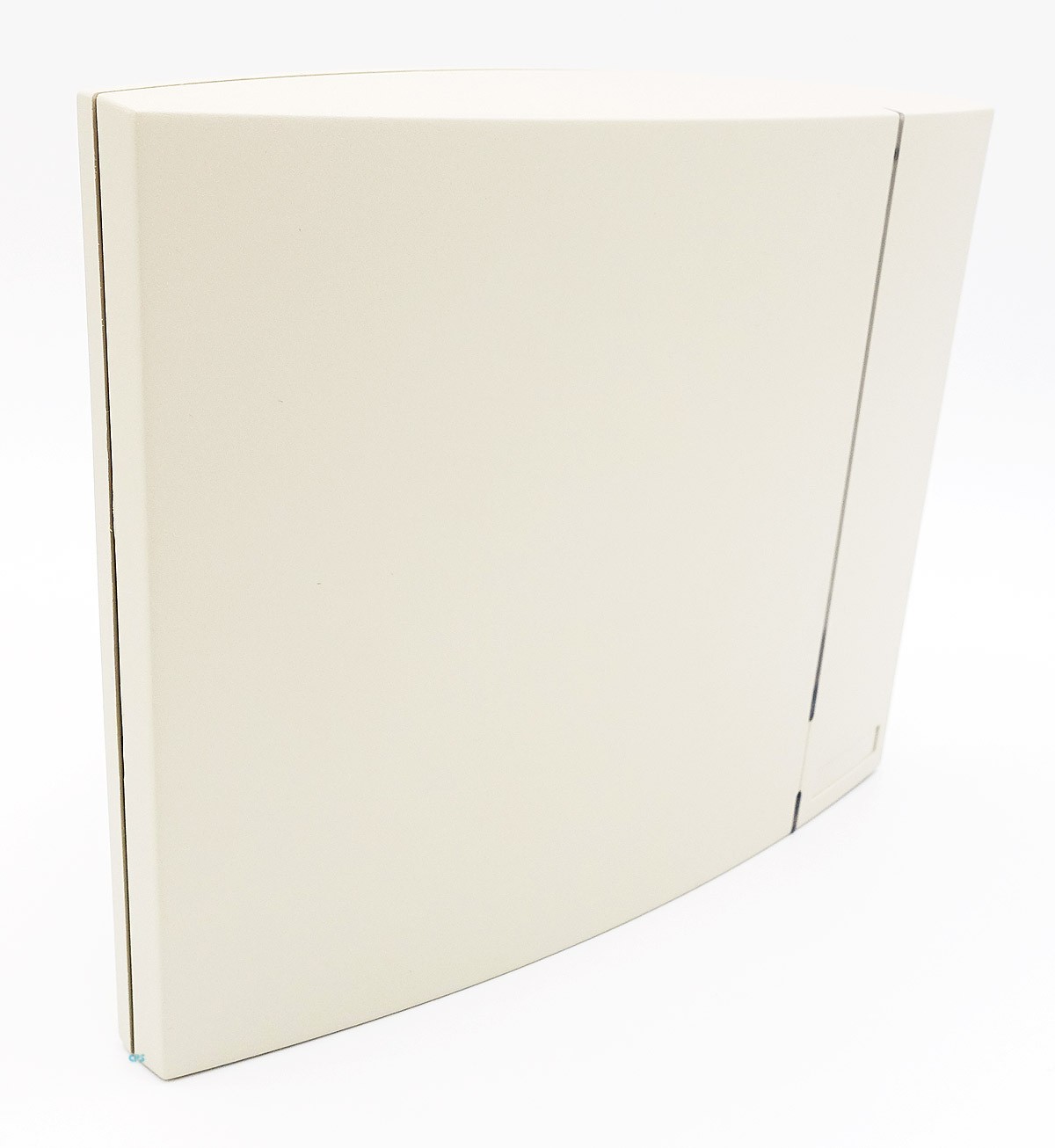

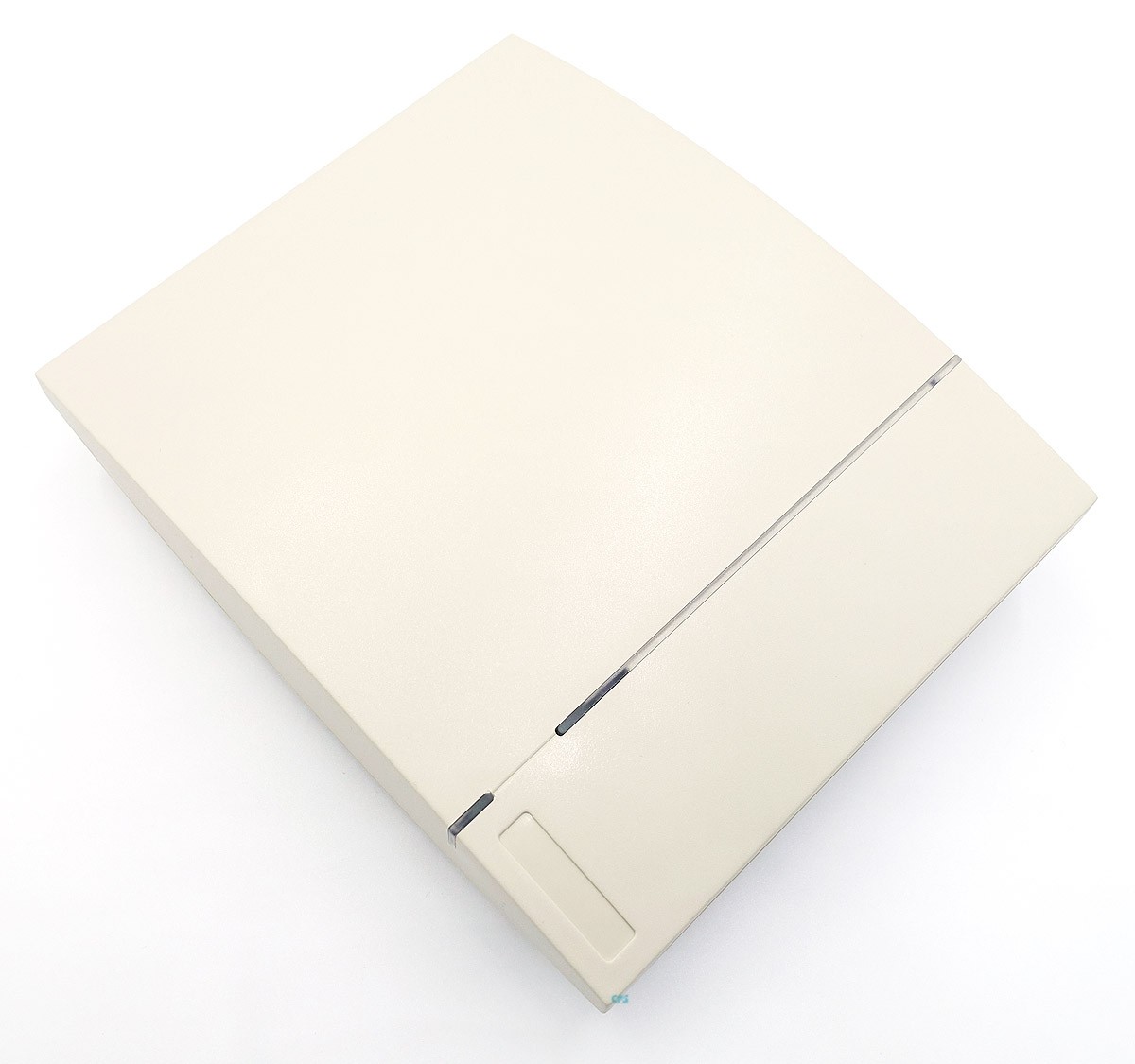

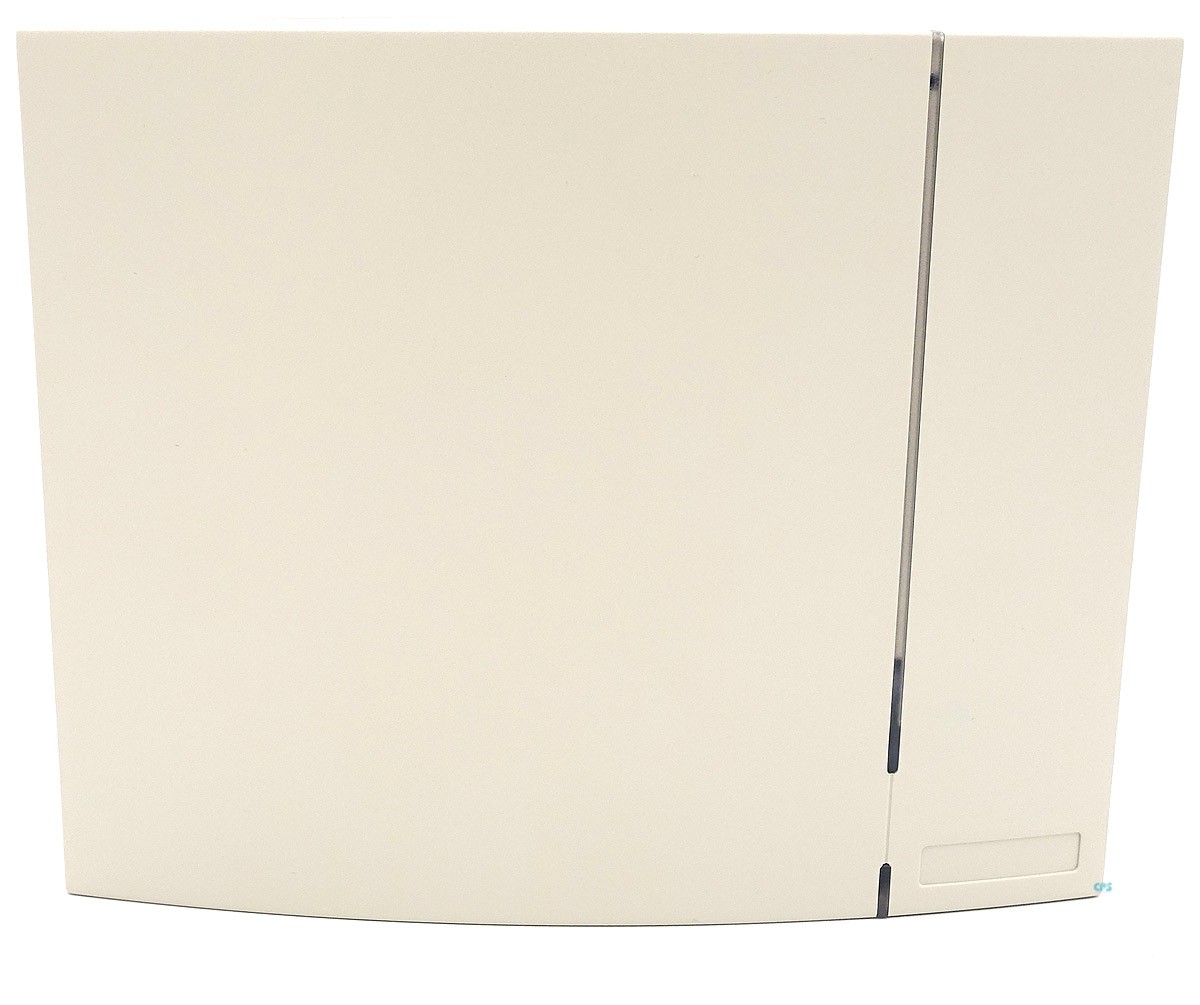

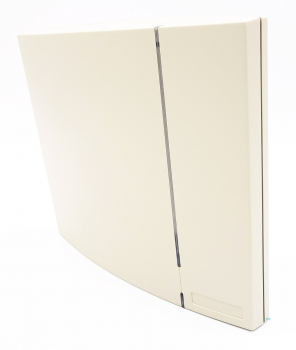

Ericsson DECT Base Station BS330-9001
The Ericsson BS330-9001 is a standard DECT base station developed for use in professional, circuit-switched (TDM) DECT communication systems. It provides the necessary radio coverage indoors and is the basic version of the BS3x0 series, often found in Ascom and AASTRA/Mitel infrastructures.
Main Features and Benefits
- Basic Version: A reliable and robust indoor product with internal antennas.
- DECT Coverage Foundation: Establishes the essential radio link between wireless DECT handsets and the central system controller.
- DECT Standard Compliance: Guarantees seamless roaming and handover.
- High Channel Capacity: Supports up to eight simultaneous voice channels (DECT time slots) per base station.
- Integrated Power Supply: Power is supplied via the UPN interface.
Range and Design
- Indoor Range (typical): 30 to 50 meters in enclosed spaces (depending on building materials).
- Outdoor Range (maximum): Up to 300 meters under optimal, line-of-sight conditions.
- Design: The base station is compact and lightweight (approx. 470 grams) and designed for easy installation on flat or rounded surfaces (walls, ceilings, poles).
Technical Specifications (Detailed)

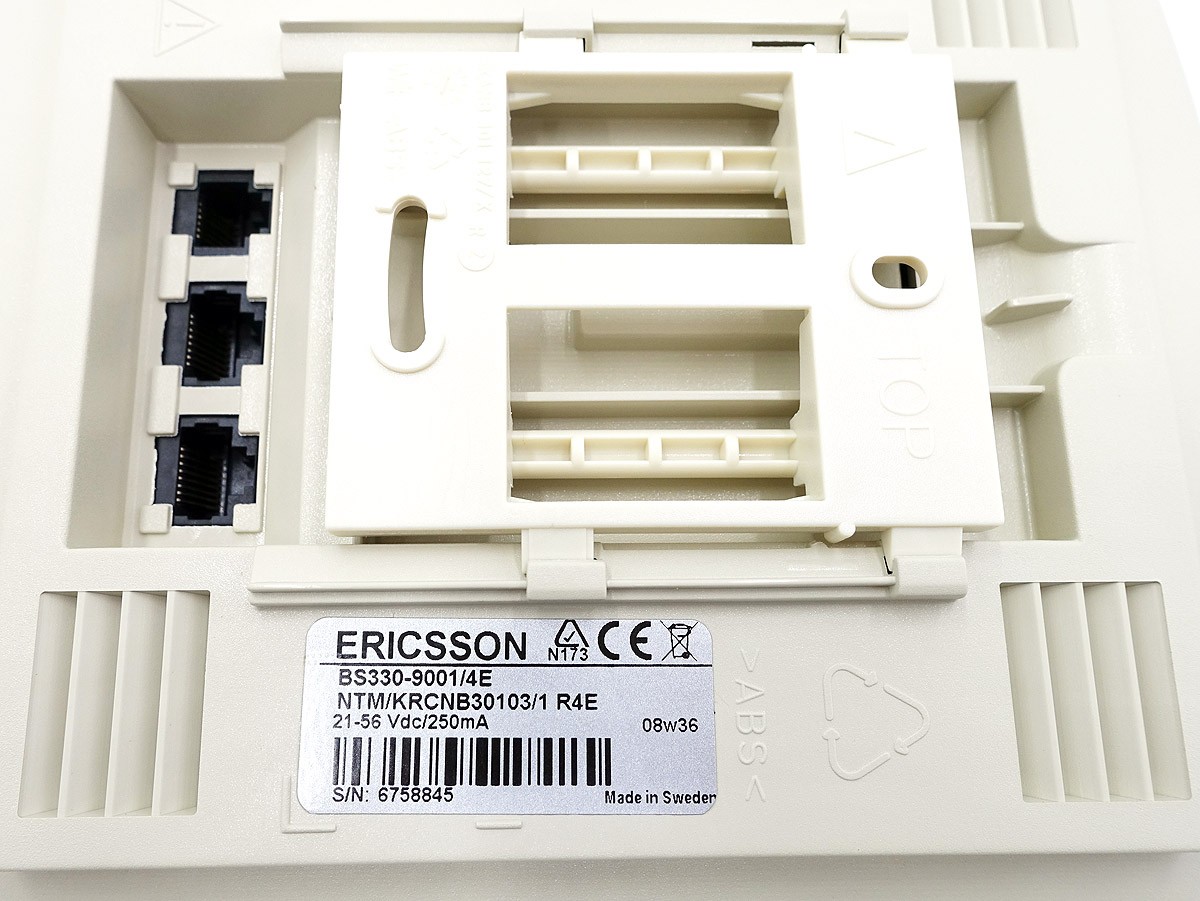

- Part Number/Type: NTM/KRCNB 30103/1 (Ericsson designation).
- Dimensions (H x W x D): 150 x 150 x 50 mm (approximate).
- Weight: Approx. 470 grams (net).
- Operating Voltage: Wide range from 21 VDC to 56 VDC (power supplied via the UPN interface).
- Max. Current Draw: 250 mA.
- Power Consumption: Approx. 2 W to 3 W (based on 48V nominal voltage).
- RF Output Power: Typically 10 mW (average power, compliant with the DECT standard).
- Operating Temperature: -5 °C to +45 °C.
Technical Features (Summary)
- System Type: TDM DECT Base Station (Indoor version, standard).
- Connection Type: UPN (Universal Participant Numbering), typically via RJ45 connector.
- Max. Channels: 8 simultaneous voice channels per base station.
- Antennas: Integrated antennas.
- Operating Frequency: Standard DECT frequency bands (e.g., 1880–1900 MHz in the EU).
- Power Supply: Directly from the DECT controller/gateway via UPN.
Important Compatibility Note & Mixed Operation
- A mixed operation of Ascom, Ericsson, and AASTRA BS330/BS340/BS370 TDM-DECT base stations in a single radio system is possible and common.
- Central Control: The DECT Gateway or Controller (e.g., Ascom IPBL1-AA) must support all manufacturer IDs and model variants in its firmware to ensure roaming and handover.
- For connection to modern VoIP/IP telephone systems, the use of a DECT Gateway (such as the Ascom IP DECT Gateway IPBL1-AA) is mandatory. This gateway converts the UPN signal into the IP protocol.

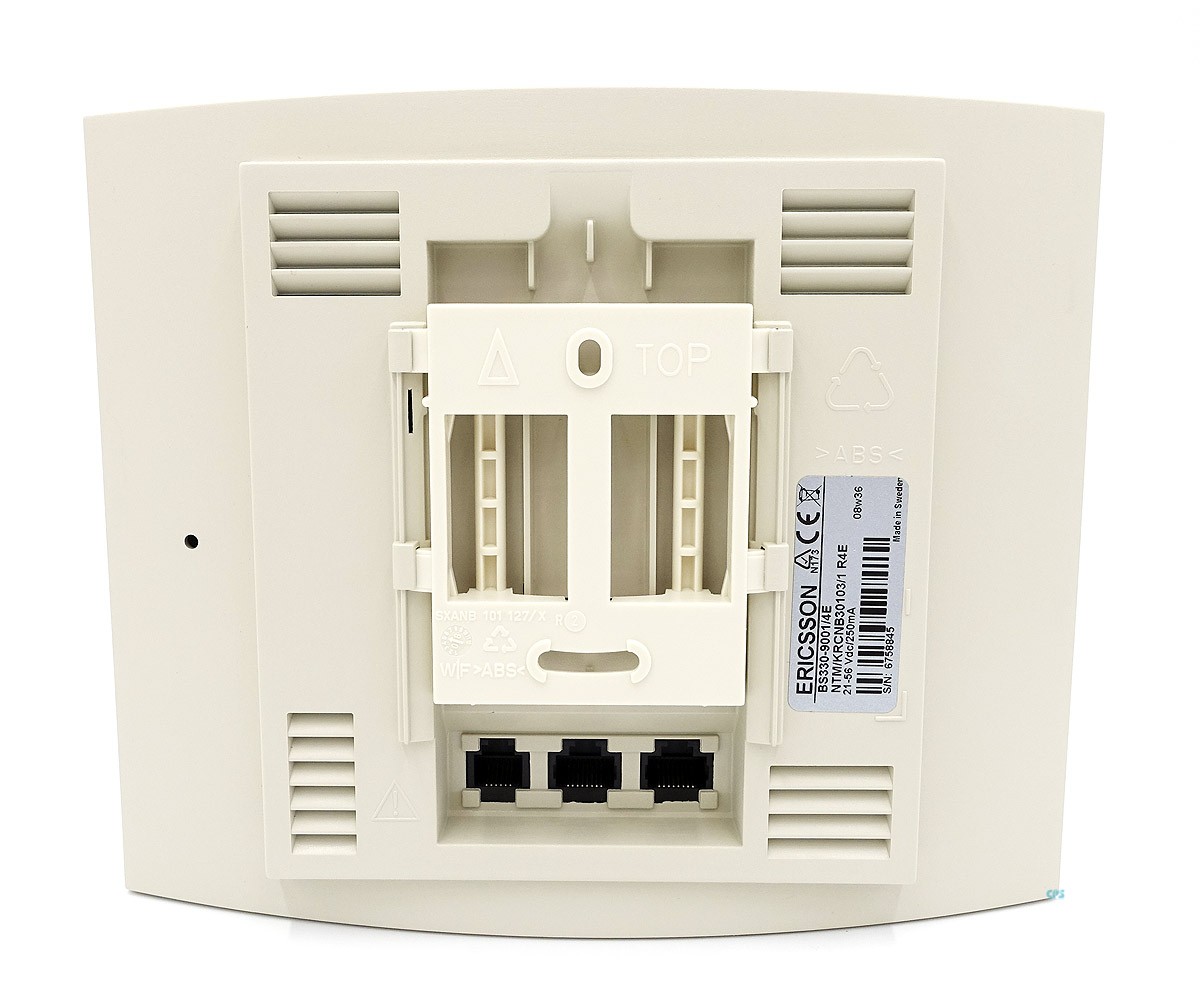

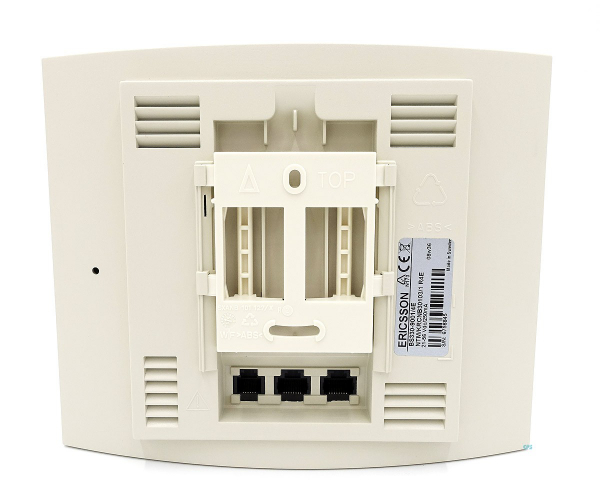

Scope of delivery: Ericsson DECT Base Station BS330-9001 with wall mount
