Digital S0 Module STMD3 HiPath 3800 and OpenScape Business X8 L30251-U600-A94 S30810-Q2217-X NEW

Digital S0 Module STMD3 HiPath 3800 and OpenScape Business X8 L30251-U600-A94 S30810-Q2217-X NEW

NEW Item
Manufacturer Part Number: L30251-U600-A94​, S30810-Q2217-X

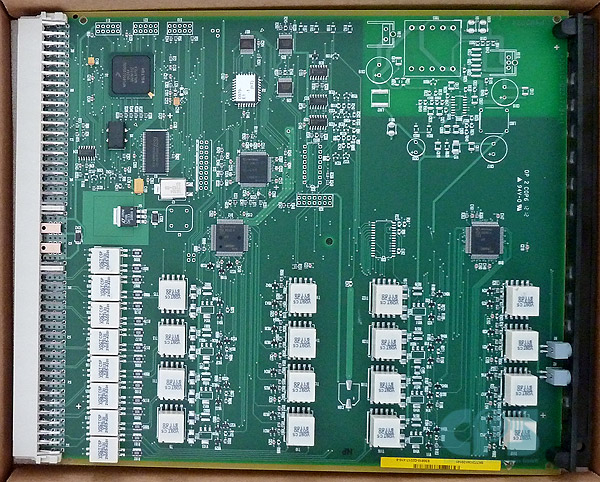

Digital S0 Module (8 S0) STMD3 for HiPath 3800 and OpenScape Business X8

The module S30810-Q2217 STMD3-X is the function identically with the STMD2. Due to the use of new components, this module was introduced with a new source number.
The STMD2 (Station/Trunk Module Digital S0+SLMS2 Station Line Module Digital S0) board is a subscriber card for SLMS2 function (with power feeding). The STMD2 board comprises the STMD and SLMS function on one single board.

The STMD2 covers all features which are provided by the replaced modules. It contains eight trunks with S0 interfaces. Each S0 connection (4-wire-system) constitutes a basic access with two B-channels (64 kbits/s each) for speech/data and a D-channel (16 kbits/s).

Description of STMD/SLMS modul:

• Moreover the new boards use SIPAC connector to the backplane.
• The front panel of the board contains 2 LEDs.
• Flashprotection is on board.
• The cabling to the MDF differs to the SLMS and STMD solution. STMD2 use a 24-twisted-wire cable with no protection.
