RefurbishedManufacturer Part Number: S30810-Q2035-X
Siemens LCR
LCR (Least Cost Routing) is the general term for network routing systems which interoperate to ensure optimal conrol of line selection for telephone connections. The LCR functions supersede the existing alternate routing methods in Hicom 300 for all services.
RefurbishedManufacturer Part Number: S30810-Q2201-X

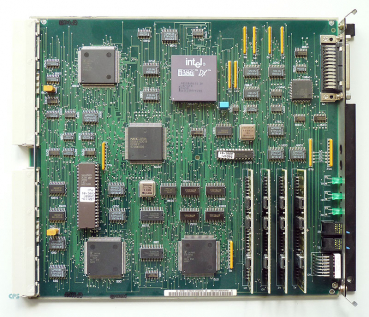

Siemens DP3DM Data ProcessorThe DP3DM (Dynamic Memory of the 386 Data Processor) for the Hicom 300/300E, is the central control processor of the SWU and the servers.The front panel of the module contains 3 LEDs (RUN, READY and ACTIVE), 2 keys (monitor and reset), a 7-segment display and a 25-pin V.24 interface.
RefurbishedManufacturer Part Number: S30810-Q2200-X100
Siemens DP486
The DP486 (Data Processor 486) for Hicom 300/300E, is the central control processor of the SWU and the servers. The processor's pin assignments are identical to those of its predecessors DP86, DPM, DPML, DP386 and DP3DM, and the software used is also largely compatible.
Differences:
The front panel of the board contains 2 keys (monitor and reset), 3 LEDs (RUN, READY and ACTIVE), a 7-segment display and a V.24 interface.
RefurbishedManufacturer Part Number: S30810-Q2255-X
The IOPAX-module board S30810-Q2255-X (Input-Output Processor SCSI and Alarm-Control) enables the control of the peripheral storage unit (CT,HD) within the server. The device serves as a multi-functional module board with the following performance features:
RefurbishedManufacturer Part Number: S30810-Q3101-X000
The STMS8 expansion board. It provides 8 sets with S0-interface feeds.
RefurbishedManufacturer Part Number: S30810-Q2942-X
Connection of a local LAN to the HiPath 3000 and connection with external LANs over the ISDN and DSL interfaces of the HiPath 3000
The HXGM3 board prepares the functions of the HiPath HG1500 Version 3.0 for the HiPath 3750 and HiPath 3700.Connection of a local LAN to the HiPath 3000 and connection with external LANs over the ISDN and DSL interfaces of the HiPath 3000Support of the conventional functions of ISDN and DSL Routers with the additional functions of a media gateway for the transmission of voice, fax, and data.Forwarding of conversations between IP based networks (LAN, Intranet, Internet) and circuit switched networkes (ISDN, PSTN)
The HXGM3 board is compatible to the HiPath HG 1500 V2.0 board HXGM2. A mixed installation of both boards in a system is possible.
RefurbishedManufacturer Part Number: S30810-Q2151-X
The SLC16 (Subscriber Line Cordless) assembly, is used in all hardware platforms of the Hicom 300E Version 1.0.The module allows the connection of 16 cordless base stations.
RefurbishedManufacturer Part Number: S30810-Q2201-X000
RefurbishedManufacturer Part Number: S30810-Q2191-C100
Analog subscriber module (8 a / b)
RefurbishedManufacturer Part Number: S30810-Q2923-X000
Analog subscriber module 16SLA FC (16 a/b)
RefurbishedManufacturer Part Number: S30810-Q2316-X10, S30807-Q5697-X200
(120 channels)
For Siemens HiPath Systems
RefurbishedManufacturer Part Number: S30810-Q2224-X000
The MTSCG (Memory Time Switch and Clock Generator) board is a central board. It integrates the functionality of an MTS64 or MTS128 (Memory Time Switch) and an NCG (Network Clock Generator). So it contains both functions, the function of Highways switching aswell as the clock functions for the system (supply and synchronization to an external or internal reference clock). Regarding clocks and highways the MTSCG fullfils the same timing conditions.
NEWManufacturer Part Number: S30805-U5277-X-3
Telephone distribution frame for 24 DA + 35 DA dividing rails
{{.}}
{{{.}}}
