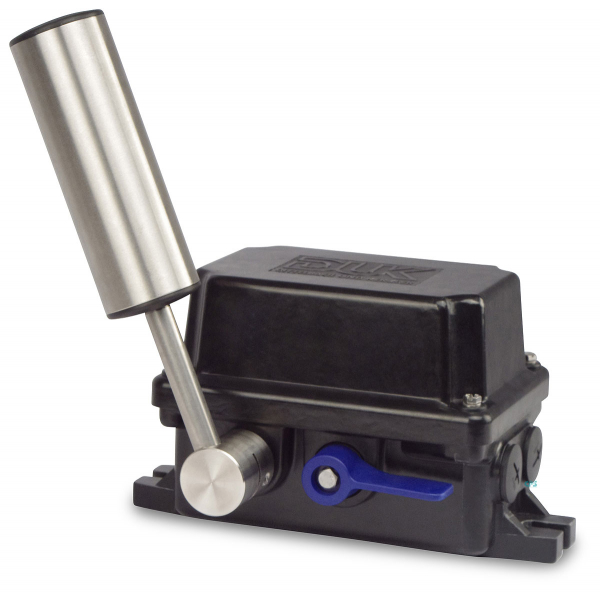

DUK Conveyor Belt Misalignment Switch, ATEX Zone 22 LHPEw-10/1-L50-EX
NEW Item
Manufacturer Part Number: LHPEw-10/1-L50-EX
Variant:
| contacts |
NC x 1 and N0 x 1 |
| warning contacts |
NC x 0 and N0 x 0 |
| switching angle 15 |
15° |
| latching |
YES |
| Contacts |
Silver |
For use in zone 22 ATEX approval
- Device group II
- Category 3D
- Corrosion-resistant Polyester enclosure (BMC)
- 50mm diameter roller
- IP67
- Up to 4 contacts NC plus 4 NO
- Direct opening snap action contacts
- Silver- or gold contacts
- Stepless adjustable space between roller and the edge of the belt
- Stainless steel ball bearing
Tough, reliable, and quality engineered are the outstanding features of this switch. Even under most ardous environments they withstand corrosive atmospheres, heavy duty service and mechanical impacts.
They comply with the demands of the standard EN 60079-31. By their marking with II 3D Ex tc IIIC Dc IP67 T90°C they are approved for use in areas under conductive dust. They comply to all other applicable European standards and are marked with the CE-mark.
Misalignment switches should be installed pairwise, left and right of the edges of the conveyor belt. In case that the belt should misalign from the given track, one roller lever of this pair of switches will be touched
by the edge of the belt and displaced against the resetting force of an internal spring. If the increasing displacement oversteps a factory setted threshold the snap action contacts are operated. The maximum displacement angle is 75°. Optional is a 2-stage characteristic, first stage at small misalignment for pre-warning and the second stage for cutting off. If the amount of misalignment will be reduced reset happens automatically.
Optional is a latching version holding the contacts in operated position with manual reset.
Stepless adjustability of the actuation lever on the switch shaft allows easy adjustment of the clearance between lever and the edge of the belt.
Secure opening of each NC-contact is guaranteed by the direct opening system (positive drive for each NC-contact). For decreasing the electrical transition resistance between the contact surfaces all contacts perform a selfcleaning action with each operation. The contacts are made of silver and get optionally a gold surface. For lowest tensions and currents the optional gold contacts are recommended.
The actuation lever of this switch is made of corrosion-free materials: Hub, shaft, roller and the 2 ball bearings are of stainless steel.
The large diameter of the roller (50mm) facilitates the service on conveyors with high belt speeds.
2 different materials for the switch enclosures (same dimensions) make further selection necessary: On one hand the housing of cast iron: Most stable, normal resistant against corrosion (but much better than
aluminium), costly in production, double 2-component coated. On the other hand the economic enclosure of thick walled, special for use in EX-areas permissible fibre glass reinforced polyester with reduced electrical surface resistivity: Same stability as cast iron and indisputable corrosion-resistant against saline water as well as most chemicals.
Technical data
- Conforms to standards EN 60079-31, EN 60947-5-5, EN 60529, EN 60204
- Switches are marked II 3D Ex tc IIIC Dc IP67 T90°C
- Contacts Up to 4 NC plus 4 NO, self-cleaning surfaces
- Thermic Currents Ith Silver contacts: AC: 400V 6A, 230V 8A, DC: 24V 10A, 80V 3A
- Minimum current Gold: 1mA @ 6VDC
- Utilization categorie
- Silver AC-15 230V 1A, DC-13 110V 0,5A
- Gold AC-12 230V 250mA, DC-12 110V 250mA
- Cable inlets 2 x M25 threads
- Protection IP 67
- Ambient temperature Tamb -40°C up to 80°C (on request -55°C)
- Max. temperature of surface of housing 90°C
- Material of housing
- LHP… BMC, fibre-glass reinforced polyester
- LHM… cast iron
- Colour of housing
- LHP…black,
- LHM…. yellow, optional other
- Weight 2,9 kg (LHP...), 7 kg (LHM...)
- Mounting 2 slotted holes for M10 screws (max. 11mm)
- Roller lever stainless steel double-ball beared, stepless adjustable on the switch shaft
