OpenScape Desk Phone CP600 L30250-F600-C428
Refurbished
Manufacturer Part Number: L30250-F600-C428
Key module must be ordered separately.

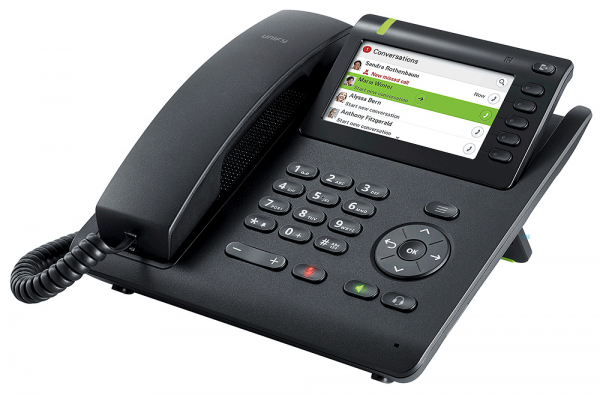

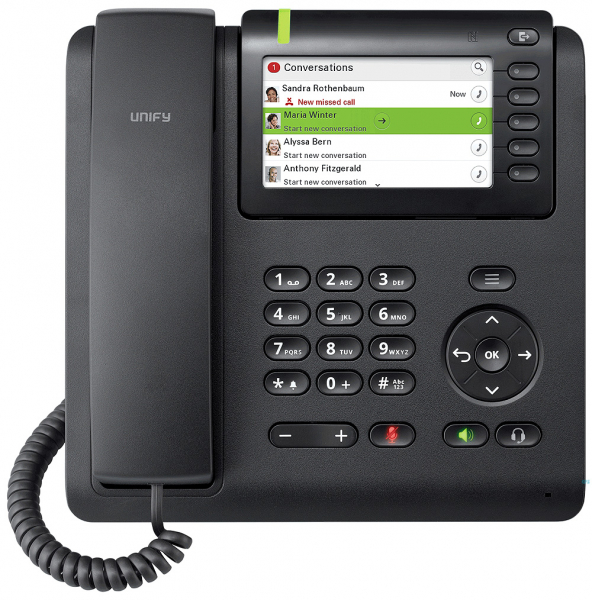

OpenScape Desk Phone CP600, 4,3 inch color display
This device was developed for demanding users and provides crystalclear HD voice quality, a brilliant color display and a broad spectrum of functions.

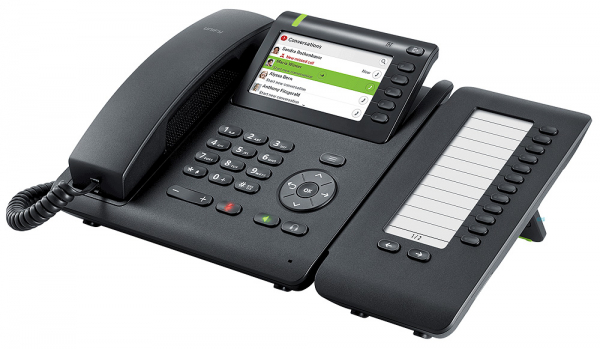

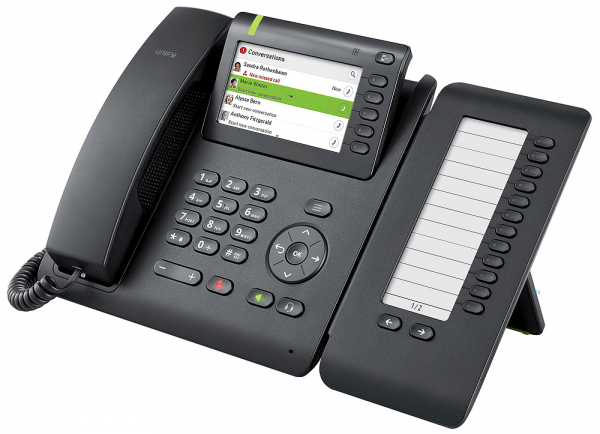

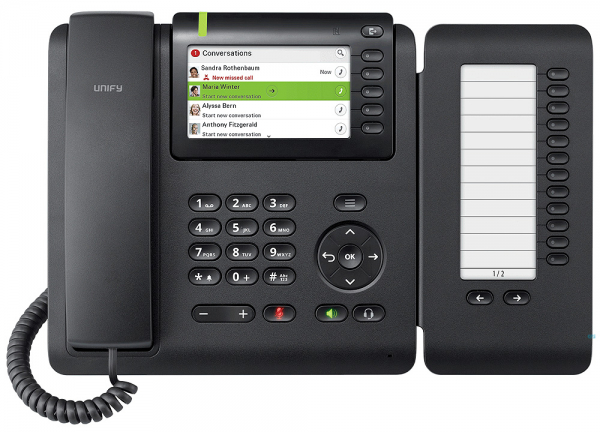

The CP600 is designed for the collaborative workplace. The consistently paperless design is particularly suitable for mobile workers or environments. The base unit is optimized for single line usage. Four freely programmable functions can be applied to favorites on a second level. Up to four connectable key modules with 12 buttons each satisfies the need of many free programmable keys. The high resolution display of Key Modules shows the key label and additional information like status and action icons. The key module is highly recommended for multiline usage. It provides interactive line information as well as status information using the display and the three color key LED. The CP600 is equipped with a new Bluetooth 4.1 function. Bluetooth headset are supported in HD audio quality. The new ‘Bluetooth Proximity’ feature allows to automatically lock the phone when the headset or other Bluetooth device is removed from the phone range. The built-in NFC chip simplifies the Bluetooth pairing with compatible Smartphones.
- Tiltable graphical TFT display, 4,3" (480*272 pixel), color
- LED backlight (white)
- Notification LED, Signaling LED (red/green/orange)
- 5 context sensitive soft keys with LED
- 2 fixed feature keys (Menu/Out-of-office)
- 4-way navigator, plus OK-key
- 3 audio keys (Mute/Speaker/Headset) with LED
- Volume control +/-
- Open listening / Handsfree talking (Full-duplex)
- Headset port (DHSG/EHS)
- 10/100/1000 Base-T Ethernet Switch
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.3af Power over Ethernet, class 2
- Bluetooth 2.1 BR/EDR and Bluetooth 4.1 LE (dual mode device)
- NFC; SD card Interface
- Key Module KM600 optional
- Wall mountable

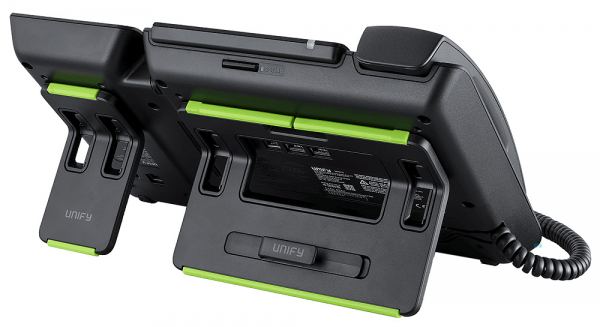

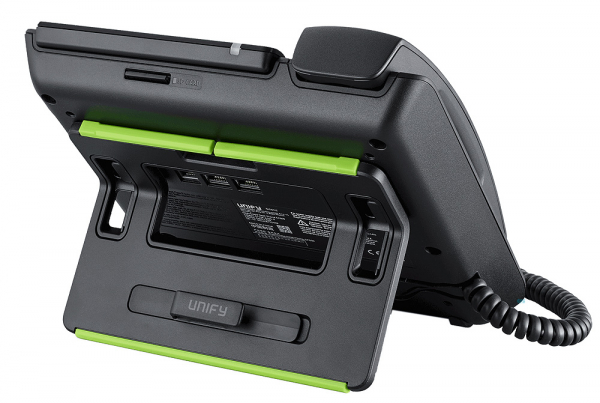

- Pedestal, two different set-up angles
The OpenScape Desk Phone CP family offers three sophisticated, compact and easy-toadminister devices that fulfill various users' diverse needs.
Intuitive, space-saving and easy
The ergonomically-designed, userfriendly, low-cost devices in the OpenScape Desk Phone CP telephone family are equipped with a wide variety of functions. They are easy and comfortable to operate without making any compromises in the crystalclear HD audio quality and performance.
Interoperability
The OpenScape Desk Phone CP family provides interoperability between the office telephone and other devices via Bluetooth®, incl. Bluetooth LE Beacon with support from Eddystone™. NFC (Near Field Communication) and Circuit make these telephones a high-performance communication center. The devices in the OpenScape Desk Phone CP family can be integrated easily into legacy-based IT/IP infrastructures. Each telephone has an integrated Ethernet switch and can be supplied with power via Ethernet. The Desk Phone CP400 and CP600 telephones are also equipped for Energy Efficient Ethernet, which can significantly reduce their average energy consumption.
Acoustics
The OpenScape Desk Phone CP telephone family incorporates the latest developments in leading edge acoustics to ensure delivery of the very best voice quality on the handset and handsfree operation. All models feature a high-quality speakerphone. And every model can be connected to professional headsets.
The OpenScape Desk Phone CP product family offers the industry's leading HD voice transmission AudioPresence HD. AudioPresence HD ensures that the users of these telephones can get an immersive audio experience for voice calls and audio conferences. AudioPresence HD is provided for the entire portfolio of the OpenScape Desk Phone CP product family. AudioPresence HD leverages the standards-based G.722 high-definition audio codec, best-in-class speaker, microphone and acoustic components, as well as state-ofthe-art noise suppression and echo cancellation in all OpenStage Desk Phone CP models.
New, state-of-the-art user interface
The colorful user interface of the Desk Phone CP600 is clearly designed and therefore easy and intuitive to operate when calling. All necessary information and functions are easy to find.
Circuit integration
Unify is the first company to offer integration between the OpenScape Desk Phone CP400/CP600 devices and Circuit collaboration software. This offers Unify customers a feature-rich set of possibilities for working together as a team.
Operating system
- SIP software is pre-installed
- Plug & Play / automatic software provision via DLS
Communication platform, The OpenScape Desk Phone CP product family supports SIP (Session Initiation Protocol) signaling.
The following communication platforms are supported:
- OpenScape Voice V7 R1
- OpenScape Voice V8
- OpenScape Voice V9
