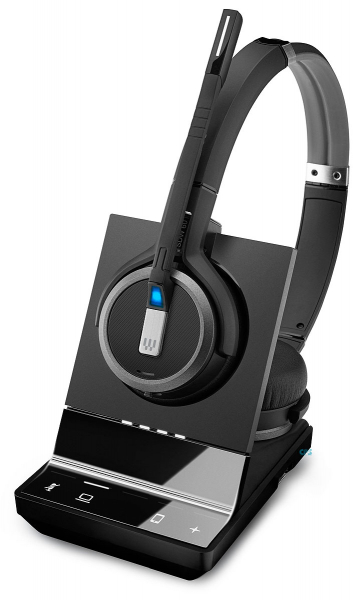

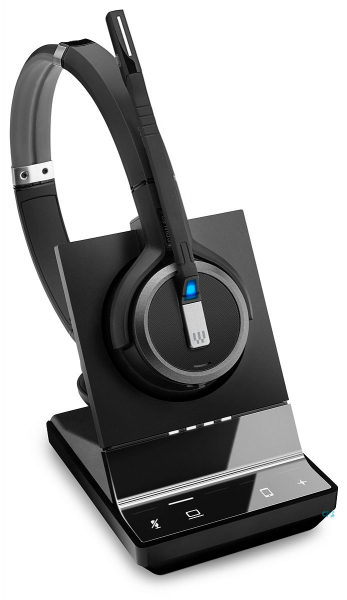

EPOS IMPACT SDW 5063 - EU/UK/AUS 1001017
NEW Item
Manufacturer Part Number: 1001017
IMPACT SDW 5063 - EU / UK / AUS 1001017
Binaural (both sides)
For PC/softphone
Optimized for UC and certified for Webex, Avaya, Alcatel-Lucent Enterprise, Enreach

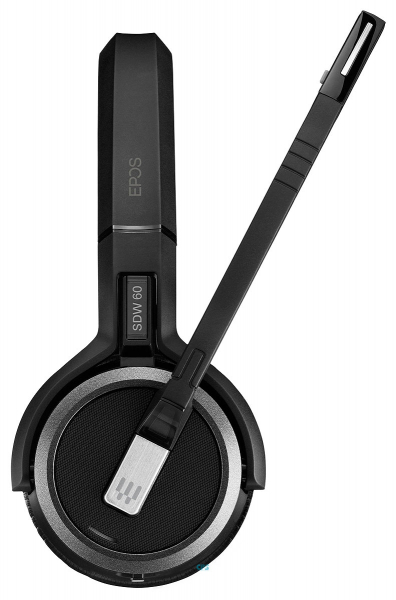

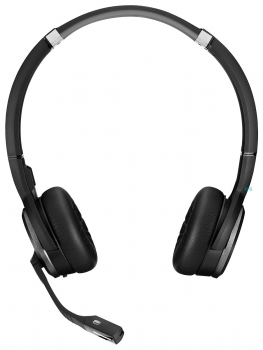

Wearing style: Double sided headset, Binaural (bilateral) headband headset
Meet the future prepared
IMPACT SDW 506X is a double-sided wireless DECT headset for modern office professionals, providing next generation communication quality, future-proof device flexibility, all-day wearing comfort and advanced security to modern work environments. For all-day users, talk time is extended through increased battery performance and comfort enhanced with headband wearing style and soft leatherette ear pads. IMPACT SDW 5000 meets the challenges of evolving modern workplaces by providing a communication tool that lives up to users’ expectations for multi-device usability, security and seamless customer interaction.
Modern office workers require mobility in the office and the ability to hold ad hoc collaborative meetings. Using multiple devices and often sitting at different desks, today’s knowledge workers demand a flexible, personal communication solution that simply works. IMPACT SDW 5000 helps them meet the future prepared with the ultimate business communication tool.
Raising the DECT headset standard
Boost your performance with superior audio and total flexibility from the IMPACT 5000 Series.
At your desk or around the office, manage calls directly from your headset and switch effortlessly between your devices. Unleash the potential of your talk-centric workforce with a new standard of DECT headsets.
Superior sound
Successful communication is the key to an efficient business. The IMPACT SDW 5000 Series sets a new sound standard and features super wideband sound offering a voice experience beyond conventional business standards, letting users hear conversational nuances and experience a natural and richer sound. Exceptional stereo music reproduction takes DECT headset performance to the next level. Two microphone noise-cancelling system and pioneering own-voice detection technology deliver exceptional sound for improved speech intelligibility in noisy environments. A new wideband mode for communication in high density environments provides excellent sound for more users.
Total flexibility
Answer all calls from a single device. With up to triple connectivity for softphone/PC, desk phone and mobile devices, the IMPACT SDW 5066 allows users to choose their own combination using the base station as a gateway to their preferred audio sources. It is also possible to connect a wired EPOS headset/speakerphone or a Bluetooth® headset (via the BTD 800 USB dongle) using the USB port on the base station.
Higher productivity
IMPACT SDW 5000 Series offers an array of smart features to enable seamless communication and collaboration for improved productivity. The busy light on the headset helps users to remain undisturbed during calls and conferences, and smart headset and base station controls deliver easy call management. IMPACT SDW 506X features soft leatherette ear pads for all-day wearing comfort and effective noise damping to reduce distractions. The cloud-based EPOS Manager puts IT managers in control of all EPOS devices and manages assets, updates and configurations from one location. The IMPACT SDW 5000 is UC optimized and certified for Skype for Business to maximize productivity
Enhanced security
Security is a primary concern for a company’s IT manager. IMPACT SDW 5000 comes with advanced security protocols to ensure that all communication is kept confidential. The IMPACT SDW 5000 Series is DECT Security certified* and designed with special focus on secure pairing, the most vulnerable part of a wireless system. The authentication process uses 128-bit keys and Protected Pairing ensures that sensitive pairing data cannot be intercepted over-the-air. EPOS Manager allows the IT manager to disable Bluetooth®, call merging and conferencing mode if required.
Key benefits & features
- Crisp and natural sound with super wideband,
- for voice clarity that exceeds conventional business standards
- Exceptional speech intelligibility
- with two microphone noise-cancelling system and pioneering own-voice detection technology
- Sound clarity in high density environments
- with high density wideband mode
- Exceptional music/multimedia experience
- with EPOS quality stereo sound takes DECT headset performance to the next level
- Hearing protection from acoustic shock
- by ensuring that the sound pressure level does not exceed 118 dB
- Manage all calls from one headset
- with triple connectivity to softphone/PC, desk and mobile phone
- Maximum flexibility via one single base station
- – works with all IMPACT SDW 5000 headsets and connects to a EPOS Bluetooth® headset or a wired headset or speakerphone
- All-day wearing comfort
- with soft leatherette ear pads and effective noise damping
- Optimized for major UC brands and certified for Skype for Business
- Undisturbed calls
- with a busy light on the headset. A busy light for the desk is available as an accessory.
- Easy configuration and management
- for IT managers with EPOS Manager
- Enhanced security
- with Protected Pairing, 128-bit authentication and DECT Security certification to keep all conversations confidential
- Long distance wireless range
- – up to 180 m/ 590 ft with line of sight
- Hot desking
- with fast, secure headset pairing
- Easy to set up phone conferences
- of up to 4 IMPACT SDW 5000 Series headsets with the same base station
- Full workday of talk time
- – up to 14 hours narrowband
- Fast charging
- with 50 % battery in just 30 minutes
Product data:
- IMPACT SDW 5066: Wireless DECT headset with base station. Triple connectivity to desk phone, PC/softphone and mobile devices.
- IMPACT SDW 5065: Wireless DECT headset with base station. Dual connectivity to desk phone and PC/softphone.
- IMPACT SDW 5064: Wireless DECT headset with base station. Dual connectivity to softphone/PC and mobile devices.

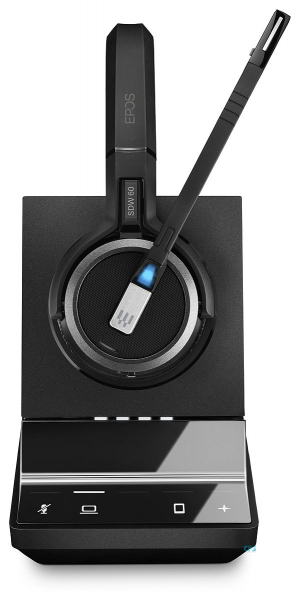

- IMPACT SDW 5063: Wireless DECT headset with base station. Single connectivity to softphone/PC.

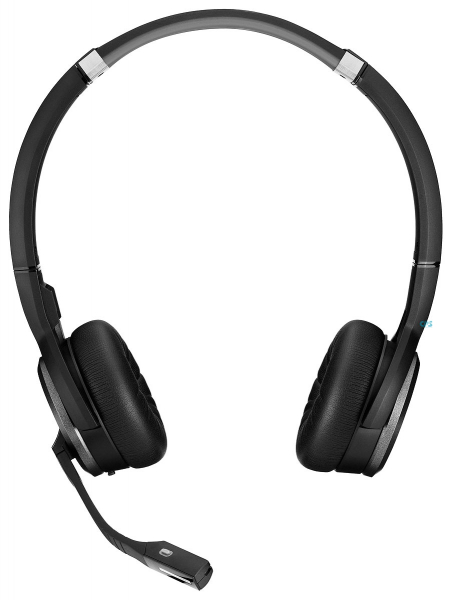

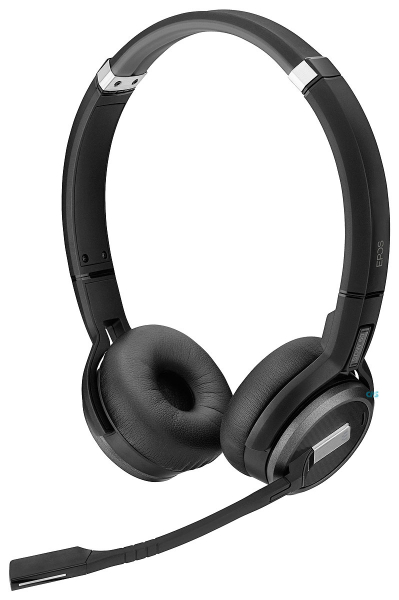

- Wearing style: Double sided headset, Binaural (bilateral) headband headset
- Weight: 136 g / 4.80 oz

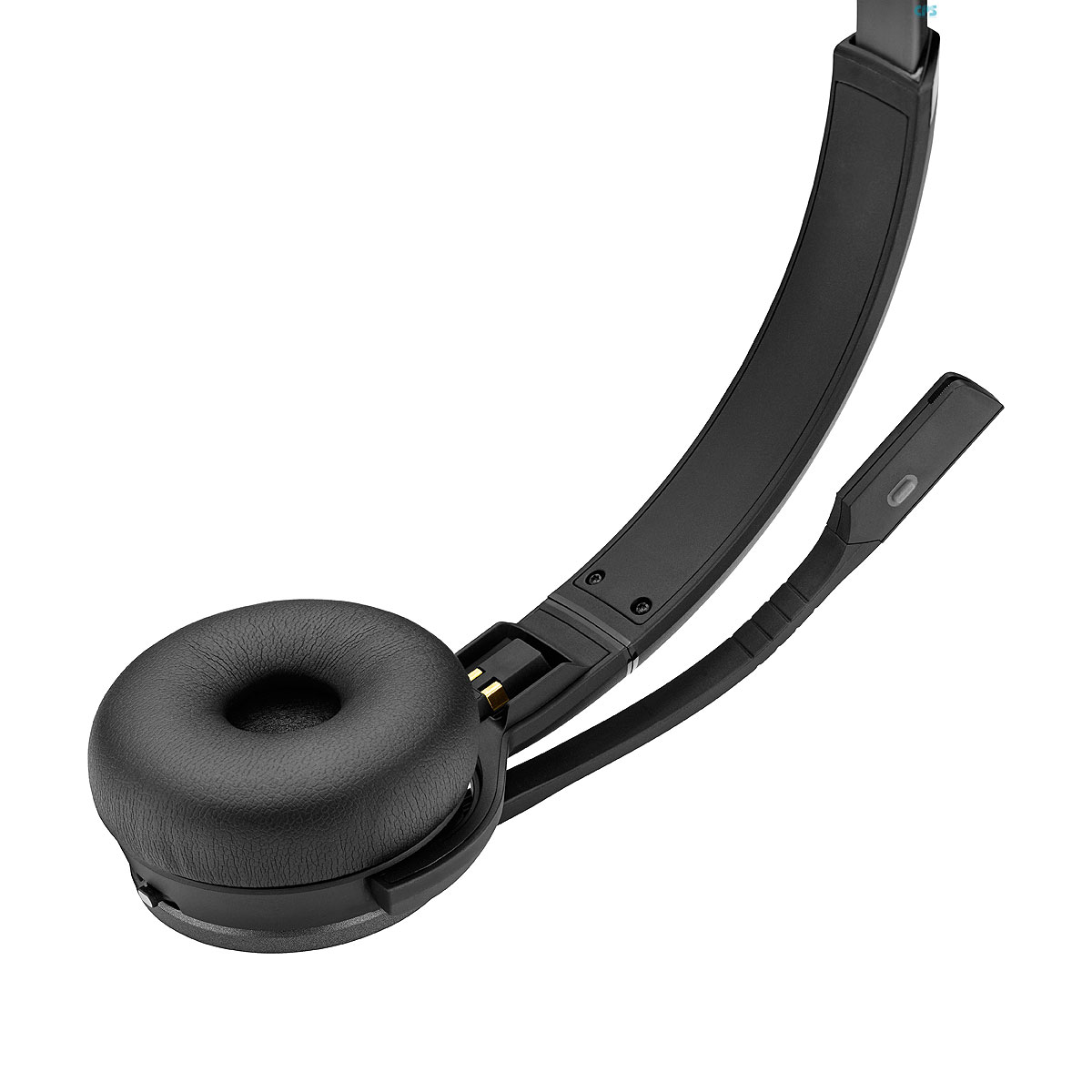

- Ear pad size: ø 54,5 mm / 2.15 in
- Personalization: Yes with nameplate on headset

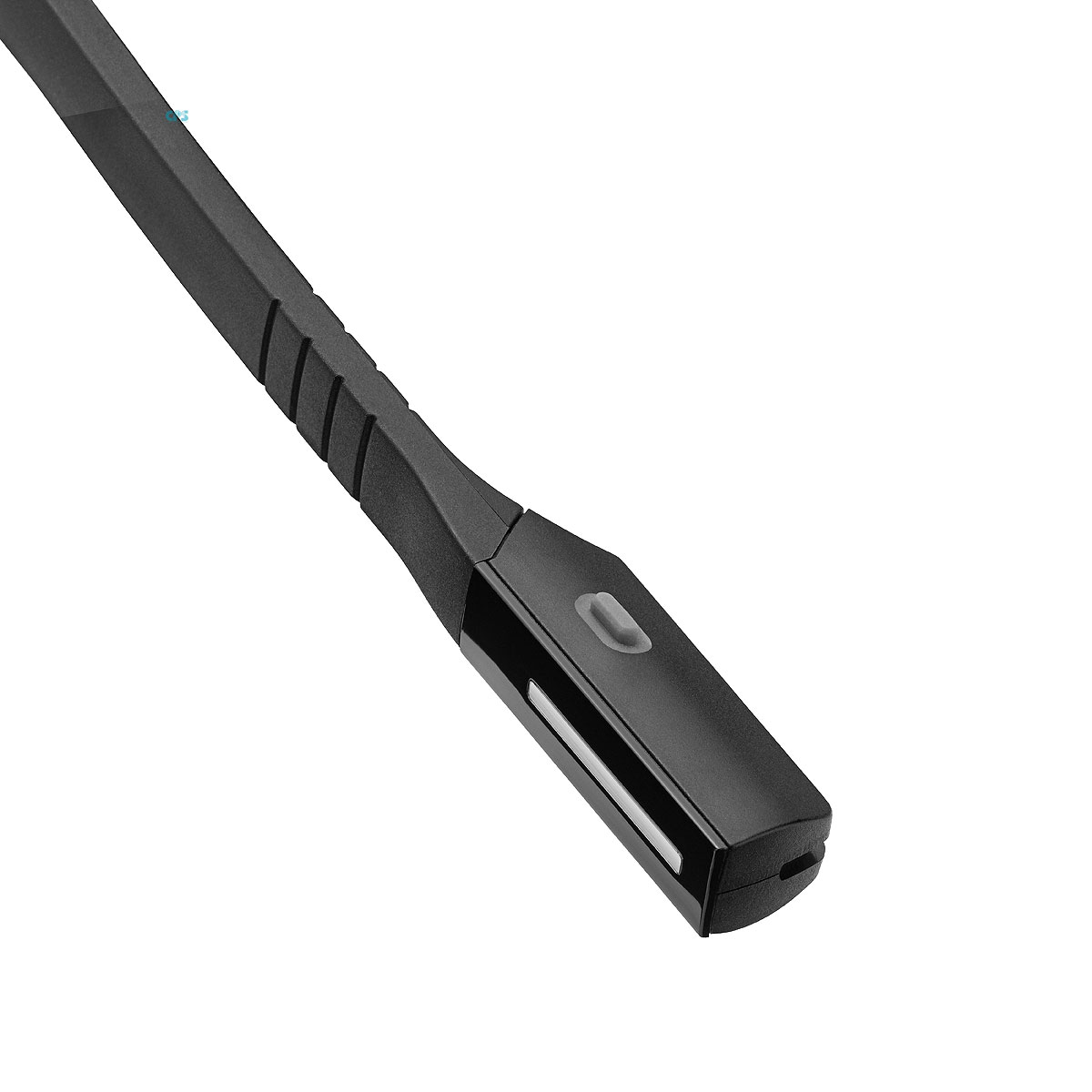

- Microphone: Digital MEMs microphones – two microphone noise-cancelling system for exceptional speech clarity
- Microphone frequency range
- 150 Hz – 11.0 kHz (Super wideband)
- 150 Hz – 7.0 kHz (Wideband)
- 150 Hz – 3.5 kHz (Narrowband)
- Speaker type: High-quality Neodymium Magnet Speaker for outstanding audio quality
- Speaker frequency range:
- 150 Hz – 11.5 kHz (Super wideband)
- 150 Hz – 6.8 kHz (Standard wideband and High density wideband)
- 300 Hz – 3.5 kHz (Narrowband)
- 20 Hz – 20 kHz (Fullband - music mode)
- DECT:
- 1.880 to 1.900 MHz (EU, UK, AUS)
- 1.920 to 1.930 MHz (US)
- GAP compatible: Yes (Headset)
- Headset: Connects to base station

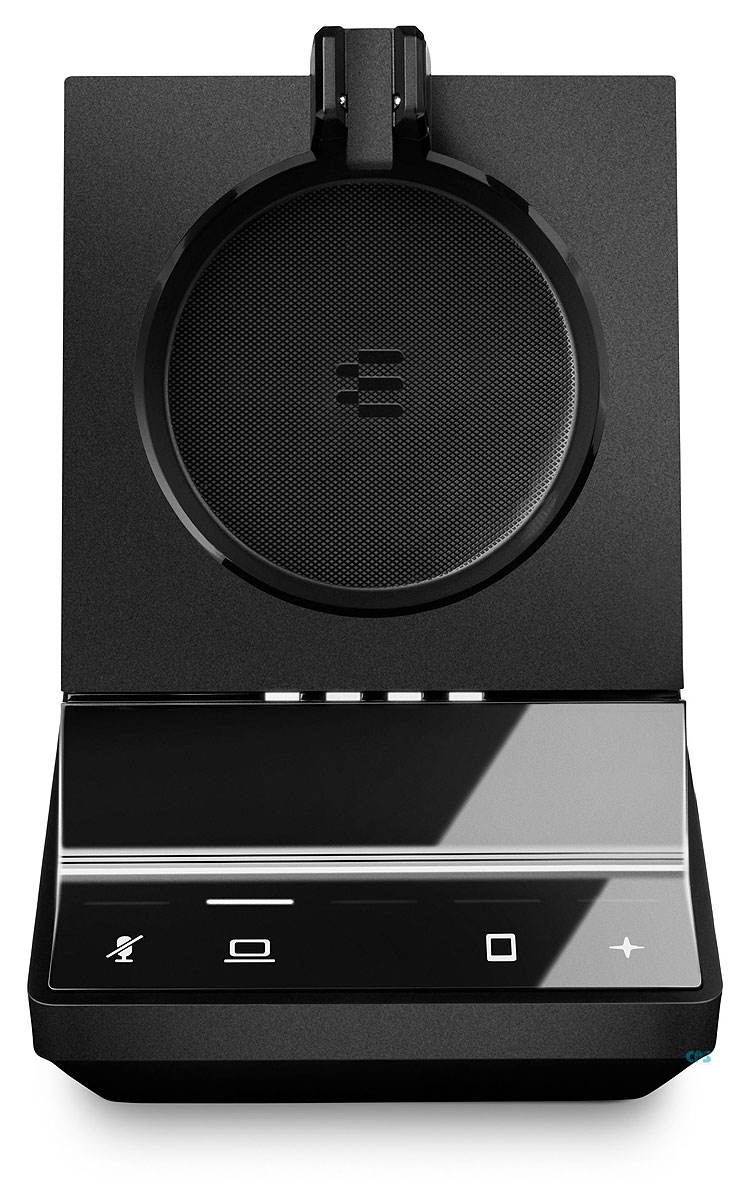

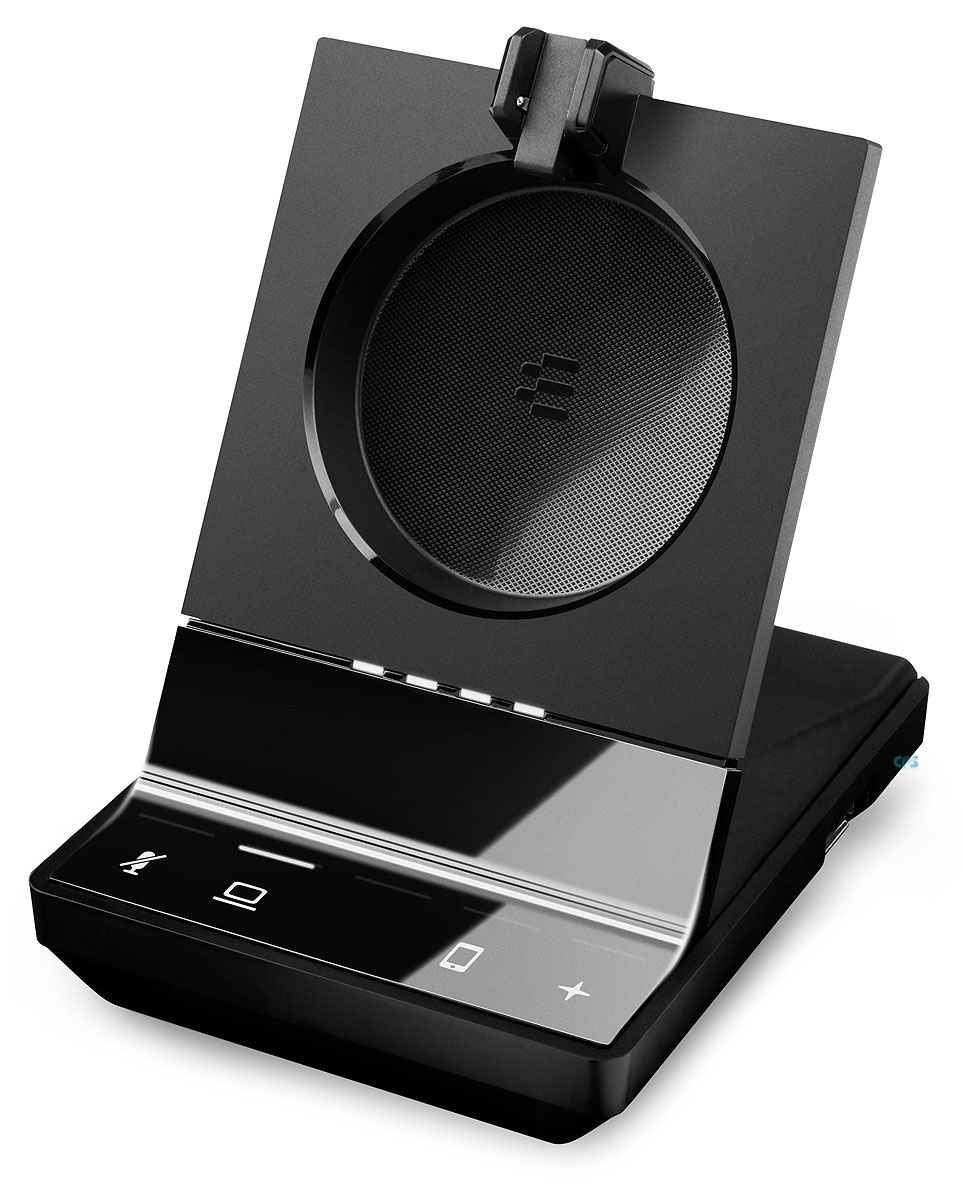

- Base station
- SDW 5 BS connects to desk phone, softphone and up to two mobile devices simultaneously (Included in SDW 5066 and SDW 5065)
- SDW 3 BS connects to softphone/PC and up to two mobile devices devices simultaneously (Included in SDW 5064 and SDW 5063)
- BTD 800 USB dongle (Included in SDW 5066 and SDW 5064)
- USB-A port Supports call handling with EPOS devices and smartphone charging
- Temperature range:
- Operational: +5 °C to + 45 °C / +41 °F to +113 °F
- Storage: -20 °C to + 70 °C / -4 °F to +158 °F
- Battery (lithium polymer): Exchangeable by service
- Range:
- Line of sight: 180 m / 590 ft
- Typical office building: 55 m / 180 ft
- Automatic power adjustment: Yes (distance between headset and base)
- Talk time:
- Up to 14 hours (Narrowband)
- Up to 12 hours (Density optimized wideband)
- Up to 11,5 hours (Wideband)
- Up to 9 hours (Super wideband)
- Listen time (music mode): Up to 9 hours (Fullband)
- Standby time: Up to 44 hours
- Auto sleep mode when out of range: Yes, after 12 hours
- Charge time
- 0 - 50 %: 30 minutes
- 0 - 100 %: 1 hour and 30 min
- EPOS ActiveGard® technology Protect users against acoustic injury caused by sudden sound burst on the line
- EU/AUS Limiter depending on regional variant Activation by dip switch, EPOS Connect and EPOS manager software
- Noise At Work: The EU‘s „Noise At Work Directive“ (2003/10/EC) sets limits for two types of noise in the workplace: Acoustic burst and Sustained Noise.
- Pairing intrusion protection Protected pairing
- Certification DECT Security certified
What’s in the box SDW 5066/5065:
- Base station SDW 5 BS,
- headset,
- BTD 800 USB dongle (Included in SDW 5066),
- USB cable,
- power supply,
- audio phone cable,
- printed quick guides (headset and base station),
- printed safety guide,
- printed compliance sheet
What’s in the box SDW 5064/5063:
- Base station SDW 3 BS,
- headset,
- BTD 800 USB dongle (Included in SDW 5064),
- USB cable,
- power supply,
- audio phone cable,
- printed quick guides (headset and base station),
- printed safety guide,
- printed compliance sheet
