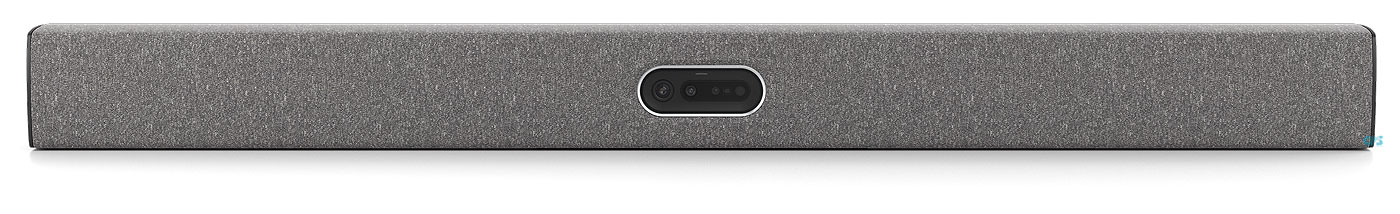

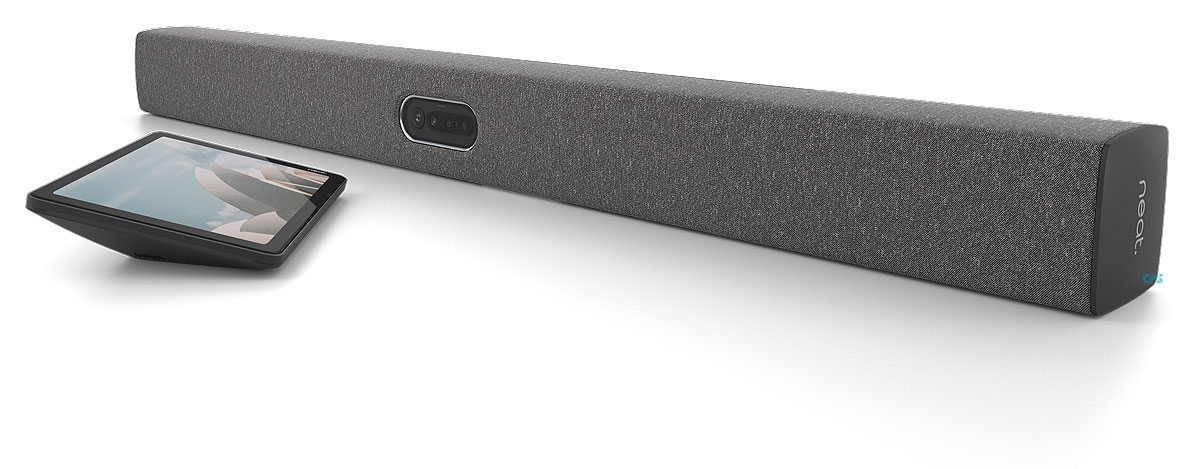

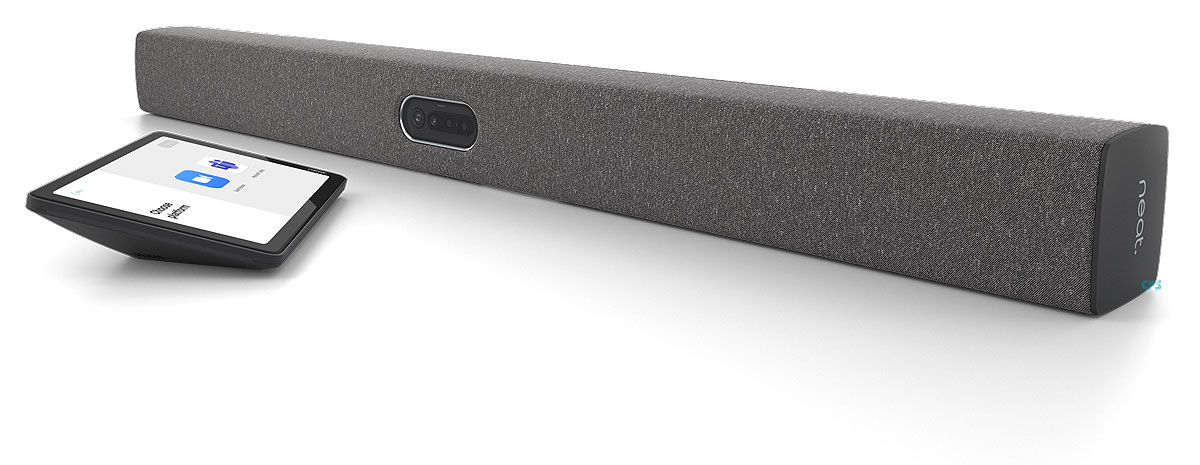

Neat Bar Pro for Zoom & MS Teams NEATBARPRO-SE + NEATPAD-SE

Neat Bar Pro for Zoom NEATBARPRO-SE + NEATPAD-SE

NEW Item
Manufacturer Part Number: NEATBARPRO-SE+NEATPAD-SE

Neat Bar Pro packs a stack of tech into a simple and elegant slimline device. Capable of driving three large screens, it enables you to see people and content together more clearly. Simultaneously, its uncompromising audio and video quality give you an incredibly immersive, natural meeting experience throughout any space.

Speaker system.

Neat Bar Pro is bursting with audio power, thanks to a subwoofer with two opposing drivers for vibration cancellation and three full-range speakers, which produce direct stereo sound throughout any room.

Microphone array.

An advanced pyramid-shaped 16x microphone array ensures clear vocal pick-up, while Neat Audio Processing means no garbled 'double talk' issues or problems with background noise.

Extreme cameras.

Neat Bar Pro is especially ideal for bigger meeting spaces as its camera configuration incorporates a telephoto and wide-angle lens and an image depth sensor which combined deliver 16x zoom.

With lightning-fast image processing, Neat Bar Pro can detect, enlarge, and follow all in-room participants in full close-up, no matter where they’re positioned, resulting in more lifelike engagement.

Simple set-up.

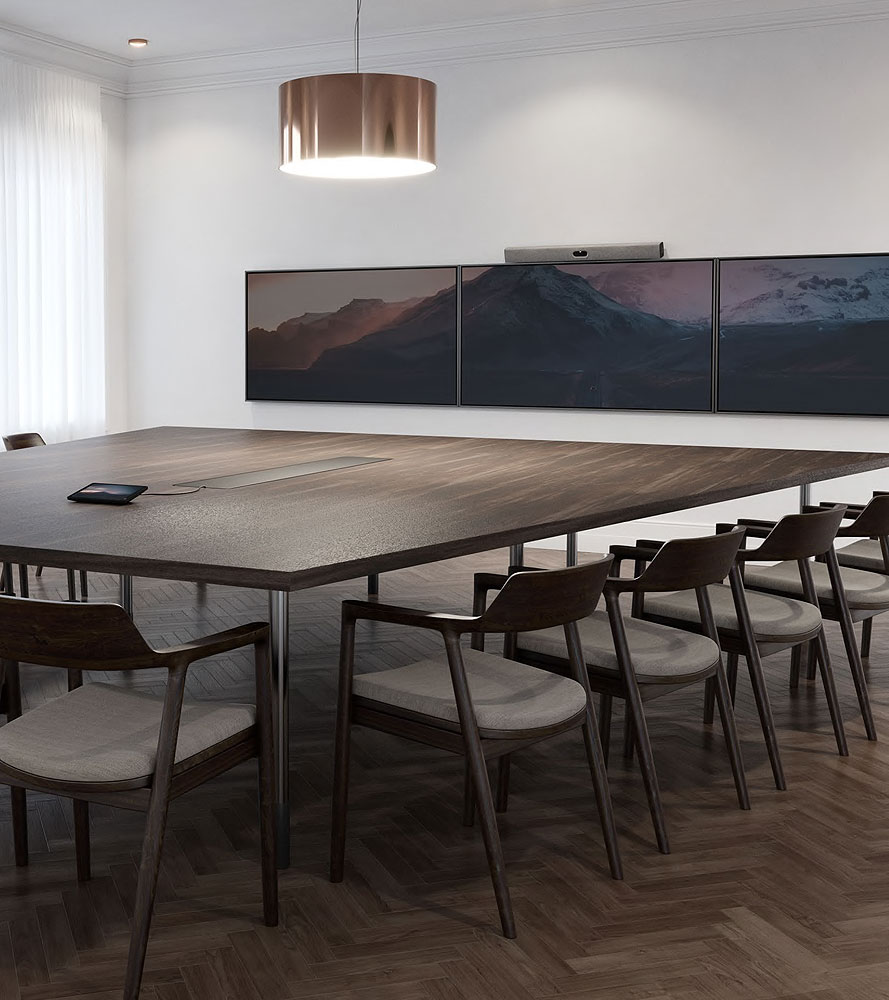

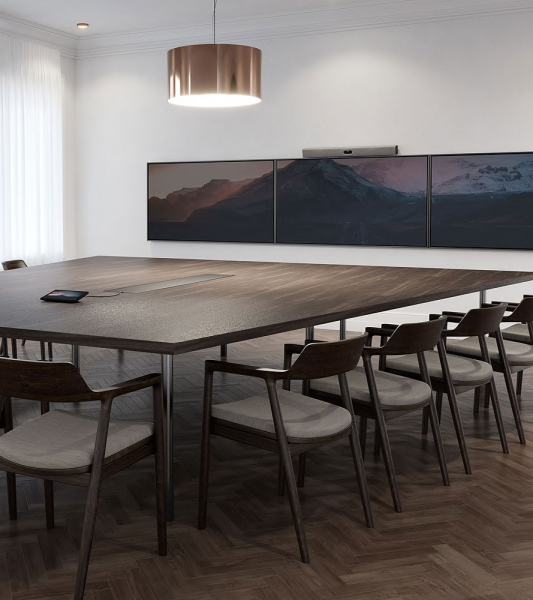

Neat Bar Pro can be placed on a table, or wall mounted either above or below one, two or three screens^(*). Everything you need is in the box, including mounts and cables. Simply follow the instructions on the Neat Pad controller, and let Neat Bar Pro adapt to your placement and realign your view.

* Three screens is not yet supported by Microsoft Teams.

Scope for more.

Neat Bar Pro will be audio extensible in a future software update so that you can connect it to existing installations. If needed, you can also add more Neat Pad devices and use them as multiple controllers in your meeting space or schedulers for various entrances^(*).

* Multiple consoles and panels are not yet supported by Microsoft Teams

• 70° to 113° Horizontal field of view
• 50 MP Capture resolution
• 16x Digital zoom
• 16 mic array
• Opposing drivers
• 3 Full-range speakers
• Triple screen support
• WiFi
• Sensors, Depth, wakeup, light, orientation temperature, humidity and air quality

Neat Bar Pro packs a stack of tech into a simple and elegant device that is perfect for bringing superior-quality audio and video to any space, including your large meeting rooms.

* Feature not supported by Microsoft Teams
** Supported in future software update
*** Needs to be purchased from Zoom or Microsoft

General

• Wakeup sensor (radar)
• Depth sensor (time-of-flight VGA 60° FOV)
• Orientation sensor (accelerometer)
• Ambient light sensor
• Camera LED
• System LED
• Tripod mount compatible (1/4-20 UNC threads)
• Table stand, wall mount and screen mount
• Security lock slot (Kensington compatible)
• Secure boot
• Triple screen support ^(*)
• Sensors for temperature, humidity and air quality ^(*)

• Speakerbox for maximal tonal range with minimal distortion
• 3 full-range speakers ready for directional and stereo sound
• Woofers with two opposing drivers for vibration cancellation
• 4 tracking mics
• 16 microphones in a beamforming array
• Hardware accelerated audio processing
• Ultrasonic support for wireless content sharing
• Echo cancellation
• Noise suppression
• Automatic gain control
• Dereverberation

Video

• Pro 100 MP camera system with wide and tele cameras
• Wide camera: 50 MP, ƒ/2.8 aperture, 113° horizontal field of view
• Tele camera: 50 MP, ƒ/1.8 aperture, 70° horizontal field of view
• Hybrid zoom up to 16x
• Automatic people framing
• Hardware accelerated video encode and decode
• Distortion correction
• Noise reduction
• Chromatic aberration correction
• Automatic white balance and color correction
• People video resolution: Up to 1080p / 30
• Content video resolution: 720p / 60, 1080p / 30

Electrical and environmental requirements

• 100-240V ~ 50/60Hz 1.2A
• Ambient operating temperature: 32° to 95° F (0° to 35° C)
• Storage temperature: -4° to 140° F (-20° to 60° C)
• Relative humidity: 10% to 90%
• Built-in power supply

Power consumption

• Idle: 6W
• In call: 8-15W

Networking & ports

• WiFi
• AC power (internal power supply)
• Ethernet
• USB-C for input when connected to a touch screen ^(*)
• 3x HDMI out for external screens
• HDMI-in for screen sharing
• Auxiliary port for 3rd party audio extensions (RJ45) ^(**)

Size & weight

• Width: 35.04 inches (890 mm)
• Height: 3.15 inches (80 mm)
• Depth: 3.15 inches (80 mm)
• Weight: 6.83 pounds (3.1 kg)

In the box

Neat Bar Pro

• HDMI cable (6.5 feet / 2 meters)
• Ethernet cable (9.8 feet / 3 meters)
• Power cable (9.8 feet / 3 meters)
• Mount adapter, wall mount, screen mount and table stand
• 4 × M8 screw (0.94 in / 24 mm) for VESA mount
• 4 × M6 screw (0.94 in / 24 mm) for VESA mount
• 2 × spacer (to secure parallel TV mount)
• 1 × 5 mm hex key for the screen mount
• 1 × 2 mm hex key for the mount adapter

2 additional screw bags for dual or triple screen setup

• 2 ×
  • 4 × M8 screw (0.94 in / 24 mm) for VESA mount
  • 4 × M6 screw (0.94 in / 24 mm) for VESA mount
  • 4 × spacer (to secure alignment of all screens)

Neat Pad

• 2 × Ethernet cable (9.8 feet / 3 meters + 16.4 feet / 5 meters)
• PoE power adapter
• Mount adapter, side mount and wall mount
• 4 × M4 screw (0.39 inches / 10 mm) for the wall mount
• 3 × M4 screw (0.26 inches / 6.7 mm) for the side mount
• 2 mm hex wrench
• 2.5 mm hex wrench

What you need

• Internet connection
• Display (16:9 aspect ratio) with 1080p resolution or better
• Licence for Zoom Rooms or Microsoft Teams ^(***)

Box weights and dimensions

Neat Bar Pro with Neat Pad

• 26 pounds / 11.8 kg
