Neat Bar for Zoom & MS Teams NEATBAR-SE + NEATPAD-SE

Neat Bar for Zoom & MS Teams NEATBAR-SE + NEATPAD-SE

NEW Item
Manufacturer Part Number: NEATBAR-SE+NEATPAD-SE

Packs a punch.

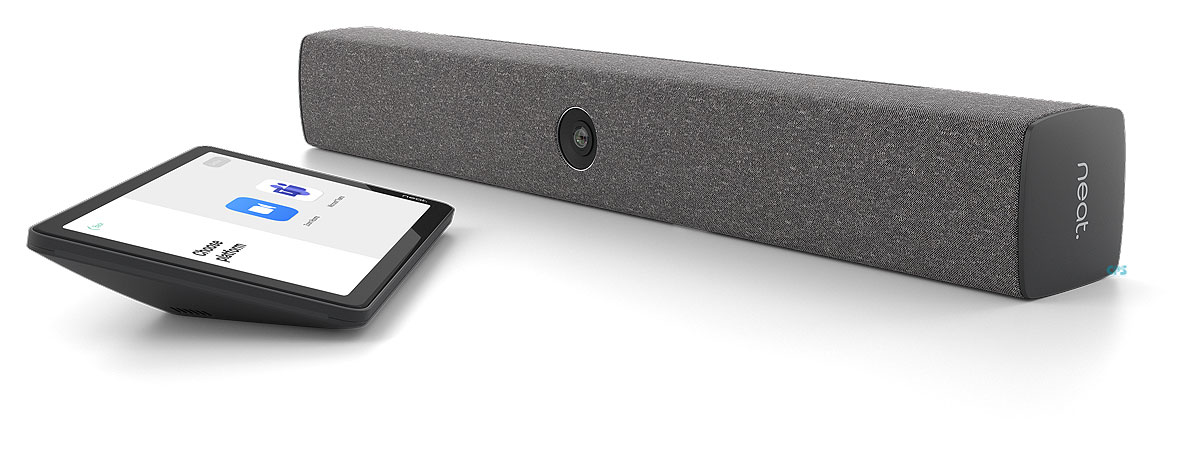

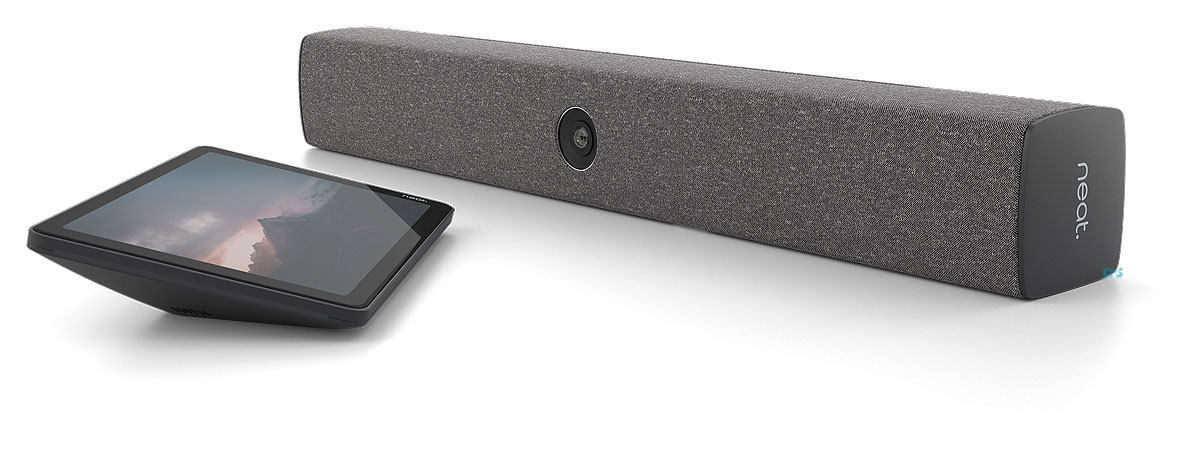

Neat Bar is a simple and elegant, compactly designed yet highly capable meeting room device for Zoom or Microsoft Teams. It's perfect for bringing superior-quality audio and video to your meeting, huddle or focus rooms for up to ten people. You can mount Neat Bar above or below one or two monitors, and it comes with Neat Pad, our dynamic touch screen, which you can use to control your meetings or display room availability outside the room.

Simple set-up.

Everything you need to connect Neat Bar to your TV or monitor is in the box, so it's easy for anyone to install and set up. Just plug in the cables, and Neat Bar will auto-pair with Neat Pad. What's more, because Neat Bar and Neat Pad have auto flip, they instantly realign your view, regardless of how you mount or position them.

Just works.

Neat Bar self-activates the moment you walk in the room, immediately turning on your meeting room monitor and checking you into the room. Then with just one tap, you can wirelessly share your screen or start your meeting. It also instinctively frames you perfectly and auto releases the room when you leave^(*).

* Auto check-in and release is not yet supported by Microsoft Teams

Snap it on.

Our snap-on mount is custom made for Neat Bar to fit snugly on top of smaller screens or monitors. The mount attaches to your screen or monitor's back with adhesive tape and is suitable for any display.

• 120° FOV Wide angle camera
• 12 MP Capture resolution
• 4x Digital zoom (8x optional)
• 5 mic array
• Opposing drivers
• Wide angle tweater
• Double screen support
• WiFi
• Sensors, Light, orientation, air quality

Neat Bar is our compact and highly capable meeting device designed for Zoom or Microsoft Teams meeting spaces.

* Feature not yet supported by Microsoft Teams
** Needs to be purchased from Zoom or Microsoft

General

• Camera LED
• System LED
• Accelerometer
• Ambient light sensor
• Table stand, wall mount and screen mount
• Dual screen support
• Security lock slot (Kensington compatible)
• Secure boot
• BYOD mode (USB passthrough)
• Native support for Zoom Rooms
• Native support for Microsoft Teams Rooms on Android
• Sensors for temperature, humidity, CO₂ and VOC ^(*)

Audio

• Speakerbox for maximal tonal range with minimal distortion
• Opposing drivers for vibration cancellation
• Dedicated wide-angle ultrasonic tweeter
• 3 sensor mics
• 5 microphones angled in an end-fire array
• Hardware accelerated audio processing
• Beamforming
• Echo cancellation
• Noise suppression
• Automatic gain control
• Dereverberation

Video

• 4x digital zoom (optional 8x digital zoom)
• 4056×3040 (12 MP) capture resolution
• 120 degrees horizontal field of view
• Automatic people framing
• Hardware accelerated video encode and decode
• Distortion correction
• Noise reduction
• Chromatic aberration correction
• Automatic white balance and color correction

Electrical and environmental requirements

• 100-240V ~ 50/60Hz 0.5A
• Ambient operating temperature: 32° to 95° F (0° to 35° C)
• Storage temperature: -4° to 140° F (-20° to 60° C)
• Relative humidity: 10% to 90%
• Built-in power supply

Power consumption

• Idle: 3W
• In call: 7-10W

Networking & ports

• WiFi
• Bluetooth for proximity join in Microsoft Teams
• AC Power (internal power supply)
• Ethernet
• 2 × HDMI-out
• HDMI-in for screen sharing
• USB-C for BYOD mode (USB passthrough)
• or input when connected to a touch screen ^(*)

Size & weight

• Width: 21.9 inches (556 mm)
• Height: 3 inches (76 mm)
• Depth: 3 inches (76 mm)
• Weight: 3.75 pounds (1.7 kg)

In the box

Neat Bar

• HDMI cable (6.5 feet / 2 meters)
• Ethernet cable (9.8 feet / 3 meters)
• Power cord (9.8 feet / 3 meters)
• Mount adapter, wall mount, screen mount, table stand, and snap-on mount
• 4 × M6 screw (0.94 inches / 24mm) for VESA mount
• 4 × M8 screw (0.94 inches / 24mm) for VESA mount for two screen setup
• 2 × spacer to secure parallel TV mount
• 2 mm hex wrench
• 5 mm hex wrench

Neat Pad

• 2 × Ethernet cable (9.8 feet / 3 meters + 16.4 feet / 5 meters)
• PoE power adapter
• Mount adapter, side mount and wall mount
• 4 × M4 screw (0.39 inches / 10 mm) for the wall mount
• 3 × M4 screw (0.26 inches / 6.7 mm) for the side mount
• 2 mm hex wrench
• 2.5 mm hex wrench

What you need

• Internet connection
• Display (16:9 aspect ratio) with 1080p resolution or better
• Licence for Zoom Rooms or Microsoft Teams ^(**)

Box weights

Neat Bar with Neat Pad

• 18 pounds / 8.2 kg
