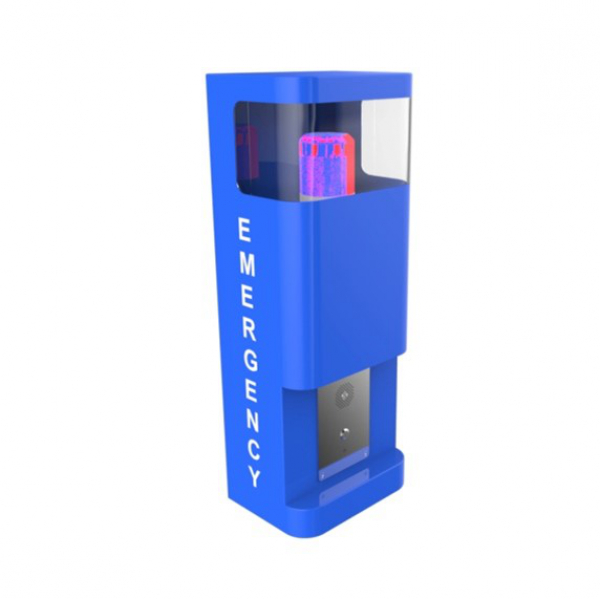

J&R JR320-SC-4G Emergency Telephone, 1 Button, LED lamp, Blue
NEW Item
Manufacturer Part Number: JR320-SC-4G
The self-sufficient and independently operated emergency telephone, designed as a weatherproof emergency call station
Robust and Vandal-Resistant 4G Telephone
- Standard 4G phone
- External antenna with long cable
- Surface and pillar mounting, simple installation, with LED lamp
- Robust housing, made of cold-rolled steel
- Vandal-resistant single button, programmable for speed dial
- Hands-free operation
- Weatherproof protection: IP55 (IP65 available on request)
- Power supply: 12V DC
- Tamper-proof screws: 4 included in the package
- Compliance: CE, FCC, IK10, RoHS, ISO9001
This wireless hands-free telephone is specifically designed for environments prone to vandalism. It is ideal for parking lots, elevators, hotels, doorways, railway/metro platforms, hospitals, police stations, ATMs, stadiums, and outdoor building areas.
The cold-rolled steel housing is manufactured to high standards, providing enhanced resistance to vandalism, ensuring that the communication functionality remains operational at all times. The 4G connection enables wireless communication, creating a completely standalone telephone installation. By eliminating the need for cabling, it significantly reduces installation costs. The quad-band 4G module ensures wireless coverage in most regions worldwide.
Installation is extremely easy: The cable entry is positioned at the back of the phone to prevent tampering or artificial damage.
4G Phone – Technical Specifications
- Power supply: AC adapter: 110–240V AC to DC 12V, 1.5A
- Module (depends on country and operator): EC25-E, EC25-J, EC25-A, EC25-AFX, EC25-MX, EC25-AU
- Remote programming: Auto-dial numbers and time-out settings can be programmed
- Configuration: Programmable via SMS
- Remote monitoring: Health checks and fault reporting via SMS
4G Technical Specifications
- SIM card: Micro SIM (15 x 12 mm)
- Working frequency range: Depends on the module
- Adapter input: 9V–12V DC
- Power consumption: Idle: 75 mA; Off-hook: 160 mA
General Technical Specifications
- Casing material: Cold-rolled steel
- Button material: Stainless steel button
- Microphone: Electret microphone
- Built-in speaker: 8 Ohm, 0.5 W
- Temperature ranges:
- Operating: -30 °C to +65 °C
- Storing: -40 °C to +75 °C
- Weather resistance: IP55 (IP65 available on request)
- Ringing tone: Shrill warble tone, 90 dBA @ 1 meter typical
- M.T.B.F.: Calculated mean time between failures: over 50,000 hours
Package Details
- Unit size: 800 x 330 x 225 mm
- Net weight: 12 kg
- Gross weight: 15 kg
Scope of delivery: Emergency call pillar, weatherproof emergency telephone
