J&R JR211-FK-4G Anti-vandal Telephone, Keypad, Stainless Steel

J&R JR211-FK-4G Anti-vandal Telephone, Keypad, Stainless Steel

NEW Item
Manufacturer Part Number: JR211-FK-4G

J&R JR211-FK-4G Vandal Resistant 4G Telephone, 304 Stainless Steel Desk Casing, 12-Key Full Metal Keypad, Armored Cord Handset (83 cm), Hearing Aid Compatible (HAC), Remote SMS Configuration, IP65, IK10, Magnetic Reed Hook-Switch, External Antenna

J&R Professional 4G Vandal-Resistant Telephone – Stainless Steel Desk Call Station (304), 12-Key Full Metal Keypad, Armored Cord Handset (83 cm), Hearing Aid Compatible (HAC), Remote SMS Configuration, IP65, IK10, Magnetic Reed Hook-Switch, External Antenna (Category: Vandal Resistant Telephones / Model: JR211-FK-4G)

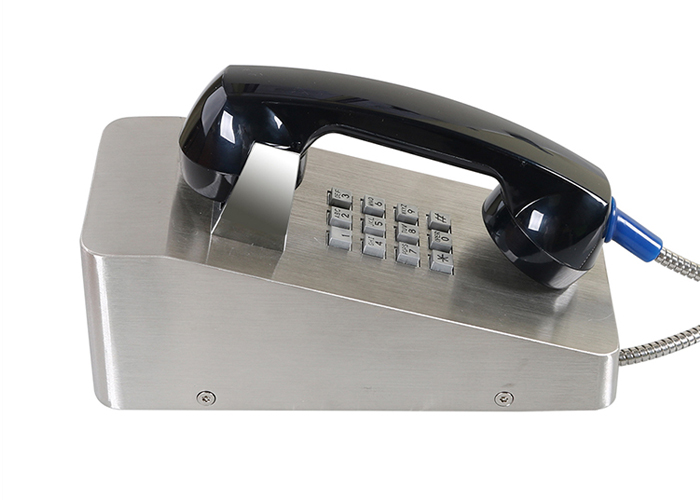

The J&R JR211-FK-4G is a heavy-duty, vandal-resistant desk telephone housed in a brushed stainless steel enclosure. Engineered for ultra-reliable voice communication over 4G cellular networks, it provides a robust communications solution for high-risk and demanding public or industrial environments. Typical application scenarios include parking lots, prisons, airports, railway platforms, bus stations, ATMs, hospitals, police stations, shopping malls, stadiums, and commercial centers. Designed for convenient desk mounting, the housing is equipped with a dedicated grounding device, complete electrical isolation from internal circuits, and electromagnetic shielding to prevent acoustic feedback whistling.

This telephone features a 12-key full metal keypad and a high-impact ABS handset equipped with a noise-canceling microphone and an 83 cm armored cord that resists vandalism and severe wear. The handset is Hearing Aid Compatible (HAC), and off-hook detection is managed by a long-lasting magnetic reed hook-switch. Operating on 4G cellular networks, the device allows remote configuration and management via SMS commands. The JR211-FK-4G carries an IP65 ingress protection rating and an IK10 impact resistance rating. It features automatic diagnostic SMS reporting (low battery, weak signal, volume levels) and a configurable maximum call duration limit (time-out timer).

Key Features and Benefits

• 4G Cellular Connectivity: Wireless voice communication over 4G networks by inserting a standard SIM card.
• Remote SMS Configuration: Easily configure auto-dial numbers, monitor status, and change settings remotely via SMS commands.
• Brushed Stainless Steel Housing: Vandal-proof and corrosion-resistant brushed stainless steel desk enclosure.
• 12-Key Full Metal Keypad: Extremely durable, vandal-resistant metal keypad designed for heavy daily use.
• Armored Cord Handset with HAC: Heavy-duty ABS handset with noise-canceling microphone, 83 cm armored steel cord, and Hearing Aid Compatibility.
• Magnetic Reed Hook-Switch: Non-contact magnetic switch minimizes mechanical wear and maximizes operational reliability.
• Desk Mounting Installation: Convenient desk placement with straightforward installation for control rooms and service desks.
• Automated SMS Diagnostics: Sends automatic SMS alerts for low battery voltage, weak signal reception, or audio volume status.
• Programmable Call Timeout: Configurable limit (e.g., 6–8 minutes after going off-hook) to prevent line blockage.
• IP65 / IK10 Rated Protection: Protected against dust and water jets (IP65) with IK10 impact resistance; certified to CE, FCC, RoHS, and ISO9001.

Technical Specifications

• Manufacturer: J&R Technology
• Product Name: JR211-FK-4G Vandal Resistant Telephone
• Part Number: JR211-FK-4G
• Phone Type: Vandal-Resistant 4G Cellular Desk Telephone
• Power Supply: 12V DC (Adapter input: 7.4 V–12V DC)
• Power Consumption: Idle: 0.3 W / Operating: 1.5 W
• Communication Mode: 4G Wireless Cellular
• 4G Module: Quectel EC25 Series (EC25-E, EC25-EUX, EC25-A, EC25-AUX, etc., supporting global LTE-FDD, LTE-TDD, WCDMA, and GSM bands)
• Antenna: Quad-band SMA male external antenna with 2 m cable
• GNSS (Optional): GPS / GLONASS / BeiDou / Galileo / QZSS
• Configuration Method: Remote configuration via SMS messaging
• Enclosure Material: Brushed Stainless Steel / Cold-Rolled Steel
• Keypad: 12-key full metal keypad
• Handset & Cord: ABS handset with noise-canceling microphone, 83 cm armored steel cord, Hearing Aid Compatible (HAC)
• Hook-Switch: Magnetic reed hook-switch
• Ringing Volume: 90 dB(A) @ 1 meter
• Call Timeout: Enforces fixed maximum call time limit (6–8 minutes configurable from off-hook)
• Mounting: Desk mounting
• Ingress Protection: IP65
• Impact Rating: IK10
• M.T.B.F.: Exceeds 50,000 hours under normal operating conditions
• Operating Temperature: -40 °C to +65 °C (Storage: -40 °C to +75 °C)
• Unit Dimensions: 250 mm (Height) x 120 mm (Width) x 160 mm (Depth)
• Net Weight: 3.0 kg
• Certifications & Standards: CE, FCC, RoHS, IK10, IP65, ISO9001

Optional Accessories

• JR-LP-01 / JR-LP-02: LED Light / LED Beacon Light
• JR-HSA Series: External Broadcast Horn Speaker (10/20/25/30/35W)
• JR-TH-01: Acoustic Hood

Package Contents

• 1x J&R JR211-FK-4G Vandal Resistant 4G Telephone (Stainless Steel)
• 1x External 4G Antenna with 2 m Cable
• 1x Power Supply Adapter
• 1x User Manual & Documentation

Packaging Information

• Shipping Dimensions: 340 x 235 x 165 mm
• Gross Weight: 4.0 kg
• Packaging Materials: Foam padding, carton
