J&R JREX106-CB-AL EX-Telephone, CB without keypad, Yellow
NEW Item
Manufacturer Part Number: JREX106-CB-AL

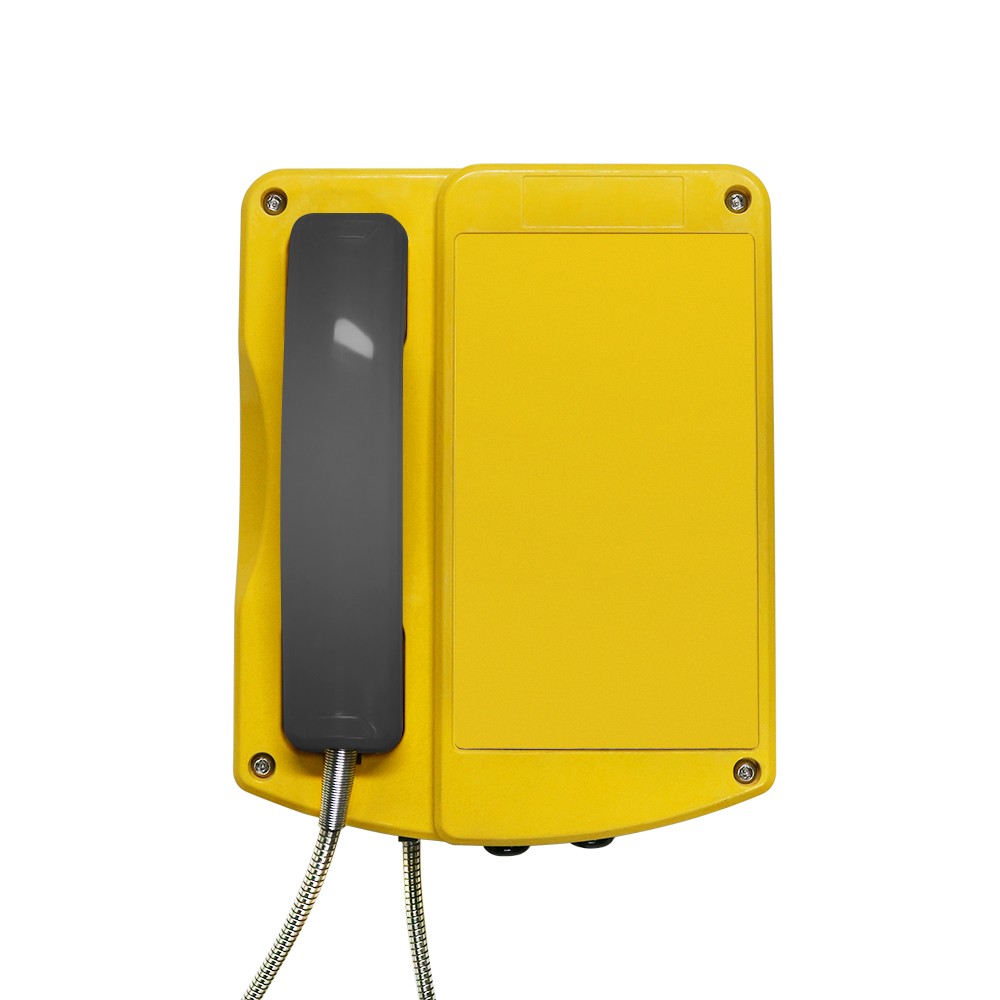

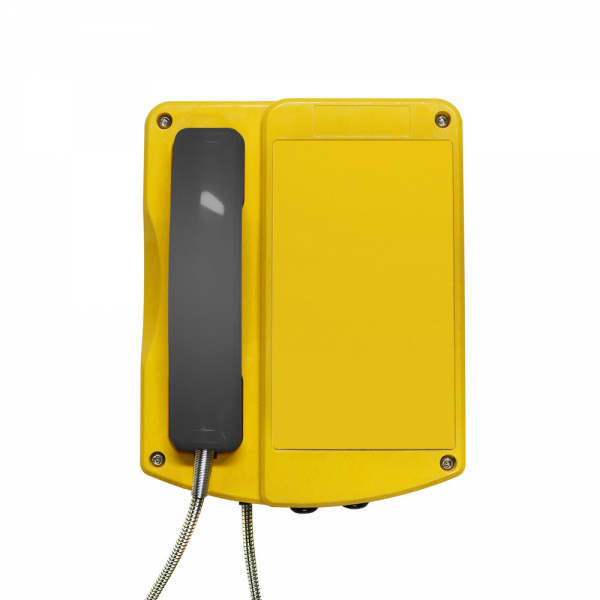

J&R Technology Professional Industrial Telephony – Explosion-Proof EX Analog Hotline Industrial Telephone JREX106-CB-AL Keypadless in Yellow (Category: Explosion-Proof Analog Industrial Telephone / Part Number: JREX106-CB-AL)
The J&R JREX106-CB-AL (CB = Hotline / Direct Dial) is a specialized explosion-proof analog industrial telephone designed for emergency hotlines and point-to-point communication in hazardous environments (ATEX / IECEx Zone 1, 2, and Zone 22). Purposefully engineered without a keypad or LCD display, picking up the handset automatically triggers an immediate call to a predetermined number set on the PBX/exchange. This operational design eliminates dialing errors and ensures rapid communication during critical events. It is ideal for installation in oil refineries, chemical processing plants, offshore platforms, gas installations, and mining operations. The housing is constructed from impact-resistant glass-fiber reinforced polyester (SMC/GRP), offering maximum durability against chemicals, acids, alkalis, and lubricants.
The JREX106-CB-AL is telephone line-powered directly from the standard analog line (PSTN/PABX), requiring no external power supply. Crisp audio performance is ensured by a noise-canceling electret microphone, while a contactless magnetic reed hook switch minimizes mechanical wear to guarantee long operational life in challenging environments.
Key Features and Benefits
- ATEX & IECEx Certified: Certified for safe operation in hazardous gas and dust environments (Zones 1, 2, and 22).
- Hotline / Auto-Dial Operation (Keypadless): Automatically connects to a pre-assigned control center or emergency number upon lifting the handset.
- Rugged GRP Enclosure: Moulded from high-impact glass fiber-reinforced polyester (SMC/GRP) – immune to corrosion, acids, alkalis, and harsh industrial fluids.
- Telephone Line Powered: Draws power directly from the 2-wire analog phone line; no external power supply needed.
- Contactless Reed Hook Switch: Magnetic hook switch eliminates mechanical wear for increased product lifespan.
- Standard Analog PBX Compatibility: Integrates seamlessly with standard analog extensions (PSTN/PABX) and VoIP FXS gateways.
- Clear Audio Transmission: Features a noise-canceling electret microphone and a hearing-aid compatible (HAC) earpiece.
Technical Specifications
- Manufacturer: J&R Technology Ltd.
- Model Name: JREX106-CB-Analog
- Manufacturer Part Number: JREX106-CB-AL
- Configuration: Analog Hotline / CB (Keypadless, No Display)
- Ex Certification: Ex eb ib [ib Gb] mb IIC T6/T5 Gb, Ex ib [ib Db] tb IIIC T80°C/T95°C Db (Zone 1, 2, 22)
- Certificates: ATEX, IECEx, EAC, INMETRO
- Housing Material: High-impact glass fiber-reinforced polyester (SMC / GRP)
- Color Finish: Yellow
- Ingress Protection: IP66
- Operating Temperature: -40 °C to +60 °C
- Interface: 2-Wire Standard Analog Telephone Line (PSTN / PABX)
- Power Supply: Line Powered via analog telephone line
- Ringing Volume: approx. 95 dB(A) at 1 meter
- Wiring Access: 2x M20 Cable Gland Entry Points
- Dimensions (H x W x D): approx. 302 mm x 240 mm x 129 mm
- Weight: Net weight approx. 6.5 kg / Gross weight approx. 7.5 kg
Package Contents
- 1x J&R JREX106-CB-Analog Explosion-Proof Analog Hotline Telephone in Yellow
- 1x Handset with Armored Stainless Steel Cord
- 1x Mounting Hardware & Manual
