J&R JREX106-A01-SIP EX-Telephone, Keypad, Orange, protection door
NEW Item
Manufacturer Part Number: JREX106-A01-SIP

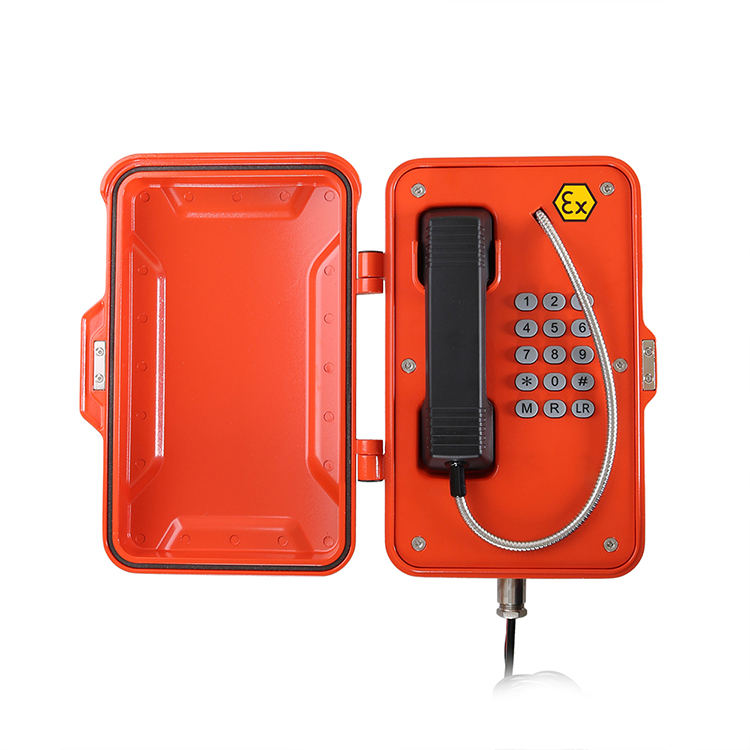

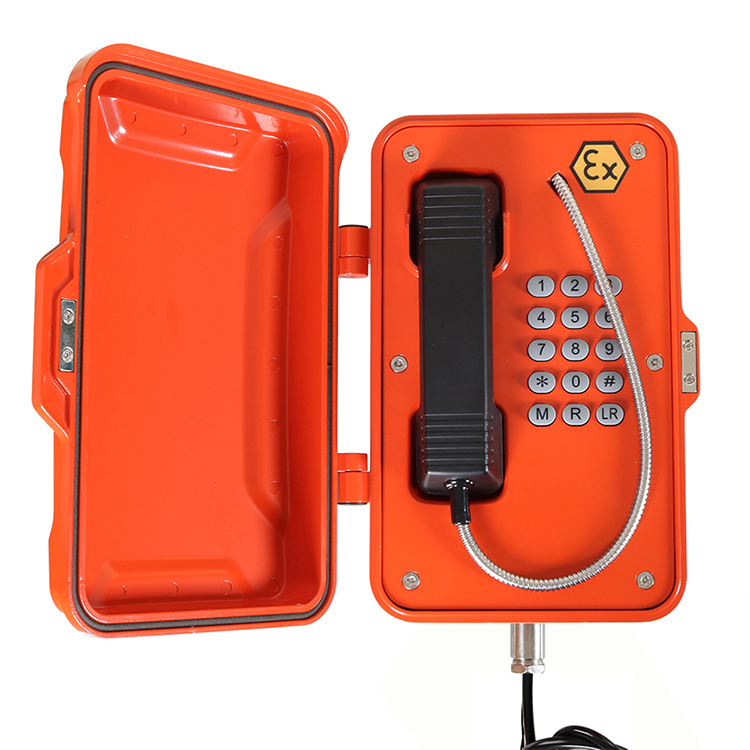

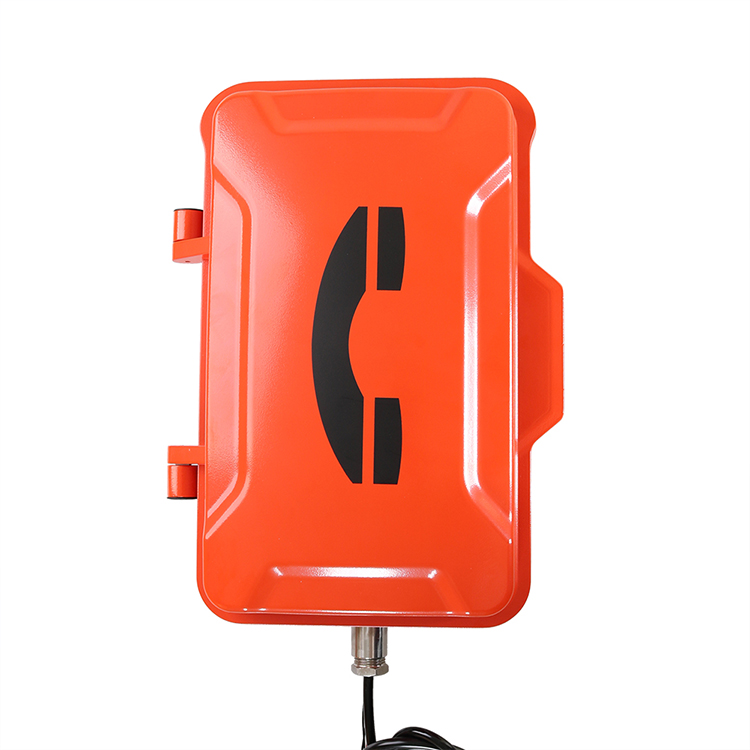

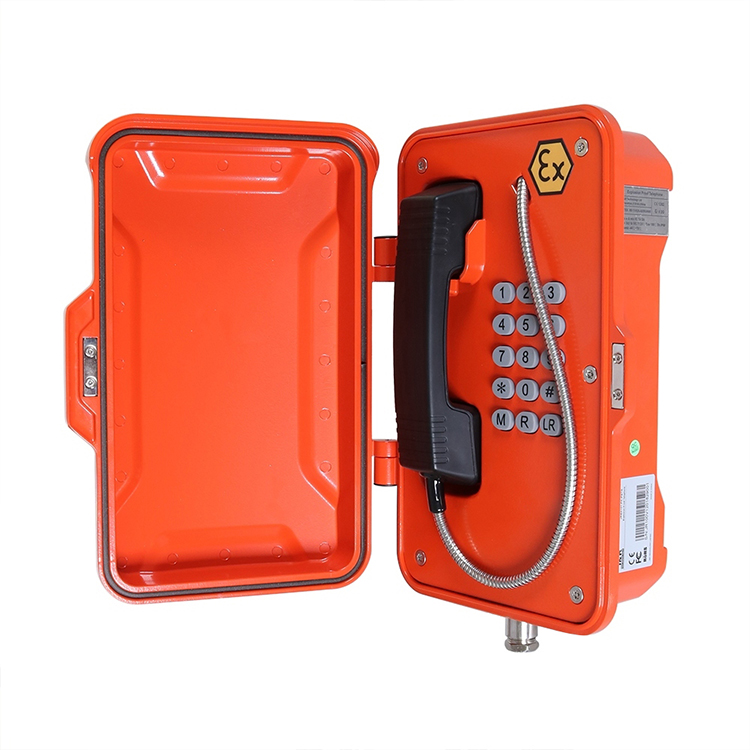

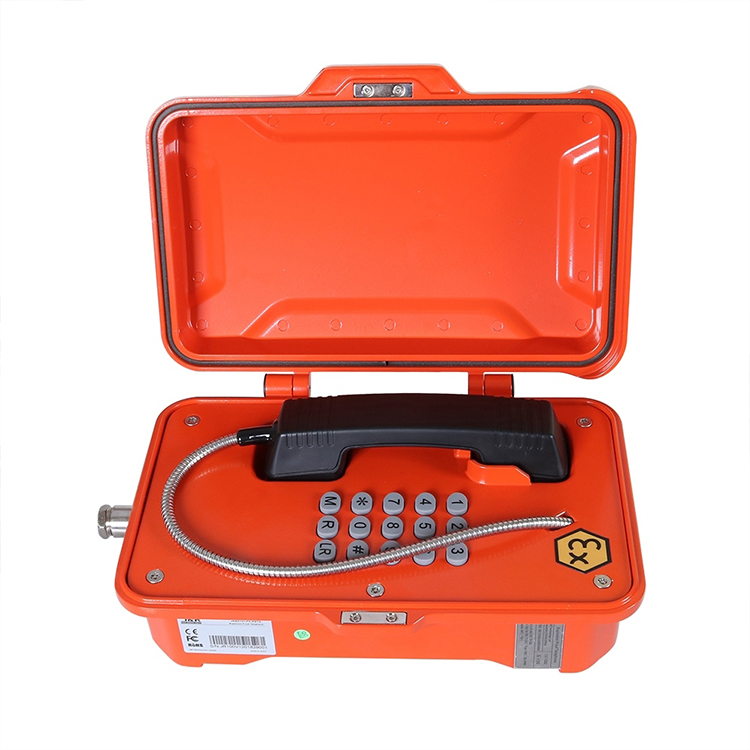

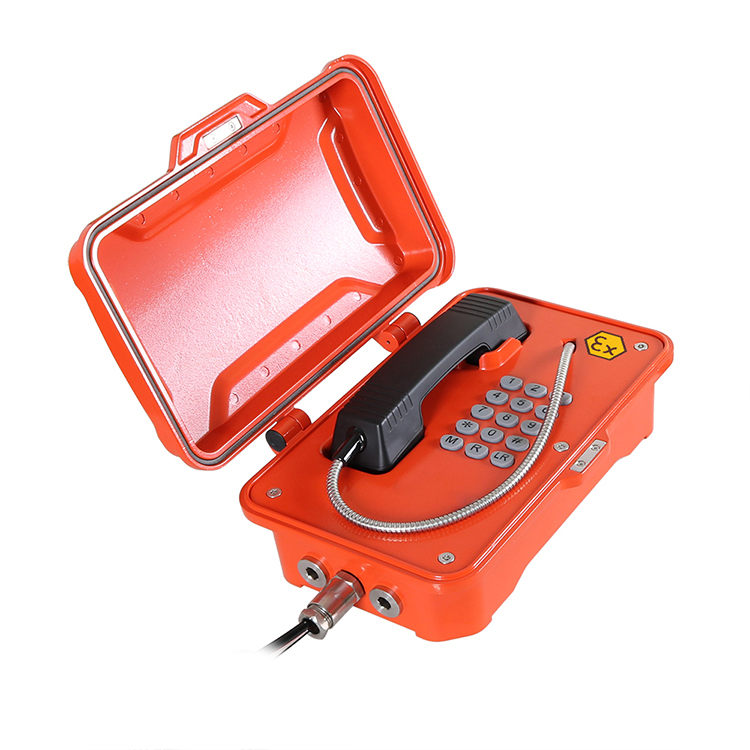

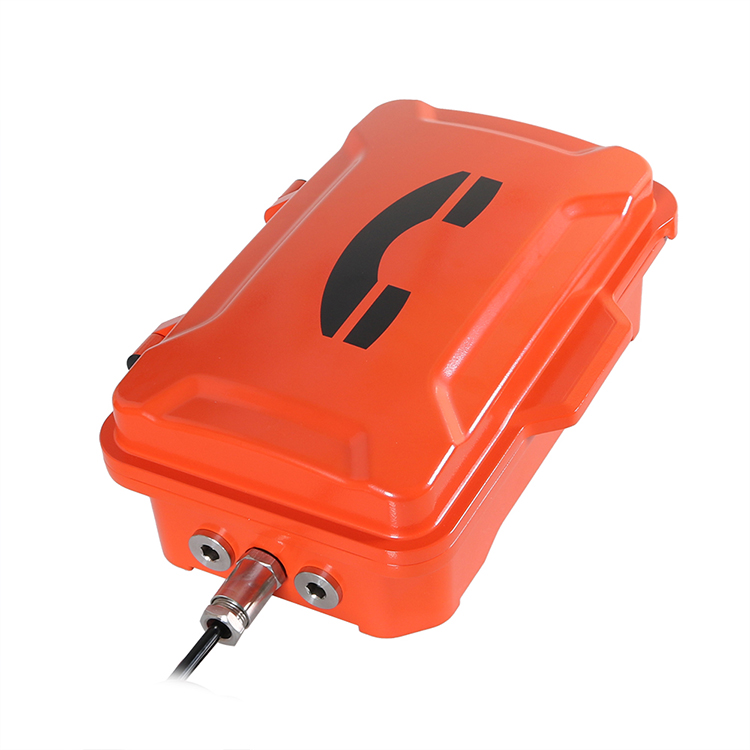

Explosion-Proof SIP Telephone with Protection Door
- Standard SIP phone with protective door.
- 42 cm vandal-resistant handset with armored cord for enhanced durability.
- Weatherproof rating: Standard IP66, optional IP67 available on request.
- Full rubber keypad with memory; 0–9 buttons programmable as speed dial keys.
- “LR” button for last number redial.
- “R” button for flash recall.
- “M” button for muting.
- Power options: PoE (IEEE802.3af/at) or 12V DC.
- RJ45 port for SIP connection.
- Wall-mounted design with included mounting bar for secure installation.
- Explosion-proof certifications:
- II 2G Ex e ib mb IIC T4 Gb
- II 2D Ex ib [ib] tb IIIC T135°C Db
- Zones: 1 and 2.
- Compliance: ATEX, CE, FCC, RoHS.
Description
This explosion-proof telephone is designed to provide reliable voice communication in harsh and hazardous environments where safety and efficiency are critical. It is ideal for outdoor use under extreme conditions, such as high humidity, exposure to seawater, dust, corrosive atmospheres, explosive gases, and particles, as well as mechanical wear and tear. This makes it an excellent choice for use as an emergency telephone.
The unique robust handset, crafted from molded Bulk Molding Compound, ensures exceptional durability. The armored cord provides additional resistance to vandalism or heavy industrial use. These telephones are designed for chemical plants, coal mines, power stations, armed forces, and heavy industries, offering explosion-proof and weatherproof telephony with high reliability.
SIP-VoIP TECHNICAL SPECIFICATIONS
Power:
12V DC or PoE (IEEE802.3af/at).
Port:
- WAN: 10/100Base-T RJ45 for LAN, Auto MDIX.
- LAN: 10/100Base-T RJ45 for PC, Auto MDIX.
Power Consumption:
- Idle: 1.5 W.
- Active: 1.8 W.
Voice Features
- SIP 2.0 (RFC3261 compliant).
- Codecs: G.711A/u, G.723.1 high/low, G.729, G.722.
- Echo cancellation: Supports G.168 and hands-free operation with 96 ms delay.
- Full duplex communication.
- SIP support: SIP domain, SIP authentication (none, basic, MD5), DNS name of server.
- DTMF options: SIP info, DTMF relay, RFC2833.
- Call control features: Flexible dial map, supports hot-line.
Network Features
- Bridge mode support for WAN/LAN.
- Static IP address support.
- DHCP: Obtain IP on WAN port.
- VLAN support.
- Web configuration.
- Data protocols: IPv4, TCP, UDP, ICMP, ARP, DNS, and DNS SRV for SIP signaling.
TECHNICAL SPECIFICATIONS
- Casing material: Die-cast aluminum, epoxy powder-coated.
- Color options: Orange, yellow, red, blue.
- Handset material: Includes noise-canceling microphone for effective communication in noisy environments. Armored stainless steel cord for rugged use (optional black curly cord available).
- Hook switch: Electronic/magnetic with no visible moving parts.
- Keypad: Rubber keypad.
- Weather resistance: IP66 (standard); IP67 available on request.
- Ringing tone:
- Analog: Shrill warble tone 80 dBA @ 1 metre.
- SIP: Shrill warble tone 90 dBA @ 1 metre.
- M.T.B.F.: Exceeds 50,000 hours.
PACKAGE DETAILS
- Unit size: 246 × 339 × 126 mm.
- Gross weight: 9 kg.
- Net weight: 8 kg.
