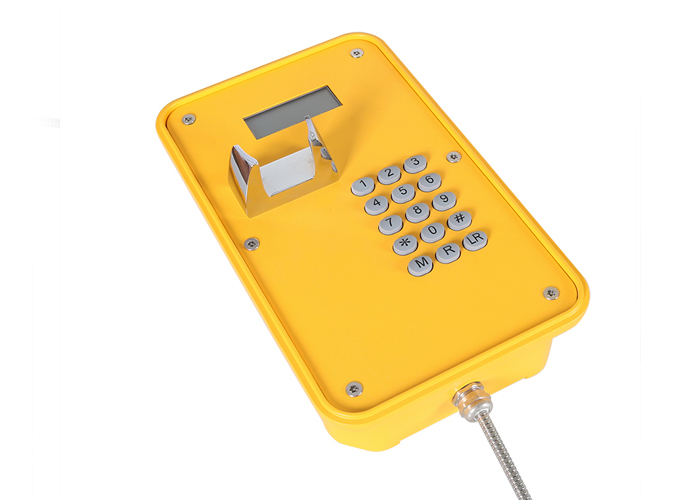

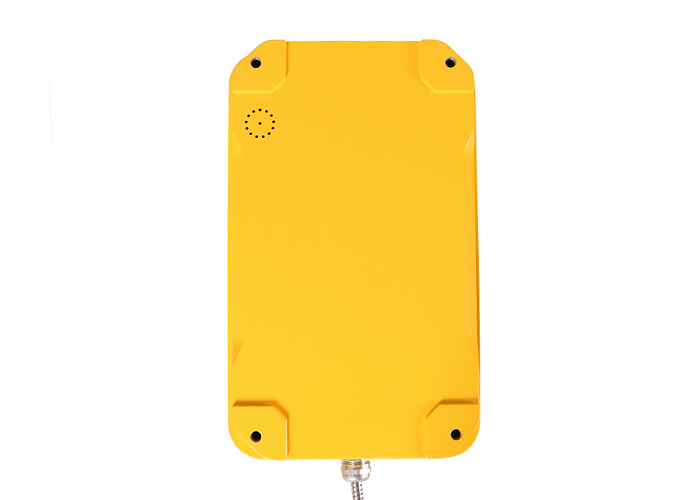

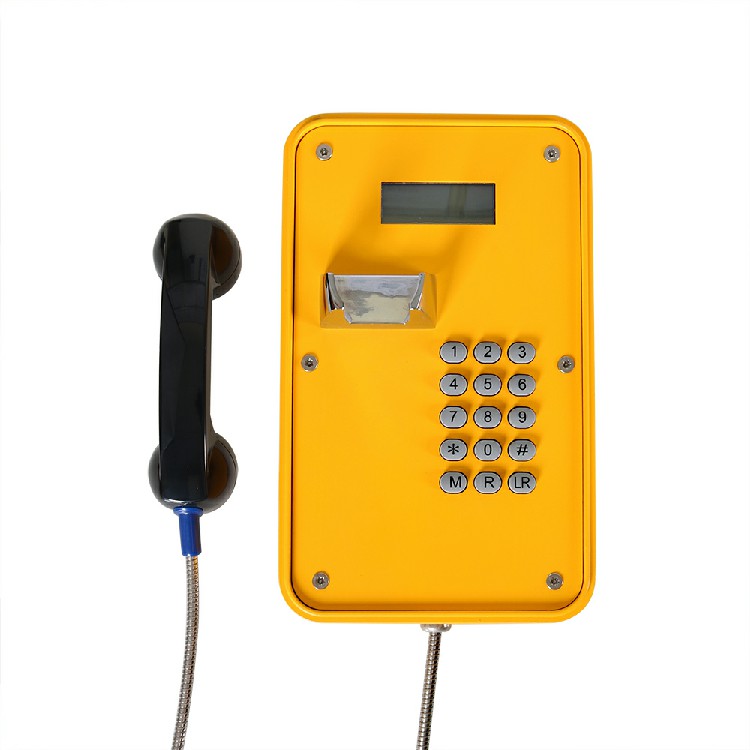

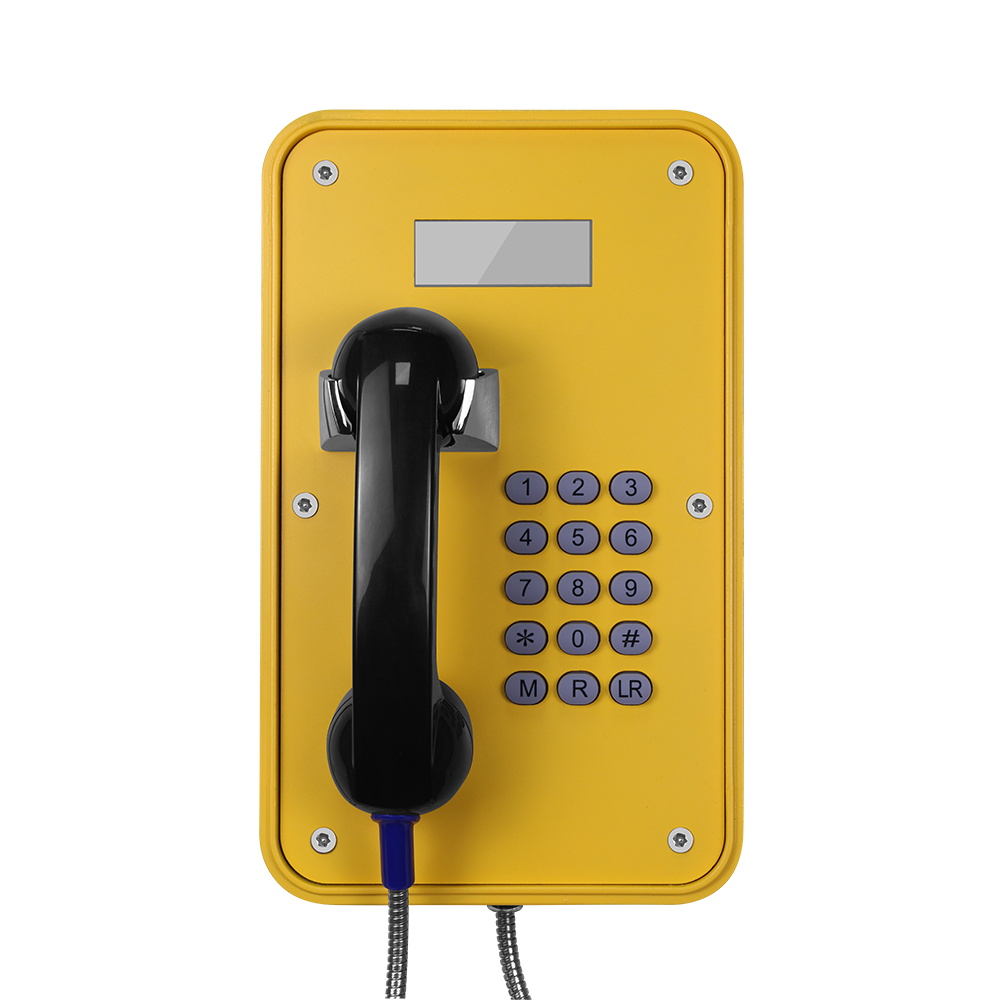

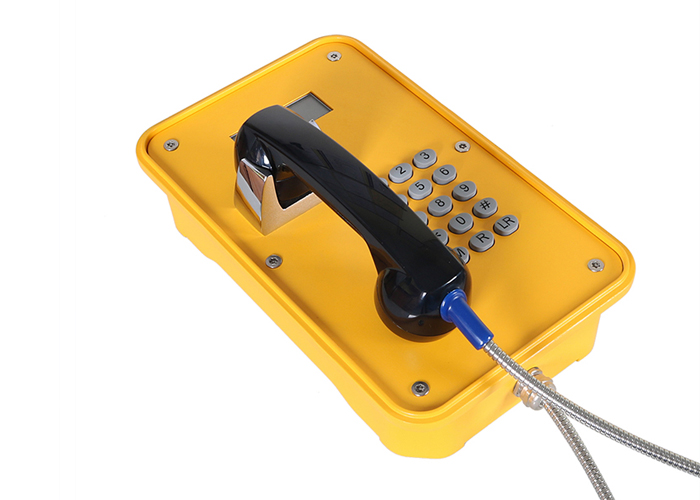

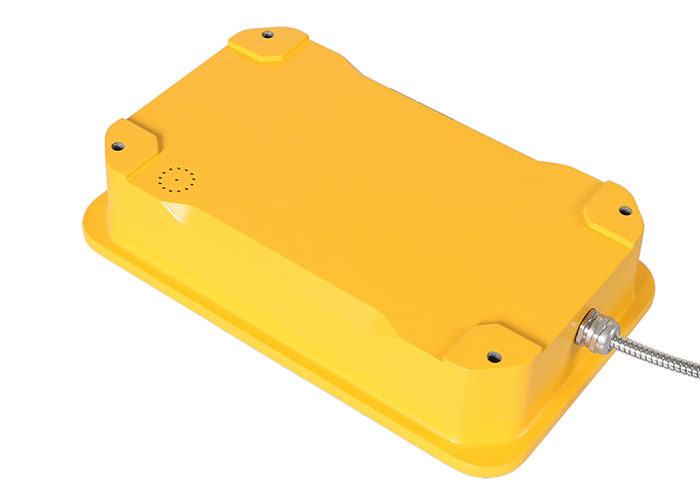

J&R JR105-FK-SIP-IP67 Weatherproof Telephone, Keypad, LCD display, Yellow
NEW Item
Manufacturer Part Number: JR105-FK-SIP-IP67
The JR100 series telephones are designed for high reliability and durability, housed in a corrosion-resistant cast aluminum weatherproof case with a door that protects against dust and moisture ingress, ensuring a long Mean Time Between Failures (MTBF).
Key Features
- Robust Handset: Made from molded Bulk Molding Compound, engineered to endure harsh environments, with an armored cord for added vandal resistance.
- Target Users: Ideal for railways, power stations, armed services, and heavy industry requiring reliable communication under adverse conditions.
Specifications
- Standard SIP Phone
- Vandal-Resistant Handset and Cord
- Weatherproof Rating: IP67
- Keypad: Full rubber with memory; buttons 0-9 can be programmed for speed dial.
- “LR” Button: For last number redial.
- “R” Button: For flash recall.
- “M” Button: For muting.
- LCD Display: Provides clear visibility.
- Power Supply: POE or DC12V (SIP).
- RJ45 Port: For SIP connection.
- Wall Mounting: Comes with a mounting bar.
- Compliance: CE, FCC, IK10, IP67, ISO9001.
SIP-VoIP Technical Specifications
- Power: 12V DC or PoE (IEEE802.3af/at)
- Ports:
- WAN: 10/100Base-T RJ-45 for LAN, Auto MDIX.
- LAN: 10/100Base-T RJ-45 for PC, Auto MDIX.
- Power Consumption:
Voice Features
- Supports SIP 2.0 (RFC3261).
- Codecs: G.711A/u, G.7231 (high/low), G.729, G.722.
- Echo Cancellation: Supports G.168, hand-free mode up to 96ms.
- Full Duplex: For simultaneous transmission and reception.
- SIP Support: Domain and authentication (none, basic, MD5), DNS server name.
- DTMF: SIP info, DTMF Relay, RFC2833.
- Call Control: Flexible dial map and hot-line support.
Network Features
- WAN/LAN: Supports Bridge mode.
- Static IP Address: Yes.
- DHCP: Supports IP acquisition on WAN port.
- VLAN Support: Yes.
- Web Configuration: Supported.
- Data Protocols: IPv4, TCP, UDP, ICMP, ARP, DNS, and DNS SRV for SIP signaling.
Technical Specifications
- Casing Material: Die-cast aluminum, epoxy powder coated.
- Colors: Standard yellow; other colors available upon request.
- Handset Material: Cycoloy with stainless steel spiral cord.
- Hook Switch: Electronic/magnetic with no visible moving parts.
- Keypad: Rubber.
- Temperature Range:
- Operating: -30°C to +65°C
- Storing: -40°C to +75°C
- Weather Resistance: IP66 (standard) to IP67 (highest rating).
- Ringing Tone:
- 80 dBA @ 1 meter (Analog)
- 90 dBA @ 1 meter (SIP).
- MTBF: Calculated to exceed 50,000 hours.
Package Information
- Unit Size: 204 mm x 334 mm x 143 mm.
- Carton Size: 200 mm x 300 mm x 440 mm.
- Packaging Materials: Pearl cotton and carton.
- Gross Weight: 6 kg.
- Net Weight: 5 kg.
