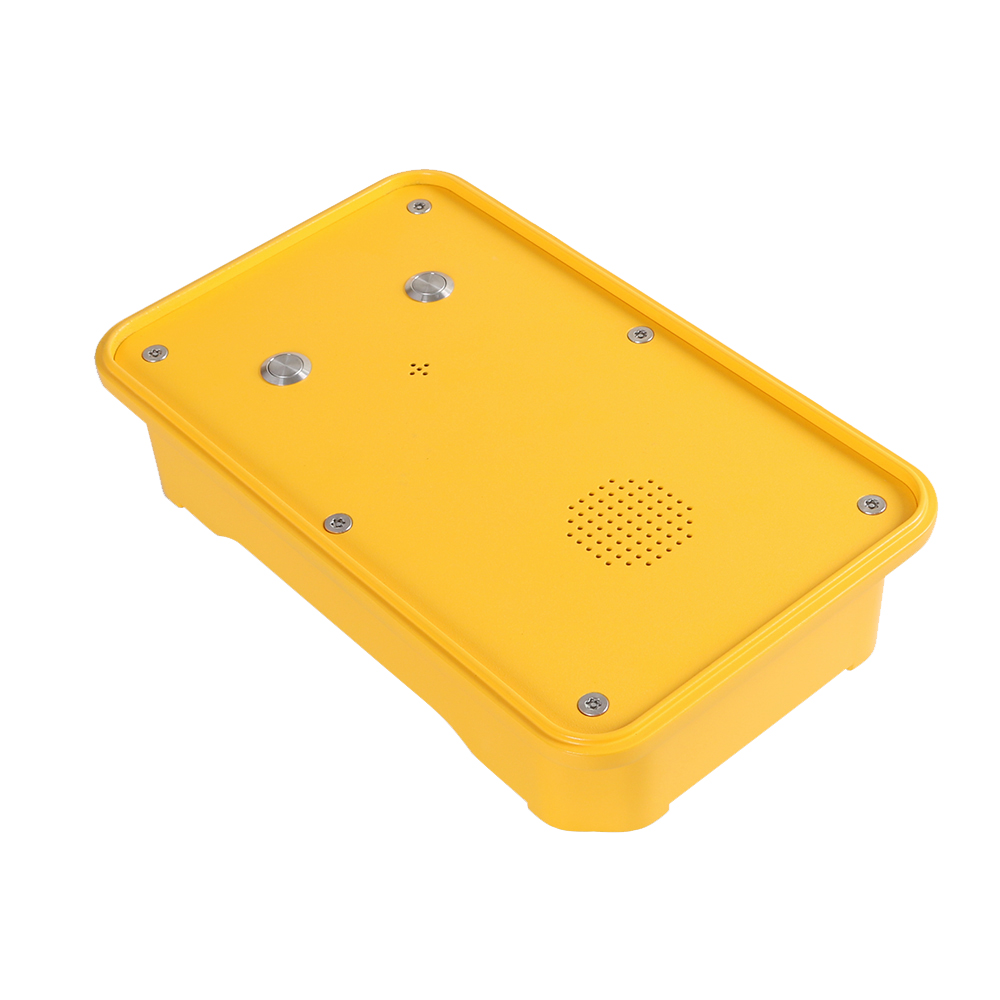

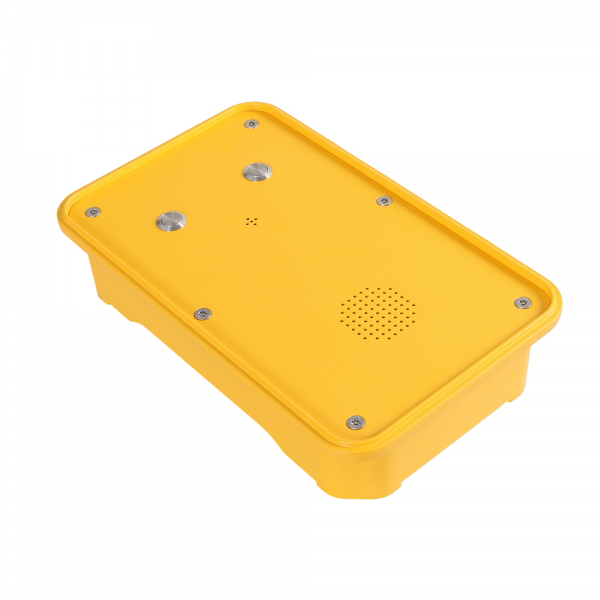

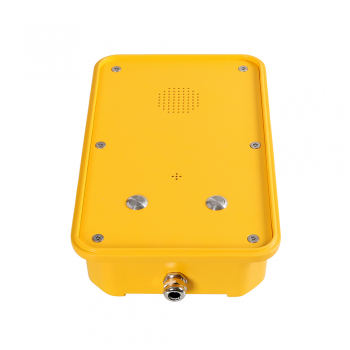

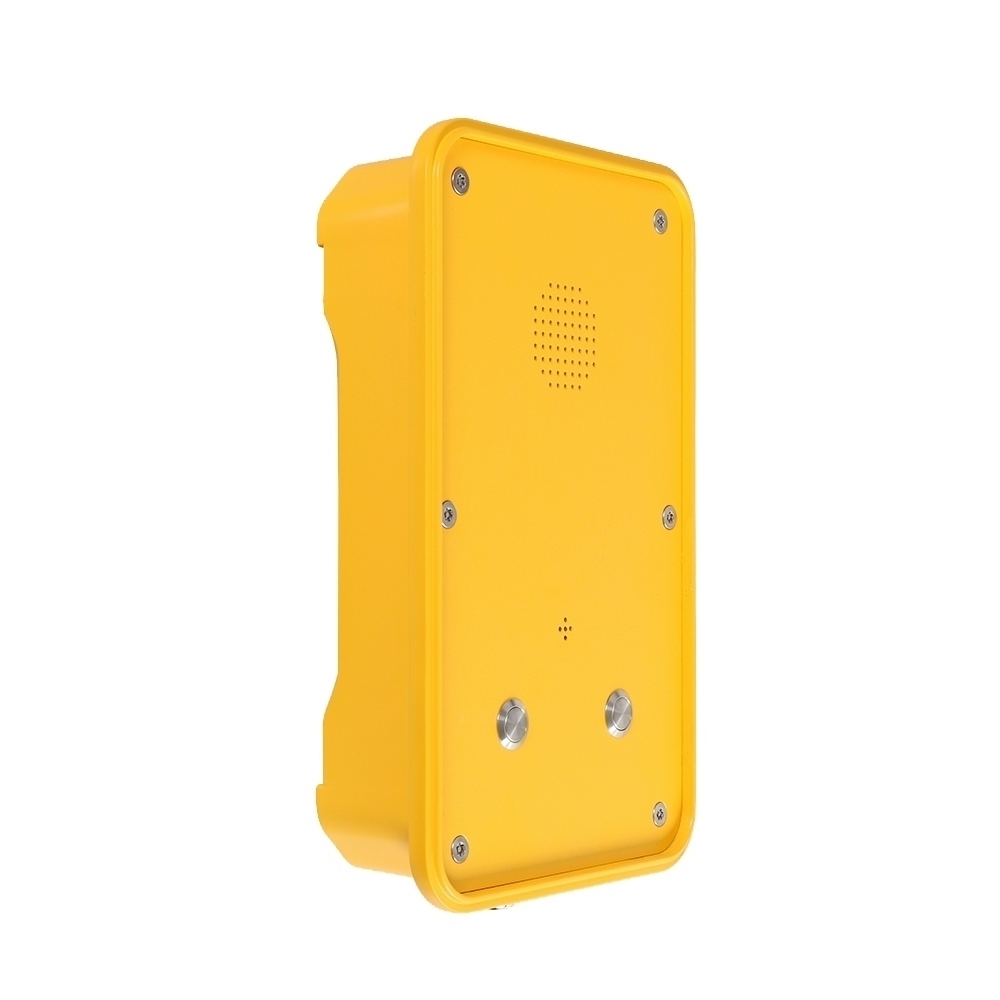

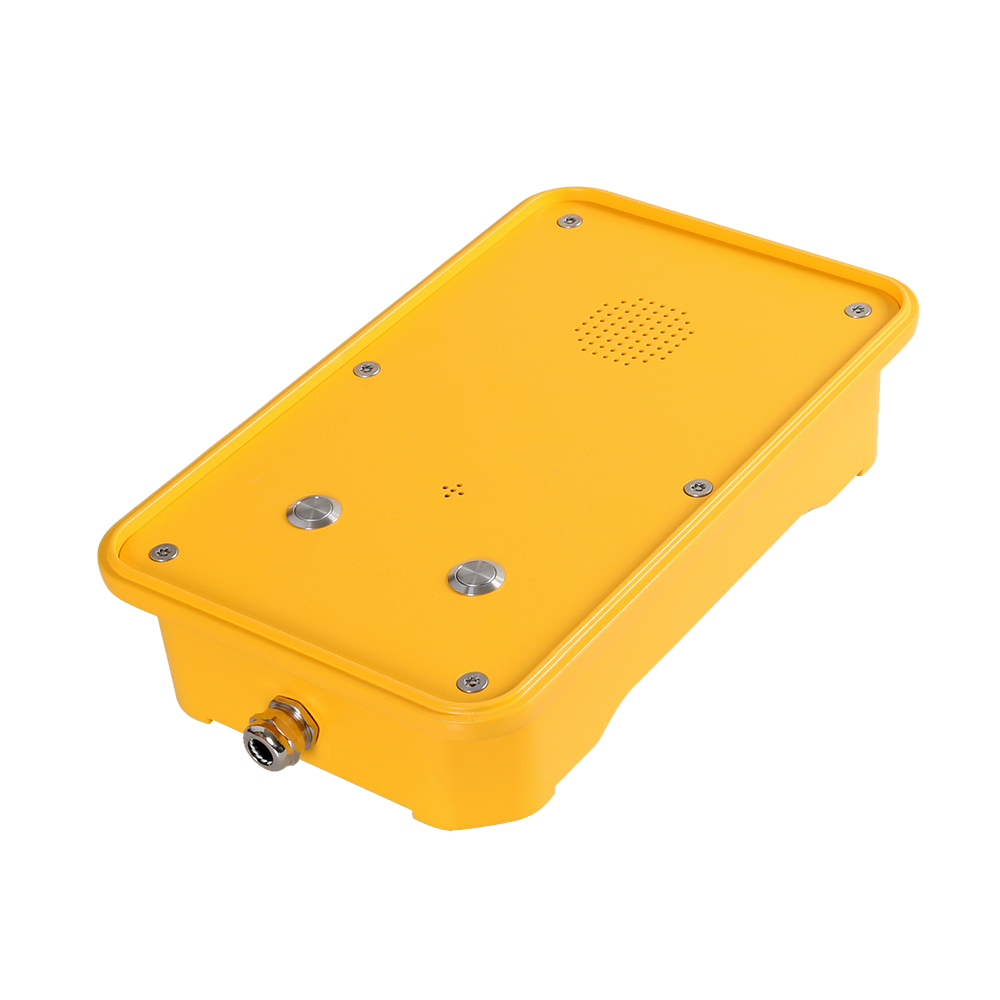

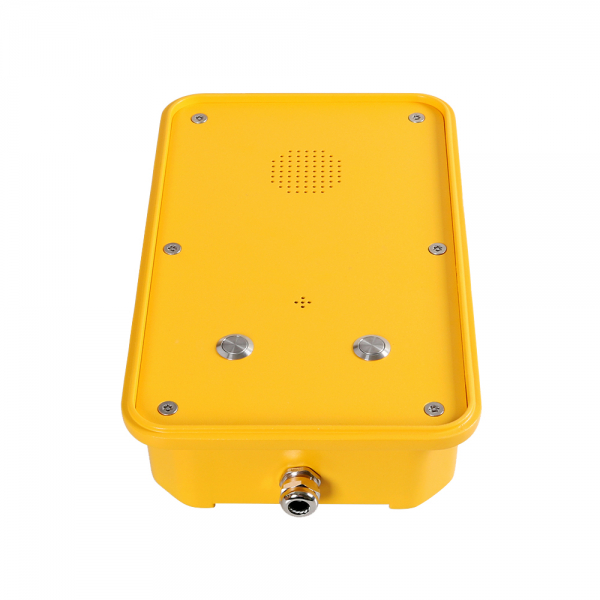

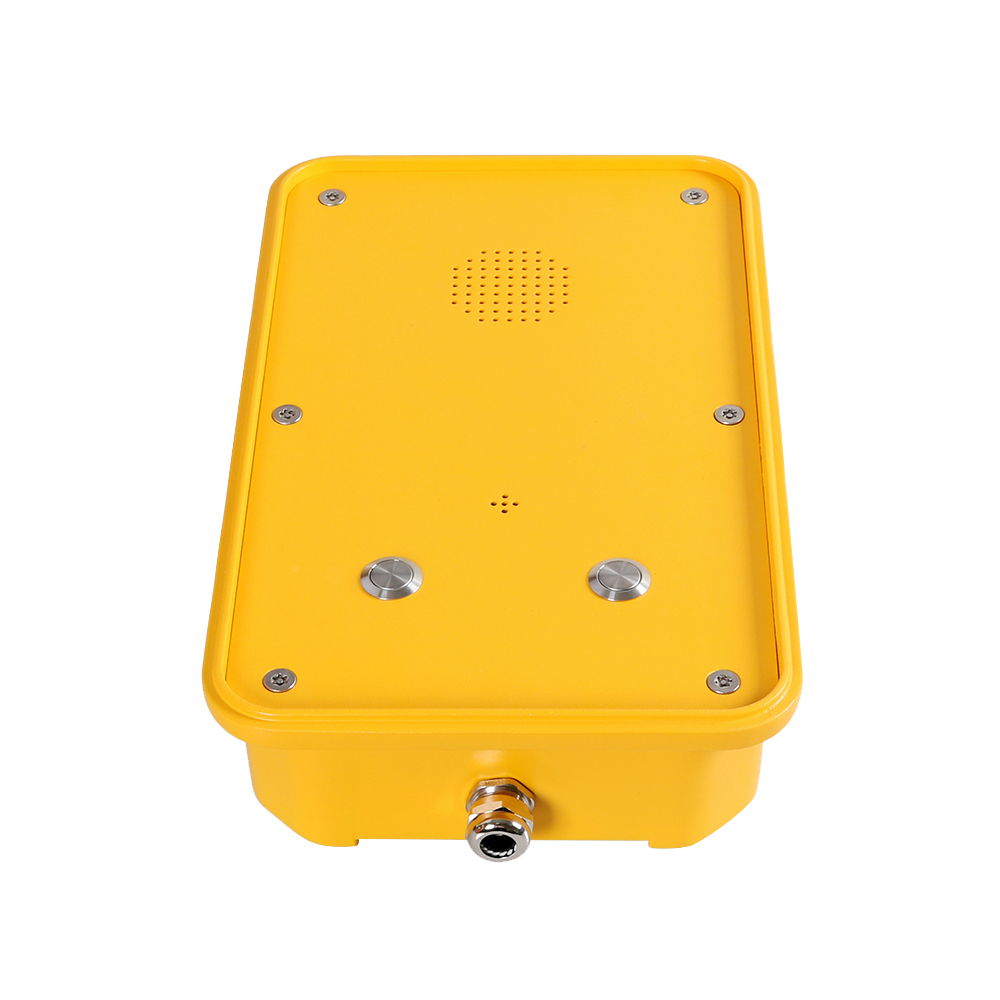

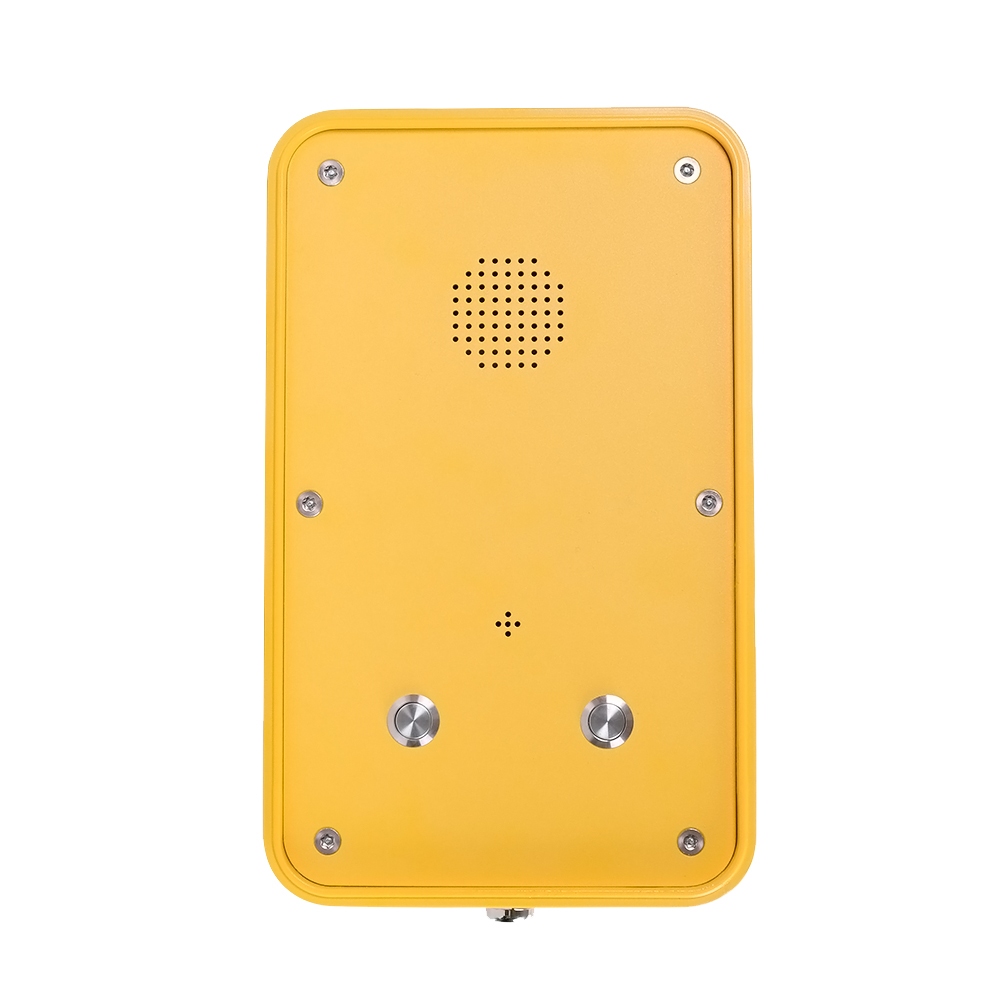

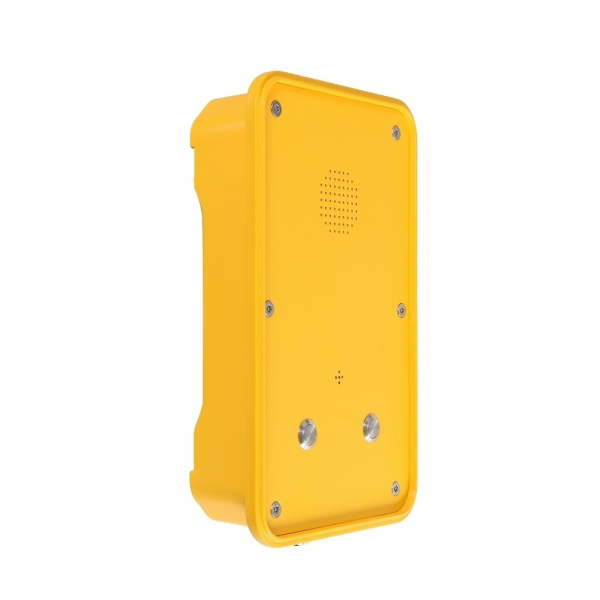

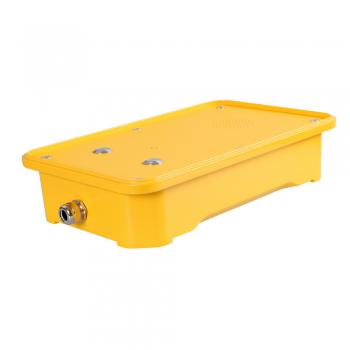

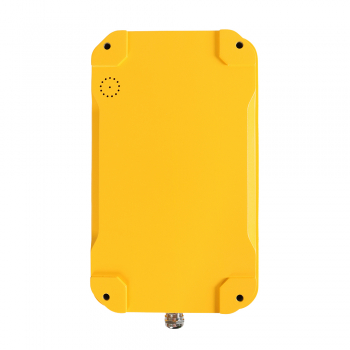

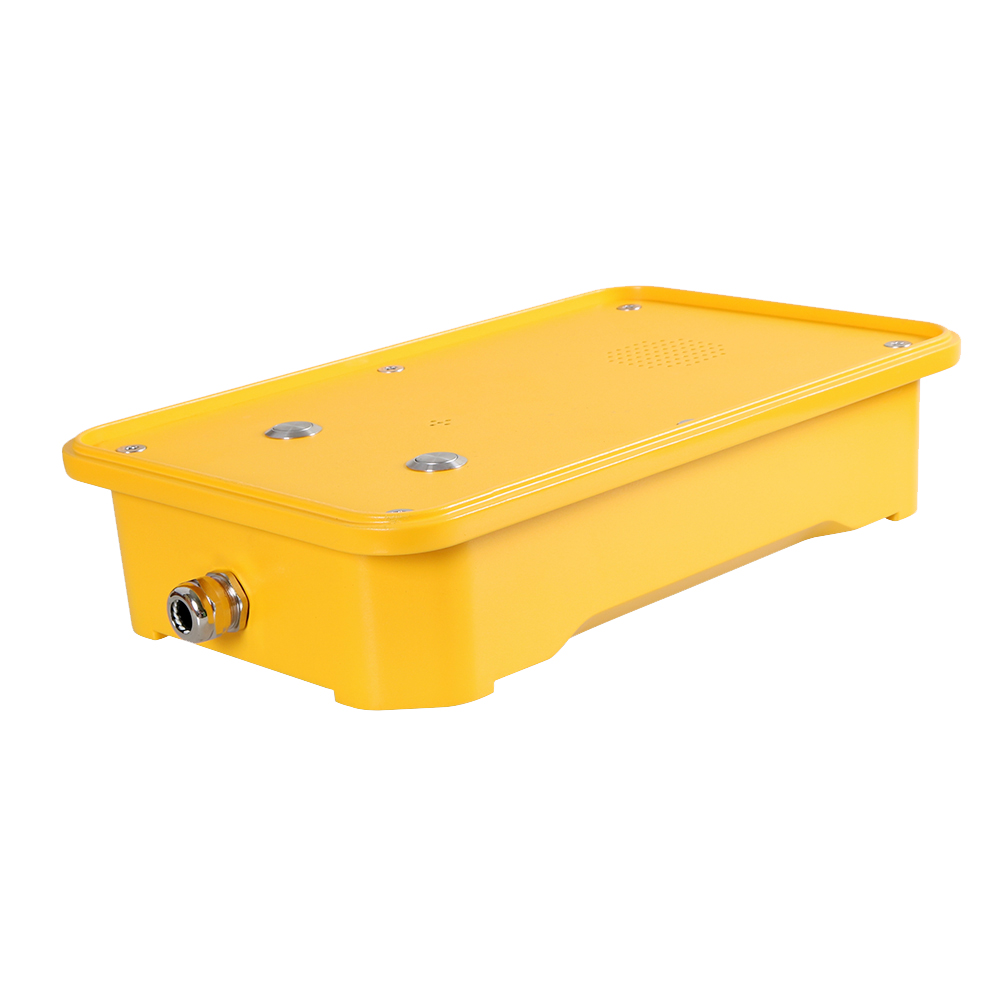

J&R JR104-2B-SIP Weatherproof Telephone, 2 Buttons Speed dial Phone, Yellow
NEW Item
Manufacturer Part Number: JR104-2B-SIP

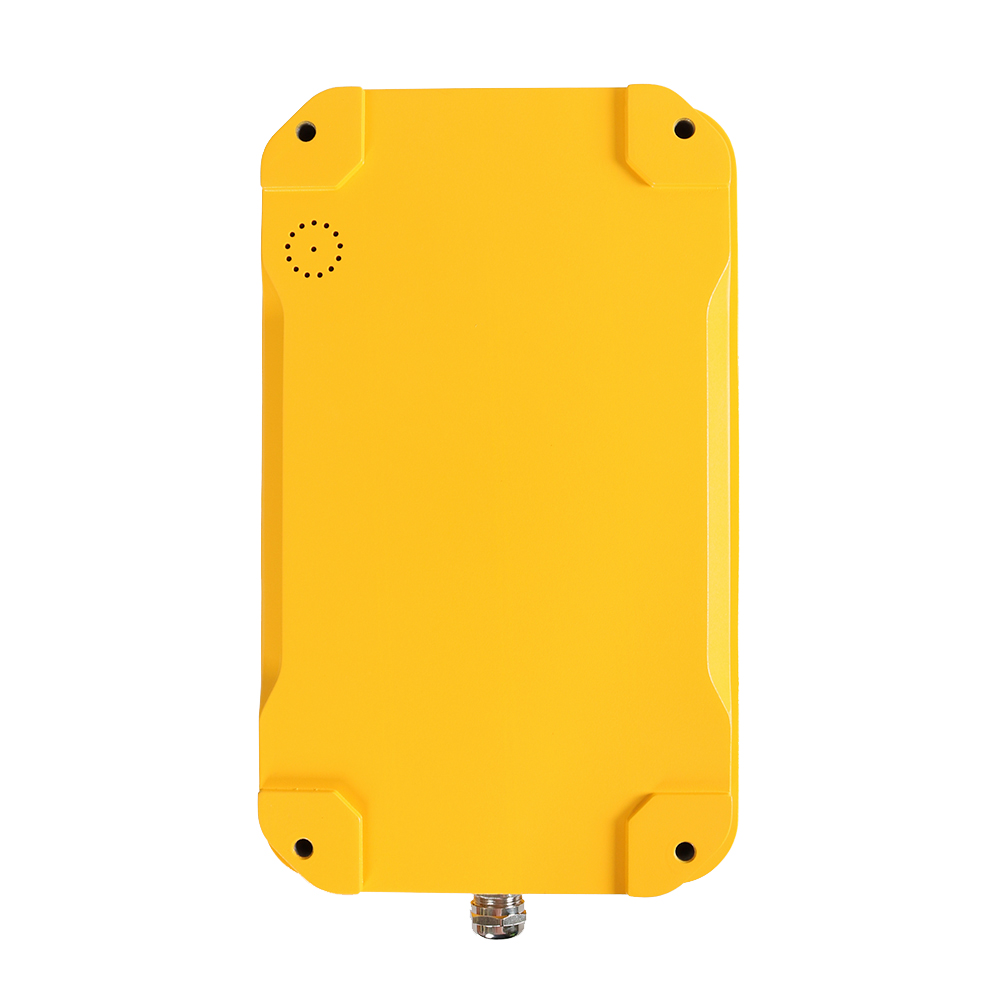

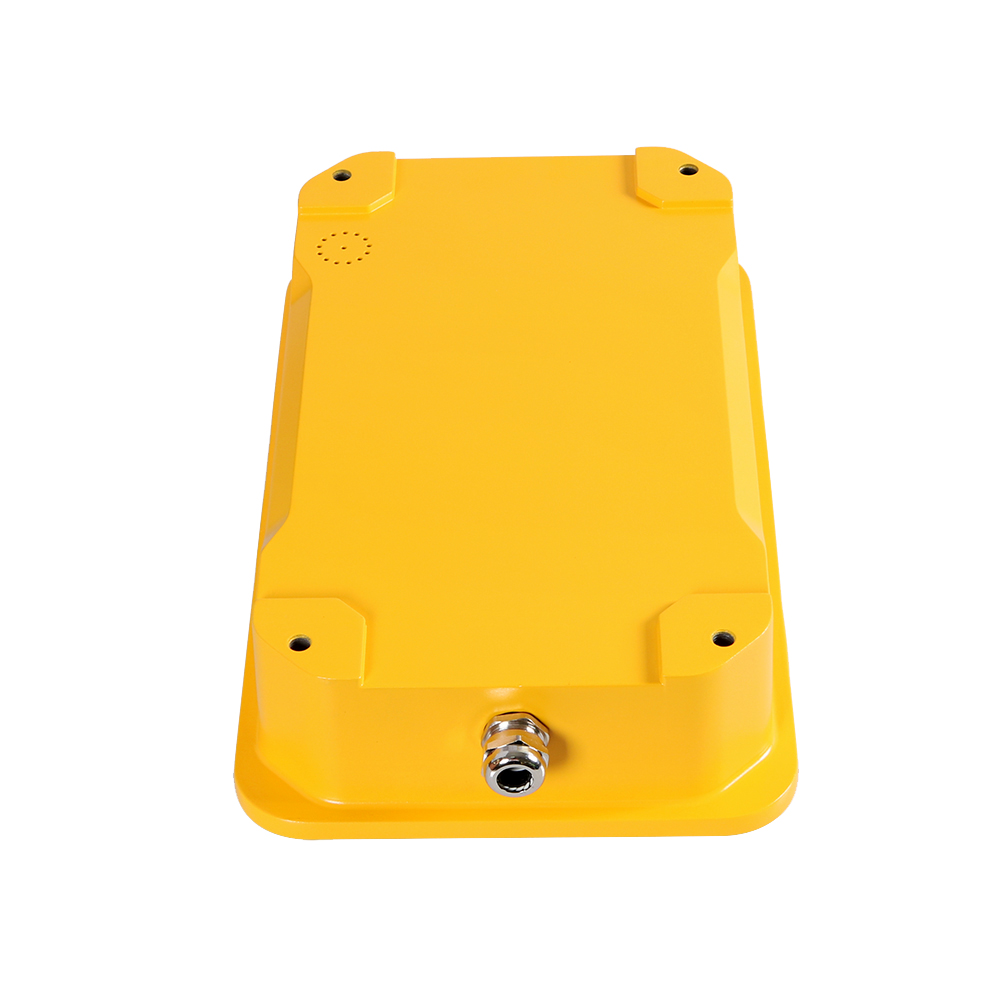

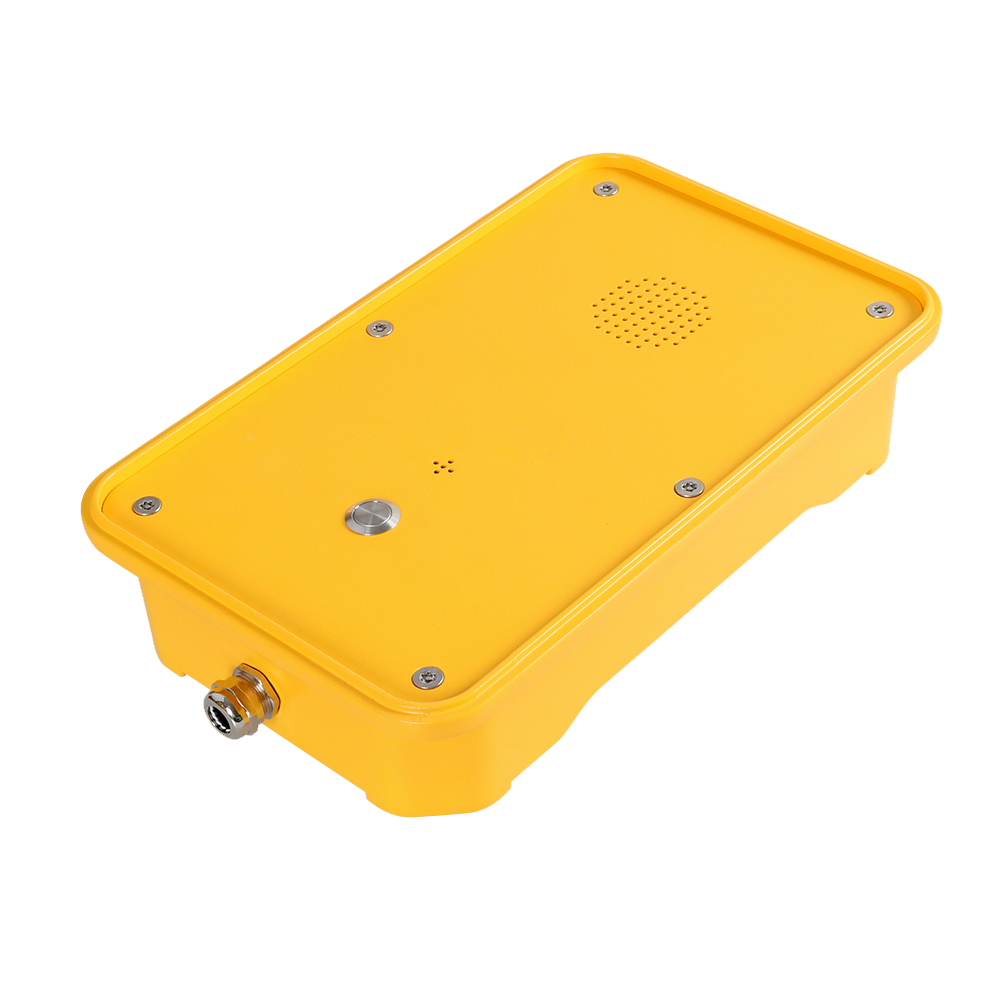

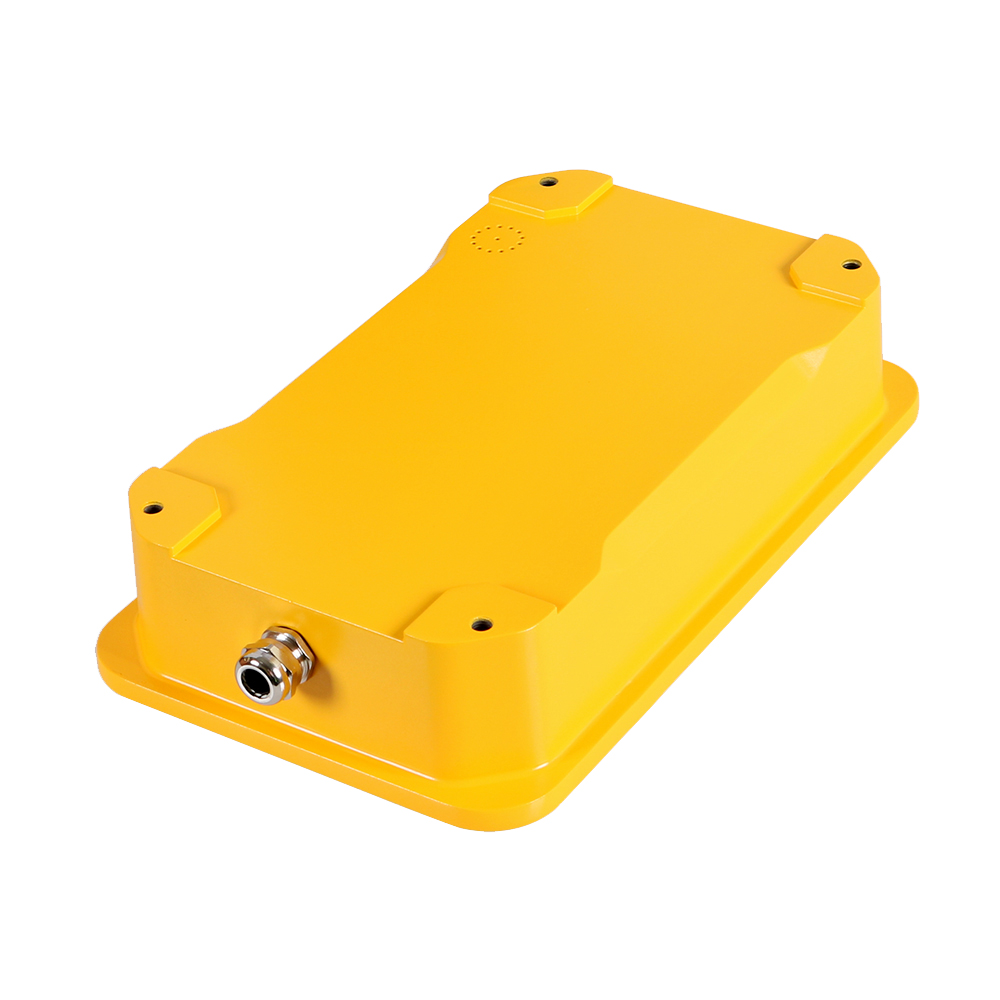

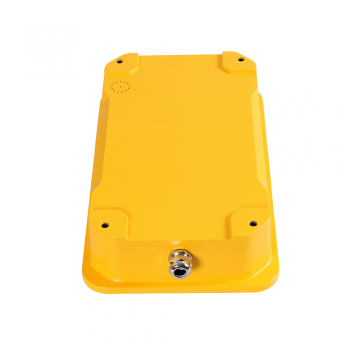

The JR100 series weatherproof telephones are reliable communication devices, fully encased in a corrosion-resistant cast aluminum housing. This protective casing, including a cover, provides complete protection against dust and moisture, ensuring exceptional durability with a high Mean Time Between Failures (MTBF). The robust handset, made from molded Bulk Molding Compound and fitted with an armored cord, is designed to withstand intense use in tough environments, offering added protection against vandalism and industrial wear.
Key Features
- Standard Analog/SIP Phone: Compatible with either analog or SIP connectivity.
- Vandal-Resistant Design: Handset with a 42 cm armored cord for increased durability.
- Weatherproof: Standard IP66 rating
- Functional Keypad: Full rubber keypad with memory; 0–9 buttons programmable for speed dialing.
- Additional Functions: Last number redial ("LR"), flash recall ("R"), and muting ("M").
- Alert Mechanism: Rings loudly and flashes when there is an incoming call.
- Auto-Answer and Line Release: Auto-answers after three rings and releases the line when the call is disconnected.
- Broadcasting Capabilities: Optional built-in amplifier with external horn for broadcasting.
- Power Supply: Operates on DC12V.
- Wall Mounting: Equipped for wall mounting with a mounting bar.
- Certifications: CE, FCC, RoHS, ISO9001, IK10, and IP66 compliant for performance and reliability.
SIP-VoIP Technical Specifications
- Power: DC12V or optional PoE (IEEE802.3af/at).
- Ports:
- WAN: 10/100Base-T RJ-45 for LAN (Auto MDIX)
- LAN: 10/100Base-T RJ-45 for PC (Auto MDIX)
- Power Consumption:
- Idle: 1.5W / Active: 1.8W
Voice Features
- Supports SIP 2.0 (RFC3261)
- Codecs: G.711A/u, G.7231 high/low, G.729, G.722
- Echo Cancellation: G.168, hands-free support up to 96 ms
- Full Duplex Support
- SIP Authentication: SIP domain, authentication (none, basic, MD5), DNS server name
- DTMF Options: SIP info, DTMF Relay, RFC2833
- Call Control: Flexible dial map, hotline support
Network Features
- WAN/LAN Support: Compatible with bridge mode
- IP Address Options: Supports static IP and DHCP for WAN port
- VLAN and Web Configuration
- Supported Protocols: IPv4, TCP, UDP, ICMP, ARP, DNS, DNS SRV for SIP signaling
Analog Specifications
- Dialing Method: MF (tone)
- Power Supply: DC12V
- Protection Level: Enhanced lightning and transient protection according to ITU-T k.21
- Remote Programming: DTMF tone or keypad
Technical Specifications
- Housing Material: Cast aluminum with epoxy powder coating; standard color yellow, other colors available on request.
- Handset Material: Cycoloy with stainless steel spiral cord
- Hook Switch: Electronic/magnetic with no visible moving parts
- Temperature Range:
- Operating: -30°C to +65°C
- Storage: -40°C to +75°C
- Ringing Tone: Shrill warble tone, typically 110 dBA at 1 meter
- MTBF: Exceeds 50,000 hours
Packaging Information
- Unit Size: 204 mm x 334 mm x 109 mm
- Carton Size: 200 mm x 300 mm x 440 mm
- Packaging Materials: Pearl cotton, carton
- Weight: Net: 7 kg, Gross: 8 kg
