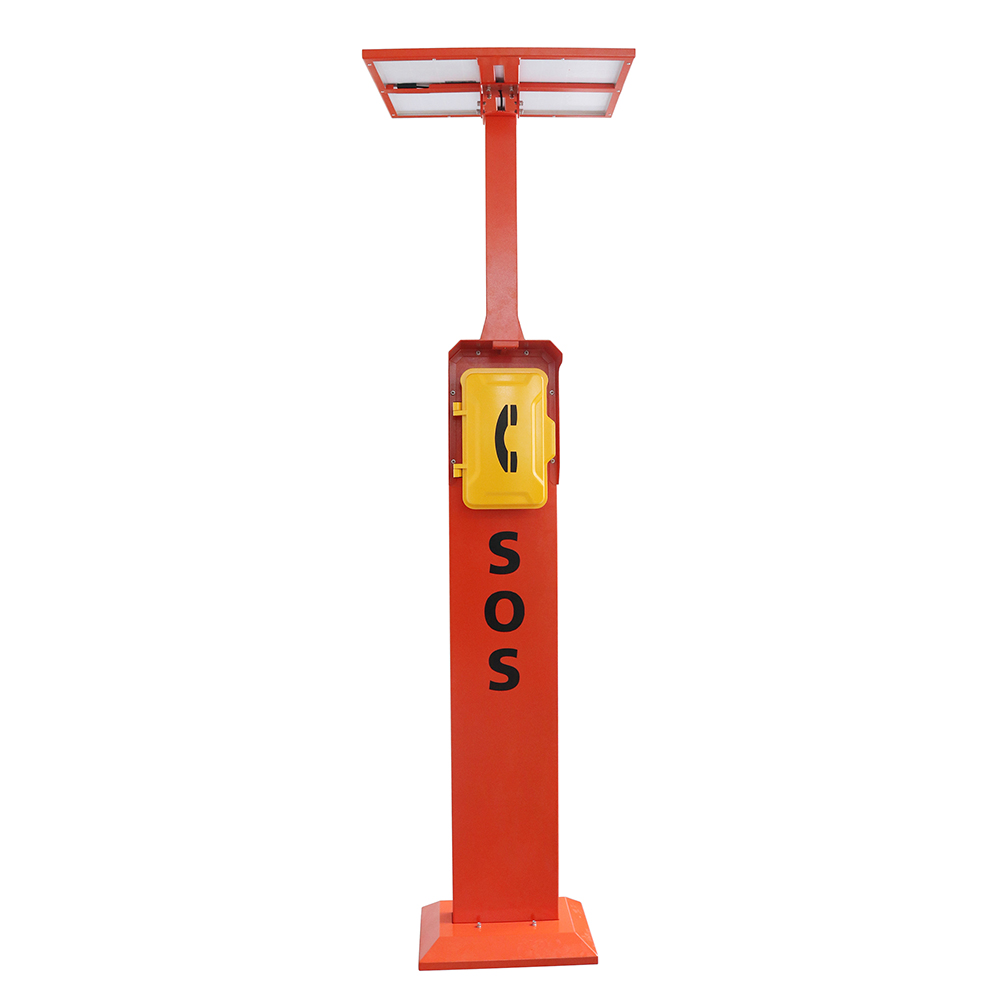

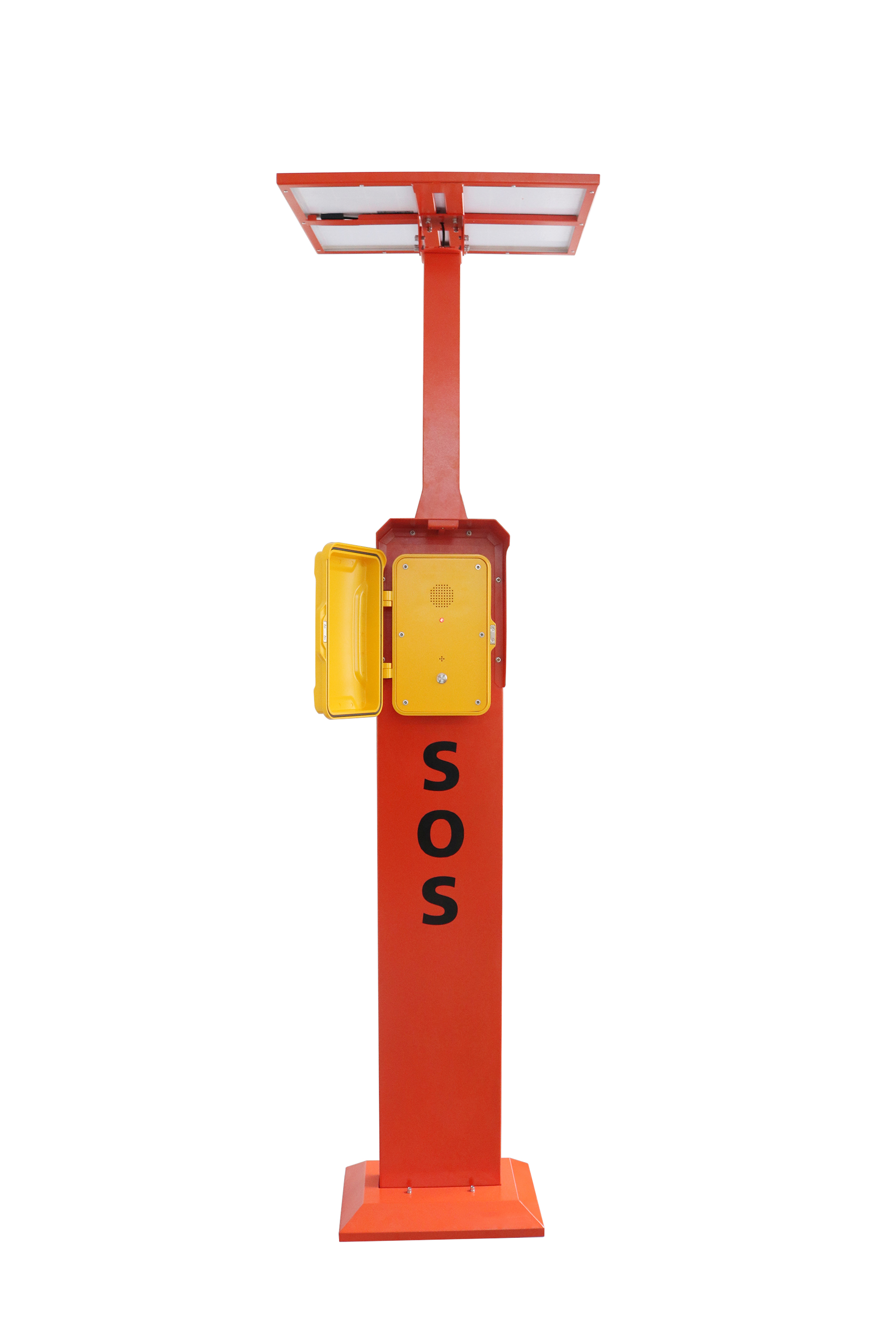

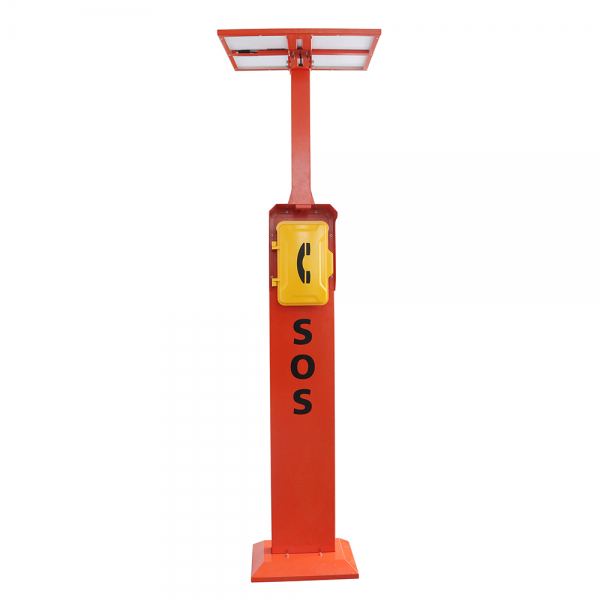

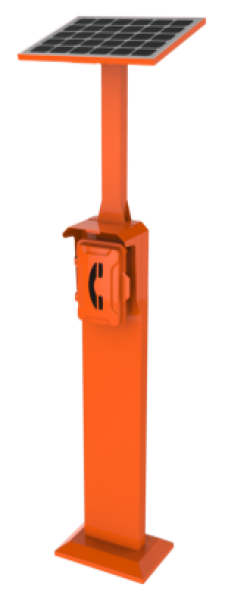

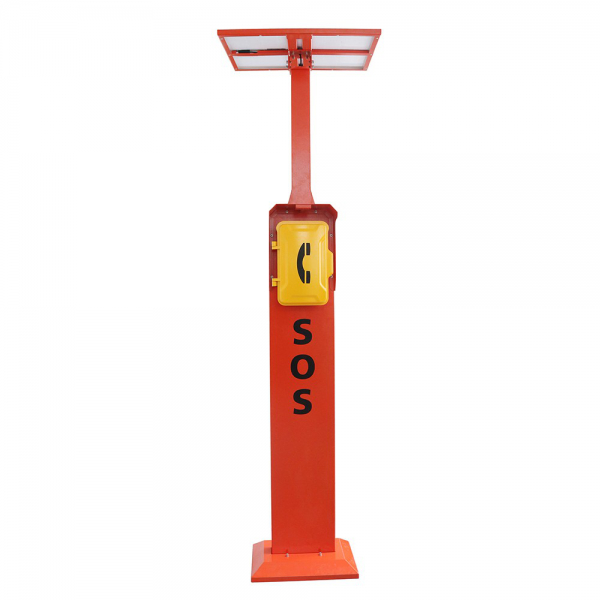

J&R JR102-SC-SP-4G Emergency Telephone pillar, Weatherproof Hands-free Telephone, Solar Panel

J&R JR102-SC-SP-4G Emergency Telephone Tower, Weatherproof Hands-free Telephone, Solar Panel

NEW Item
Manufacturer Part Number: JR102-SC-SP-4G

The self-sufficient and independently operated emergency telephone, designed as a weatherproof emergency call station, is equipped with a solar panel.

• Emergency Telephone with stand pillar design
• 4G Version,with 40W Solar panel power supply,12V 13AH built-in rechargeable lithium battery and support 5-7 days stand- by time
• Hands-free operation with one button press to call

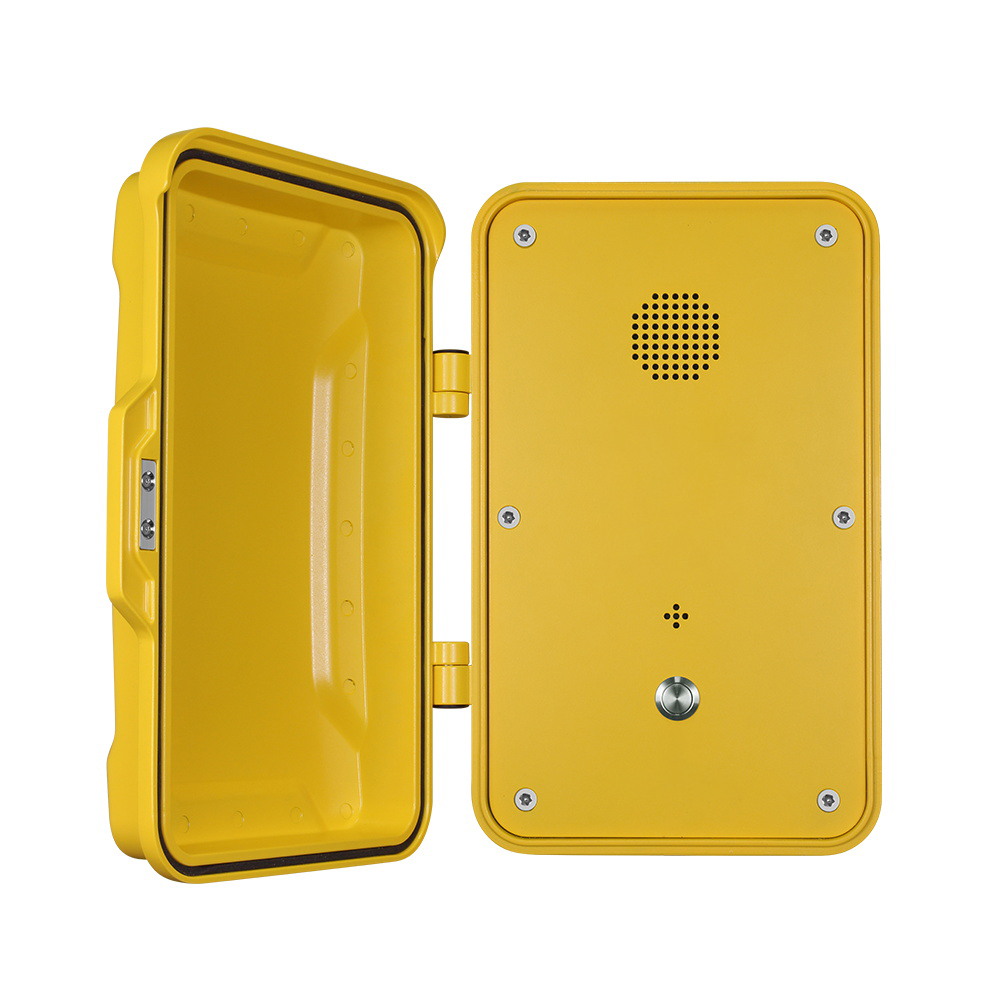

• JR102-SC-4G Weatherproof telephone, speed dial, yellow, with protection door
• Pillar is made of Cold rolled steel body
• With sensor light at the top of the phone(Turn on at night automaticly,Off in Daytime)
• With external 4G antenna fixed on solar panel top
• The phone can be programmed remotely by SMS
• Orange color for stand pillar and yellow color for telephone unit

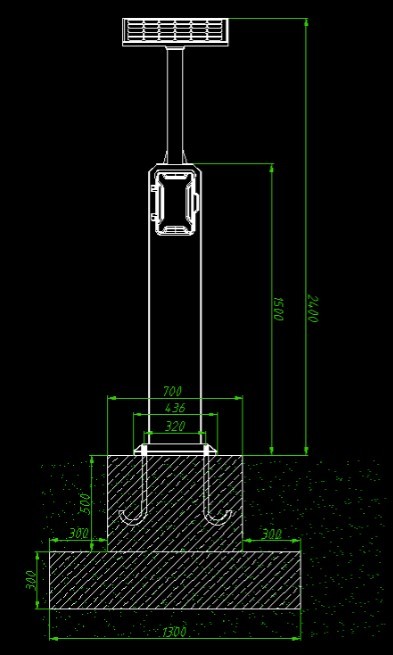

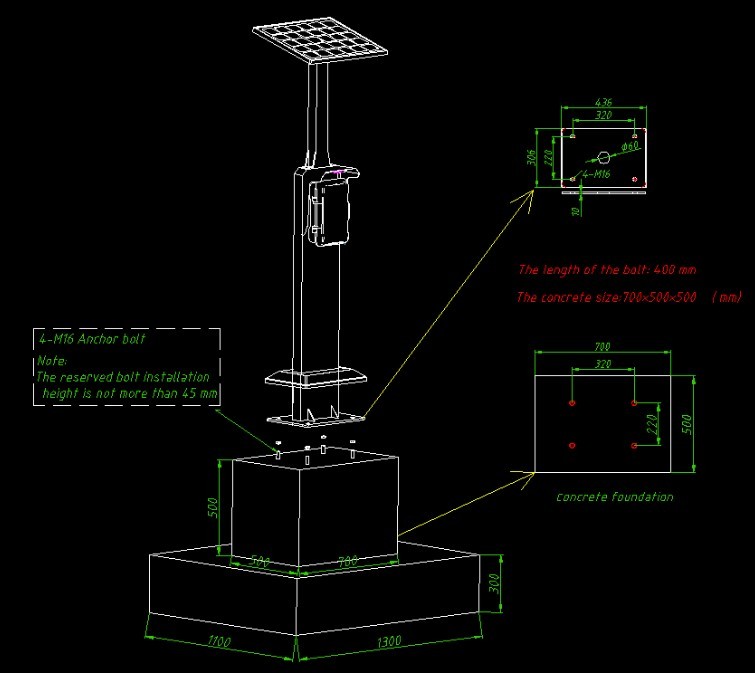

• On floor mounting with security screw
• IP66 weatherproof protection and IK10 rating

TECHNICAL SPECIFICATIONS

• Casing Material
  • Telephone unit: Die-cast aluminum alloy, yellow color
  • Stand pillar: Cold-rolled steel, orange color
• Colors
  • Standard: Orange
  • Optional: Other colors available upon special request
• Calling Mode: Hands-free operation with one-button press to call
• Lamp: Sensor light: Automatically turns on at night and off during daytime
• Solar Panel: Embedded and protected against theft
• Temperature
  • Operating: -30°C to +65°C
  • Storing: -40°C to +75°C
• Weather Resistance: IP66
• Ringing Tone: Shrill warble tone, 90 dBA at 1 meter (typical)
• M.T.B.F.: Estimated to exceed 50,000 hours
• Pillar: Designed to house auxiliary circuits
• Solar Panel Mounting Bracket: Adjustable in multiple directions
• Weight: Net weight: Approx. 50 kg
• Fixing: Mounted on the floor

4G TECHNICAL SPECIFICATIONS

SIM Card

• Type: Standard SIM

Working Frequency Range

• Depends on Modules: (EC25-EUX)

Time Limit

• Function: Limits maximum call duration to 6–8 minutes after off-hook, programmable

Power Supply

• AC Adapter: 240–110V AC to 12V DC
• Solar Power: With internal 6AH battery (up to 5 days standby time)

Adapter Input

• Voltage: 7.4–12V DC

Power Consumption

• Low Consumption: Standby power <7 mA

Remote Programming

• Features: Auto-dial numbers, time limit, etc., programmable
• Configuration: Remotely configurable via SMS

Antenna

• Type: Quad-band, SMA male
• Mounting: External with 2 m cable

Diagnostic Functions

• Report Features: Messages for:
  • Low battery voltage
  • Weak signal
  • Speaker volume
  • Microphone volume

LED Night Light

• Temperature
  • Operating: -20°C to +65°C
  • Storing: -30°C to +75°C
• Weather Resistance IP65~IP66
• Color: White
• Working mode: Controlled by circuit board, the light will be contentiously work only all night.

Solar module features

• The monocrystalline solar cells used have a high conversion efficiency
• The aluminum alloy frame used has high strength and strong mechanical shock resistance.
• Power tolerance range (guaranteed output power within -3~+3% plus or minus tolerance range)
• This product has excellent low light performance.
• Withstands strong wind and snow loads Solar modules can withstand wind loads (2400 Pascal) and snow loads (5400 Pascal)

J&R-Project-List-of-Emergency-Phones

J&R-3G-4G-Emergency-Telephone-User-Manual

Scope of delivery: Emergency call pillar, weatherproof emergency telephone, solar panel
