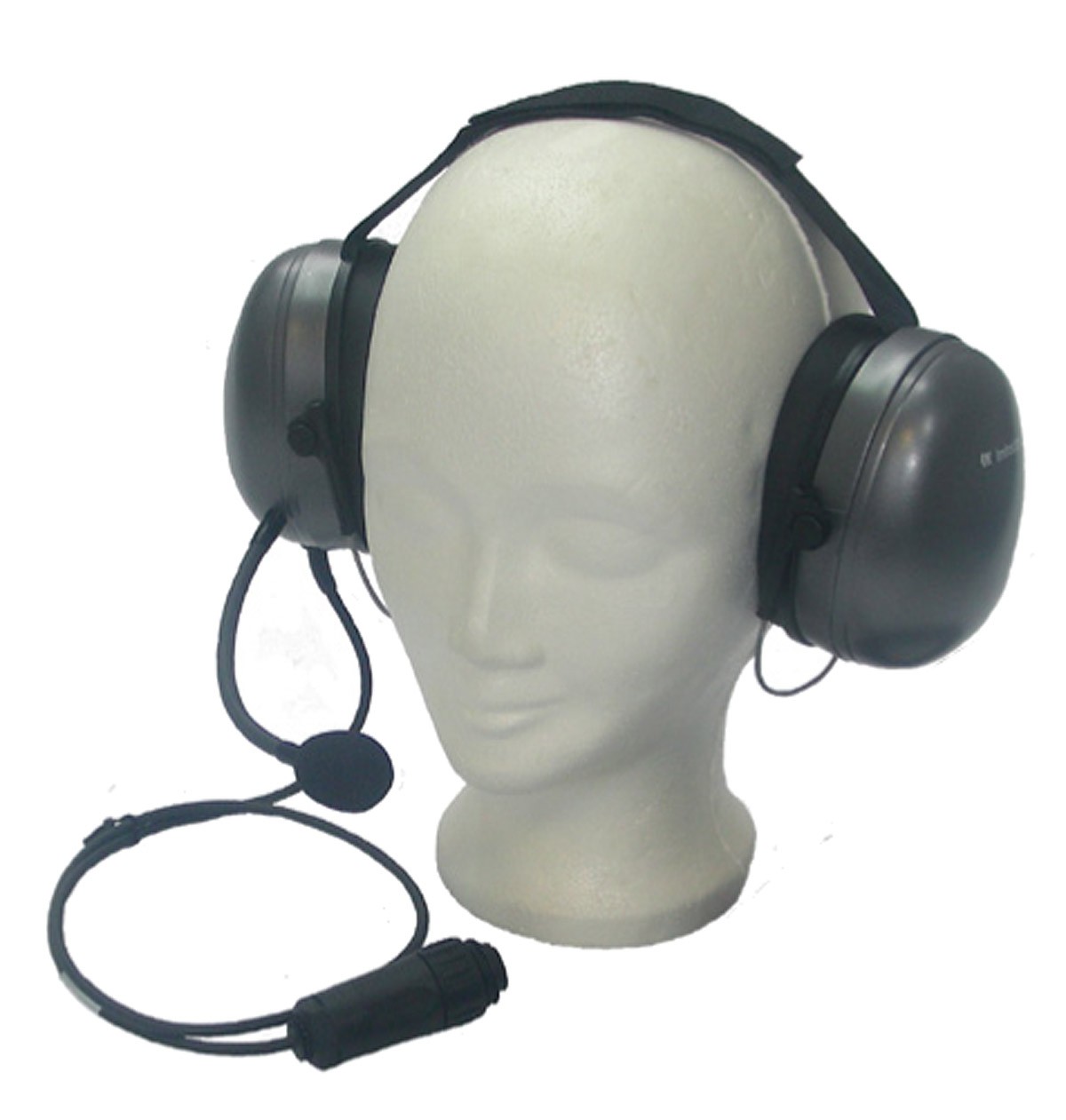

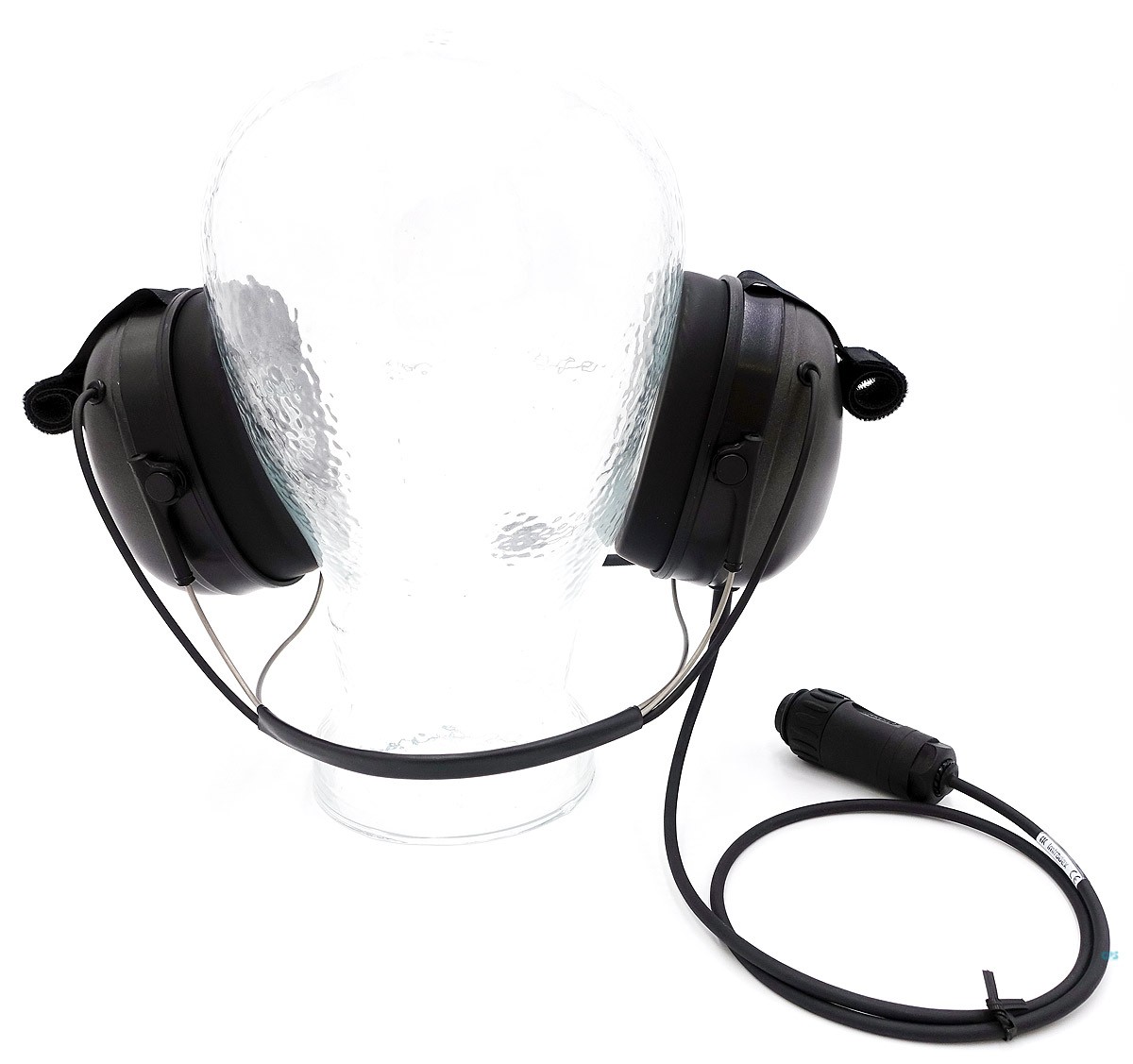

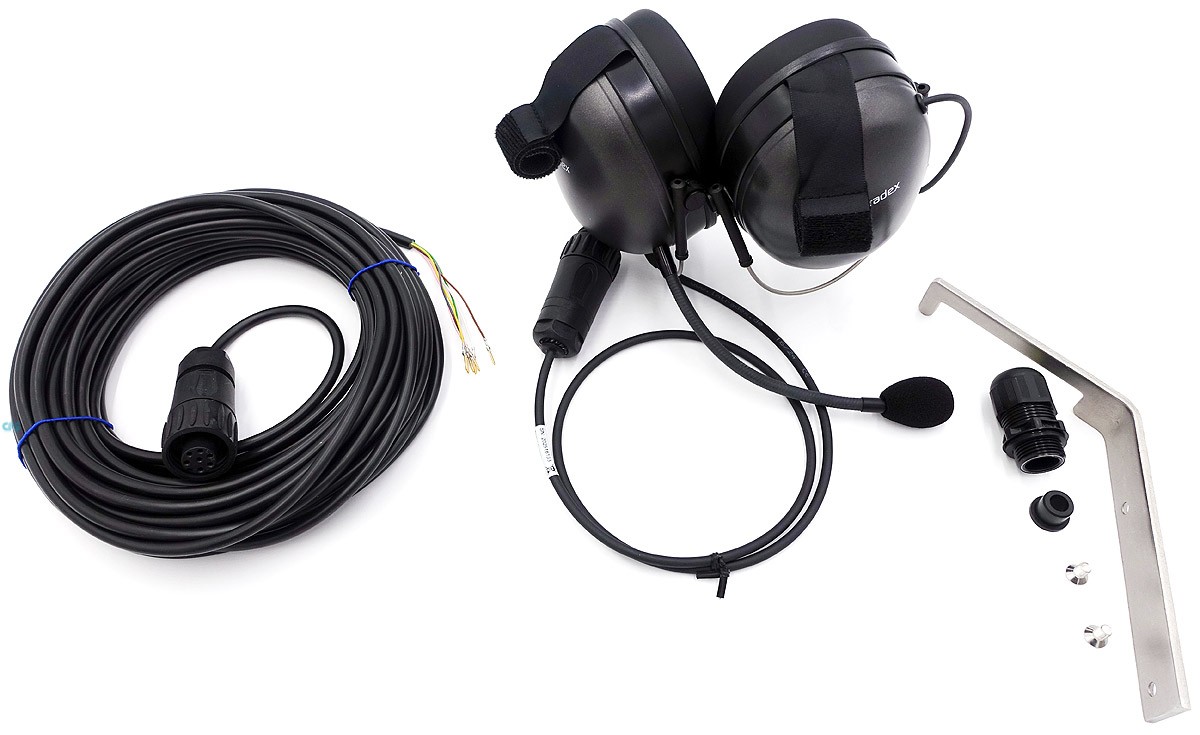

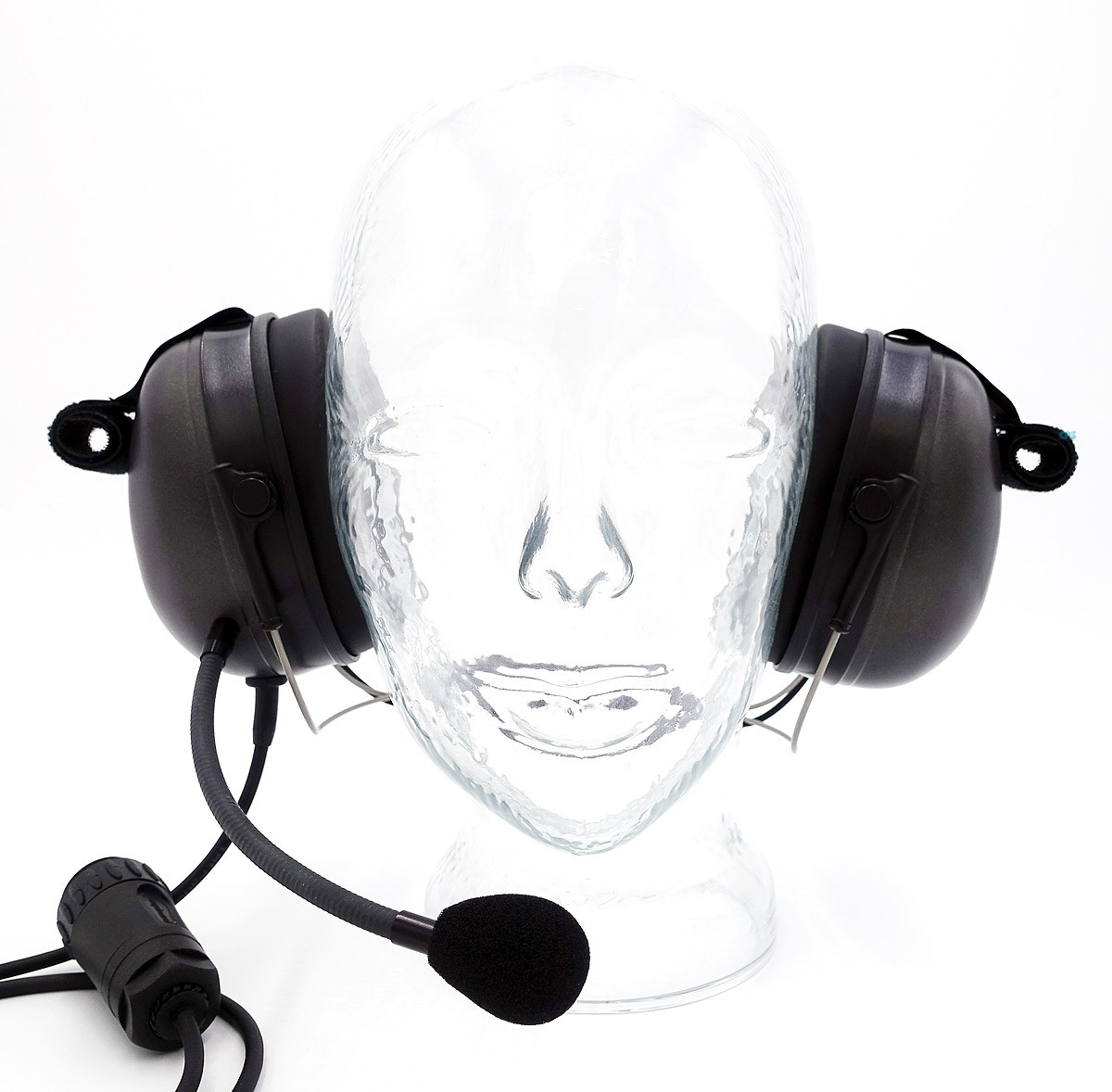

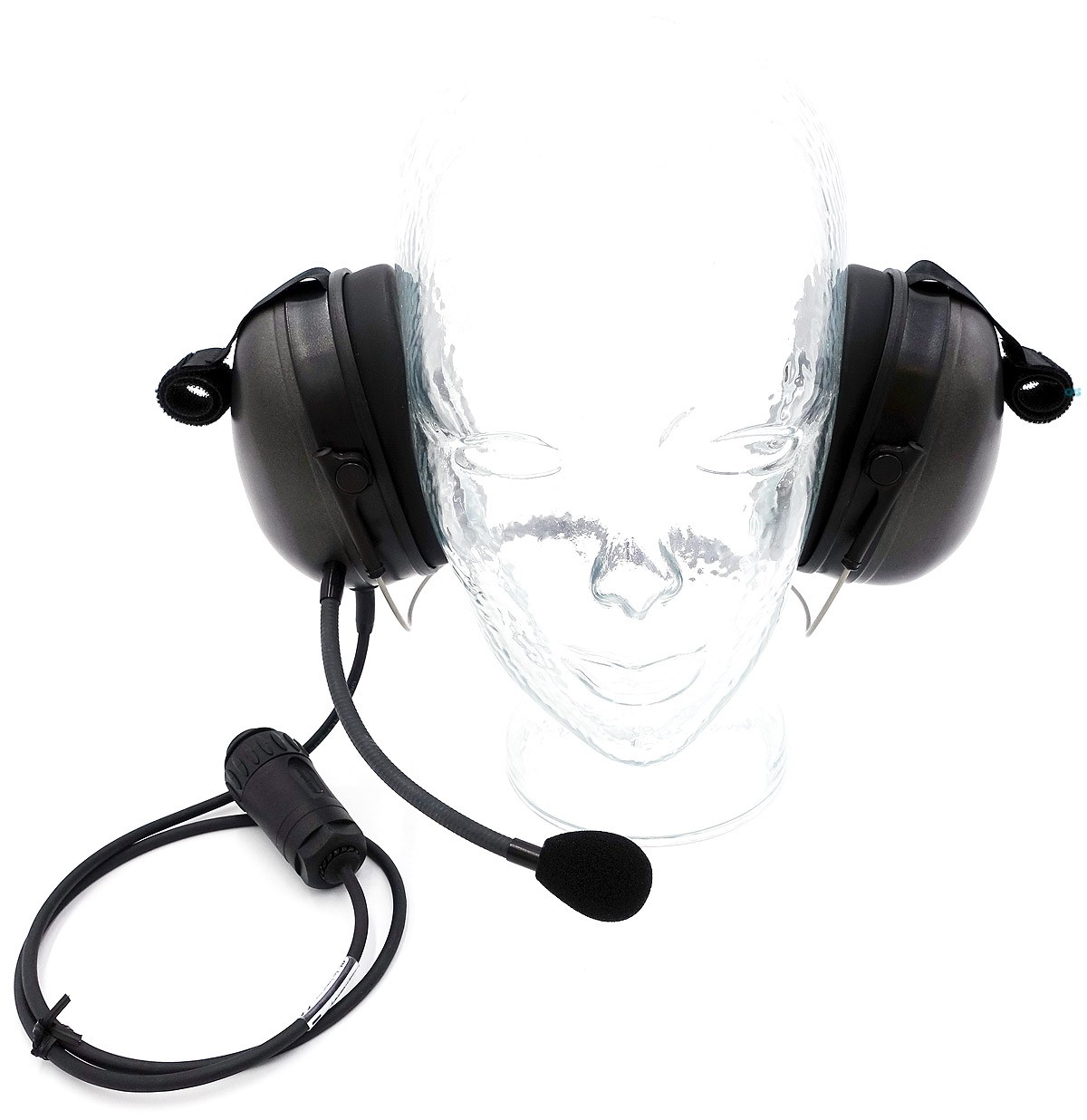

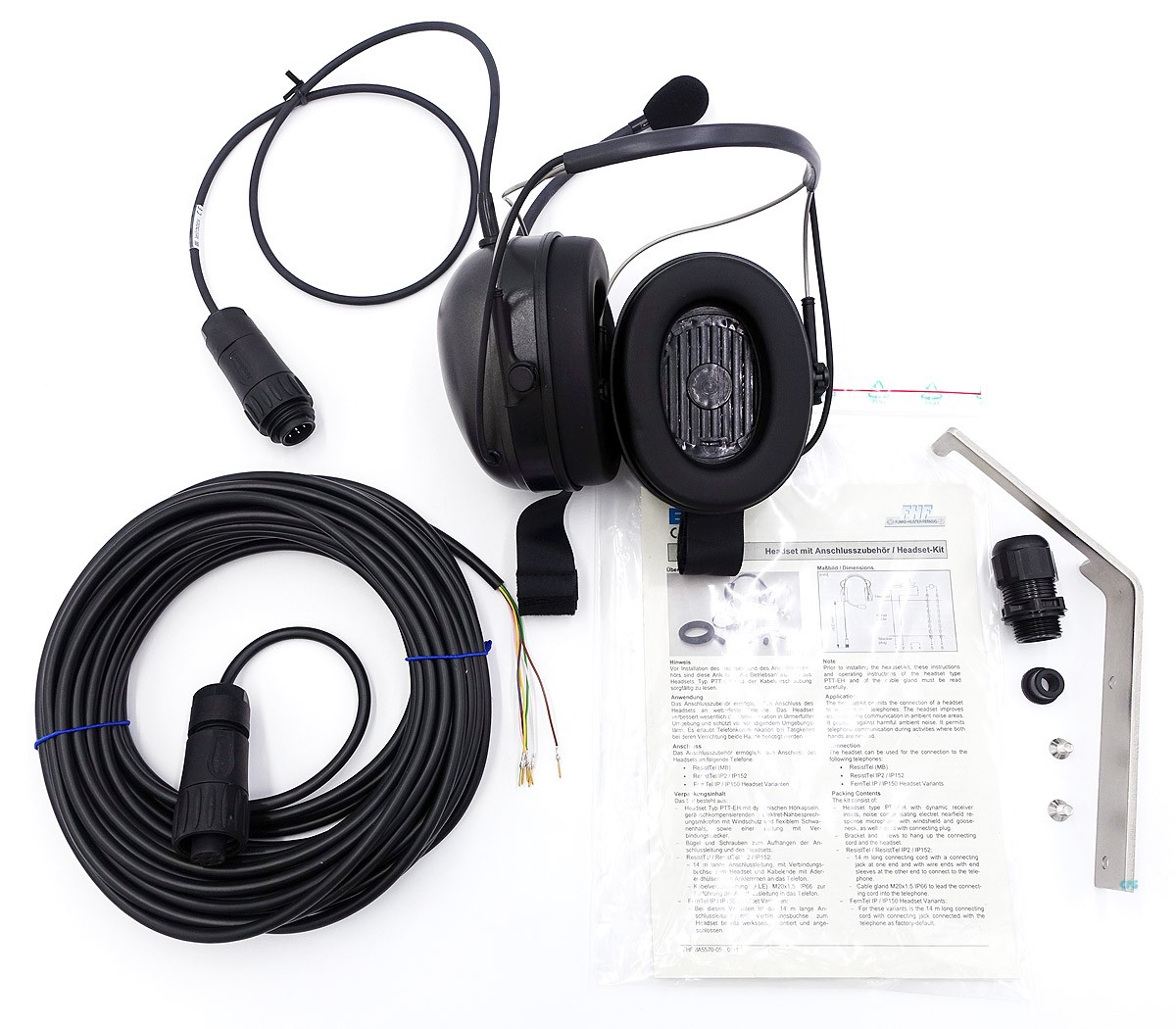

FHF Headset for FHF Weatherproof Telephone ResistTel 11264304

FHF Headset for FHF Weatherproof Telephone ResistTel 11264304

NEW Item
Manufacturer Part Number: 11264304

Part-No. FHF11264304
Application Headphone
weight Kg 1.50

Headset-set for weatherproof Telephone ResistTel

Features

• Housing material: Polyamide 12
• Housing protection class: IP54
• Protection class II
• Dimensions: approx. 153 x 185 x 193 mm
• Weight: approx. 1.1 kg

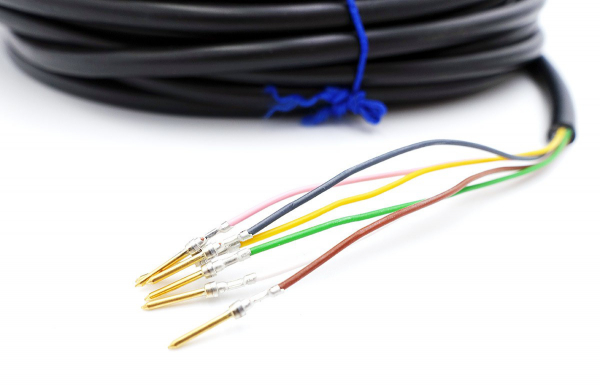

• Connection terminals:
  • Clamping range: up to 4 mm² rigid
  • up to 2.5 mm² flexible

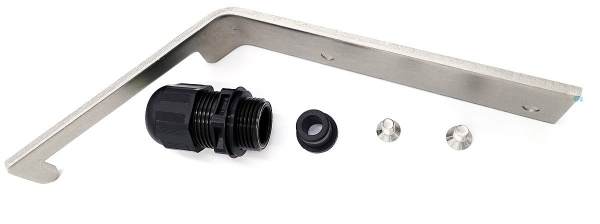

• Cable gland:
  • M20 x 1.5
  • for cable diameters from 5 to 9 mm
• Blank screw: M20 x 1.5
• Nominal load capacity: 300 mW
• Max. volume with ResistTel ringer:(1 m distance)
  • max. 93 dB(A)
  • Open listening/hands-free operation: 81 dB(A)
• Impedance: 45 Ω
• The attenuation value is 32 dB.
• Operating temperature range -25°C to +60°C
• Transport temperature range -25°C to +70°C
• Storage temperature range -25°C to +70°C

Datasheet

Note on availability:
Many products are custom made by FHF due to their complexity.
The delivery time can vary. We try to provide the fastest and smoothest transaction for our customers.
The showed delivery time is only a rough estimation. Thank you very much for your understanding!
