FHF Signalling bell UWE 200-250 VAC 50-60 Hz NEW
NEW Item
Manufacturer Part Number: 21102021
Signalling Bell UWE
Electronic signalling device for dry and damp roms
- Extremely low current consumption
- Electronic bell system
- Dome in signal colour red
- Housing of impact-resistance ABS
- Volume approx. 96 dB(A)
Thanks to their distinct sound, the signals of a signalling bell are unmistakable. Since extremely low current consumption is also often necessary, the application possibilities for UWE signalling bells are growing all the time. For example, they are already used in many systems as fire alarm.
The electronic bell system is mounted in a plastic housing in IP 40. The dome is made of steel and coated red. The bell is designed for continuous operation and is activated by switching on the power supply.

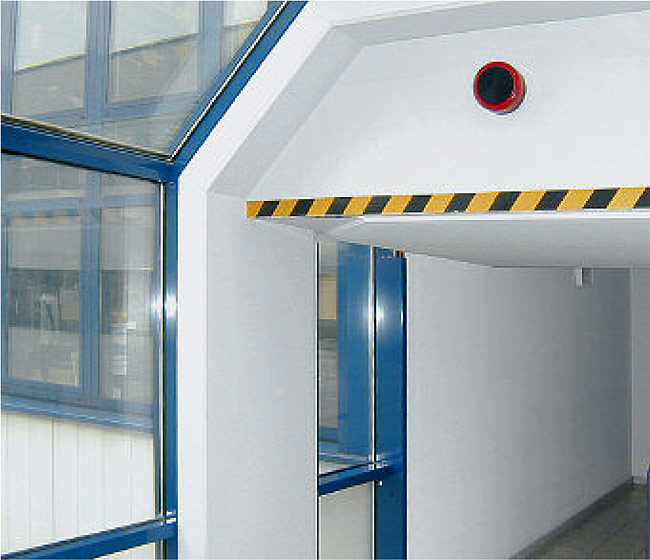

Fire alarm bell in a building transition
The bell is designed for continuous operation and is activated by switching on the power supply
Specifications
- Housing Plastic, steel dome
- Protection degree IP 40 (IEC 529)
- Protection class II
- Cable entry 20 mm
- Operating conditions Indoors

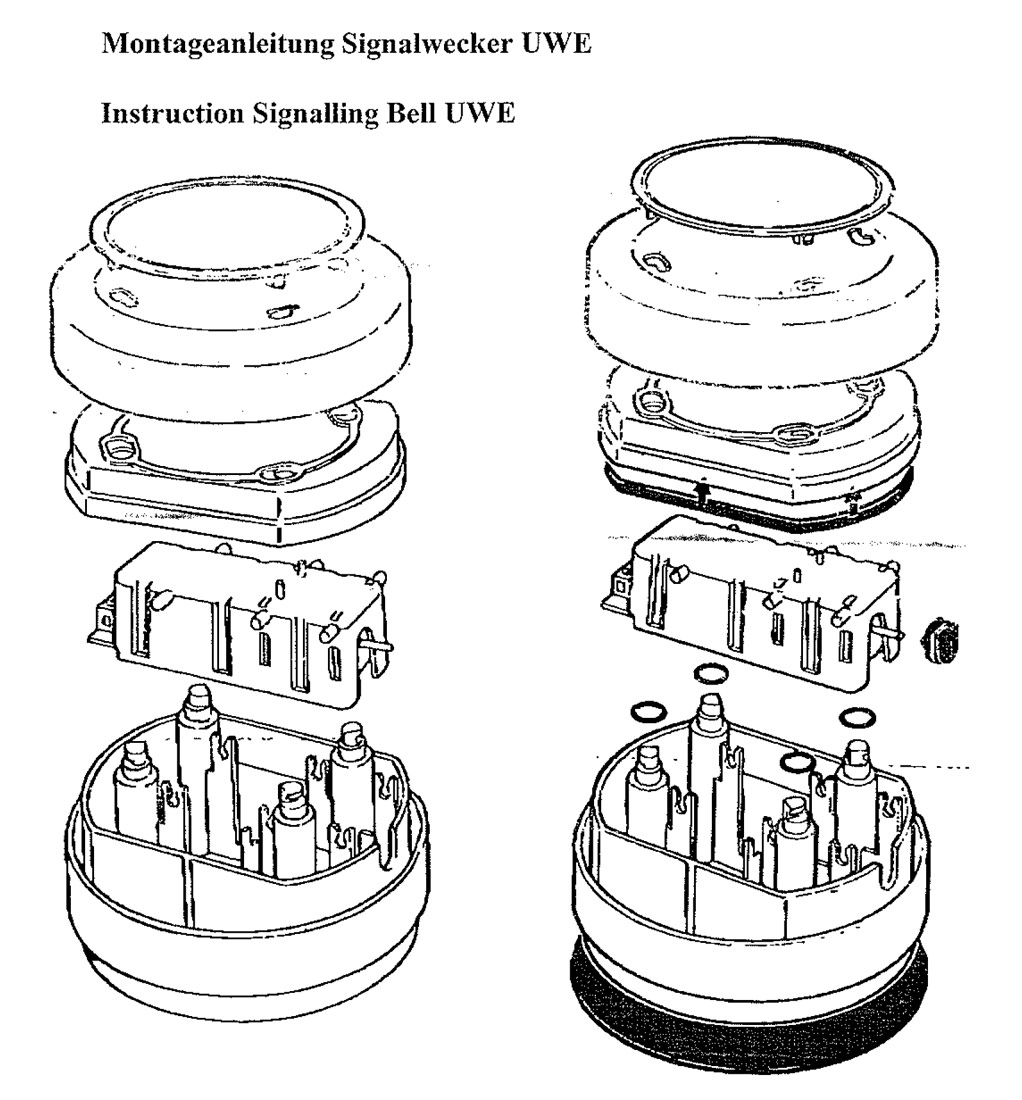

- Operating position (as shown in drawing)
- Operating mode Continuous
- Volume Approx. 96 dB(A), 1m
- Temperature range -10°C to +55°C
- Weight Approx. 1.2 kg
| Material housing | Plastic |
| Colour housing | Other |
| Mounting method | Surface mounted (plaster) |
| Degree of protection (IP) | IP40 |
| Diameter of bell shell | 155 mm |
| Nominal Voltage | 230 V |
| Type of current | AC |
| Electricity consumption | 0,03 A |
| Loudness | 96 dB |
| Type of tone | Fast beat |
| weight Kg | 1.20 |
