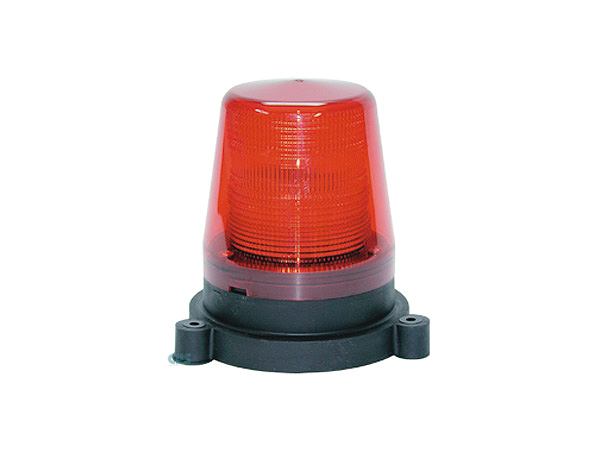

FHF LED-Signal light BLG LED 12/24 VDC red NEW
NEW Item
Manufacturer Part Number: 22151302

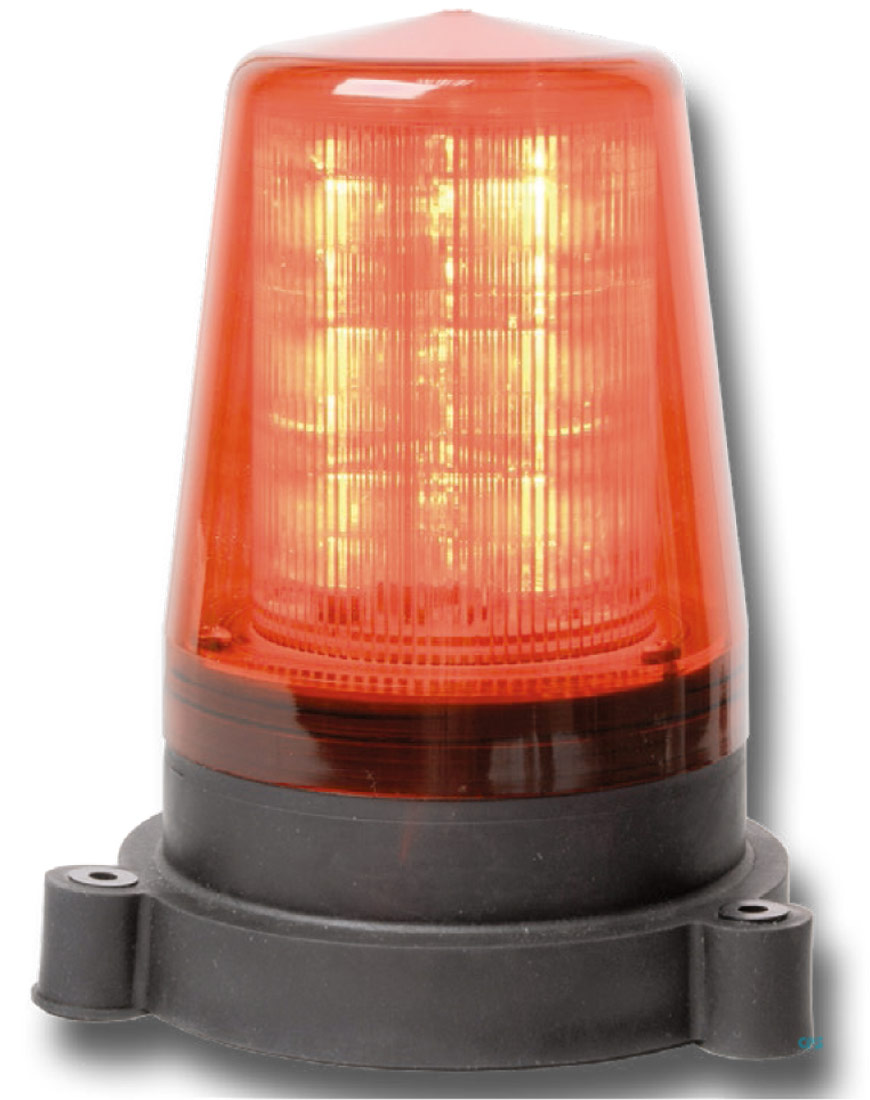

Signalling Light BLG LED
Compact signalling light in LED technology with solid rubber housing for vibration-proof mounting
Optical signalling is often required for warning or notifying purposes in areas exposed to vibrations. This is the case e.g. on machines, vehicles, crane installations etc. The BLG LED Signalling Light is activated by connecting the supply voltage. It is available with different cap colours. The BLG LED has a solid rubber housing providing an ingress protection of IP 67. This makes it suitable for both indoor and outdoor applications. The LED is provided with the requested cap colour.
Features
- Modern LED technology
- Long lifetime
- Vibration-proof housing
- Protection degree IP 67
- Protection class II
- Continous, blinking, rotating or flashing light mode selectable by jumper/DIP switch settings
- Flexible use due to different modes
Specifications
- Housing Elastic TPF, cap polycarbonate
- Colour Black
- Ingress protection IP 67 according to EN 60529
- Protection class II (no external equipotential bonding required)
- Cable glands 6-8 mm, rubber sealed without strain relief
- Connection terminals 1.5 mm² fine-wire
- Operating conditions Indoors and outdoors
- Operating position Cable entry facing downward
- Operation mode Continuous operation
- Temperature range
- Operation -40 °C to +50 °C
- Storage -40 °C to +70 °C
- Weight Approx. 0.45 kg
| Part-No. | FHF22151302 |
| Housing material | Plastic |
| Mounting method | Surface mounting |
| Degree of protection (IP) | IP67 |
| Nominal Voltage | 24 V |
| Type of current | DC |
| Voltage range | 12 up to 26 |
| Power | 20 W |
| Lamp | LED |
| Lamp holder | Other |
| Voltage range | 12 up to 26 V |
| weight Kg | 0.70 |
Note on availability:
Many products are custom made by FHF due to their complexity.
The delivery time can vary. We try to provide the fastest and smoothest transaction for our customers.
The showed delivery time is only a rough estimation. Thank you very much for your understanding!
