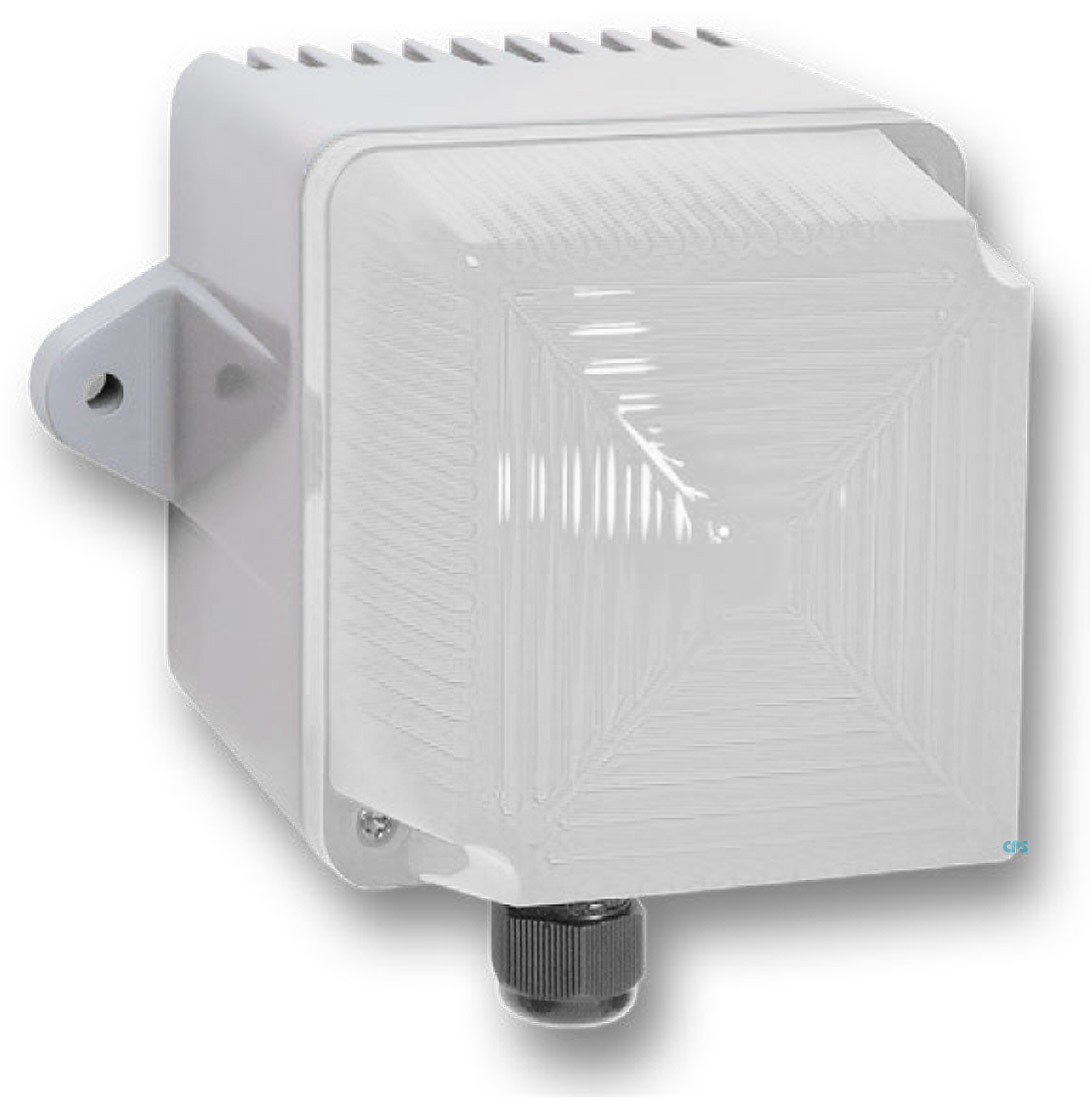

FHF LED-Signal light BLK Super LED 230 VAC 2000 lm clear NEW
NEW Item
Manufacturer Part Number: 22164701
Signalling Light BLK Super LED
Very light-intense optical signalling device for indoor and outdoor application
Optical signalling is often required for warning or notifying purposes in particularly noisy areas. The BLK Super LED provides clearly visible signals even under intense extraneous light conditions. The sturdy housing of ingress protection IP 65 is suitable for both indoor and outdoor applications. The signalling light is available in 5 different colours. The die-cast aluminium housing is coated with weatherproof varnish and comprises a cooling element and a pressure compensation valve to prevent the formation of condensation water. The ribbed cap on top of the signalling light is made of impact-resistant plexiglass. The signalling device is equipped with a M20 cable gland for cable diameters of 8-12 mm. It can be operated in 3 different operation modes (continuous, blinking and strobe light) and with 3 different light intensities (800 lm, 1200 or 2000 lm).
Features
- Ingress protection IP 65
- Compensation valve to prevent condensation water
- Robust aluminium housing
- Very bright LED technology
- Long lifecycle
- 3 different operating modes (continuous, blinking or strobe light)
- 3 different light intensities adjustable (800 lm, 1200 lm, 2000 lm)
Specifications
- Housing Seawater-resistant aluminium, weatherproof varnish with pressure compensation valve
- Housing colour Light grey
- Cap Plexiglass
- Cap colour Transparent, red, amber, green, blue
- Ingress protection IP 65 according to IEC 60529
- Protection class I
- Cable glands 1x M20 for cables 8-12 mm (second cable gland is retrofittable)
- Connection terminals Terminal capacity:
- 2.5 mm2 single-wire
- 1.5 mm2 fine-wire
- Operating conditions Indoors and outdoors
- Operating position Any (preferably with cable entry facing downward)
- Operating modes Blinking light, strobe light, continuous light Operating mode and light intensityselectable with rotary switch
- Weight Approx. 1.4 kg
