OpenScape Desk Phone CP400 HFA L30250-F600-C427
NEW Item
Manufacturer Part Number: L30250-F600-C427
Flashed on the latest HFA firmware!
Key module must be ordered separately.
Alternative: Available immediately: OpenScape Desk Phone CP600 HFA L30250-F600-C428 New In original packaging

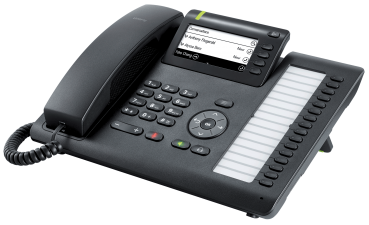

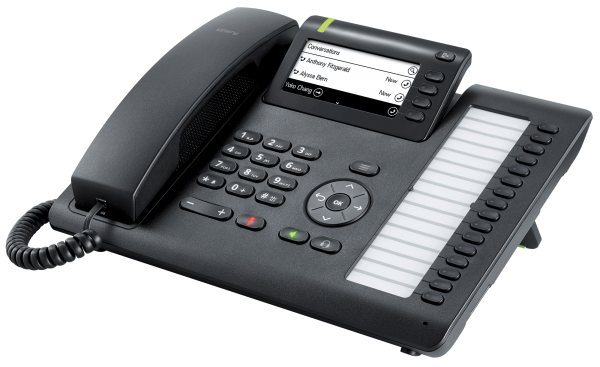

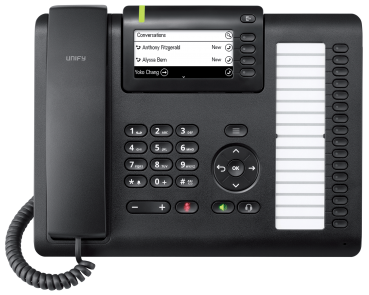

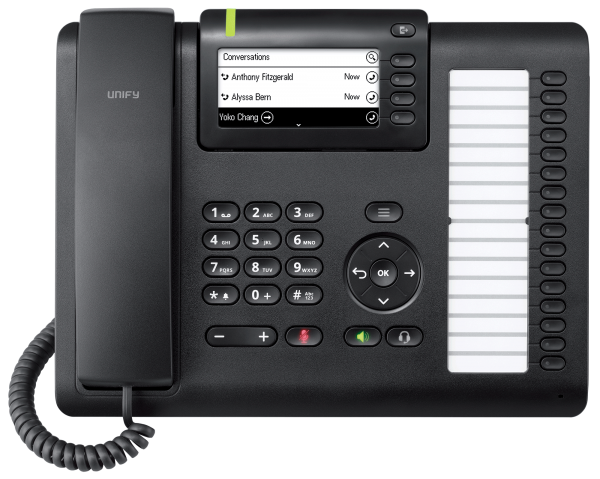

OpenScape Desk Phone CP400 HFA, 4-line b/w display
The larger display and individual settings make this telephone the ideal solution for office workstations and teams.
The CP400 is the midrange phone for the budget-conscious, professional user. Even the basic unit has 16 programmable function keys with tri-colored status indicator. It can be expanded with up to two Key Modules KM400 with 16 function keys. The paper label reduces the cost and meets customers request for many programmable keys. The power saving design allows the connection of two key modules within the PoEClass 2.
- Tilt able graphical display, 3,7" (240*120 pixel), monochrome
- LED backlight (white)
- Notification LED, Signaling LED (red/green/orange)
- 4 context sensitive soft keys with LED
- 2 fixed feature keys (Menu/Out-of-office)
- 16 free programmable feature keys with LED
- 4-way navigator, plus OK-key
- 3 audio keys (Mute/Speaker/Headset) with LED
- Volume control +/-
- Open listening / Handsfree talking (Full-duplex)
- Headset port (DHSG/EHS)
- 10/100/1000 Base-T Ethernet Switch
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.3af Power over Ethernet, class 2

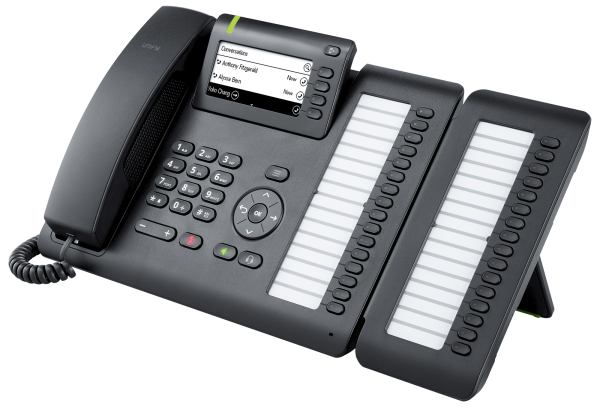

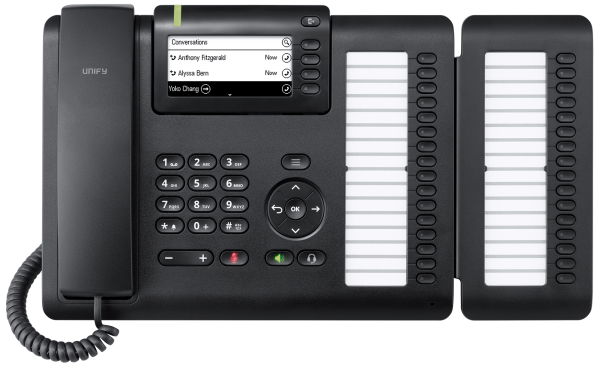

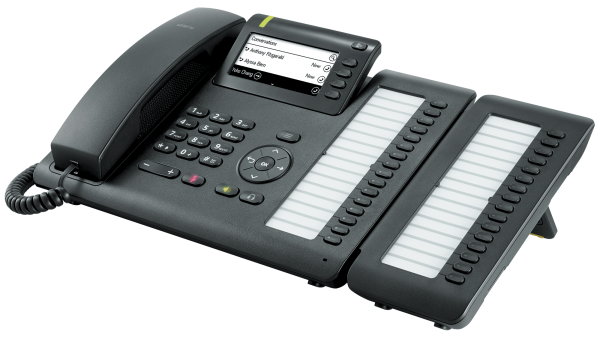

- Key Module KM400 optional

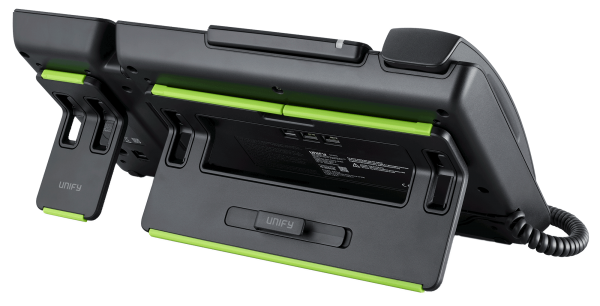

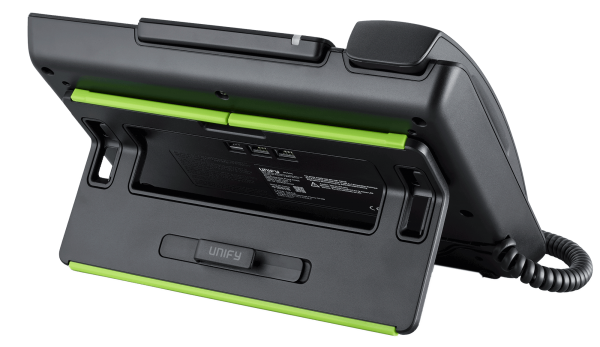

- Pedestal, two different set-up angles
The OpenScape Desk Phone CP family offers three sophisticated, compact and easy-toadminister devices that fulfill various users' diverse needs.
Intuitive, space-saving and easy
The ergonomically-designed, userfriendly, low-cost devices in the OpenScape Desk Phone CP telephone family are equipped with a wide variety of functions. They are easy and comfortable to operate without making any compromises in the crystalclear HD audio quality and performance.
Interoperability
The OpenScape Desk Phone CP family provides interoperability between the office telephone and other devices via Bluetooth®, incl. Bluetooth LE Beacon with support from Eddystone™. NFC (Near Field Communication) and Circuit make these telephones a high-performance communication center. The devices in the OpenScape Desk Phone CP family can be integrated easily into legacy-based IT/IP infrastructures. Each telephone has an integrated Ethernet switch and can be supplied with power via Ethernet. The Desk Phone CP400 and CP600 telephones are also equipped for Energy Efficient Ethernet, which can significantly reduce their average energy consumption.
Acoustics
The OpenScape Desk Phone CP telephone family incorporates the latest developments in leading edge acoustics to ensure delivery of the very best voice quality on the handset and handsfree operation. All models feature a high-quality speakerphone. And every model can be connected to professional headsets.
The OpenScape Desk Phone CP product family offers the industry's leading HD voice transmission AudioPresence HD. AudioPresence HD ensures that the users of these telephones can get an immersive audio experience for voice calls and audio conferences. AudioPresence HD is provided for the entire portfolio of the OpenScape Desk Phone CP product family. AudioPresence HD leverages the standards-based G.722 high-definition audio codec, best-in-class speaker, microphone and acoustic components, as well as state-ofthe-art noise suppression and echo cancellation in all OpenStage Desk Phone CP models.
New, state-of-the-art user interface
The colorful user interface of the Desk Phone CP600 is clearly designed and therefore easy and intuitive to operate when calling. All necessary information and functions are easy to find.
Circuit integration
Unify is the first company to offer integration between the OpenScape Desk Phone CP400/CP600 devices and Circuit collaboration software. This offers Unify customers a feature-rich set of possibilities for working together as a team.
Operating system
- HFA software is pre-installed
- Plug & Play / automatic software provision via DLS
Communication platform, The OpenScape Desk Phone CP product family supports HFA signaling.
The OpenScape Desk Phone CP product family supports SIP signaling (Session Initiation Protocol) and also the CorNet-IP / HFA-protocol.
The following communications platforms are supported:
SIP
- from OpenScape Voice V7 R1
- from OpenScape 4000 V8
HFA
CP200/CP205
- from OpenScape Business V2 R2
- from OpenScape 4000 V8
CP400/600
- from OpenScape Business V2R3
- from OpenScape 4000 V8R1
