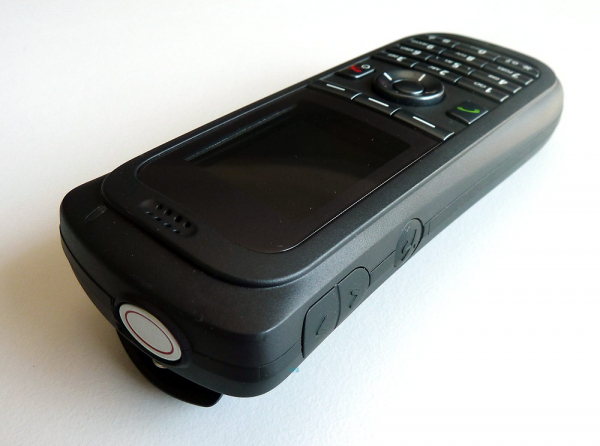

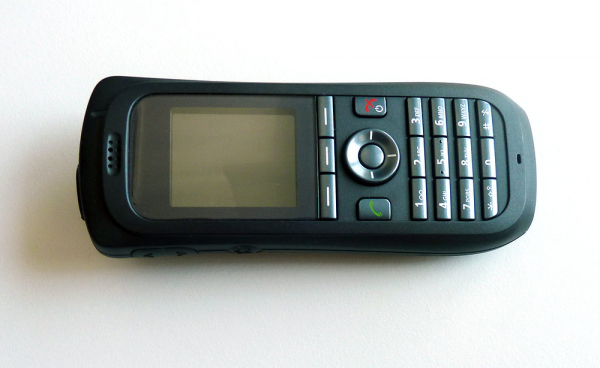

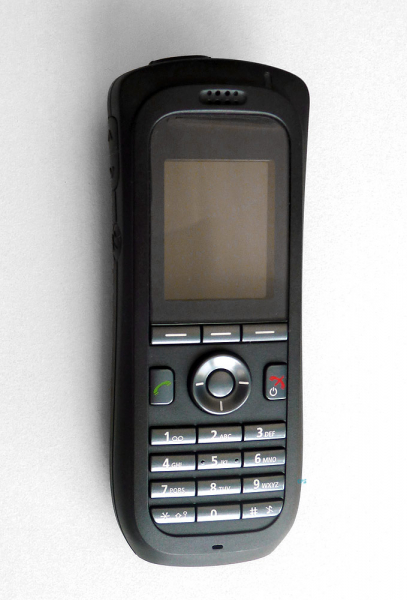

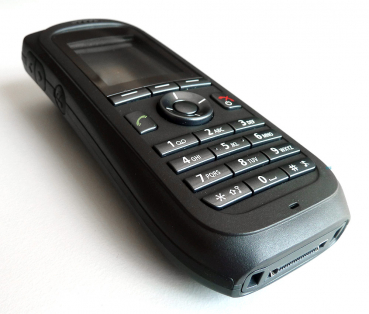

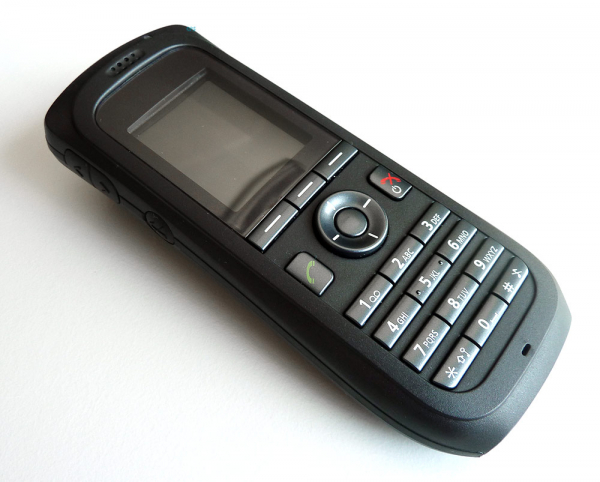

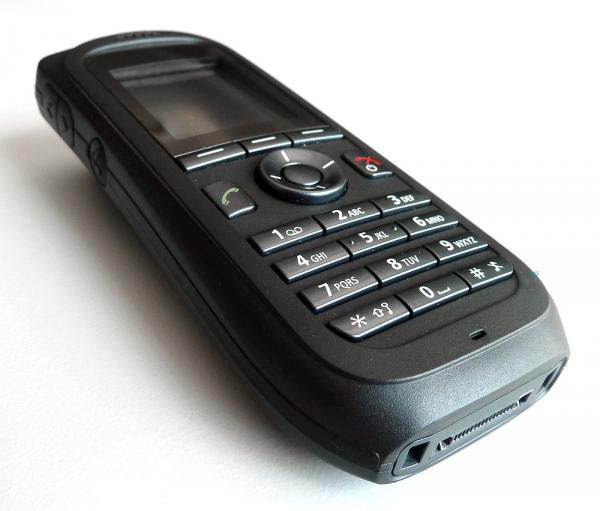

OpenStage WL3 WLAN phone L30250-F600-C310
Refurbished
Manufacturer Part Number: L30250-F600-C310
without Akku, battery, must be ordered separately: OpenStage WL3 original Akku standard battery L30250-F600-C325 660190
without charger
without programmer
Configuration options
- Local telephone configuration and software update via Desktop Programmer and tool running on a PC, connection between PC and Desktop Programmer via USB
- Over the air configuration via Wireless Service Gateway (WSG)
OpenStage WL3
OpenStage WL3 is our entry-level VoWLAN telephony device. To expand its capabilities, a message license can be applied to benefit from the advanced messaging functionality.
User interface
• Display: TFT display with multiple colors with high resolution, more than 65,000 colors. 176 × 220 pixel LCD with white LED backlighting
• Indicator: LED on top/front for visual indication of events and normal function. The LED may also be used for visual indication of a message.
• Silent alarm (vibration)
• Buttons/keypad:
– 12 dial keys (3x4): 0 – 9, # and *
– 3 soft keys for dynamic feature access
– off-hook key
– on-hook and power on/off on the same key
– five-way navigation key
– sound-off side key
– volume up/down side key
– multifunction button at the top
– 10 hot keys (0, 2 – 9) for fast feature access
Audio
• Ring signal: Adjustable in 8 steps and silent
• Loudspeaker function
• Hearing aid compatible (HAC)
Languages
Multi-language user interface in 18 languages, those are: Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese (Brazilian), Russian, Slovak, Spanish, Swedish and Turkish + 1 customizable.
Phonebook options
• Local phonebook: maximum 200 entries, selectable ring tones per contact
• Company phonebook: maximum 1,000 entries
• Central phonebook: access to LDAP (system-dependent)
Telephony
• Indication: 14 ring signals, flashing LED and vibrator
• Call list storage capacity: 25 calls (received, dialed and missed) with time stamp
• Voice codecs: G.711 A-law (EU), G.711 µ-law (US), G.729, G.729A, G.722
• SIP registration to a SIP proxy/registrar
Messaging
This feature is available for OpenStage WL3 including a messaging license and comes standard with the OpenStage WL3 Plus.
• Maximum message length from OpenStage WL3: 160 characters
• Storage capacity: 30 messages received/sent
Alarm
This feature is available for OpenStage WL3 Plus.
• Alarm types: 2 push button alarms
• Man-down and No-movement alarm
• Acoustic location signal at alarm
• Automatic call after alarm
Protocols
• TCP/IP
• IP addressing: DHCP, fixed
• Configurable DSCP
• DNS support (primary/secondary)
• SIP/RTP
• UDP
• SRTP/TLS (SDES RFC4568)
• SNMP
WLAN
• Number of networks: 4 systems, auto selection and manual selection
• Quality of Service (QoS): WMM, TSPECbased CAC
• Supported networks: 802.11 a/b/g/n (MCS0-7, 20 MHz, GI = 800ns)
WLAN security
• Security standard: 802.11i
• Encryption methods: 64/128 bits WEP, TKIP, AES-CCMP
• Authentication methods: 802.1X Original 802.11 open/shared key authentication
– WPA-PSK
– WPA2-PSK
– PEAP-MSCHAPv2
– EAP-TLS
– EAP-FAST
WLAN roaming enhancement
• Pre-authentication
• Opportunistic key caching
• PMKSA caching
• CCKM
Environmental
• Operating temperature: -5 °C to +45 °C (+23 °F to +113 °F)
• Storage temperature: -25 °C to +55 °C (-13 °F to +131 °F)
• Charging temperature: ≥5 °C (≥41 °F)
Enclosure protection: IP44, IEC EN 60529
Additional features
• Time and date indication
• Customized GUI
• Profiles to quick change of WLAN settings
• Easy replaceable battery
• Name display in call list
• Clear lists in charger
• Manual and automatic keypad lock
• Integrated site survey tool
Configuration options
• Local telephone configuration and software update via Desktop Programmer and tool running on a PC, connection between PC and Desktop Programmer via USB
• Over the air configuration via Wireless Service Gateway (WSG)
OpenStage WL3 telephones were tested on the following platforms:
• HiPath 3000 (from V9)
• HiPath 4000 (from V6)
• OpenScape Office (from V3)
• OpenScape Voice (from V6)
OpenStage WL3 telephones communicate to all of these platforms via SIP. OpenStage WL3 telephones are designed for enterprises that deploy WLAN and IP infrastructure and HiPath/OpenScape communication systems or other SIP-based communication systems.
