Symon RMG Networks SDA930 PC Media Player Refurbished
Refurbished
Herstellernummer: SDA930
Expand your visual communication experience with the powerful Symon SDA-930
For high-definition, high-impact content, choose the Symon SDA-930 for your visual communications network. Like other Symon media players, the SDA-930 integrates seamlessly with the Design Studio™ suite and Symon’s content management system to provide a worry-free and robust user experience
Power and performance in a cost-effective package
With the Symon SDA-930, you can deliver unique content to up to three independent screens simultaneously. Drive content to the screens in a variety of video, graphical and audio formats, including WMV, MOV (h.264), VC1, MPEG 1, 2, 4, PNG, JPG, GIF, and SWF. And, if you plan to integrate a live TV feed, the SDA-930 can handle that as well.
No Ethernet connection available? No problem. The SDA-930 enables you to connect wirelessly. And with the SDA-930’s power-saver features, it’s an energy-efficient application, too
Ideal applications:
- Employee Communications
- Contact Centers
- Hotels, Resorts, Casinos
- Higher Education Campuses
- Supply Chain Facilities
Technical Specifications
• Scheduled power-save option
• Browser-based administration of the SDA
• Snapshot view of remote broadcasts
• Cinematic and standard transitions
• Scrolling and crawling text
• Remotely upgradable software
• Data-triggered content playback
• Automatic reboot recovery
• Proof-of-play reporting
• Event logging
• Portrait and landscape display mode
• Enhanced security via HTTPS and FTPES
• SNMP traps for monitoring
Video and Graphics
• Supports up to three discrete displays
• Playback of HD digital video files
• (720 HD or 1080p HD)
• Media streaming (MMS and RTSP protocols)
• Live TV (NTSC or PAL)
• MPEG video decoding (1, 2, 4)
• Media streaming (MMS and RTSP protocols)
• Includes support for WMV (VC-1), MOV (h.264), F4V, PNG, JPG, GIF and SWF file formats

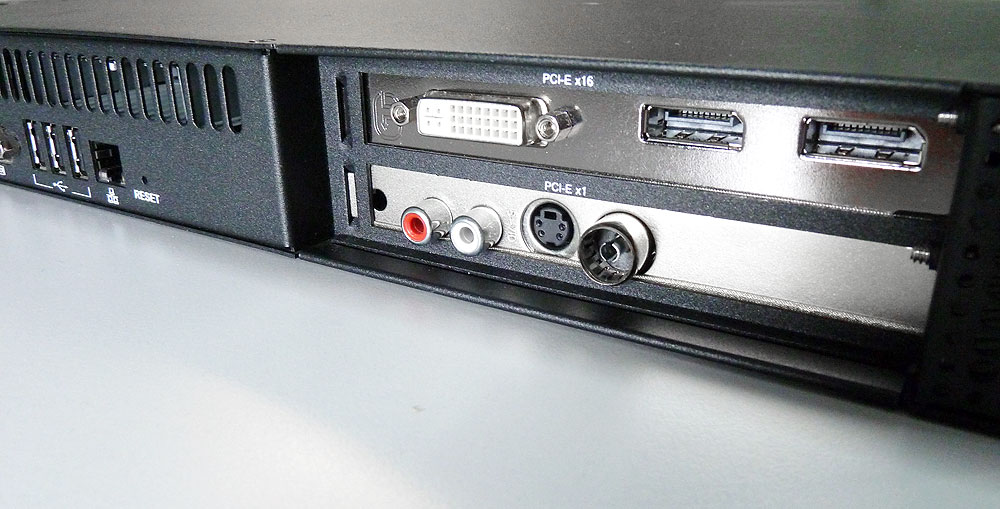

• Output options include one DVI-I and two display ports
Audio
• Mono, stereo, MPEG, MP3, AAC and AC3
Industry-standard output resolution supported, including the most popular resolutions today
• 4:3 Aspect: 640x480, 800x600, 1024x768
• 4:3 Aspect: 1280x960, 1280x1024
• 16:9 Aspect: 1280x720 (720p HD)
• 16:9 Aspect: 1366x768
• 16:9 Aspect: 1920x1080 (1080p HD)
• 16:10 Aspect: 1920x1200
Architecture
• Integrated wireless 802.11 a, b, g, n networking with MIMO
• IP addressable, ethernet port 10/100/1000Mbit
• OS: Windows® Embedded Standard 7
• Dimensions: o Weight: approximately 10 lbs. 2 oz. o Height: 1.75” o Width: 15” o Depth: 12.75”
• Power usage: o AC input voltage: 100-240 VAC o AC input frequency: 60 Hz o Amps: 5.3 amps
