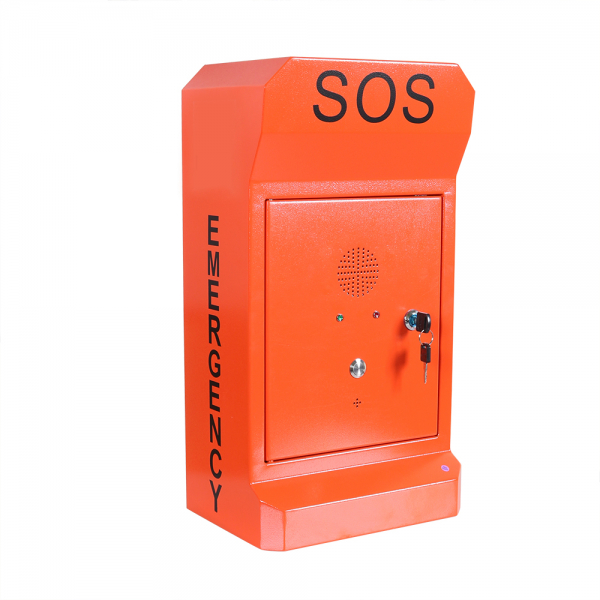

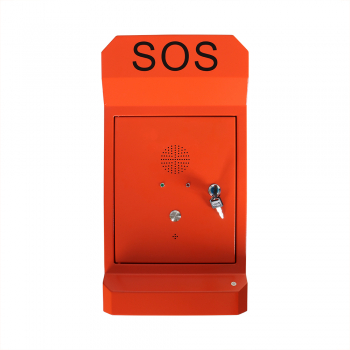

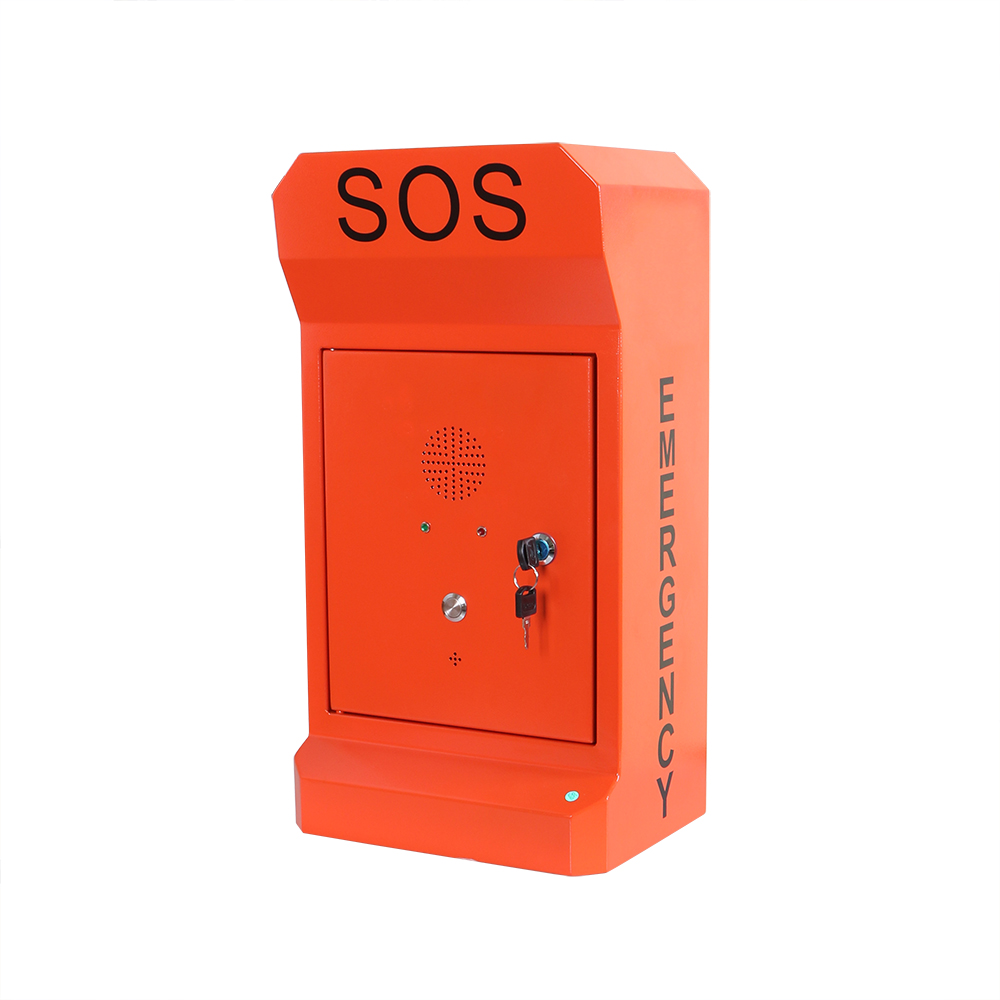

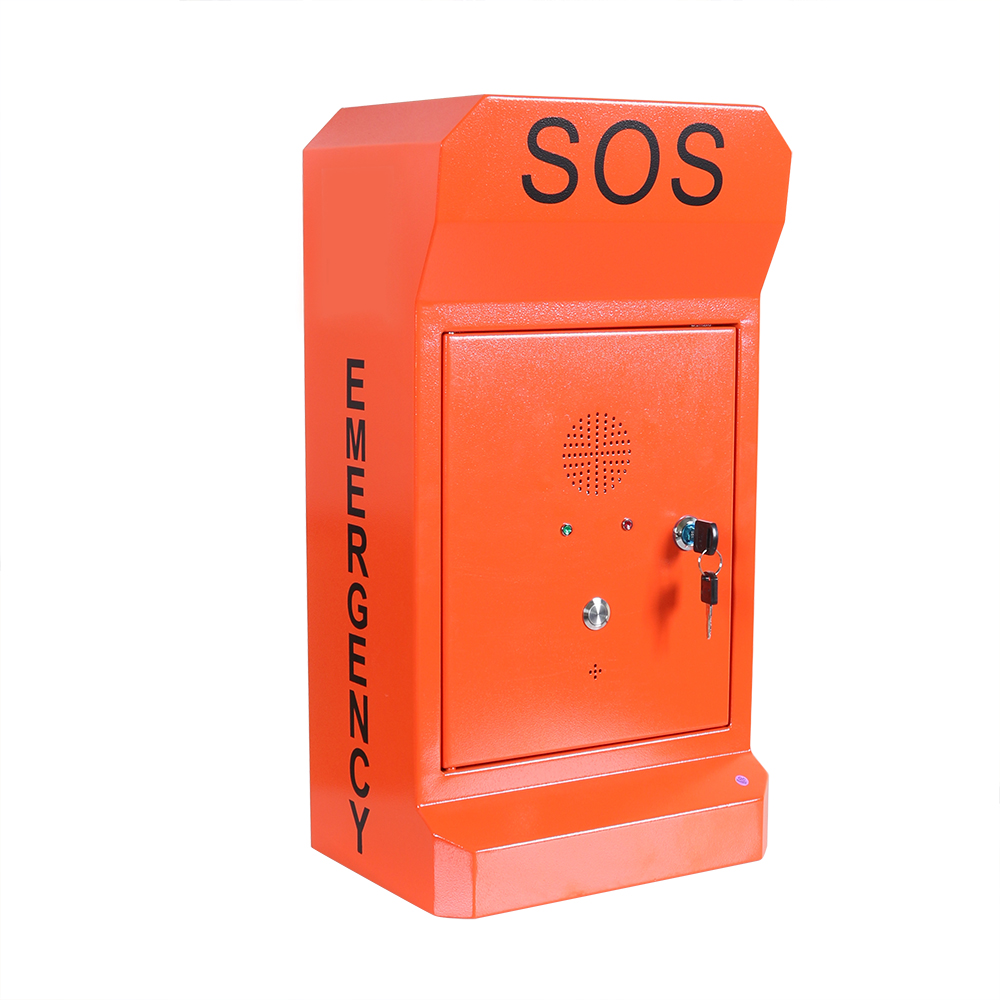

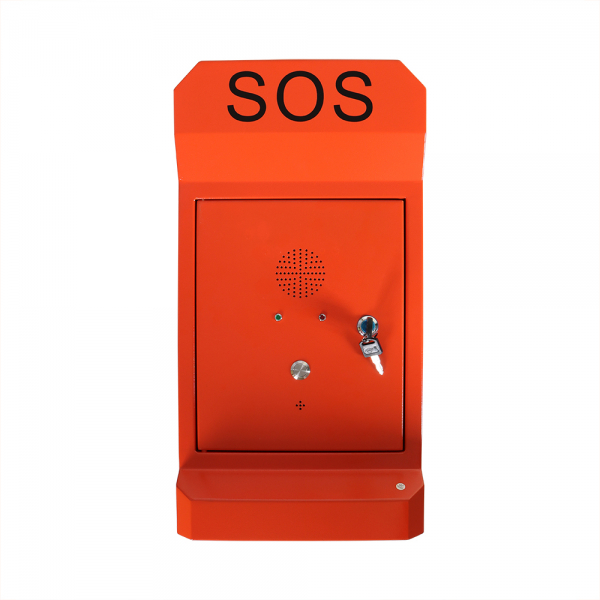

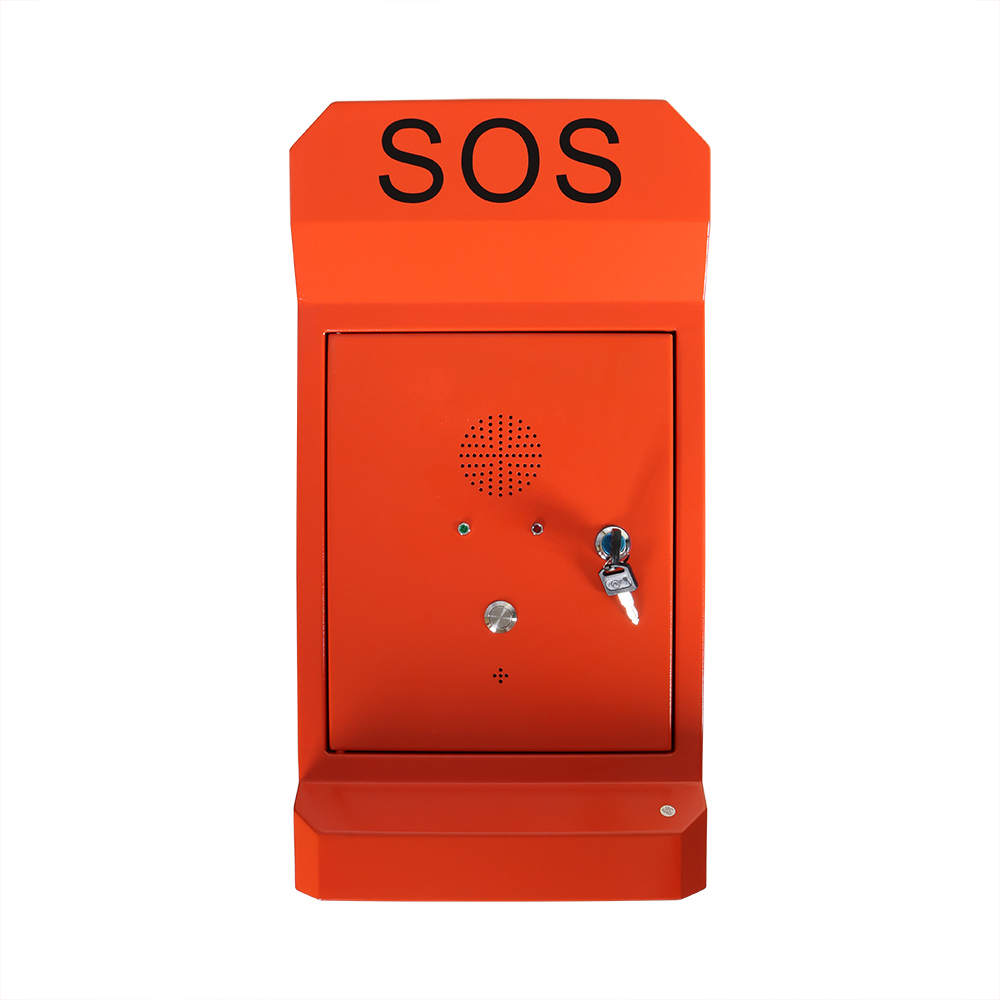

J&R JR330-SC-4G Emergency Telephone, 1 Button, Autodial-Phone, Security Locker, Orange
NEW Item
Manufacturer Part Number: JR330-SC-4G
Autodial-Phone

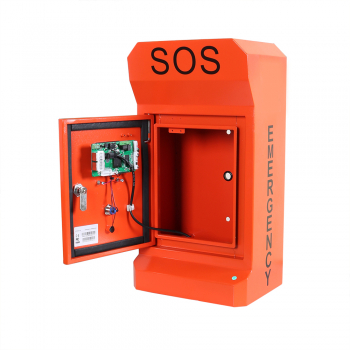

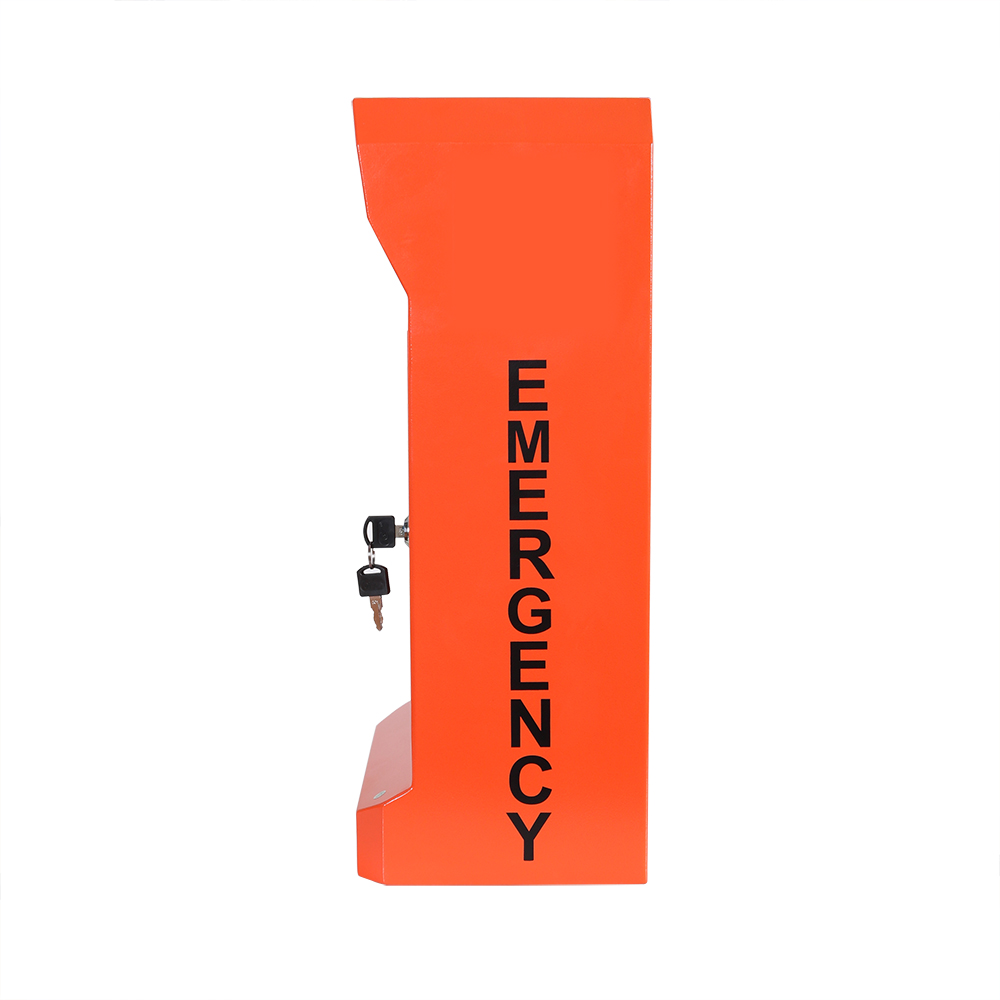

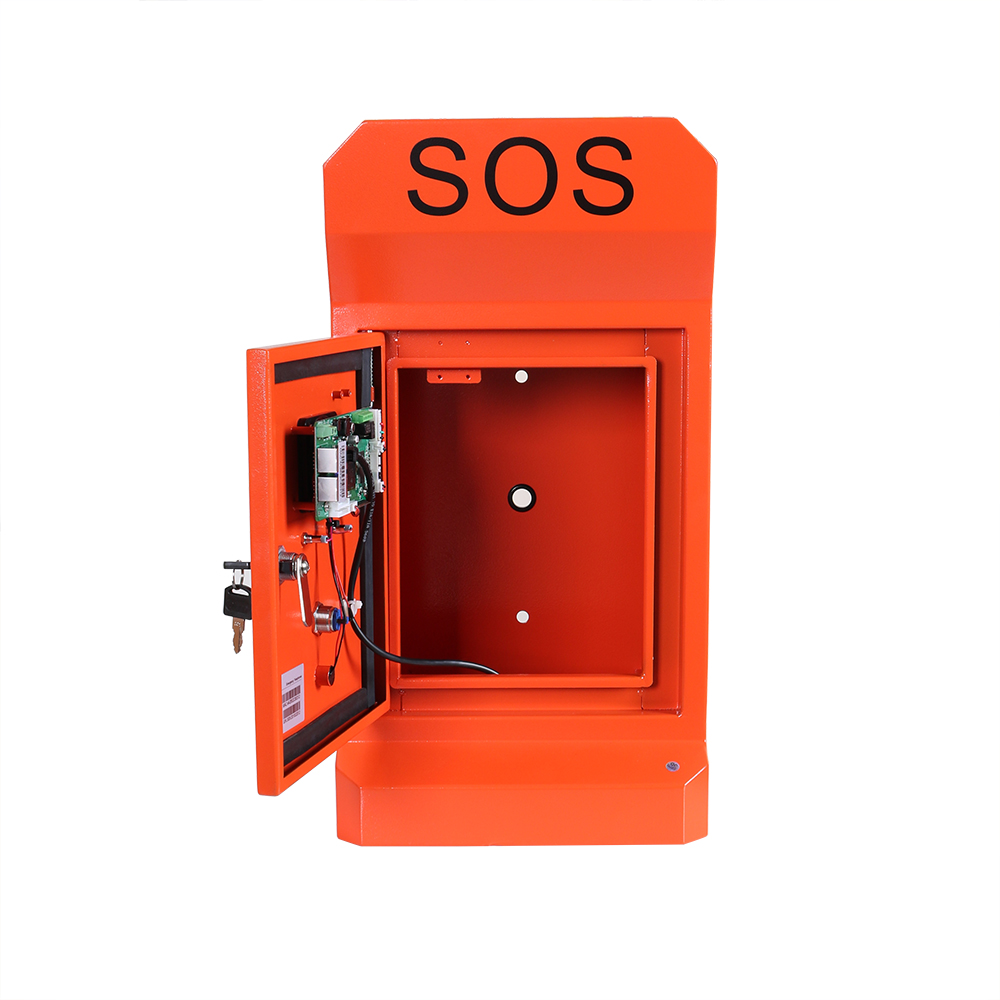

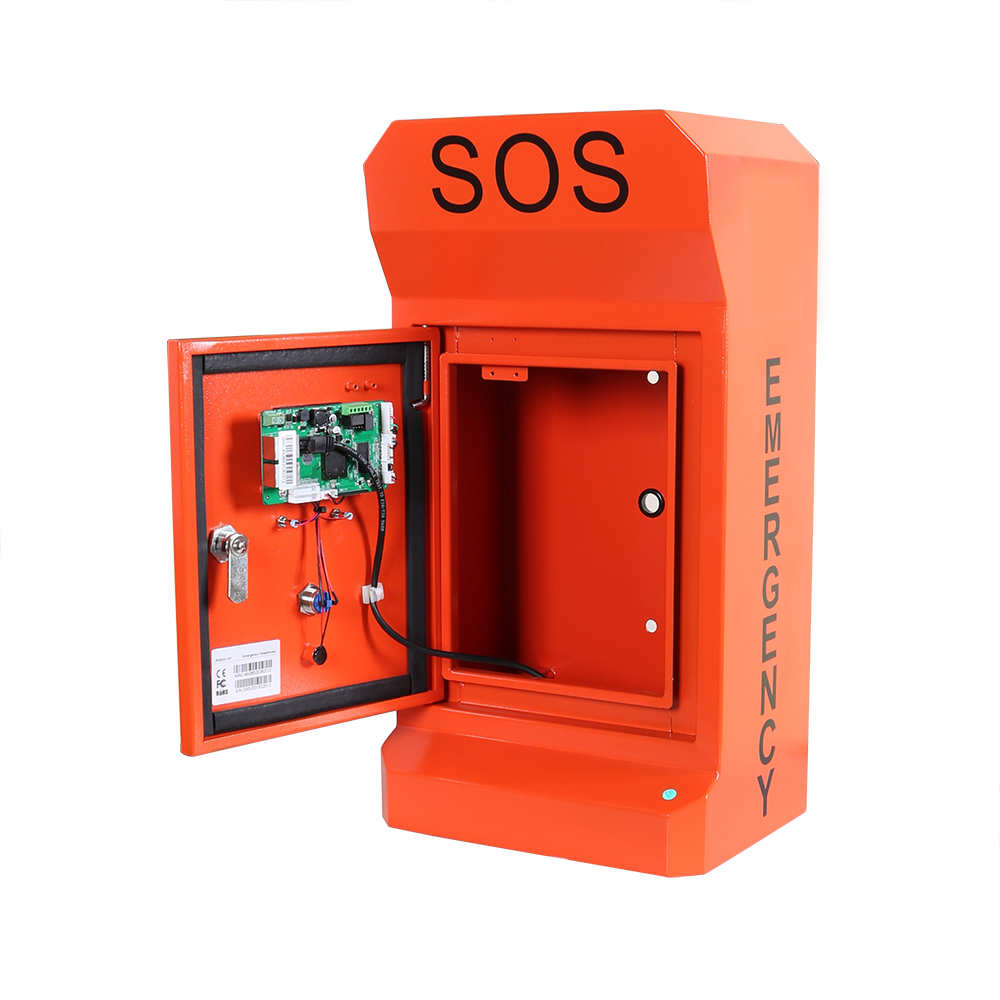

Emergency Telephone, 1 Button, Wall Mounting, with lock key for open the door, Orange color(other colour on demand) Unit size: 530 *280*197(mm)
Housed in a anti-vandal CRS enclosure, wall –mounting or post mounting
Robust and Vandal-Resistant 4G Telephone
- Standard 4G phone
- External antenna with long cable
- With LED status indicator
- Robust housing, made of cold-rolled steel
- Vandal-resistant single button, programmable for speed dial
- Hands-free operation
- Wall-mounted, simple installation
- Weatherproof protection: IP55 (IP65 available on request)
- Power supply: 12V DC
- Tamper-proof screws: 4 included in the package
- Compliance: CE, FCC, IK10, RoHS, ISO9001
The wireless hands-free telephone is specifically designed for environments prone to vandalism. It is ideal for parking lots, elevators, hotels, doorways, railway/metro platforms, hospitals, police stations, ATMs, stadiums, and outdoor building areas.
The cold-rolled steel housing is manufactured to high standards, providing enhanced resistance to vandalism, ensuring that the primary communication function remains operational at all times. The 4G connection enables wireless communication, creating a completely standalone telephone installation. By eliminating the need for cabling, it significantly reduces installation costs. The quad-band 4G module ensures wireless coverage in most regions worldwide.

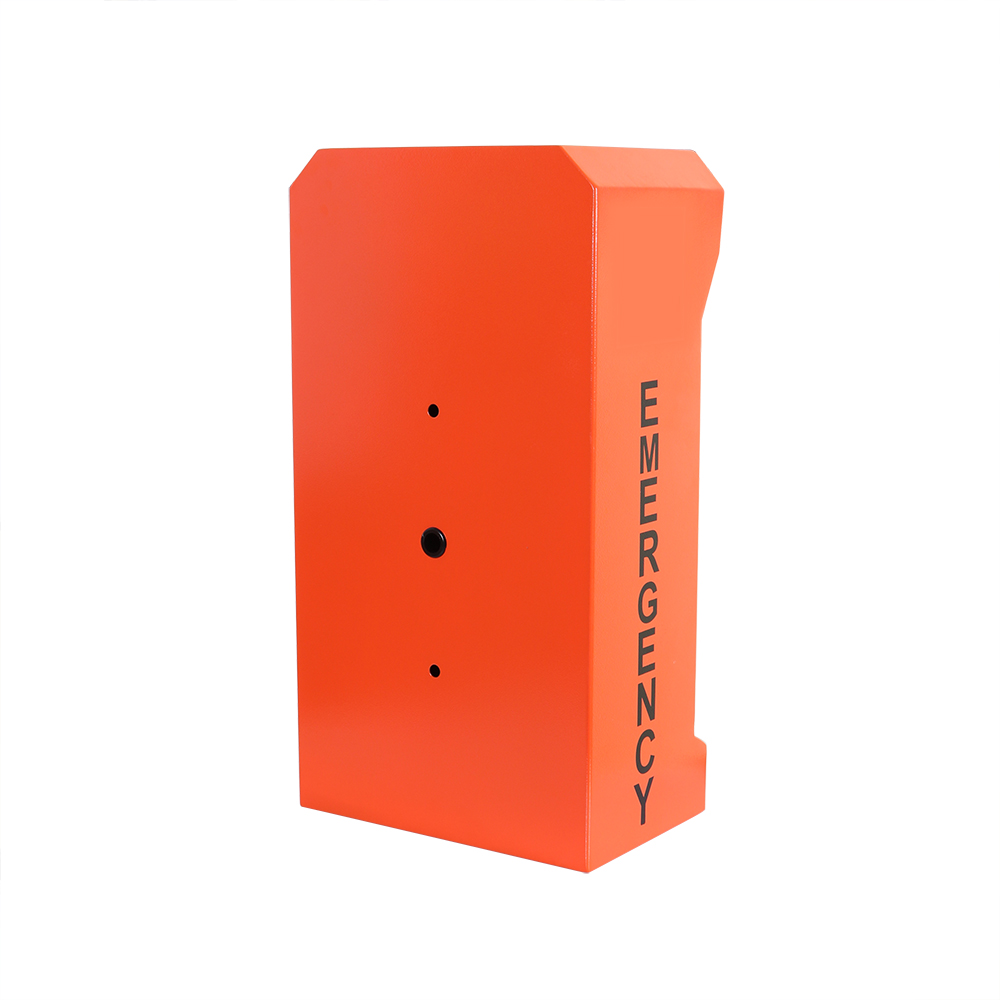

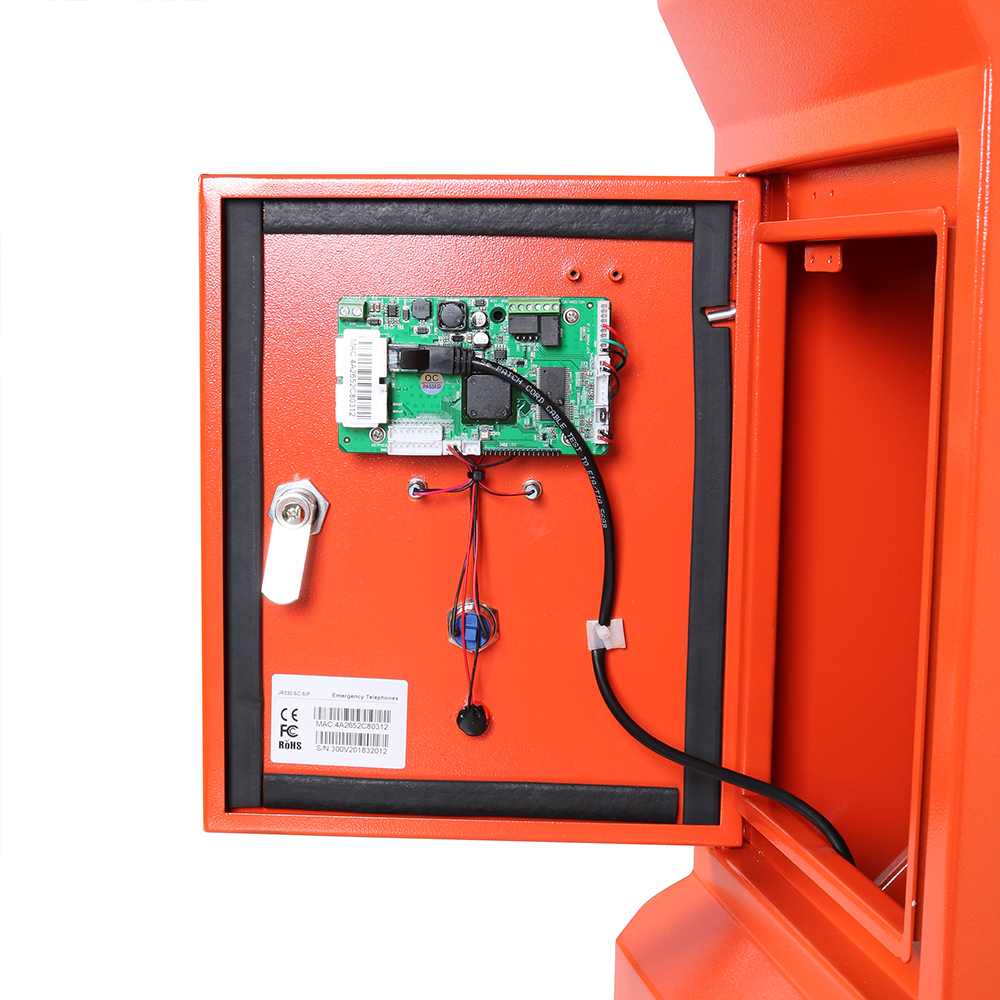

Installation is extremely easy: The cable entry is located at the back of the phone to prevent tampering or damage.
4G Telephone – Technical Specifications
- Power supply: AC adapter: 110–240V AC to DC 12V, 1.5A
- Module (depends on country and operator): EC25-E, EC25-J, EC25-A, EC25-AFX, EC25-MX, EC25-AU
- Remote programming: Auto-dial numbers and time-out settings can be programmed
- Configuration: Programmable via SMS
- Remote monitoring: Health checks and fault reporting via SMS
4G Technical Specifications
- SIM card: Micro SIM (15 x 12 mm)
- Working frequency range: Depends on the module
- Adapter input: 9V–12V DC
- Power consumption: Idle: 75 mA; Off-hook: 160 mA
General Technical Specifications
- Casing material: Cold-rolled steel
- Button material: Stainless steel button
- Microphone: Electret microphone
- Built-in speaker: 8 Ohm, 0.5 W
- Temperature ranges:
- Operating: -30 °C to +65 °C
- Storing: -40 °C to +75 °C
- Weather resistance: IP55 (IP65 available on request)
- Ringing tone: Shrill warble tone, 90 dBA @ 1 meter typical
- M.T.B.F.: Calculated mean time between failures: over 50,000 hours
Package Details
- Unit size: 530 x 280 x 200 mm
- Net weight: 8.5 kg
- Gross weight: 9.5 kg
