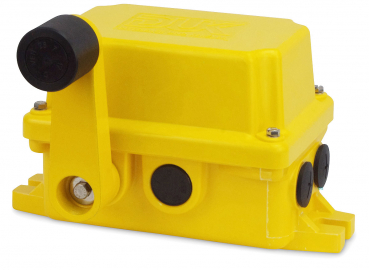

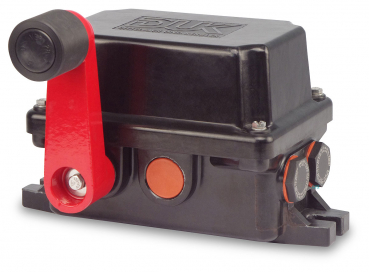

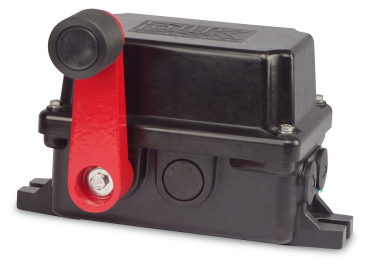

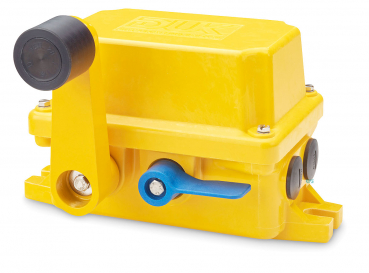

DUK Lever Limit Switch
Lever Limit Switches are for cutting off on limit positions or for signalling at reached positions of linear or swivelling movements. The actuation lever of these switches is pressed by an internal spring into its middle, neutral position. This actuation lever can be displaced by an actuation bar or cam clockwise as well as anticlockwise out of neutral position. When displaced, the tripping of the contacts happens with snap-action and with direct opening (positive drive). When leaving the area of cam or actuation bar, the lever will turn back into its neutral position by the force of the internal spring and resetting happens with snap action. Optional is the latching in actuated position for manual reset.
1 to 14 (from a total of 14)
